Sayfa 0-84 - Isuzu EPC

0-84 — FEED PUMP; INJECTION PUMP (#4722) — 270 parça

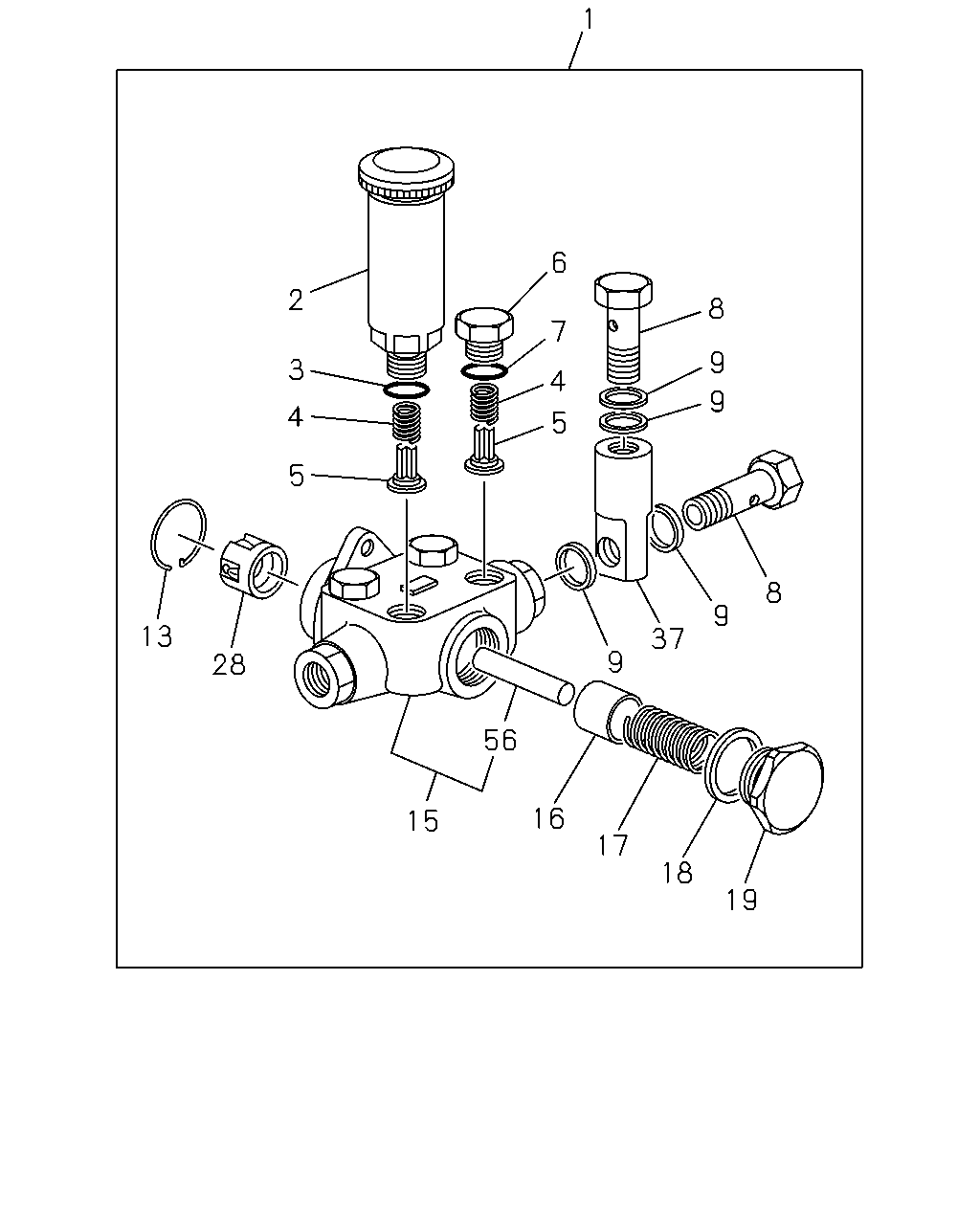

1 6 2 8 7 9 3 4 9 4 5 5 8 9 13 37 9 28 56 16 5 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15603-123-2	1-15750-147-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-068-5, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1	1-15750-151-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 1-15603-265-5	1-15750-152-0	01	1	-0511
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: P = 1-15603-240-5	1-15750-152-0	01	1	-0002
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: R = 1-15603-290-6	1-15750-152-0	01	1	-0410
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2	1-15750-161-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 1-15603-114-4	1-15750-167-1	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 1-15603-209-1	1-15750-171-0	01	1	-0006
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15750-173-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 1-15603-370-1	1-15750-177-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 1-15603-209-1	1-15750-177-0	01	1	0007-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: P = 1-15603-240-5	1-15750-190-0	01	1	0003-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: R = 1-15603-290-6	1-15750-190-0	01	1	0411-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 1-15603-265-5	1-15750-190-0	01	1	0512-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15755-002-0	04	1	0512-
5	VALVE; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15755-002-0	04	1	0003-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, O = 1-15603-209-1, R = 1-15603-290-6, S = 1-15603-370-1	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	9-81351-602-0	04	1	-0410
5	VALVE; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	9-81351-602-0	04	1	-0511
5	VALVE; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	9-81351-602-0	04	1	-0002
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15759-009-0	03	1	0007-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, S = 1-15603-370-1	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-009-0	02	1	-0202
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-066-0	02	1	0203-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15759-066-0	03	1	-0006
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15759-066-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-19623-016-0	03	1	0203-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-19623-016-0	03	1	-0006
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	9-81355-031-0	03	1	0007-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	9-81355-031-0	03	1	-0202
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-011-0	02	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	9-81355-062-0	01	1	0007-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81355-062-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15752-001-0	01	1	-0006
16	PISTON; FUEL FEED PUMP ASM PART: S = 1-15603-370-1	1-15752-002-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15752-002-0	01	1	0007-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: J = 1-15603-123-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15753-004-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: J = 1-15603-123-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15754-004-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15754-006-0	01	1	0007-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-15754-006-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15754-007-0	01	1	-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-068-0	01	1	-
56	PUSH ROD ASM PART: O = 1-15603-209-1	1-15759-069-0	01	1	-0006
56	PUSH ROD ASM PART: J = 1-15603-123-2	1-15759-069-0	01	1	-

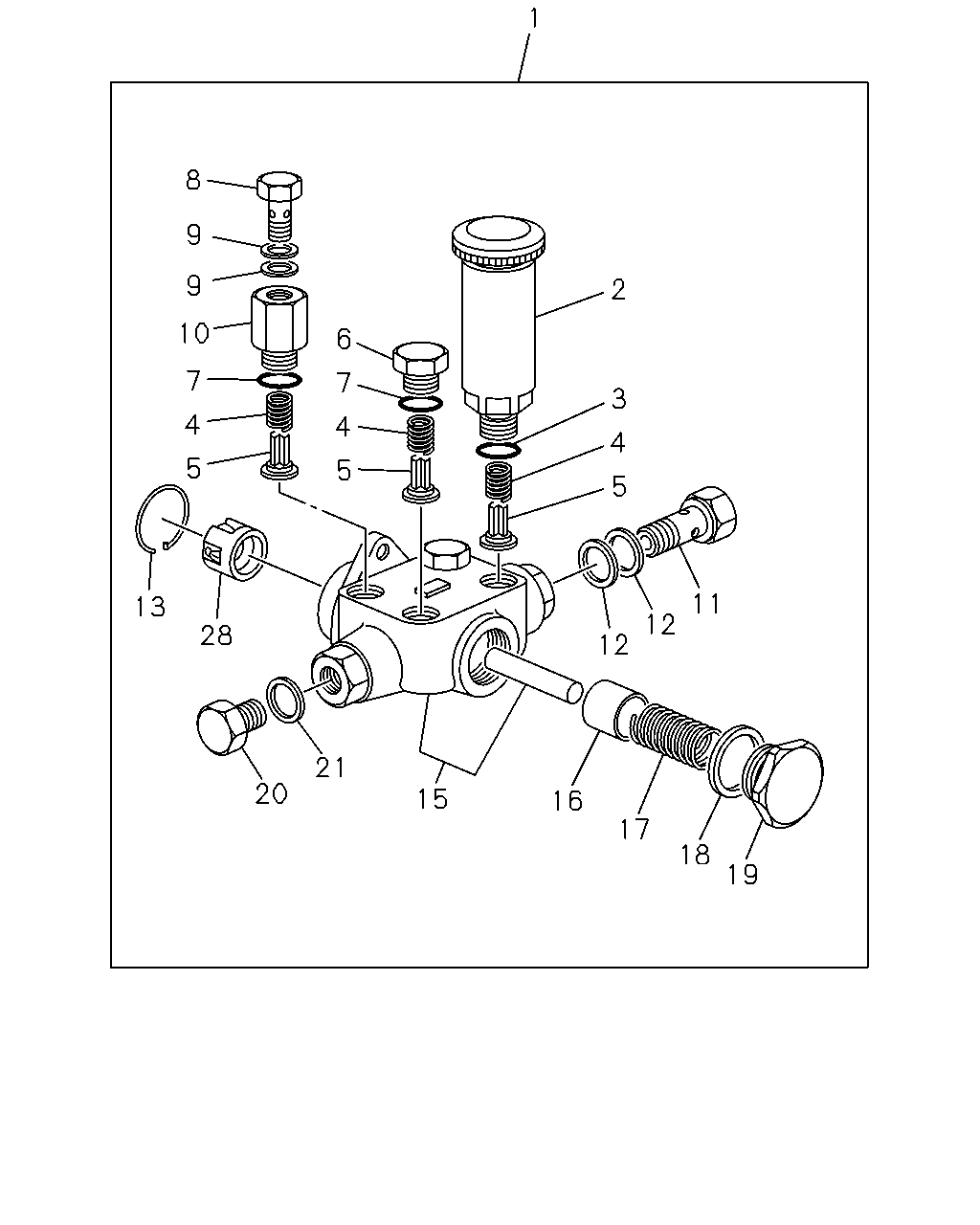

1 8 9 9 2 10 6 7 7 3 4 4 4 5 5 5 11 13 12 28 12 21 20 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15603-123-2	1-15750-147-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-068-5, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1	1-15750-151-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 1-15603-265-5	1-15750-152-0	01	1	-0511
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: P = 1-15603-240-5	1-15750-152-0	01	1	-0002
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: R = 1-15603-290-6	1-15750-152-0	01	1	-0410
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2	1-15750-161-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 1-15603-114-4	1-15750-167-1	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 1-15603-209-1	1-15750-171-0	01	1	-0006
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15750-173-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 1-15603-370-1	1-15750-177-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 1-15603-209-1	1-15750-177-0	01	1	0007-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: P = 1-15603-240-5	1-15750-190-0	01	1	0003-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: R = 1-15603-290-6	1-15750-190-0	01	1	0411-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 1-15603-265-5	1-15750-190-0	01	1	0512-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15755-002-0	04	1	0512-
5	VALVE; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15755-002-0	04	1	0003-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, O = 1-15603-209-1, R = 1-15603-290-6, S = 1-15603-370-1	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	9-81351-602-0	04	1	-0410
5	VALVE; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	9-81351-602-0	04	1	-0511
5	VALVE; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	9-81351-602-0	04	1	-0002
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15759-009-0	03	1	0007-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, S = 1-15603-370-1	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-009-0	02	1	-0202
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-066-0	02	1	0203-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15759-066-0	03	1	-0006
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15759-066-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-19623-016-0	03	1	0203-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-19623-016-0	03	1	-0006
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	9-81355-031-0	03	1	0007-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	9-81355-031-0	03	1	-0202
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-011-0	02	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-052-0	01	1	-0202
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-029-0	01	1	-0511
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-029-0	01	1	-0202
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-029-0	01	1	-0410
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-029-0	01	1	-0002
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: Q = 1-15603-265-5	8-97203-957-0	01	1	0512-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: P = 1-15603-240-5	8-97203-957-0	01	1	0003-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: R = 1-15603-290-6	8-97203-957-0	01	1	0411-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	8-97203-957-0	01	1	0203-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	9-81355-062-0	01	1	0007-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 1-15603-115-2, H = 1-15603-121-2	1-15751-010-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, I = 1-15603-122-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15751-031-0	01	1	-0511
15	HOUSING; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15751-031-0	01	1	-0410
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15751-031-0	01	1	-0002
15	HOUSING; FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15751-034-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15751-034-0	01	1	-0006
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15751-037-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15751-038-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15751-042-0	01	1	0007-
15	HOUSING; FUEL FEED PUMP ASM PART: S = 1-15603-370-1	1-15751-042-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15751-046-0	01	1	0411-
15	HOUSING; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15751-046-0	01	1	0003-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15751-046-0	01	1	0512-
16	PISTON; FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15752-001-0	01	1	-0006
16	PISTON; FUEL FEED PUMP ASM PART: S = 1-15603-370-1	1-15752-002-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15752-002-0	01	1	0007-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: J = 1-15603-123-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15753-004-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: J = 1-15603-123-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-004-0	01	1	-0002
20	PLUG; HSG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-004-0	01	1	-0202
20	PLUG; HSG,FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-004-0	01	1	-0511
20	PLUG; HSG,FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-004-0	01	1	-0410
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-09630-085-0	01	1	-0202
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: P = 1-15603-240-5	1-09630-085-0	01	1	-0002
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: Q = 1-15603-265-5	1-09630-085-0	01	1	-0511
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: R = 1-15603-290-6	1-09630-085-0	01	1	-0410
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15754-004-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15754-006-0	01	1	0007-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-15754-006-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15754-007-0	01	1	-

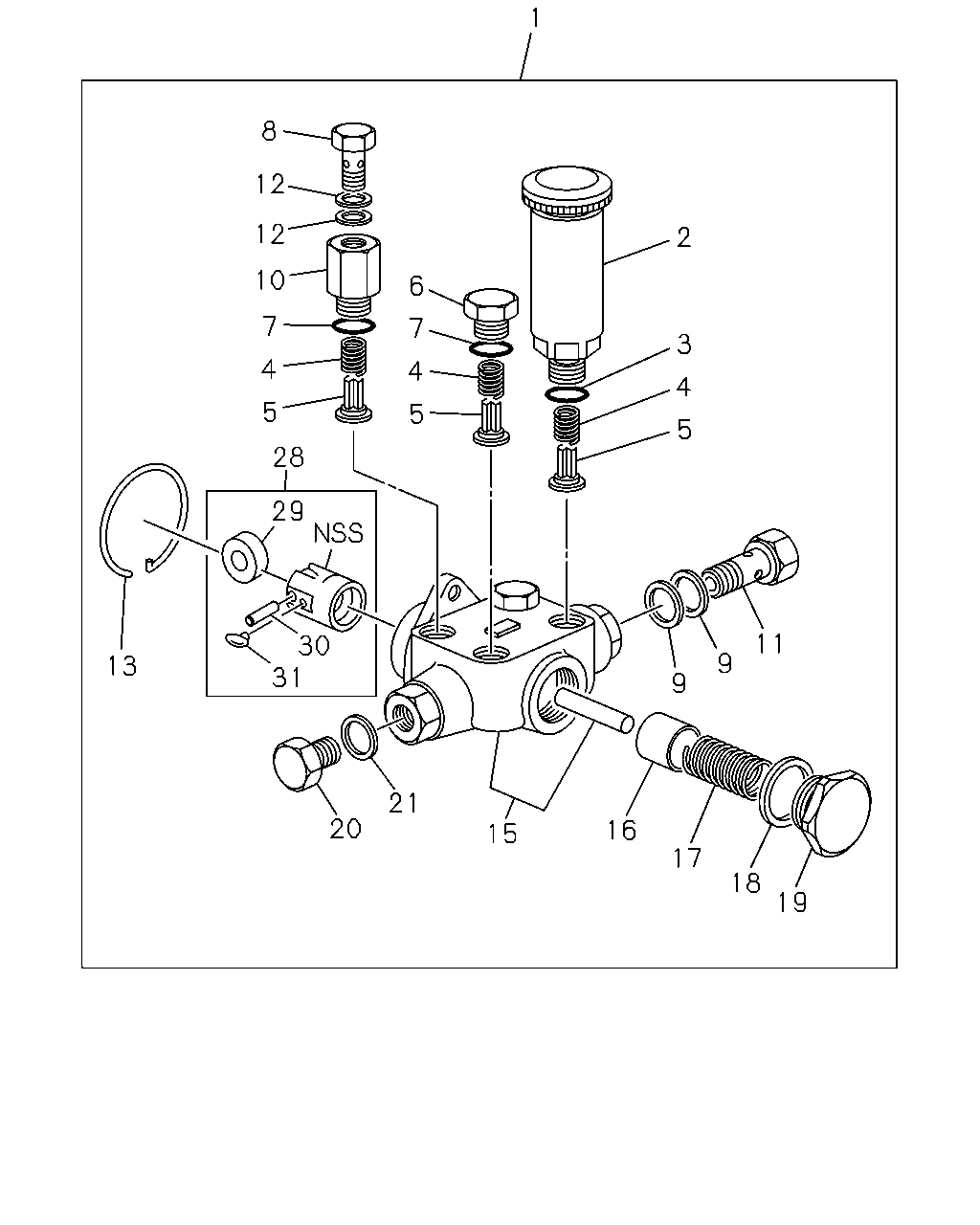

1 8 12 12 2 10 6 7 7 3 4 4 4 5 5 5 28 29 11 30 31 9 13 9 21 20 16 15 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15603-123-2	1-15750-147-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-068-5, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1	1-15750-151-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 1-15603-265-5	1-15750-152-0	01	1	-0511
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: P = 1-15603-240-5	1-15750-152-0	01	1	-0002
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: R = 1-15603-290-6	1-15750-152-0	01	1	-0410
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2	1-15750-161-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 1-15603-114-4	1-15750-167-1	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 1-15603-209-1	1-15750-171-0	01	1	-0006
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15750-173-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 1-15603-370-1	1-15750-177-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 1-15603-209-1	1-15750-177-0	01	1	0007-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: P = 1-15603-240-5	1-15750-190-0	01	1	0003-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: R = 1-15603-290-6	1-15750-190-0	01	1	0411-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 1-15603-265-5	1-15750-190-0	01	1	0512-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15755-002-0	04	1	0512-
5	VALVE; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15755-002-0	04	1	0003-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, O = 1-15603-209-1, R = 1-15603-290-6, S = 1-15603-370-1	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	9-81351-602-0	04	1	-0410
5	VALVE; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	9-81351-602-0	04	1	-0511
5	VALVE; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	9-81351-602-0	04	1	-0002
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15759-009-0	03	1	0007-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, S = 1-15603-370-1	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-009-0	02	1	-0202
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-066-0	02	1	0203-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15759-066-0	03	1	-0006
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15759-066-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-19623-016-0	03	1	0203-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-19623-016-0	03	1	-0006
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	9-81355-031-0	03	1	0007-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	9-81355-031-0	03	1	-0202
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-011-0	02	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-123-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, S = 1-15603-370-1	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-052-0	01	1	-0202
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-029-0	01	1	-0511
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-029-0	01	1	-0202
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-029-0	01	1	-0410
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-029-0	01	1	-0002
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: Q = 1-15603-265-5	8-97203-957-0	01	1	0512-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: P = 1-15603-240-5	8-97203-957-0	01	1	0003-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: R = 1-15603-290-6	8-97203-957-0	01	1	0411-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	8-97203-957-0	01	1	0203-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: O = 1-15603-209-1	9-81355-062-0	01	1	0007-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 1-15603-115-2, H = 1-15603-121-2	1-15751-010-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, I = 1-15603-122-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15751-031-0	01	1	-0511
15	HOUSING; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15751-031-0	01	1	-0410
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15751-031-0	01	1	-0002
15	HOUSING; FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15751-034-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15751-034-0	01	1	-0006
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15751-037-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15751-038-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15751-042-0	01	1	0007-
15	HOUSING; FUEL FEED PUMP ASM PART: S = 1-15603-370-1	1-15751-042-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15751-046-0	01	1	0411-
15	HOUSING; FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15751-046-0	01	1	0003-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15751-046-0	01	1	0512-
16	PISTON; FUEL FEED PUMP ASM PART: J = 1-15603-123-2	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15752-001-0	01	1	-0006
16	PISTON; FUEL FEED PUMP ASM PART: S = 1-15603-370-1	1-15752-002-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15752-002-0	01	1	0007-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: J = 1-15603-123-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15753-004-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: J = 1-15603-123-2, O = 1-15603-209-1, S = 1-15603-370-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-065-3, E = 1-15603-068-5, F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1, J = 1-15603-123-2, K = 1-15603-156-1, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2, O = 1-15603-209-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-004-0	01	1	-0002
20	PLUG; HSG,FUEL FEED PUMP ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-15759-004-0	01	1	-0202
20	PLUG; HSG,FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-004-0	01	1	-0511
20	PLUG; HSG,FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-004-0	01	1	-0410
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: F = 1-15603-114-4, G = 1-15603-115-2, H = 1-15603-121-2	1-09630-085-0	01	1	-0202
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: P = 1-15603-240-5	1-09630-085-0	01	1	-0002
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: Q = 1-15603-265-5	1-09630-085-0	01	1	-0511
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: D = 1-15603-065-3, E = 1-15603-068-5, I = 1-15603-122-1, K = 1-15603-156-1	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19, .2 ASM PART: R = 1-15603-290-6	1-09630-085-0	01	1	-0410
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15754-004-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: E = 1-15603-068-5, G = 1-15603-115-2, H = 1-15603-121-2, I = 1-15603-122-1	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: O = 1-15603-209-1	1-15754-006-0	01	1	0007-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 1-15603-065-3, K = 1-15603-156-1, P = 1-15603-240-5, Q = 1-15603-265-5, R = 1-15603-290-6, S = 1-15603-370-1	1-15754-006-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15754-007-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-055-0	01	1	0411-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-055-0	01	1	0003-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-055-0	01	1	0512-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	9-81355-059-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: G = 1-15603-115-2, H = 1-15603-121-2	9-81355-059-0	01	1	0203-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15759-056-0	01	1	0203-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-056-0	01	1	0003-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-056-0	01	1	0512-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-056-0	01	1	0411-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	9-81355-060-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: G = 1-15603-115-2, H = 1-15603-121-2	9-81355-060-0	01	1	0203-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: F = 1-15603-114-4	1-15759-057-0	02	1	0203-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: R = 1-15603-290-6	1-15759-057-0	02	1	0411-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: L = 1-15603-201-2, M = 1-15603-202-2, N = 1-15603-203-2	1-15759-057-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: Q = 1-15603-265-5	1-15759-057-0	02	1	0512-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: P = 1-15603-240-5	1-15759-057-0	02	1	0003-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
