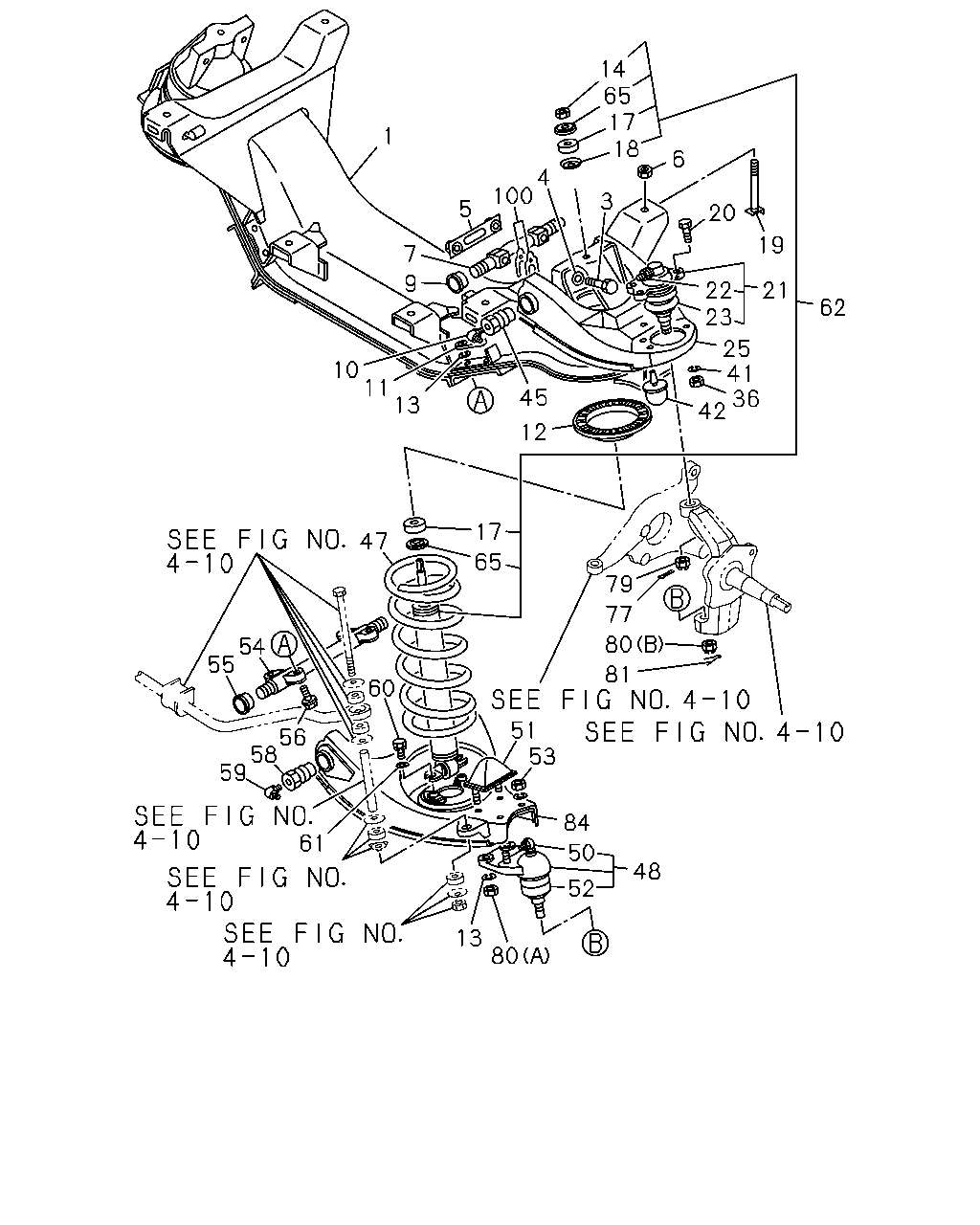

4-50 — FRONT SUSPENSION (#47217) — 54 parça

14 65 17 18 1 6 4 100 3 5 20 19 7 9 22 23 25 41 36 42 21 62 10 11 13 45 12 17 65 47 79 77 80 81 54 55 60 51 53 56 58 59 61 84 50 48 52 13 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MEMBER; CROSS,FRT SUSP	8-97062-481-1	01	1	9307-9406	●	●
1	MEMBER; CROSS,FRT SUSP EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97062-481-1	01	1	9407-	●	●
1	MEMBER; CROSS,FRT SUSP EUROPEAN BASIC EQUIPMENT(EK4)	8-97062-483-1	01	1	9407-	●	●
3	BOLT; UPR LINK TO FRAME M14X65	9-91061-465-0	04	1	9307-	●	●
4	WASHER; UPR LINK TO FRAME	8-94233-593-0	04	1	9307-	●	●
5	NUT; UPR LINK TO FRAME	8-94464-558-0	02	1	9307-	●	●
6	NUT; FRT SUSP TO C/MBR M14	8-94232-849-0	04	1	9307-	●	●
7	PIN; FULCRUM,UPR LINK	8-94225-450-3	02	1	9307-	●	●
9	BOOT; UPR LINK	8-94227-060-1	04	1	9307-	●	●
10	NIPPLE; GREASE,UPR LINK	9-09728-007-0	04	1	9307-	●	●
11	NUT; LWR LINK TO C/MBR	8-94235-792-2	04	1	9307-	●	●
12	INSULATOR; FRT SUSP TO C/MBR	8-94227-052-1	02	1	9307-	●	●
13	WASHER; LK,LWR LINK ID=10.2	9-09150-510-0	08	1	9307-	●	●
13	WASHER; LK,LWR LINK ID=12.2	9-09150-612-0	02	1	9307-	●	●
14	NUT; S/ABS,UPR M10	9-09110-410-0	02	1	9307-	●	●
17	BUSHING; RUBBER,S/ABS KAYABA	9-51631-065-0	04	1	9307-	●	●
18	WASHER; CENTERING,S/ABS KAYABA	8-94467-498-0	02	1	9307-	●	●
19	BOLT; FRT SUSP TO C/MBR M14X125 W/PLATE	8-94233-203-2	04	1	9307-	●	●
20	BOLT; UPR LINK END TO UPR LINK M8X25	9-02060-825-0	08	1	9307-	●	●
21	JOINT ASM; BALL,UPR CONT ARM	8-94224-550-6	02	1	9307-	●	●
22	NIPPLE; GREASE,LINK END	9-09928-018-0	02	1	9307-	●	●
23	BOOT; UPR LINK END	8-94225-170-0	02	1	9307-	●	●
25	ARM; UPR CONT	8-94225-451-4	02	1	9307-9406	●	●
25	ARM; UPR CONT	8-94226-969-0	02	1	9407-	●	●
36	NUT; UPR LINK END TO UPR LINK M8 FLANGE	5-09440-010-0	08	1	9307-	●	●
41	WASHER; LK,UPR LINK END TO UPR LINK ID=8.2	9-09150-608-0	08	1	9307-	●	●
42	RUBBER; REBOUND,FRT SUSPENSION	8-94223-149-1	02	1	9307-	●	●
45	BUSHING; UPR LINK,FRT	8-94227-156-2	04	1	9307-	●	●
47	SPRING; COIL,FRT SUSP	8-94422-929-0	02	1	9307-	●	●
48	JOINT ASM; BALL,LWR CONT ARM	8-94452-110-2	02	1	9307-	●	●
50	NIPPLE; GREASE,LWR LINK END	9-09928-018-0	02	1	9307-	●	●
51	BUMPER; RUBBER,LWR LINK	8-94226-970-0	02	1	9307-	●	●
52	BOOT; LWR LINK END	8-94419-244-0	02	1	9307-	●	●
53	NUT; LWR LINK M10	9-09110-410-0	04	1	9307-9406	●	●
53	NUT; LWR LINK M10	9-09110-410-0	04	1	9407-	●	●
54	PIN; FULCRUM,LWR LINK	8-94225-479-4	02	1	9307-	●	●
55	BOOT; LWR LINK	8-94233-208-1	04	1	9307-	●	●
56	BOLT; LWR LINK TO C/MBR M12X43 FLANGE	8-94241-883-1	08	1	9307-	●	●
58	BUSHING; LWR LINK	8-94227-156-2	04	1	9307-	●	●
59	NIPPLE; GREASE,LWR LINK	9-09928-018-0	04	1	9307-	●	●
60	BOLT; S/ABS TO LWR LINK M8X25 W/LK WASHER	0-50040-825-0	04	1	9307-	●	●
61	WASHER; PL,S/ABS TO LWR LINK ID=8.4 OD=18	9-09164-608-0	04	1	9307-	●	●
62	ABSORBER ASM; SHOCK,FRT	8-94468-290-1	02	1	9307-	●	●
65	WASHER; S/ABS ID=10.5 OD=38	9-51631-062-0	04	1	9407-	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	9-08113-028-0	02	1	9307-	●	●
79	NUT; UPR LINK END TO KNUCKLE M14 SLOTTED	8-94124-556-0	02	1	9307-	●	●
80	NUT; LWR LINK END TO KNUCKLE (A) M10	9-09110-410-0	04	1	9307-	●	●
80	NUT; LWR LINK END TO KNUCKLE (B)	8-94125-081-0	02	1	9307-	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=3.7 L=30	9-08114-030-0	02	1	9307-	●	●
84	ARM; LWR CONT	8-94225-482-9	01	1	9307-	●	●
84	ARM; LWR CONT	8-94225-481-9	01	1	9307-	●	●
100	SHIM; UPR LINK TO FRAME T=0.40	8-94227-053-1	AR	1	9307-	●	●
100	SHIM; UPR LINK TO FRAME T=1.60	8-94227-054-2	AR	1	9307-	●	●
100	SHIM; UPR LINK TO FRAME T=3.20	8-94241-885-3	AR	1	9307-	●	●
