4-42 — POWER STEERING OIL PUMP (#47216) — 64 parça

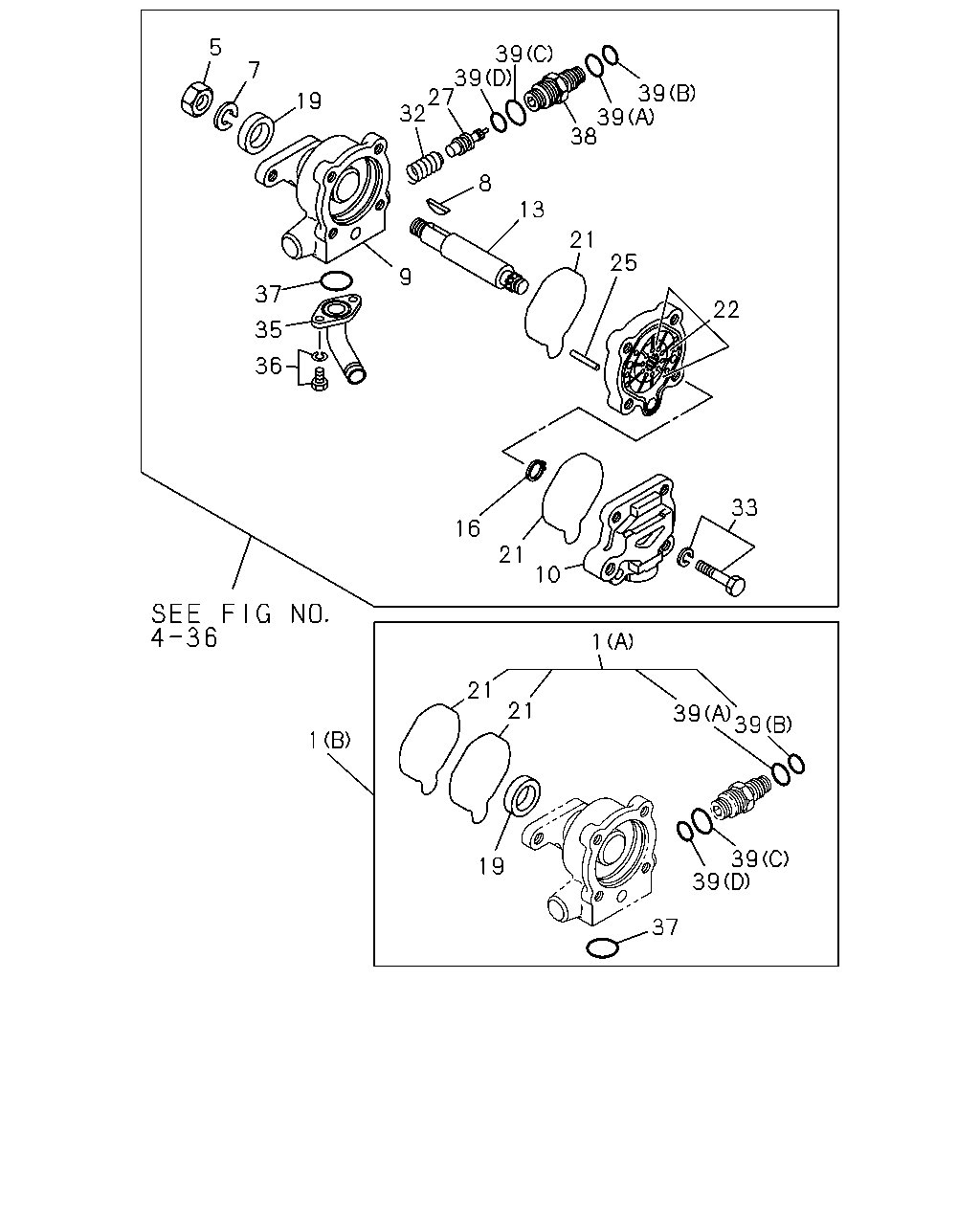

5 39 39 27 32 7 39 39 38 19 8 13 21 25 9 37 22 35 36 33 16 21 10 1 21 21 39 39 1 39 39 19 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-983-1	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-94411-354-3	8-94411-364-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-94411-354-3	8-94411-365-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: B = 8-94411-354-3	8-94121-918-0	01	1	-
7	WASHER; SHAFT ASM PART: B = 8-94411-354-3	8-94121-917-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 8-94411-354-3	8-94121-916-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-985-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-355-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-94341-797-4	8-94382-178-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-359-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94411-354-3	8-94411-356-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-94341-797-4	8-94475-373-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-358-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-94341-797-4	8-94475-374-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 8-94411-354-3	8-94121-898-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: B = 8-94411-354-3	8-94121-903-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-973-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94341-797-4	8-94475-369-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 8-94411-354-3	8-94121-900-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-94341-797-4	8-94475-371-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-360-1	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-94411-354-3	8-94121-906-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-94341-797-4	8-94475-376-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-94411-354-3	8-94121-907-0	04	1	-
33	BOLT; COVER ASM PART: A = 8-94341-797-4	8-94475-381-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-986-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94411-354-3	8-97148-223-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-94411-354-3	8-94121-915-0	02	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-94341-797-4	8-94461-139-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-361-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-974-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: B = 8-94411-354-3	8-94121-909-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 8-94411-354-3	8-94121-910-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 8-94411-354-3	8-94121-911-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 8-94411-354-3	8-94121-912-0	01	1	-

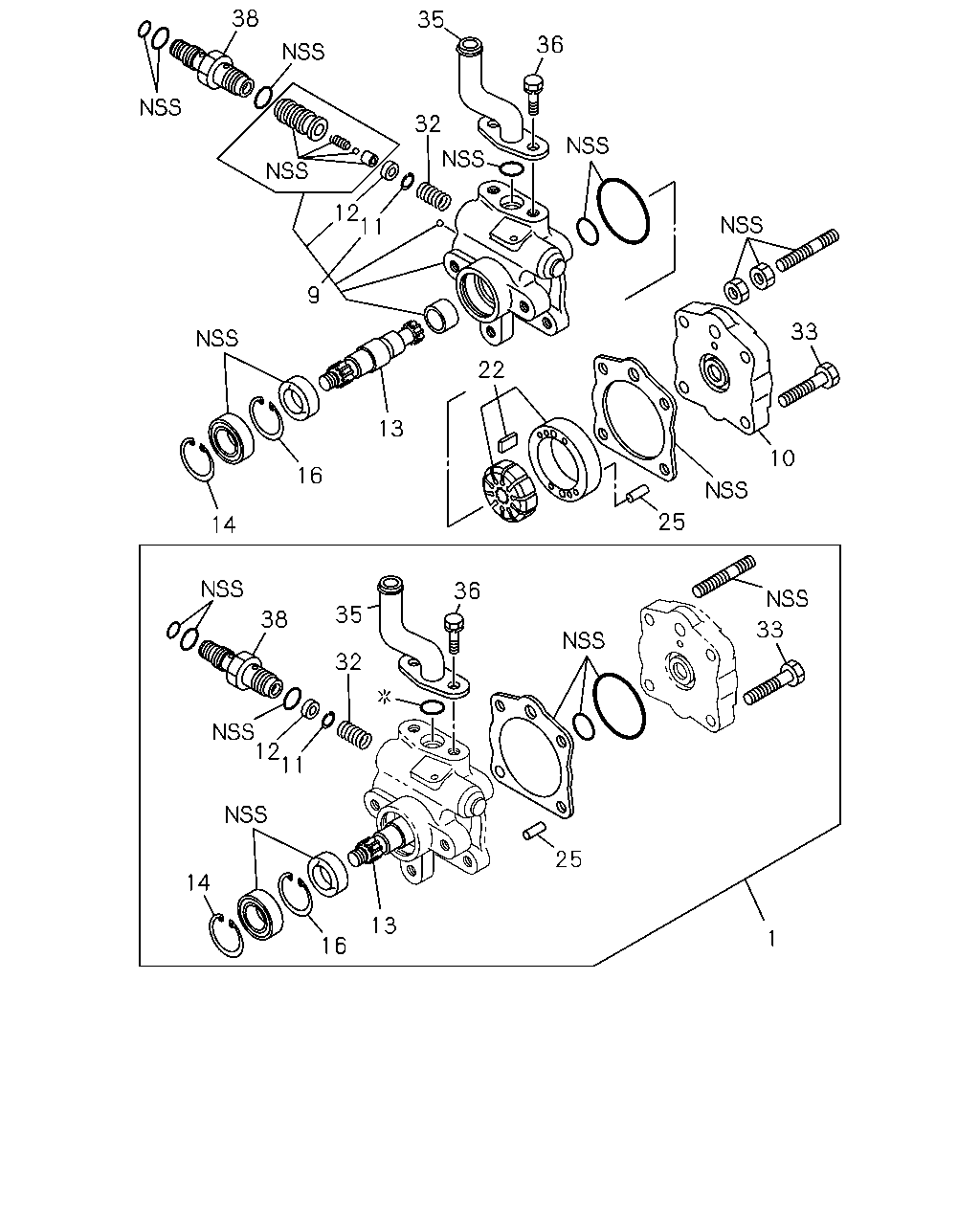

38 35 36 32 12 11 9 33 22 13 10 16 25 14 36 33 35 38 32 12 11 25 14 13 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-983-1	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-94411-354-3	8-94411-364-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-94411-354-3	8-94411-365-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-985-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-355-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-94341-797-4	8-94382-178-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-359-0	01	1	-
11	RING; RET,OIL TANK ASM PART: A = 8-94341-797-4	8-94175-185-0	01	1	-
12	FILTER; OIL PUMP ASM PART: A = 8-94341-797-4	8-94175-184-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94411-354-3	8-94411-356-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-94341-797-4	8-94475-373-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-94341-797-4	9-09180-135-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-358-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-94341-797-4	8-94475-374-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-973-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94341-797-4	8-94475-369-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 8-94411-354-3	8-94121-900-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-94341-797-4	8-94475-371-0	02	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-94411-354-3	8-94121-906-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-94341-797-4	8-94475-376-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-94411-354-3	8-94121-907-0	04	1	-
33	BOLT; COVER ASM PART: A = 8-94341-797-4	8-94475-381-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-986-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94411-354-3	8-97148-223-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-94411-354-3	8-94121-915-0	02	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-94341-797-4	8-94461-139-0	02	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-94341-797-4	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-94411-354-3	8-94411-974-0	01	1	-
