4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#47213) — 77 parça

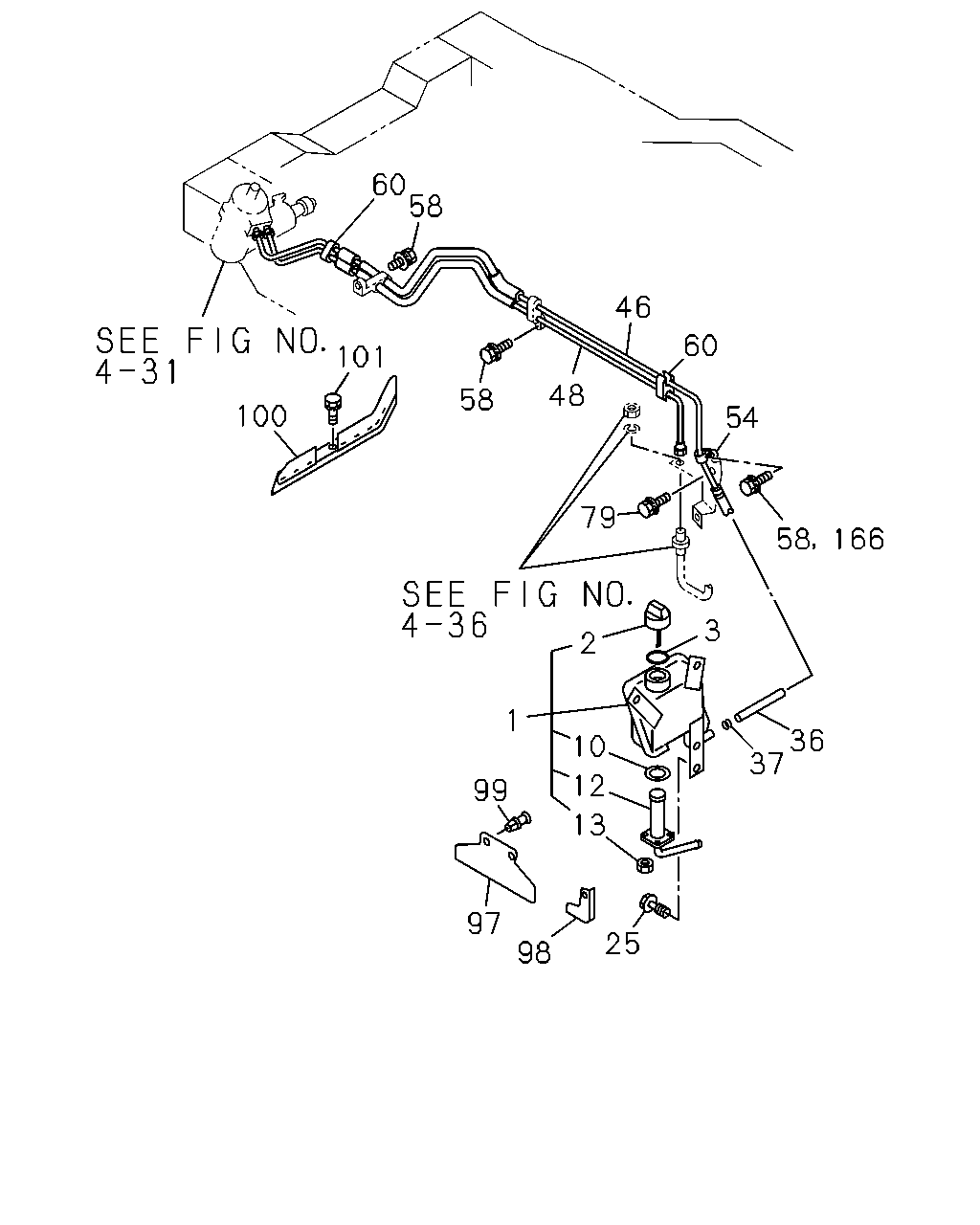

çizim 66314
60 58 46 60 101 48 58 100 54 79 58 166 3 2 1 36 37 10 12 13 99 97 98 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94251-577-8 01 1 9307- ● ●
1 TANK ASM; OIL,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-038-4 01 1 9307- ● ●
2 CAP; OIL TANK,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94251-583-1 01 1 9307- ● ●
3 GASKET; OIL TANK,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94120-766-0 01 1 9307- ● ●
3 GASKET; OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94455-247-0 01 1 9307- ● ●
10 SEAL; OIL TANK,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94251-582-0 01 1 9307- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94251-581-2 01 1 9307- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-046-0 01 1 9307- ● ●
13 NUT; OIL TANK TO FILTER
4FG1 ENG(RLL) POWER STEERING<N40> M5 		9-99111-405-0 01 1 9307- ● ●
13 NUT; OIL TANK TO FILTER
4ZC1 ENG(LR9) POWER STEERING<N40> M5 		9-99110-405-0 03 1 9307- ● ●
25 BOLT; OIL TANK BRKT
4FG1 ENG(RLL) POWER STEERING<N40> M6X20 		0-28280-620-0 03 1 9307- ● ●
25 BOLT; OIL TANK BRKT
4ZC1 ENG(LR9) POWER STEERING<N40> M8X20 FLANGE 		0-28280-820-0 03 1 9307- ● ●
36 HOSE; P/S TANK TO PIPE
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94252-381-1 01 1 9307- ● ●
36 HOSE; P/S TANK TO PIPE
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94438-163-0 01 1 9307- ● ●
37 CLIP; HOSE,P/S
4FG1 ENG(RLL) POWER STEERING<N40> ID=20 L=25 		9-09916-078-0 01 1 9307- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94447-087-0 01 1 9307- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94464-924-0 01 1 9307- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94447-086-0 01 1 9307- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94447-090-0 01 1 9307- ● ●
54 CLIP; OIL PIPE
4FG1 ENG(RLL) POWER STEERING<N40> ID=18 L=25 		8-94121-004-1 01 1 9307- ● ●
58 BOLT; CLIP
4FG1 ENG(RLL) POWER STEERING<N40> M6X16 FLANGE 		0-28280-616-0 03 1 9307- ● ●
58 BOLT; CLIP
4ZC1 ENG(LR9) POWER STEERING<N40> M6X16 FLANGE 		0-28280-616-0 05 1 9307- ● ●
60 CLAMP; PIPE,RETURN
4FG1 ENG(RLL) POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 03 1 9307-9406 ● ●
60 CLAMP; PIPE,RETURN
4FG1 ENG(RLL) POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 02 1 9407- ● ●
60 CLAMP; PIPE,RETURN
4ZC1 ENG(LR9) POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 04 1 9307- ● ●
79 BOLT; BRKT
4FG1 ENG(RLL) POWER STEERING<N40> M8X20 FLANGE 		0-28280-820-0 02 1 9307- ● ●
97 RUBBER; INSULATION,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94352-135-1 01 1 9307- ● ●
98 STAY; SEAL RUBBER,POWER STRG
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94352-136-1 01 1 9307- ● ●
99 CLIP; SEAL RUBBER,POWER STRG
4FG1 ENG(RLL) POWER STEERING<N40> D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 02 1 9307- ● ●
99 CLIP; SEAL RUBBER,POWER STRG
4FG1 ENG(RLL) POWER STEERING<N40> PLATE CLIP T=0.8 		8-94279-972-0 01 1 9307-9406 ● ●
99 CLIP; SEAL RUBBER,POWER STRG
4FG1 ENG(RLL) POWER STEERING<N40> PLATE CLIP T=0.8 		8-94279-972-0 01 1 9407- ● ●
99 CLIP; SEAL RUBBER,POWER STRG
EUROPEAN BASIC EQUIPMENT(EK4) HEATER&DEFROSTER(C41) PLATE CLIP T=0.8 		8-94279-972-0 01 1 9407- ● ●
100 SEAL; C/MBR
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94482-198-1 01 1 9307- ● ●
101 BOLT; MEMBER SEAL
4FG1 ENG(RLL) POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
166 BOLT; CLIP
4FG1 ENG(RLL) POWER STEERING<N40> M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9307-9406 ● ●
166 BOLT; CLIP
4FG1 ENG(RLL) POWER STEERING<N40> M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9407- ● ●
166 BOLT; CLIP
EUROPEAN BASIC EQUIPMENT(EK4) HEATER&DEFROSTER(C41) M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9407- ● ●

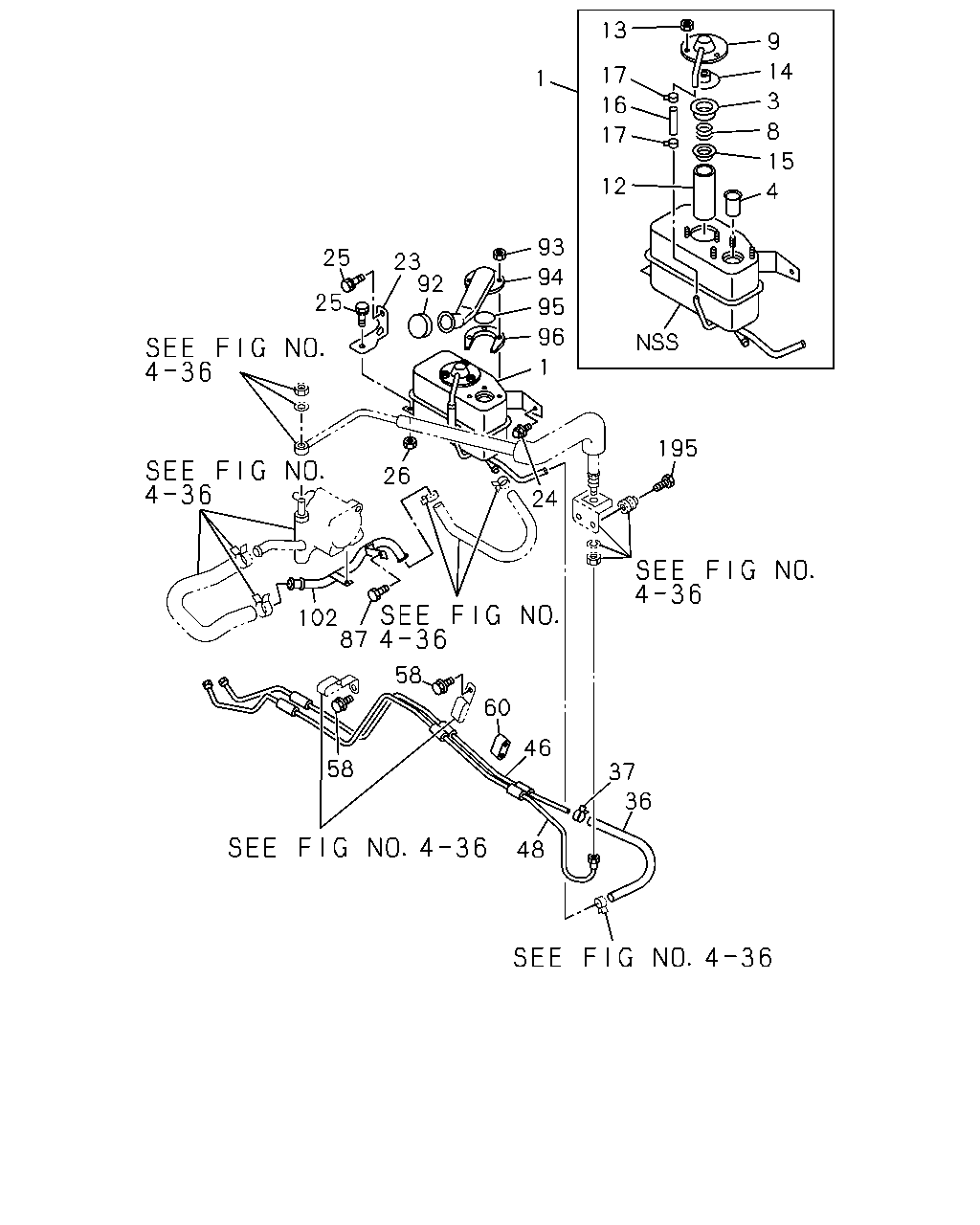

çizim 67178
13 9 14 3 8 15 4 17 16 17 1 12 93 94 95 96 1 25 25 23 92 195 24 26 102 87 58 60 46 58 37 36 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94251-577-8 01 1 9307- ● ●
1 TANK ASM; OIL,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-038-4 01 1 9307- ● ●
3 GASKET; OIL TANK,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94120-766-0 01 1 9307- ● ●
3 GASKET; OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94455-247-0 01 1 9307- ● ●
4 FILTER; OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> OD=20 		8-94436-047-1 01 1 9307- ● ●
8 SPRING; OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-045-0 01 1 9307- ● ●
9 COVER; SPR,OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-040-0 01 1 9307- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94251-581-2 01 1 9307- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-046-0 01 1 9307- ● ●
13 NUT; OIL TANK TO FILTER
4FG1 ENG(RLL) POWER STEERING<N40> M5 		9-99111-405-0 01 1 9307- ● ●
13 NUT; OIL TANK TO FILTER
4ZC1 ENG(LR9) POWER STEERING<N40> M5 		9-99110-405-0 03 1 9307- ● ●
14 BAFFLE; OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94455-706-0 01 1 9307- ● ●
15 PLATE; FILTER,OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-044-0 01 1 9307- ● ●
16 HOSE; PIPE,OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94436-048-0 01 1 9307- ● ●
17 CLIP; HOSE,OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94437-069-0 02 1 9307- ● ●
23 BRACKET; OIL TANK,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94438-099-0 01 1 9307- ● ●
24 BOLT; BRKT TO BODY
4ZC1 ENG(LR9) POWER STEERING<N40> M8X20 FLANGE 		0-28280-820-0 01 1 9307- ● ●
25 BOLT; OIL TANK BRKT
4FG1 ENG(RLL) POWER STEERING<N40> M6X20 		0-28280-620-0 03 1 9307- ● ●
25 BOLT; OIL TANK BRKT
4ZC1 ENG(LR9) POWER STEERING<N40> M8X20 FLANGE 		0-28280-820-0 03 1 9307- ● ●
26 NUT; OIL TANK TO BRKT
4ZC1 ENG(LR9) POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 9307- ● ●
36 HOSE; P/S TANK TO PIPE
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94252-381-1 01 1 9307- ● ●
36 HOSE; P/S TANK TO PIPE
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94438-163-0 01 1 9307- ● ●
37 CLIP; HOSE,P/S
4FG1 ENG(RLL) POWER STEERING<N40> ID=20 L=25 		9-09916-078-0 01 1 9307- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94447-087-0 01 1 9307- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94464-924-0 01 1 9307- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94447-086-0 01 1 9307- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94447-090-0 01 1 9307- ● ●
58 BOLT; CLIP
4FG1 ENG(RLL) POWER STEERING<N40> M6X16 FLANGE 		0-28280-616-0 03 1 9307- ● ●
58 BOLT; CLIP
4ZC1 ENG(LR9) POWER STEERING<N40> M6X16 FLANGE 		0-28280-616-0 05 1 9307- ● ●
60 CLAMP; PIPE,RETURN
4FG1 ENG(RLL) POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 03 1 9307-9406 ● ●
60 CLAMP; PIPE,RETURN
4FG1 ENG(RLL) POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 02 1 9407- ● ●
60 CLAMP; PIPE,RETURN
4ZC1 ENG(LR9) POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 04 1 9307- ● ●
87 BOLT; POWER STRG PIPE
4ZC1 ENG(LR9) POWER STEERING<N40> M8X16 FLANGE 		0-28280-816-0 02 1 9307- ● ●
92 CAP; INL TUBE
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94418-027-0 01 1 9307- ● ●
93 NUT; INL TUBE TO TANK
4ZC1 ENG(LR9) POWER STEERING<N40> M5 		9-99110-405-0 03 1 9307- ● ●
94 TUBE; OIL TANK
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94438-117-0 01 1 9307- ● ●
95 GASKET; INL TUBE SEAL
4ZC1 ENG(LR9) POWER STEERING<N40> 		9-09561-328-0 01 1 9307- ● ●
96 RETAINER; INL TUBE
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94430-022-1 01 1 9307- ● ●
102 PIPE; SUCTION,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94178-990-1 01 1 9307- ● ●
195 BOLT; BRKT
4ZC1 ENG(LR9) POWER STEERING<N40> M8X35 		8-94152-039-0 02 1 9307- ● ●
