0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#47212) — 135 parça

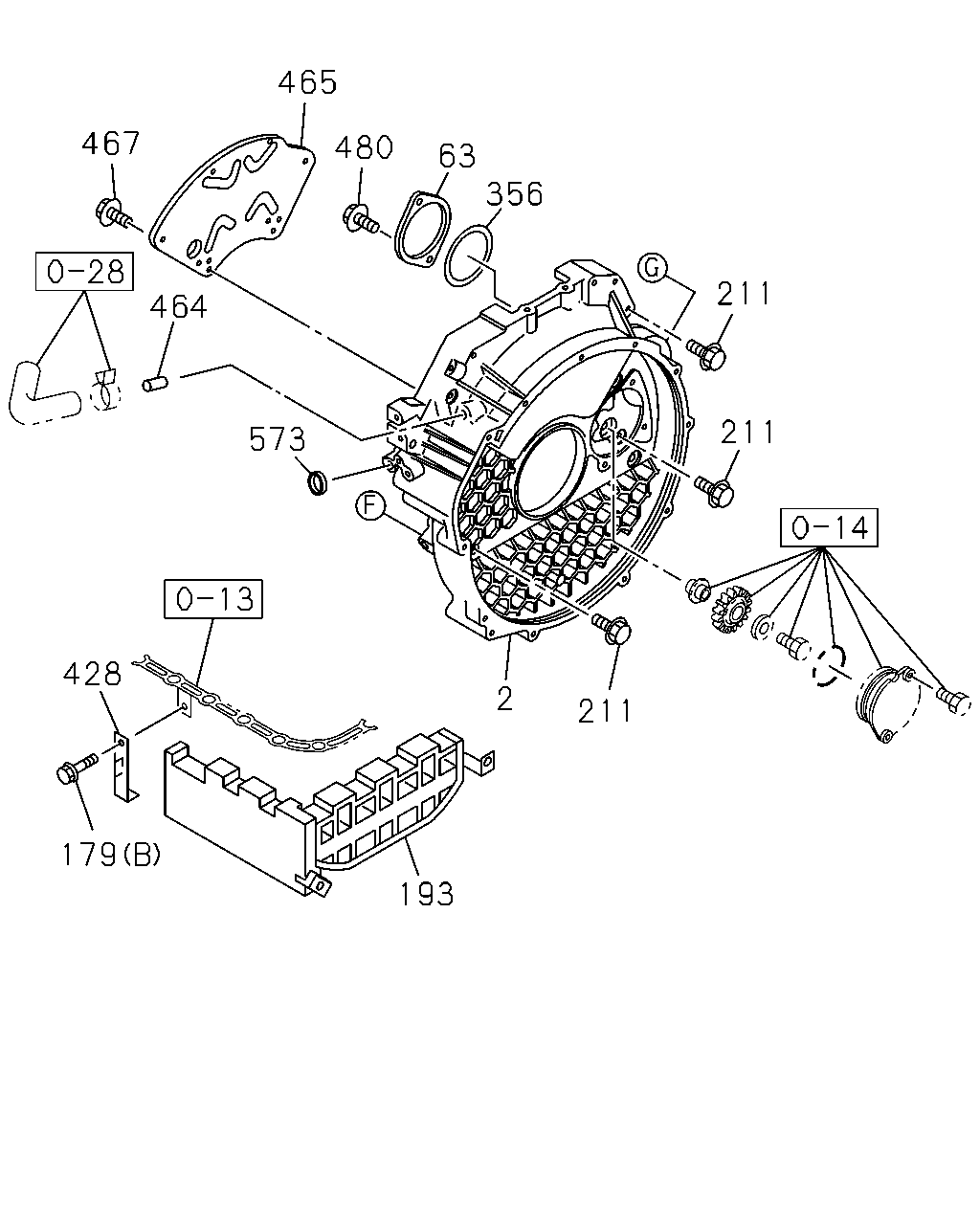

465 467 480 63 356 211 464 211 573 428 2 211 179 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	0102-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-0501	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	0502-		●
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0201-0308			●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	0309-			●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0201-			●
179	00.206 BOLT; BRKT 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0102-0501	●
179	00.206 BOLT; BRKT 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0502-0507		●
179	00.206 BOLT; BRKT 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0508-		●	●
179	00.206 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
179	00.206 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
193	01.428 SPACER; STAY TO OIL,PAN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97224-867-2	01	1	0502-		●
211	00.669 BOLT; HSG FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. AIR CONDITIONER MANUAL CONT(C60) M8X20,M8X65 L=90	8-97200-622-1	02	1	0508-			●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0102-0112	●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0201-0501	●		●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0502-0512		●	●
211	00.669 BOLT; HSG 00.029 M10X40 FLANGE	0-28751-040-0	01	1	0601-		●	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0102-0501	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0502-1102		●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0102-0112	●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0201-0501	●		●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0502-		●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	0201-			●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0201-1102			●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-			●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	0201-0512			●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28761-435-0	01	1	0601-			●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0201-			●
428	00.206 BRACKET; SPACER NOISE PACK FOR REGULATION VAR.2<7TF>	8-97215-647-0	01	1	0502-		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0102-0112	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0201-0501	●		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-		●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97212-490-0	01	1	0102-0308	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0309-0501	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0502-		●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0201-0308			●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-			●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0102-0112	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0201-0501	●		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0507		●	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0805		●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-		●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0201-0805			●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE	8-98044-944-0	02	1	0806-1010			●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1011-			●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0102-0112	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0201-0501	●		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0502-		●	●

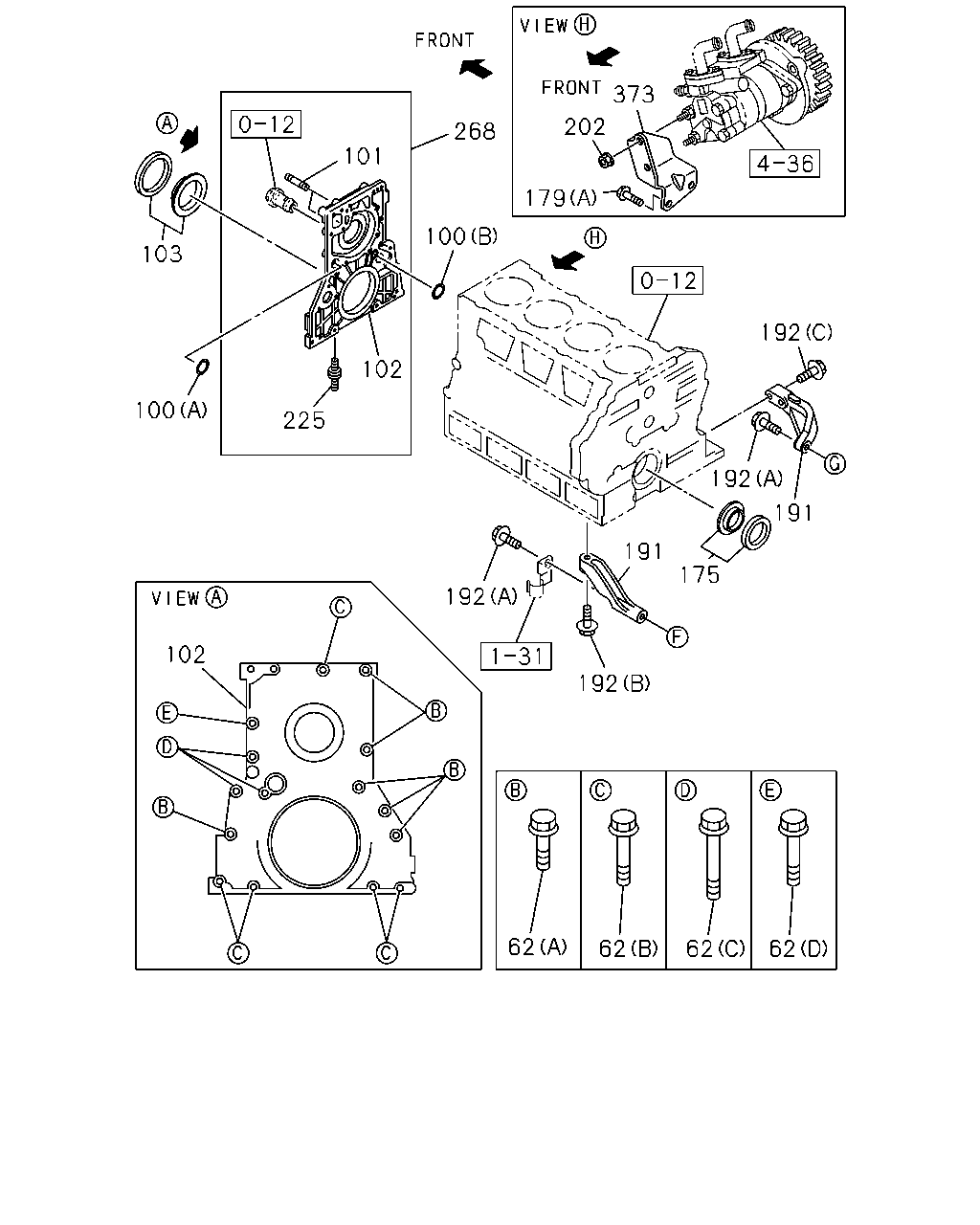

373 202 268 101 179 100 103 192 102 100 225 192 191 191 175 192 102 192 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0706-0706			●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0706-0706			●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0102-0112	●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0201-0501	●		●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0502-0512		●	●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-		●	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0102-0112	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0201-0501	●		●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0502-0512		●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0601-0705		●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0706-0706		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0707-		●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0102-0112	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0201-0501	●		●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0502-0705		●	●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	0706-0706		●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	0707-		●	●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0306-0501	●		●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0502-0507		●	●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0508-0512			●
62	00.206 BOLT; COVER 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-			●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0102-0112	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0201-0501	●		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0102-0112	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0201-0501	●		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-		●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0102-0112	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0201-0501	●		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0502-		●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0102-0112	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0201-0501	●		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0502-0604		●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0605-		●	●
102	00.137 RETAINER; FRT ANTI EROSION SPEC<7XK>	8-98081-351-1	01	1	0812-			●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0102-0501	●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0502-0705		●
102	00.137 RETAINER; FRT	8-98039-932-0	01	1	0706-0706		●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0707-0811		●	●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	0812-			●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0812-		●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0201-0706			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	0102-0112	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	0201-0205	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0206-0501	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0502-		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0102-0112	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0201-0205	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0206-0501	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0502-		●	●
179	00.206 BOLT; BRKT 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0102-0501	●
179	00.206 BOLT; BRKT 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0502-0507		●
179	00.206 BOLT; BRKT 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0508-		●	●
179	00.206 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
179	00.206 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0102-0501	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0502-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0102-0501	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0502-		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0102-0501	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0502-0512		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0601-		●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0102-0501	●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0502-0512		●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0601-		●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	0102-0501	●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	0502-0512		●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	0601-		●
202	00.206 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0311	●
202	00.206 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0312-0501	●
202	00.206 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0507		●
202	00.206 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602		●	●
202	00.206 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0201-0501			●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0502-		●	●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK>	8-98079-080-1	01	1	0812-			●
268	00.206 COVER; FRT	8-97148-937-1	01	1	0102-0501	●
268	00.206 COVER; FRT	8-97258-865-0	01	1	0502-0705		●
268	00.206 COVER; FRT	8-98039-931-0	01	1	0706-0706		●
268	00.206 COVER; FRT	8-98039-931-1	01	1	0707-0811		●	●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	0812-			●
268	00.206 COVER; FRT	8-98039-931-2	01	1	0812-		●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0201-0706			●
373	00.206 BRACKET; PUMP	8-97149-333-0	01	1	0102-0501	●
373	00.206 BRACKET; PUMP	8-97149-333-0	01	1	0502-0507		●
373	00.206 BRACKET; PUMP	8-97149-333-0	01	1	0508-		●	●
