0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#47211) — 110 parça
çizim 11585
40 49 38 35 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 00.666 FLYWHEEL 8-97166-516-0 01 1 0102-0501 ●
12 00.666 FLYWHEEL 8-97166-516-1 01 1 0502- ●
12 00.666 FLYWHEEL 8-97115-782-0 01 1 0201-0301 ●
12 00.666 FLYWHEEL 8-97330-892-1 01 1 0302- ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0102-0112 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0201-0501 ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0502- ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0102-0301 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0302-0501 ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502- ● ●
38 00.862 WASHER; FLYWHEEL
00.669 ID=42 OD=110 		8-94310-615-0 01 1 0201-0301 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0102-0112 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0201-0501 ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502- ● ●
49 00.669 BEARING; PILOT 8-97166-589-0 01 1 0102-0111 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0112-0301 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0302-0501 ● ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0502- ● ●
49 00.669 BEARING; PILOT
00.649 		8-97031-741-0 01 1 0201-0301 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0112-0301 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0302-0501 ● ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0502- ● ●

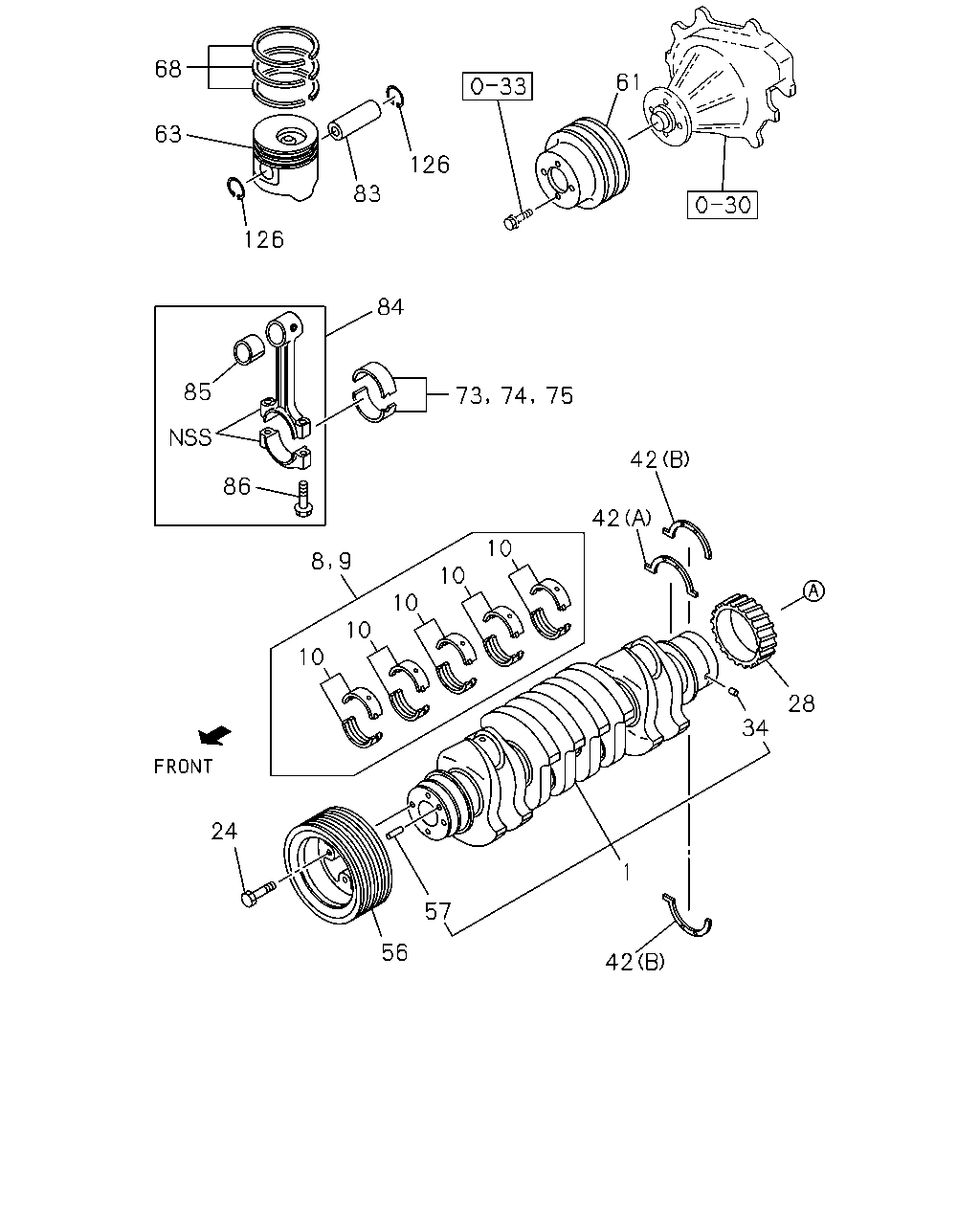

çizim 46986
68 61 63 126 83 126 84 85 73 74 75 42 86 42 10 10 10 10 10 28 34 24 1 57 56 42 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.646 CRANKSHAFT 8-97165-483-0 01 1 0102-0212 ●
1 00.646 CRANKSHAFT 8-97352-534-2 01 1 0301-0501 ●
1 00.646 CRANKSHAFT 8-97352-534-3 01 1 0502-0509 ●
1 00.646 CRANKSHAFT 8-98029-270-0 01 1 0510- ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0201- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 5-87310-546-0 01 1 0201-0303 ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 5-87310-547-0 01 1 0201-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0102-0112 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0201-0303 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0304-0501 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0502- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0102-0112 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0201-0303 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0304-0501 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0502- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0102-0112 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0201-0303 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0304-0501 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0502- ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0102-0112 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0201-0501 ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0502- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0102-0501 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0502- ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0201- ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 02 1 0502- ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0102-0112 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0201-0501 ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0502- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0102-0112 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0201-0501 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0502-0703 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0102-0112 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0201-0501 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0703 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 4-GROOVE 		8-97222-031-1 01 1 0102-0112 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-0 01 1 0201-0210 ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 4-GROOVE 		8-97222-031-3 01 1 0211-0501 ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 4-GROOVE 		8-97222-031-3 01 1 0502- ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 04 1 0502- ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 0102-0112 ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 0201-0212 ● ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=20 		9-08160-820-0 02 1 0301-0304 ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0305-0501 ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-2 01 1 0102-0112 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0201-0501 ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97251-696-0 04 1 0102-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97251-696-1 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97251-697-0 04 1 0102-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97251-697-1 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0201- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97166-992-1 04 1 0102-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97166-992-1 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0201- ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 04 1 0102-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 04 1 0102-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0201- ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0201- ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-98064-282-0 04 1 0502-0706 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97616-358-0 04 1 0707- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98064-281-0 04 1 0502-0706 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97616-359-0 04 1 0707- ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0201- ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0201- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 0102-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 0502- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0201- ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 0102-0501 ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 0502-0706 ●
84 00.603 ROD ASM; CONN 8-98018-425-3 04 1 0707- ●
84 00.603 ROD ASM; CONN 8-97135-032-6 04 1 0201- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 0102-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 04 1 0707- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0201-0805 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0102-0112 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0201-0501 ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-1004 ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 0102-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 0502- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0201- ●
