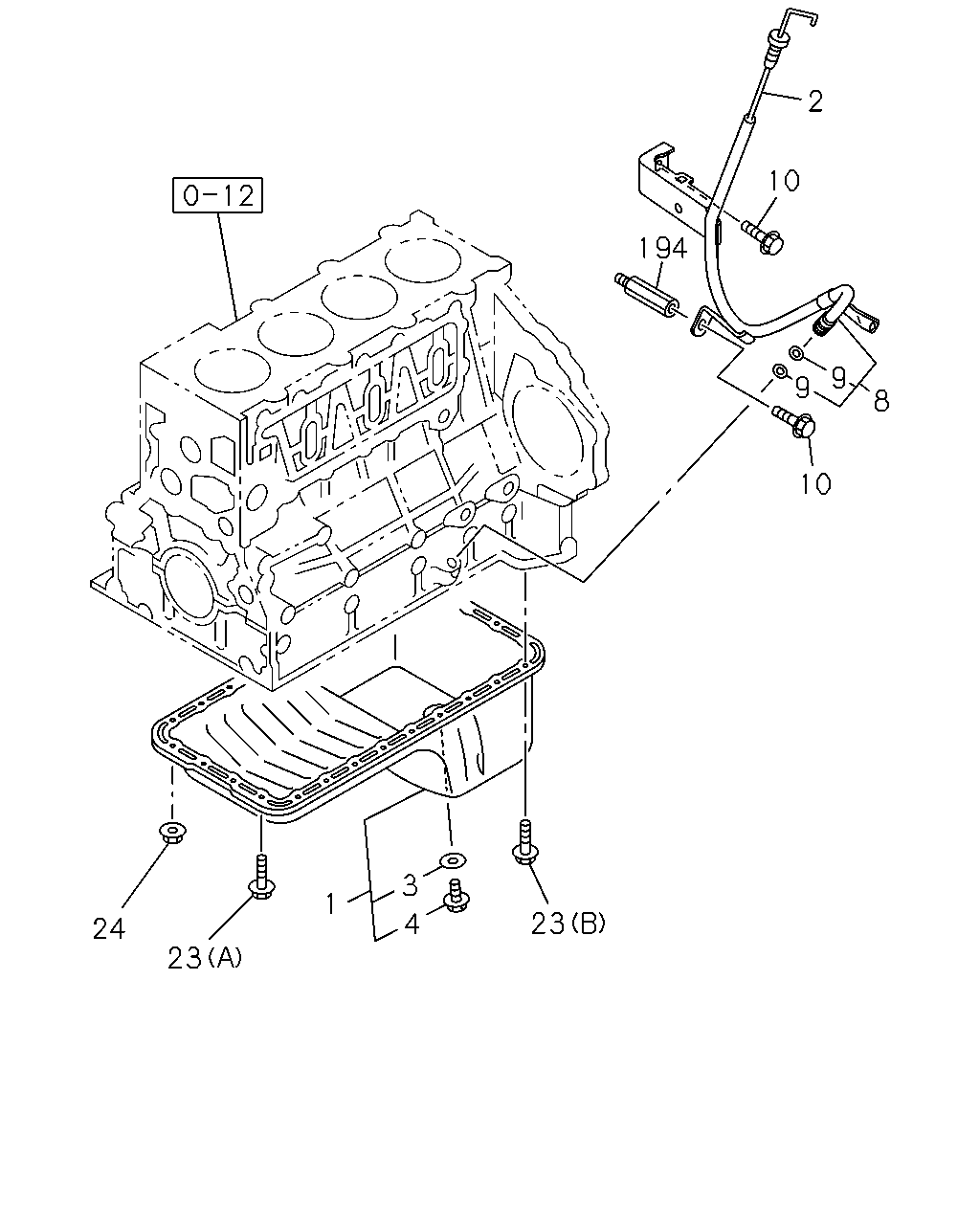

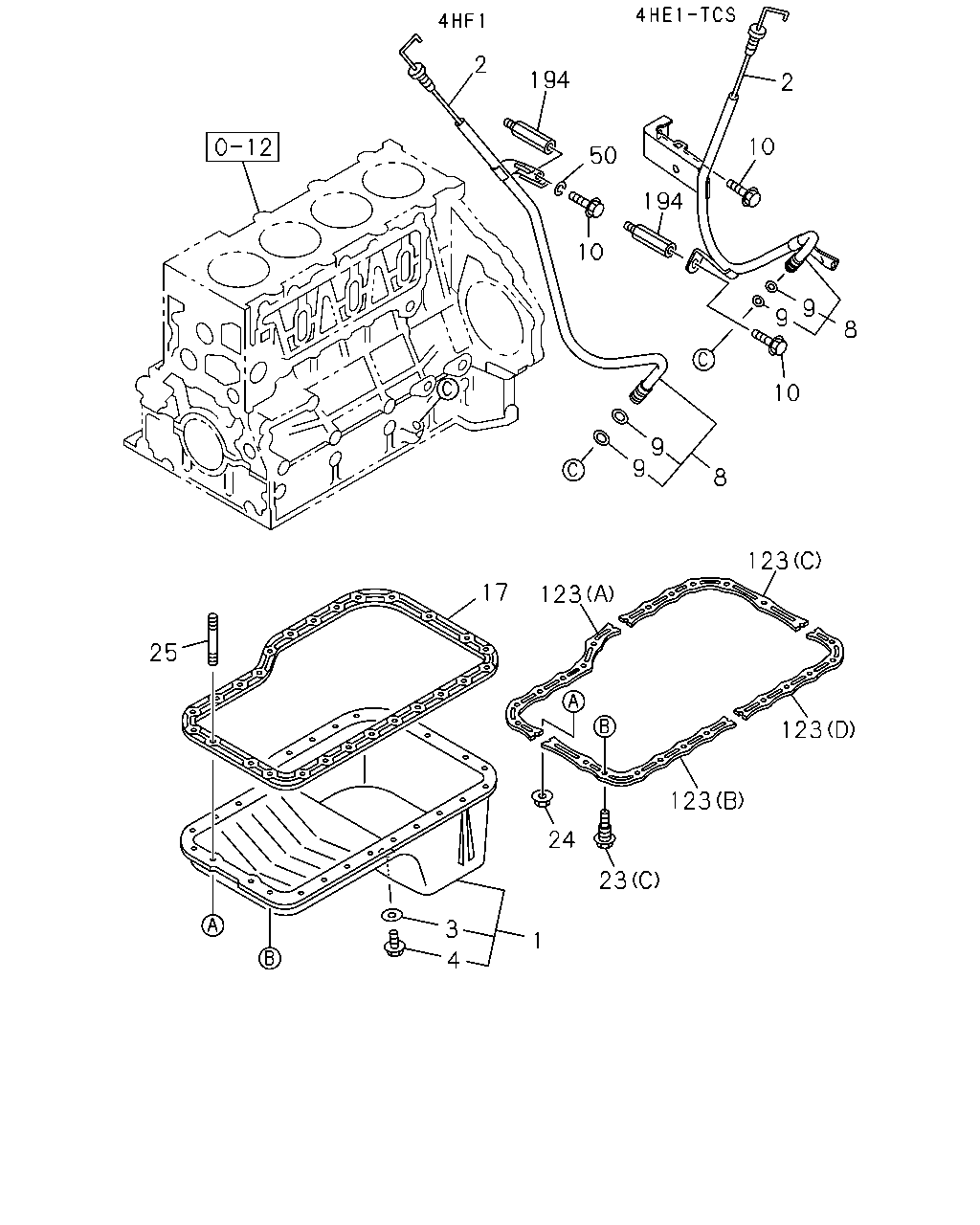

0-13 — OIL PAN AND LEVEL GAUGE (#47209) — 95 parça

2 194 2 10 50 194 10 9 9 8 10 9 9 8 123 17 123 25 123 123 24 23 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL	8-97149-314-0	01	1	0102-0501	●
1	01.426 PAN ASM; OIL	8-97385-243-1	01	1	0502-		●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0201-0405			●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-1202			●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-			●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0102-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0502-		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0201-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0102-0112	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0201-0501	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0502-		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0102-0112	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0201-0501	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97226-751-1	01	1	0102-0211	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0212-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0502-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0201-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0212-0501	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0502-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0102-0211	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0201-0211	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0212-			●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0102-0501	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-0512			●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0201-0402			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0403-0501			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0502-		●	●
23	01.428 BOLT; OIL PAN (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0102-0501	●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	0102-0501	●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-0501			●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-		●	●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0102-0501	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-0501			●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0602		●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0201-0501			●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0502-		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0201-0501			●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0502-		●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0201-0605			●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-			●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0201-0501			●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0502-		●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0201-0501			●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0502-		●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0201-0501			●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0502-		●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0201-			●
123	01.516 RUBBER; SEAL OIL (D)	8-97212-596-0	01	1	0502-		●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0102-0112	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0201-0501	●		●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0502-		●	●

2 10 194 9 9 8 10 3 1 23 4 24 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL	8-97149-314-0	01	1	0102-0501	●
1	01.426 PAN ASM; OIL	8-97385-243-1	01	1	0502-		●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0201-0405			●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-1202			●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-			●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0102-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0502-		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0201-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0102-0112	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0201-0501	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0502-		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0102-0112	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0201-0501	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97226-751-1	01	1	0102-0211	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0212-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0502-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0201-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0212-0501	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0502-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0102-0211	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0201-0211	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0212-			●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0102-0501	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-0512			●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
23	01.428 BOLT; OIL PAN (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0102-0501	●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	0102-0501	●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-0501			●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-		●	●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0102-0501	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-0501			●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0602		●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-		●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0102-0112	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0201-0501	●		●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0502-		●	●
