0-12 — CYLINDER BLOCK (#47208) — 92 parça

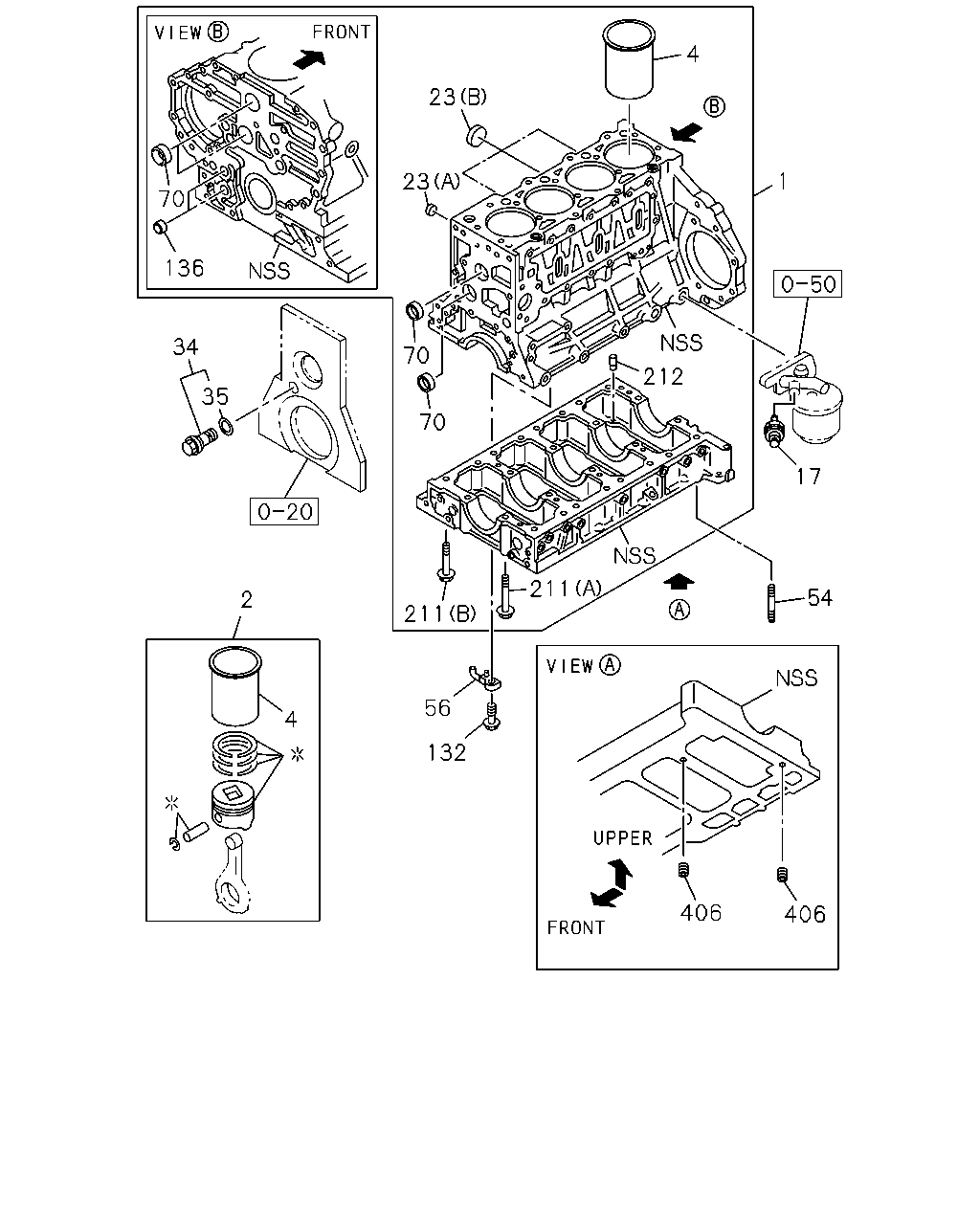

çizim 48118
136 70 23 23 4 1 212 17 54 211 211 70 70 35 34 2 4 56 132 406 406
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-97148-885-3 01 1 0102-0501 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-6 01 1 0502-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0102-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0502-0706 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87815-147-2 04 1 0707- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0102-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0502-0706 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87815-148-2 04 1 0707- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 0201- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 0201- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 0102-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 0102-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 0102-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 0102-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 0201- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 0201- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0102-0112 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0201-0501 ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0102-0112 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0201-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0102-0112 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0201-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502- ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0102-0112 ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0201-0501 ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0502-0706 ● ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0707- ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0102-0112 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0201-0501 ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0502- ● ●
54 01.428 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0102-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 08 1 0502- ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0102-0305 ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 08 1 0306-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 0201- ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0102-0501 ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0502- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0102-0112 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0201-0501 ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0502- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0102-0112 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0201-0501 ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0502-0704 ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0302-0501 ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0502-0812 ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0102-0112 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0201-0501 ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0502- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0102-0112 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0201-0501 ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0502- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0102-0112 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0201-0501 ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0102-0112 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0201-0501 ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0502- ● ●

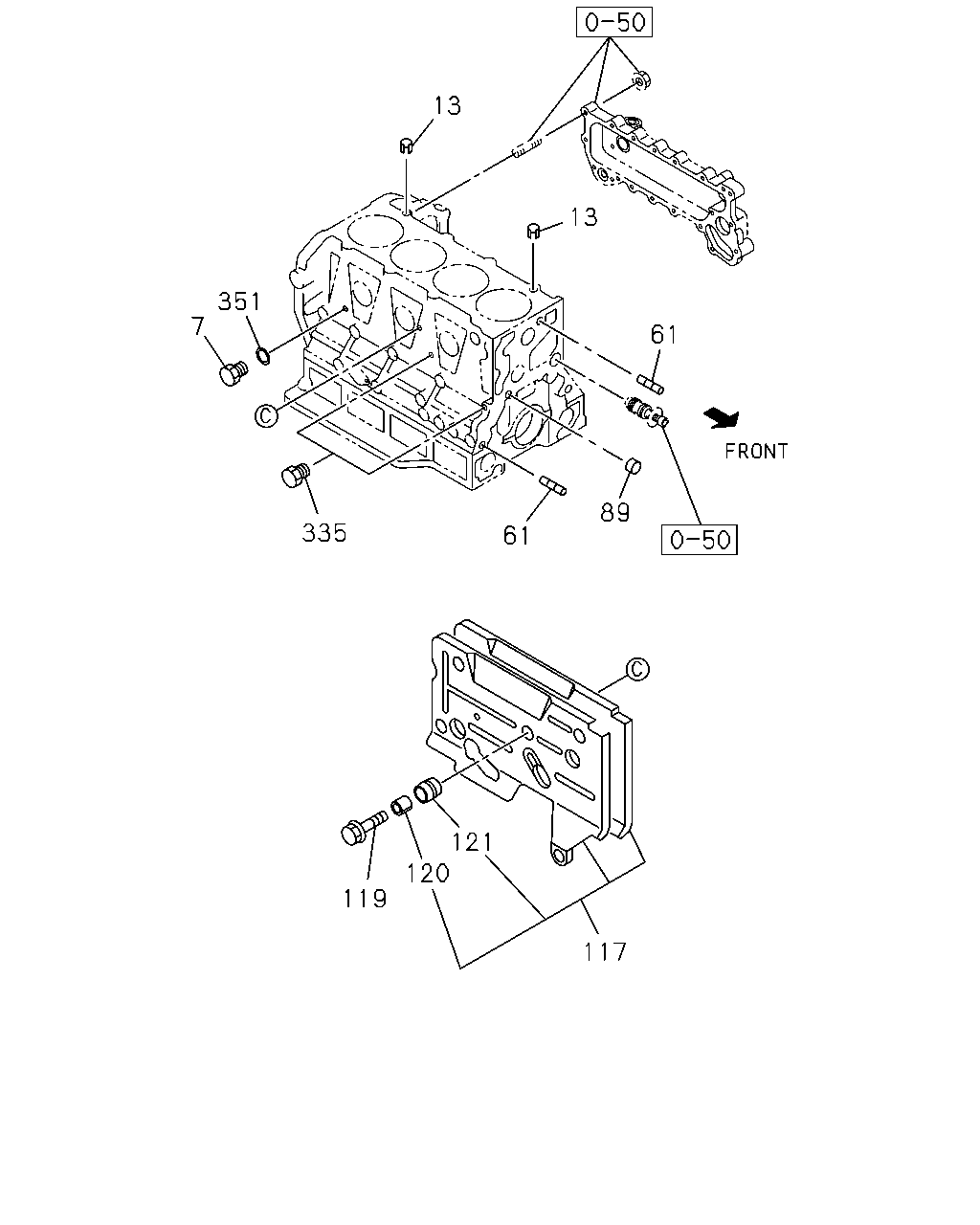

çizim 49593
13 13 351 7 61 89 335 61 121 120 119 117
BalonParca AdiParca NoAdetTipApplied Date A B C
7 00.034 PLUG; WATER DRAIN
04.105 M10X7 		9-09861-010-0 01 1 0102-0112 ●
7 00.034 PLUG; WATER DRAIN
04.105 M10X7 		9-09861-010-0 01 1 0201-0208 ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0209-0501 ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0502- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0102-0112 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0201-0501 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0102-0112 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0201-0501 ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0502- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0102-0112 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0201-0501 ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0502- ● ●
117 00.030 COVER ASM; C/BL 8-97258-620-1 01 1 0502- ●
119 00.034 BOLT; COVER FIX
M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502- ●
120 00.034 BUSHING; MTG RUBBER
OD=13 T=9.5 		8-94140-427-1 05 1 0502- ●
121 00.034 RUBBER; MTG,COVER 8-97315-987-0 05 1 0502- ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0102-0501 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0502-0712 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 02 1 0801- ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0201-0712 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 0801- ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0102-0112 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0201-0501 ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502- ● ●
