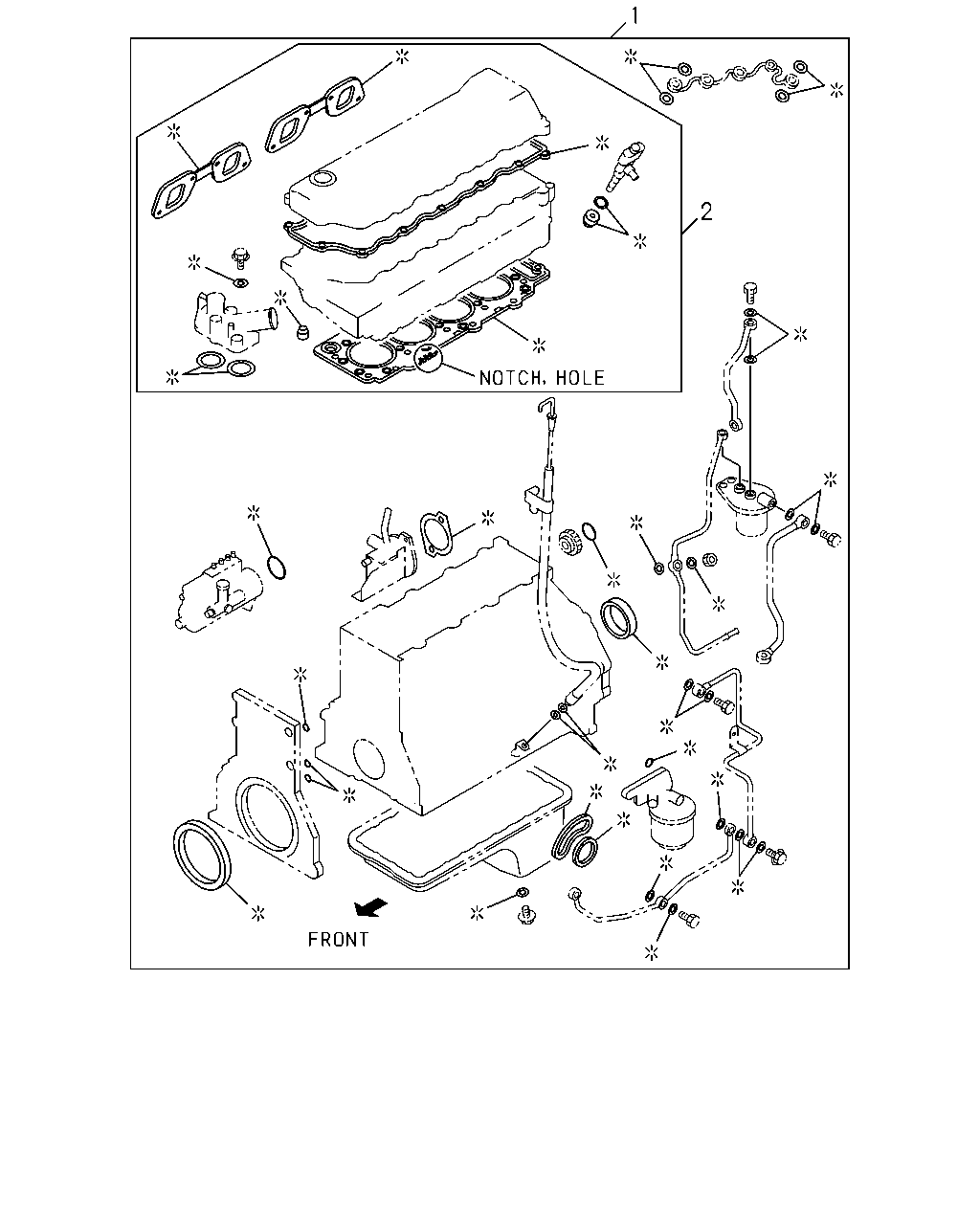

0-05 — ENGINE GASKET KIT (#47205) — 57 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87813-400-6	01	1	0102-0207	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87813-401-6	01	1	0102-0207	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87813-402-6	01	1	0102-0207	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-332-1	01	1	0208-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-433-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-436-3	01	1	0502-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87815-485-1	01	1	0903-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87815-721-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87815-984-1	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87817-189-1	01	1	1401-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-333-1	01	1	0208-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-434-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-437-3	01	1	0502-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87815-486-1	01	1	0903-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87815-722-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87815-985-1	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87817-190-1	01	1	1401-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-334-1	01	1	0208-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-435-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-438-3	01	1	0502-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87815-487-1	01	1	0903-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87815-723-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87815-986-1	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87817-191-1	01	1	1401-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-223-1	01	1	0201-0210			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-344-4	01	1	0211-0910			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-428-4	01	1	0911-1312			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-207-1	01	1	1401-			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-224-1	01	1	0201-0210			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-345-4	01	1	0211-0910			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-429-4	01	1	0911-1312			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-208-1	01	1	1401-			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-225-1	01	1	0201-0210			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-346-4	01	1	0211-0910			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-430-4	01	1	0911-1312			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-209-1	01	1	1401-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 WO/NOTCH	5-87813-406-4	01	1	0102-0207	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.75 1-NOTCH	5-87813-407-4	01	1	0102-0207	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.80 2-NOTCH	5-87813-408-4	01	1	0102-0207	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 WO/NOTCH	5-87814-338-2	01	1	0208-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 WO/NOTCH	5-87814-338-4	01	1	0502-1312		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 WO/NOTCH	5-87817-079-1	01	1	1401-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.75 1-NOTCH	5-87814-339-2	01	1	0208-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.75 1-NOTCH	5-87814-339-4	01	1	0502-1312		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.75 1-NOTCH	5-87817-080-1	01	1	1401-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.80 2-NOTCH	5-87814-340-2	01	1	0208-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.80 2-NOTCH	5-87814-340-4	01	1	0502-1312		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.80 2-NOTCH	5-87817-081-1	01	1	1401-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-229-1	01	1	0201-0910			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87813-957-4	01	1	0911-1312			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-123-1	01	1	1401-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-230-1	01	1	0201-0910			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87813-958-4	01	1	0911-1312			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-124-1	01	1	1401-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-231-1	01	1	0201-0910			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87813-959-4	01	1	0911-1312			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-125-1	01	1	1401-			●
