8-90 — RADIO AND TV (#47202) — 96 parça

2 203 22 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RADIO & CASSETTE DECK ASM GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) PHI	8-97976-665-0	01	1	0103-
2	RADIO & CASSETTE DECK ASM GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-669-0	01	1	0103-0405
2	RADIO & CASSETTE DECK ASM GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> PHI	8-97976-669-0	01	1	0406-
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-670-0	01	1	0103-0311
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. VIETNAM EQUIPMENT(CL0) PHI	8-97976-670-0	01	1	0312-
2	RADIO & CASSETTE DECK ASM GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0111-0311
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0312-0405
2	RADIO & CASSETTE DECK ASM GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0312-0405
2	RADIO & CASSETTE DECK ASM GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI	8-97977-023-0	01	1	0406-
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0406-
2	RADIO & CASSETTE DECK ASM GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0406-
22	PANEL; RADIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-033-0	01	1	0111-0311
22	PANEL; RADIO GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-033-0	01	1	0312-0405
22	PANEL; RADIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-033-0	01	1	0312-0405
22	PANEL; RADIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI	8-97977-033-0	01	1	0406-
22	PANEL; RADIO GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-033-0	01	1	0406-
22	PANEL; RADIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-033-0	01	1	0406-
203	HARNESS; EXT,CASSETTE & RADIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-035-0	01	1	0111-0311
203	HARNESS; EXT,CASSETTE & RADIO GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-035-0	01	1	0312-0405
203	HARNESS; EXT,CASSETTE & RADIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-035-0	01	1	0312-0405
203	HARNESS; EXT,CASSETTE & RADIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI	8-97977-035-0	01	1	0406-
203	HARNESS; EXT,CASSETTE & RADIO GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-035-0	01	1	0406-
203	HARNESS; EXT,CASSETTE & RADIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-035-0	01	1	0406-
252	REMOTE CONTROL UNIT; AUDIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-034-0	01	1	0111-0311
252	REMOTE CONTROL UNIT; AUDIO GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-034-0	01	1	0312-0405
252	REMOTE CONTROL UNIT; AUDIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-034-0	01	1	0312-0405
252	REMOTE CONTROL UNIT; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI	8-97977-034-0	01	1	0406-
252	REMOTE CONTROL UNIT; AUDIO GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-034-0	01	1	0406-
252	REMOTE CONTROL UNIT; AUDIO GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-034-0	01	1	0406-

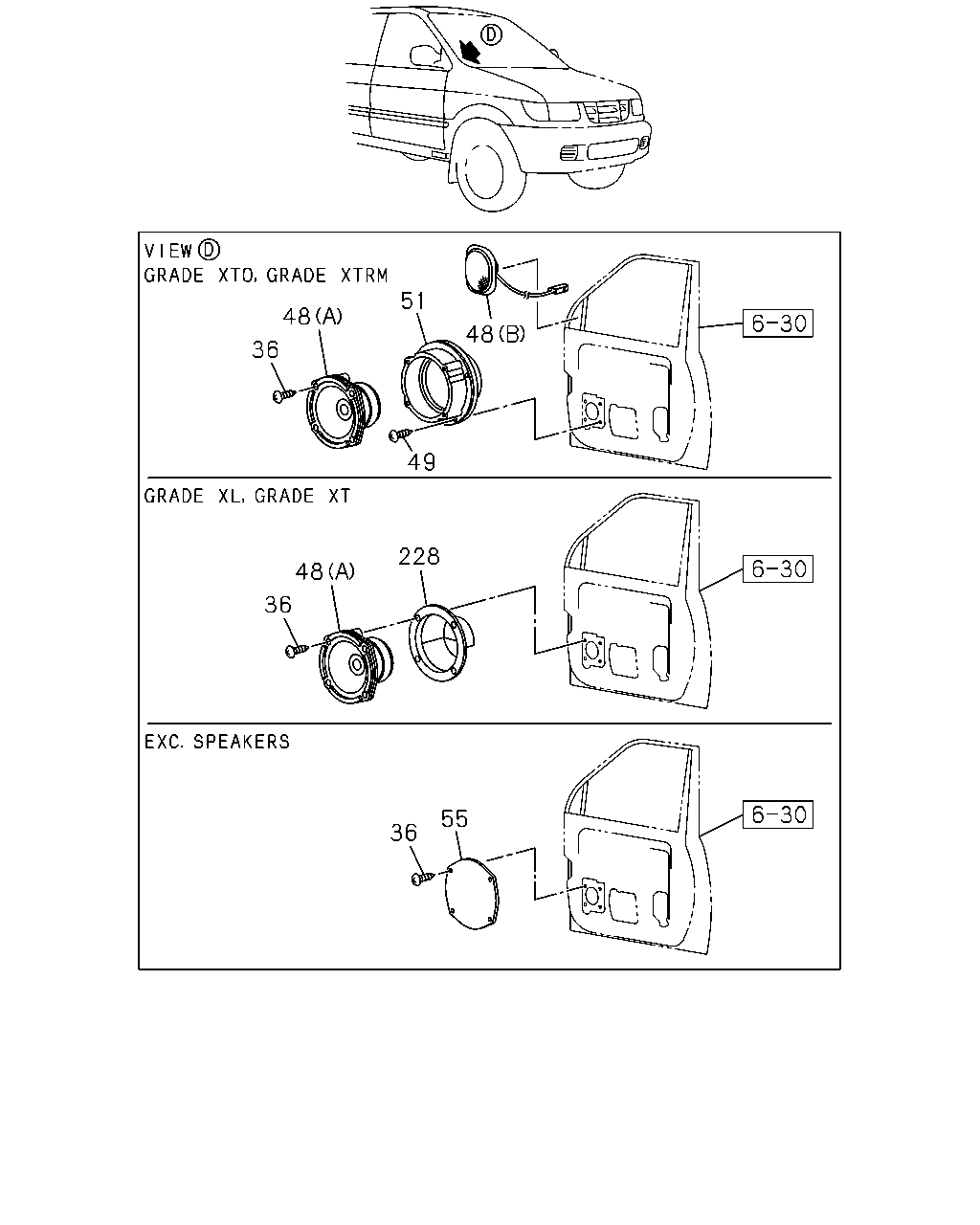

51 48 48 36 49 228 48 36 55 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	SCREW; COVER M5X14 TAPPING	9-07076-514-0	08	1	0103-0603
36	SCREW; COVER M5X14 TAPPING	0-71240-514-0	08	1	0604-
48	SPEAKER; AUDIO GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) (A) PHI	8-97976-666-0	02	1	0103-0405
48	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) PHI	8-97976-666-0	02	1	0103-0405
48	SPEAKER; AUDIO GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) (A) PHI	8-97976-666-0	02	1	0406-
48	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> (A) PHI	8-97976-666-0	02	1	0406-
48	SPEAKER; AUDIO GRADE XTO(RBD) (B) IDN	8-97956-749-0	01	1	0103-0110
48	SPEAKER; AUDIO GRADE XTO(RBD),GRADE XTRM(RBG) (B) IDN	8-97956-749-0	01	1	0111-
48	SPEAKER; AUDIO GRADE XTO(RBD) (B) IDN	8-97956-748-0	01	1	0103-0110
48	SPEAKER; AUDIO GRADE XTO(RBD),GRADE XTRM(RBG) (B) IDN	8-97956-748-0	01	1	0111-
48	SPEAKER; AUDIO GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) PHI	8-97976-671-0	02	1	0103-0110
48	SPEAKER; AUDIO GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) PHI	8-97976-671-0	02	1	0111-0405
48	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> (A) PHI	8-97976-671-0	02	1	0406-
48	SPEAKER; AUDIO GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) PHI	8-97976-671-0	02	1	0406-
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	06	1	0103-0603
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	0-71240-514-0	06	1	0604-
49	SCREW; SPEAKER GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	08	1	0103-0110
49	SCREW; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	08	1	0111-0405
49	SCREW; SPEAKER GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> M5X14 TAPPING	9-07076-514-0	08	1	0406-0603
49	SCREW; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	08	1	0406-0603
49	SCREW; SPEAKER GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> M5X14 TAPPING	0-71240-514-0	08	1	0604-
49	SCREW; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	0-71240-514-0	08	1	0604-
51	SPACER; SPEAKER GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-717-0	02	1	0103-0110
51	SPACER; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-717-0	02	1	0111-0405
51	SPACER; SPEAKER GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> IDN	8-97956-717-0	02	1	0406-
51	SPACER; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-717-0	02	1	0406-
55	COVER; SPEAKER HOLE EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-754-0	02	1	0103-0302
228	COVER; WATER PROOF GRADE XL(RBA),GRADE XT(RBB) PHI	8-97976-680-0	02	1	0103-0405
228	COVER; WATER PROOF GRADE XL(RBA) PHI	8-97976-680-0	02	1	0406-
228	COVER; WATER PROOF GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> PHI	8-97976-680-0	02	1	0406-

56 49 134 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	06	1	0103-0603
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	0-71240-514-0	06	1	0604-
49	SCREW; SPEAKER GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	08	1	0103-0110
49	SCREW; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	08	1	0111-0405
49	SCREW; SPEAKER GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> M5X14 TAPPING	9-07076-514-0	08	1	0406-0603
49	SCREW; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	9-07076-514-0	08	1	0406-0603
49	SCREW; SPEAKER GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> M5X14 TAPPING	0-71240-514-0	08	1	0604-
49	SCREW; SPEAKER GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING	0-71240-514-0	08	1	0604-
56	NUT; SPEAKER,RADIO OR STEREO AM/FM W/CASSETTE 4 SPEAKERS(UM6) OD=14	8-94107-541-0	06	1	0103-0103
59	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-667-0	01	1	0103-0103
59	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-667-0	02	1	0104-0405
59	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> PHI	8-97976-667-0	02	1	0406-
59	SPEAKER; AUDIO GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-672-0	02	1	0103-0110
59	SPEAKER; AUDIO GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-672-0	02	1	0111-0405
59	SPEAKER; AUDIO GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI	8-97976-672-0	02	1	0406-
59	SPEAKER; AUDIO GRADE XTO(RBD),GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-672-0	02	1	0406-
134	GRILLE; SPEAKER,RR AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI	8-97976-691-0	02	1	0103-0103
134	GRILLE; SPEAKER,RR AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN	8-97959-426-1	02	1	0104-

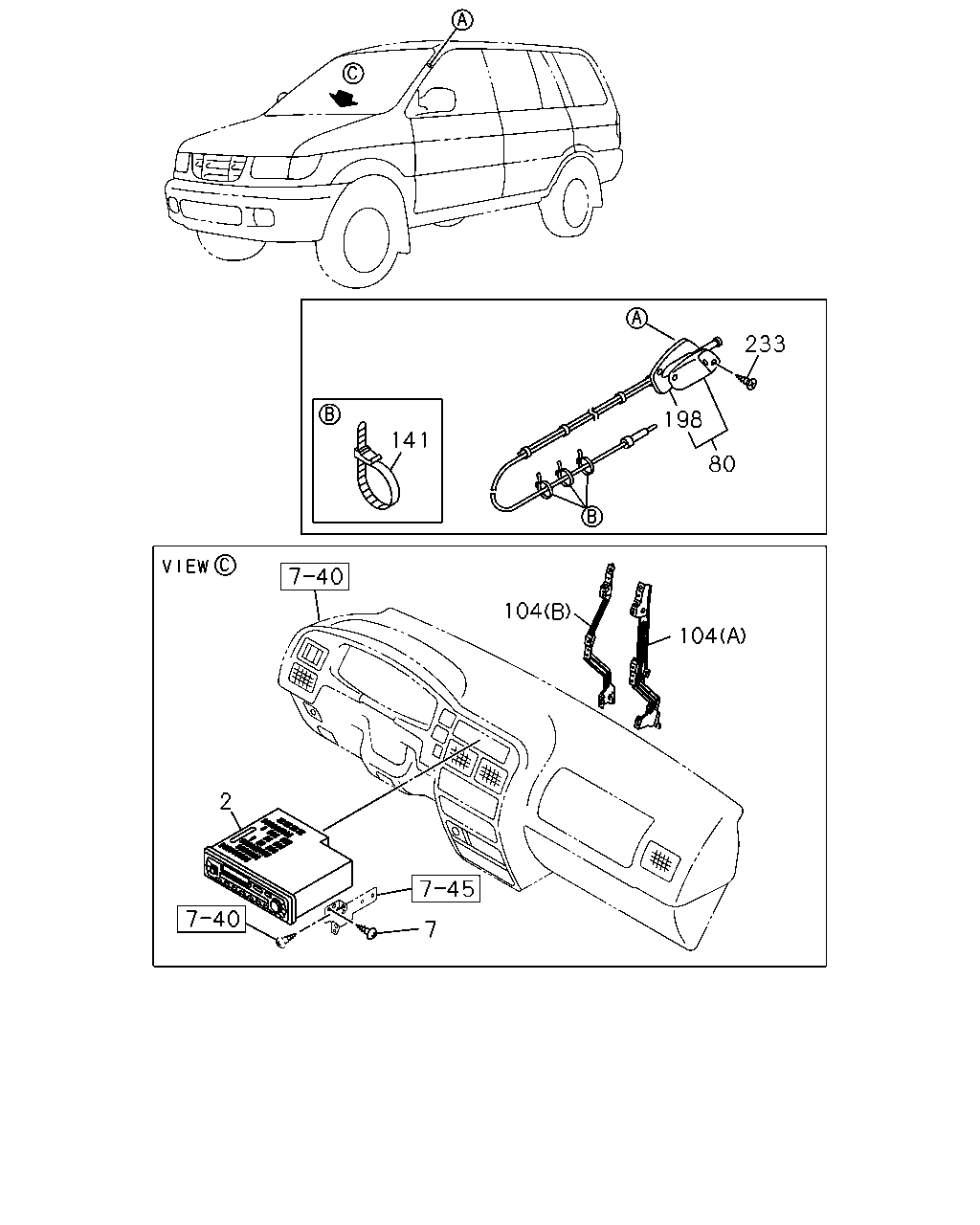

233 198 141 80 104 104 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RADIO & CASSETTE DECK ASM GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) PHI	8-97976-665-0	01	1	0103-
2	RADIO & CASSETTE DECK ASM GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-669-0	01	1	0103-0405
2	RADIO & CASSETTE DECK ASM GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> PHI	8-97976-669-0	01	1	0406-
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97976-670-0	01	1	0103-0311
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. VIETNAM EQUIPMENT(CL0) PHI	8-97976-670-0	01	1	0312-
2	RADIO & CASSETTE DECK ASM GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0111-0311
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0312-0405
2	RADIO & CASSETTE DECK ASM GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0312-0405
2	RADIO & CASSETTE DECK ASM GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI	8-97977-023-0	01	1	0406-
2	RADIO & CASSETTE DECK ASM GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0406-
2	RADIO & CASSETTE DECK ASM GRADE XTRM(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI	8-97977-023-0	01	1	0406-
7	SCREW; RADIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	0103-0302
7	SCREW; RADIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) PHI	8-97357-162-0	04	1	0303-
80	ANTENNA PHI	8-97976-658-0	01	1	0103-
104	BRACKET; AUDIO (B)	8-97107-585-1	01	1	0103-
104	BRACKET; AUDIO (A)	8-97107-584-3	01	1	0103-
141	CLIP; ANTENNA CABLE L=250	5-09707-030-1	03	1	0103-
198	SHEET; ANTENNA PHI	8-97976-912-0	01	1	0103-
233	SCREW M4X14 TAPPING	0-71090-414-0	02	1	0103-
