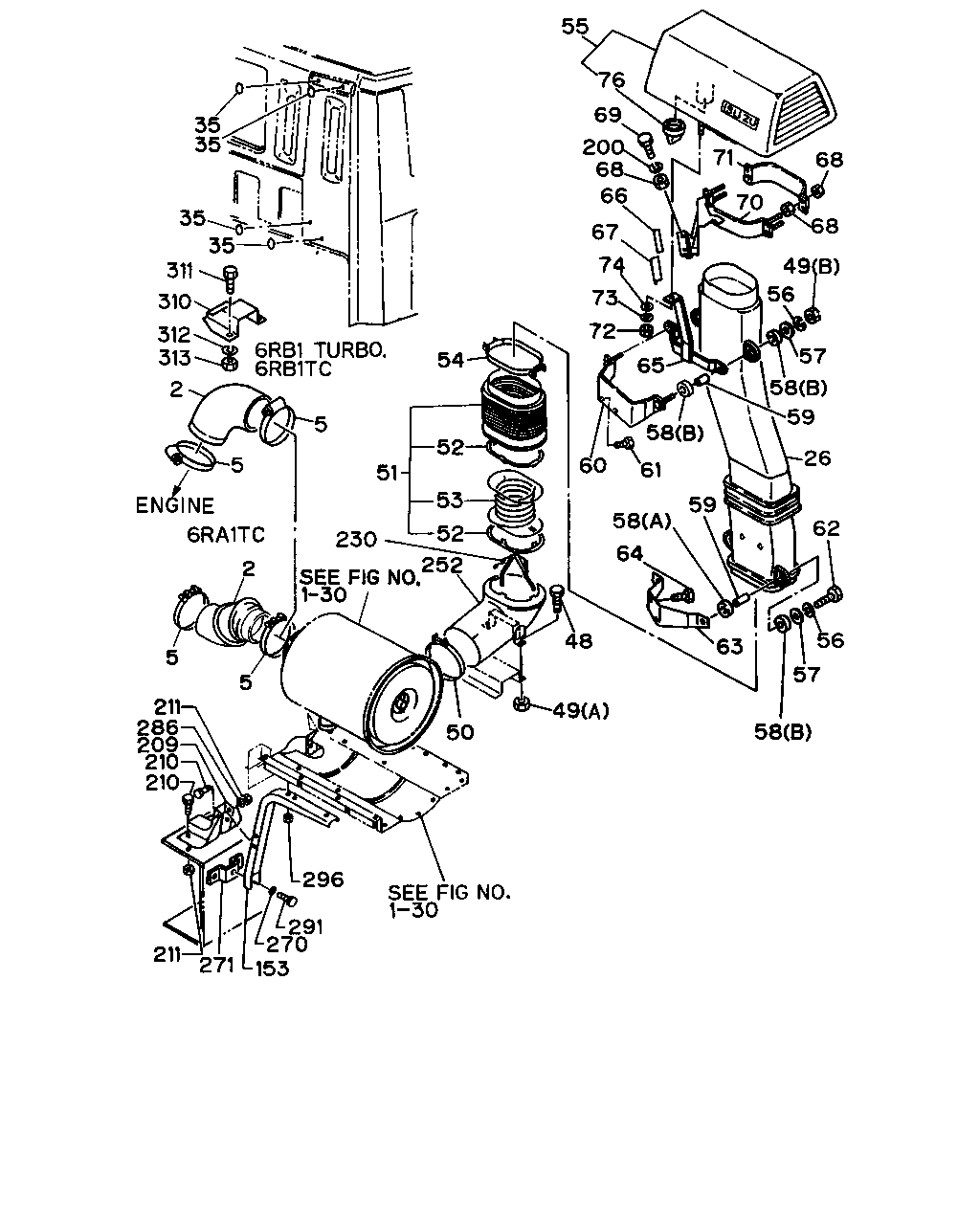

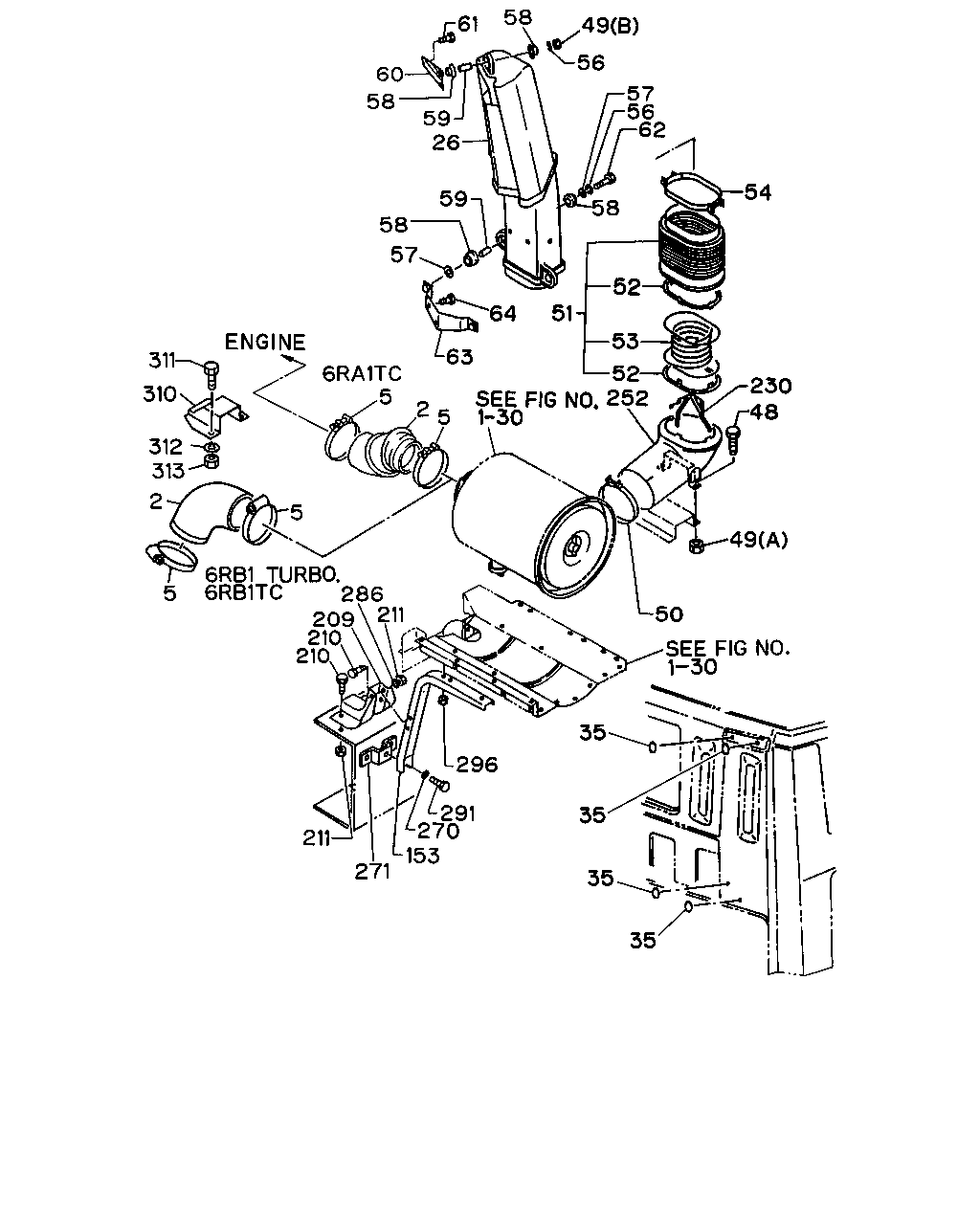

1-31A — AIR DUCT (#472) — 158 parça

55 76 69 200 68 66 67 74 73 72 71 70 68 68 49 56 57 58 59 26 65 58 60 61 59 58 64 63 56 57 58 48 49 50 296 291 270 153 271 211 210 210 209 286 211 5 5 2 230 252 52 53 51 52 54 5 5 2 313 312 310 311 35 35 35 35 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-686-0	01	1	8712-	●	●
2	HOSE; ACL	1-14231-484-1	01	1	8712-9306			●
5	CLIP; AIR DUCT ID=162	1-09704-046-0	01	1	8712-8805	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	8806-9001	●	●
5	CLIP; AIR DUCT ID=162	1-09704-046-0	01	1	8712-8808	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	8809-9001	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●
5	CLIP; AIR DUCT ID=128	9-09915-614-0	01	1	8712-8805			●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	8806-8808			●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	8809-9306			●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	8712-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	8712-	●	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●		●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	8712-9204	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●		●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09400-053-0	02	1	8712-9001	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09400-053-0	01	1	8712-9001	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	8712-	●	●	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	8712-	●	●	●
52	SEAT; SPR	1-14239-111-1	02	1	8712-	●	●	●
53	SPRING	1-14239-113-2	01	1	8712-	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-100-0	01	1	8712-9001	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●		●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	8712-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17>	1-09500-033-0	04	1	8712-9001	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17>	1-09500-033-0	03	1	8712-9001	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17>	1-09985-180-0	04	1	9002-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17>	1-09985-180-0	03	1	9002-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26.0	1-09503-159-0	04	1	8712-9001	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	8712-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	8712-	●		●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	8712-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	8712-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-186-0	06	1	8712-9001	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	8712-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	8712-	●	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	8712-	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-14234-067-1	01	1	8712-8809	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	8810-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	8712-	●	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	8712-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	8712-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	8712-	●	●	●
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	8712-	●	●	●
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	8712-	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	8712-	●	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	08	1	8712-9306	●	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9307-	●		●
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	8712-	●	●	●
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	8712-	●	●	●
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	8712-	●	●	●
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	8712-	●	●	●
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	8712-	●	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	8712-	●	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	8712-	●	●	●
153	BRACKET; ACL,FRT	8-94300-329-3	01	1	8712-	●	●	●
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-	●		●
209	BRACKET; ACL	1-53419-171-0	01	1	8712-	●	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	03	1	8712-9005	●	●	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	03	1	9006-	●		●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	03	1	8712-9005	●	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	03	1	9006-	●		●
211	NUT; BRKT M8	9-09110-408-0	03	1	8712-	●	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●		●
252	DUCT; AIR INT	1-14230-057-2	01	1	8712-9001	●	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●		●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-	●		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	8712-	●	●	●
271	SPACER; BRKT,ACL	1-53497-111-0	01	1	8712-	●	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	03	1	8712-	●	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9001	●	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●		●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●		●
296	NUT; ACL M12	9-99110-512-0	02	1	8712-	●	●	●
310	PROTECTOR; HEAT,ACL	1-53497-199-0	01	1	8712-	●	●	●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	9-01960-816-0	02	1	8712-9204	●	●	●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9205-9306	●		●
311	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9307-	●
312	WASHER; PL,HEAT PROTECTOR ID=8.4	9-09160-508-0	02	1	8712-	●	●	●
313	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	8712-	●	●	●

61 58 49 56 57 56 62 54 58 52 51 53 52 252 230 48 49 50 35 35 35 35 296 291 270 153 271 211 210 210 209 286 211 5 5 2 313 312 310 311 5 2 5 63 64 57 58 59 26 59 58 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-686-0	01	1	8712-	●	●
2	HOSE; ACL	1-14231-484-1	01	1	8712-9306			●
5	CLIP; AIR DUCT ID=162	1-09704-046-0	01	1	8712-8805	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	8806-9001	●	●
5	CLIP; AIR DUCT ID=162	1-09704-046-0	01	1	8712-8808	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	8809-9001	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●
5	CLIP; AIR DUCT ID=128	9-09915-614-0	01	1	8712-8805			●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	8806-8808			●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	8809-9306			●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	8712-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	8712-	●	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●		●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	8712-9204	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●		●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09400-053-0	02	1	8712-9001	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09400-053-0	01	1	8712-9001	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	8712-	●	●	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	8712-	●	●	●
52	SEAT; SPR	1-14239-111-1	02	1	8712-	●	●	●
53	SPRING	1-14239-113-2	01	1	8712-	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-100-0	01	1	8712-9001	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17>	1-09500-033-0	04	1	8712-9001	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17>	1-09500-033-0	03	1	8712-9001	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17>	1-09985-180-0	04	1	9002-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17>	1-09985-180-0	03	1	9002-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26.0	1-09503-159-0	04	1	8712-9001	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	8712-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	8712-	●		●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	8712-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	8712-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-186-0	06	1	8712-9001	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	8712-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	8712-	●	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	8712-	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-14234-067-1	01	1	8712-8809	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	8810-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	8712-	●	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	8712-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	8712-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	8712-	●	●	●
153	BRACKET; ACL,FRT	8-94300-329-3	01	1	8712-	●	●	●
209	BRACKET; ACL	1-53419-171-0	01	1	8712-	●	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	03	1	8712-9005	●	●	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	03	1	9006-	●		●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	03	1	8712-9005	●	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	03	1	9006-	●		●
211	NUT; BRKT M8	9-09110-408-0	03	1	8712-	●	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●		●
252	DUCT; AIR INT	1-14230-057-2	01	1	8712-9001	●	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●		●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-	●		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	8712-	●	●	●
271	SPACER; BRKT,ACL	1-53497-111-0	01	1	8712-	●	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	03	1	8712-	●	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9001	●	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●		●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●		●
296	NUT; ACL M12	9-99110-512-0	02	1	8712-	●	●	●
310	PROTECTOR; HEAT,ACL	1-53497-199-0	01	1	8712-	●	●	●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	9-01960-816-0	02	1	8712-9204	●	●	●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9205-9306	●		●
311	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9307-	●
312	WASHER; PL,HEAT PROTECTOR ID=8.4	9-09160-508-0	02	1	8712-	●	●	●
313	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	8712-	●	●	●
