8-72 — COOLER UNIT
(#47196) — 39 parça
◀

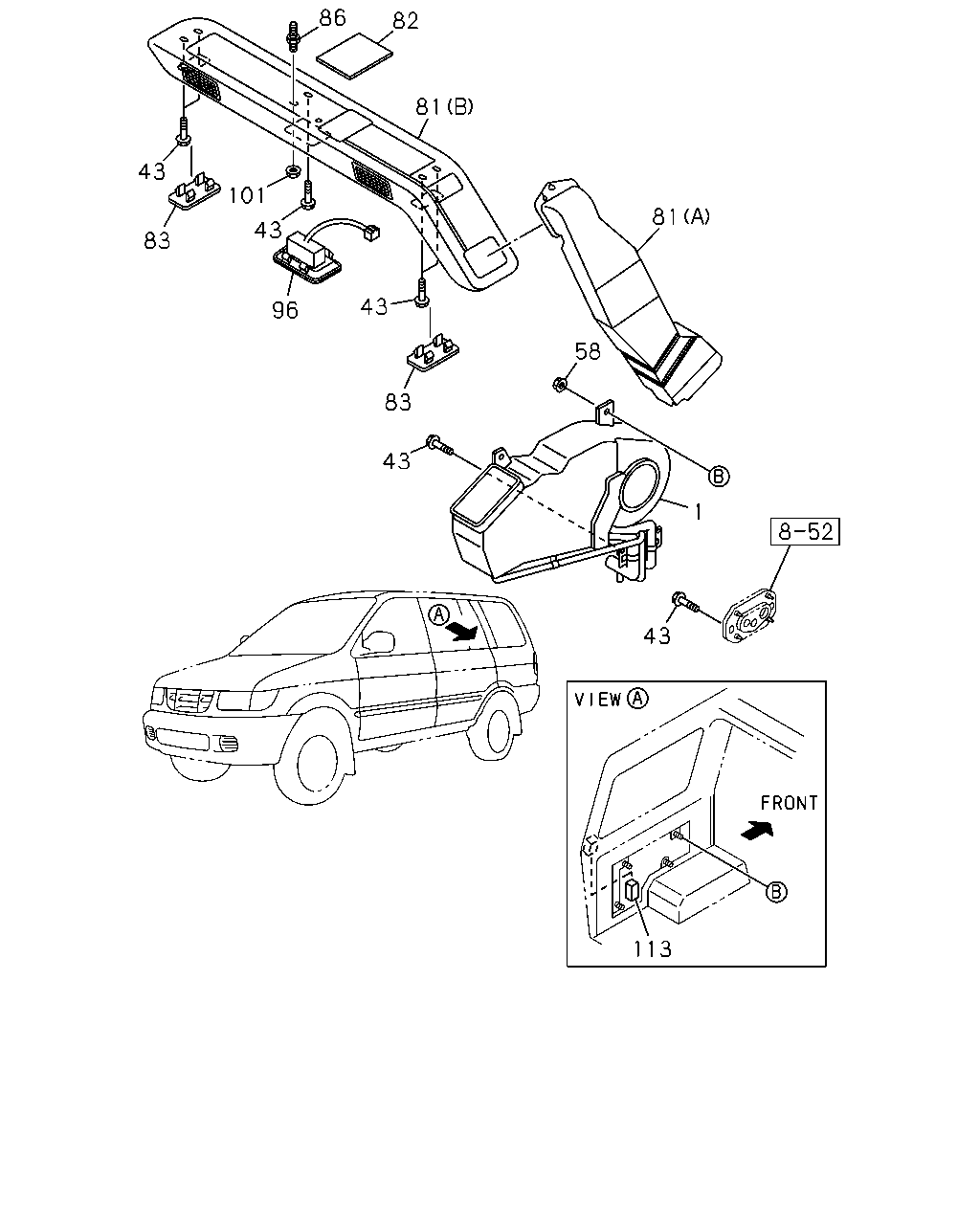

[872A] COOLING UNIT AND DUCT (12 parça)

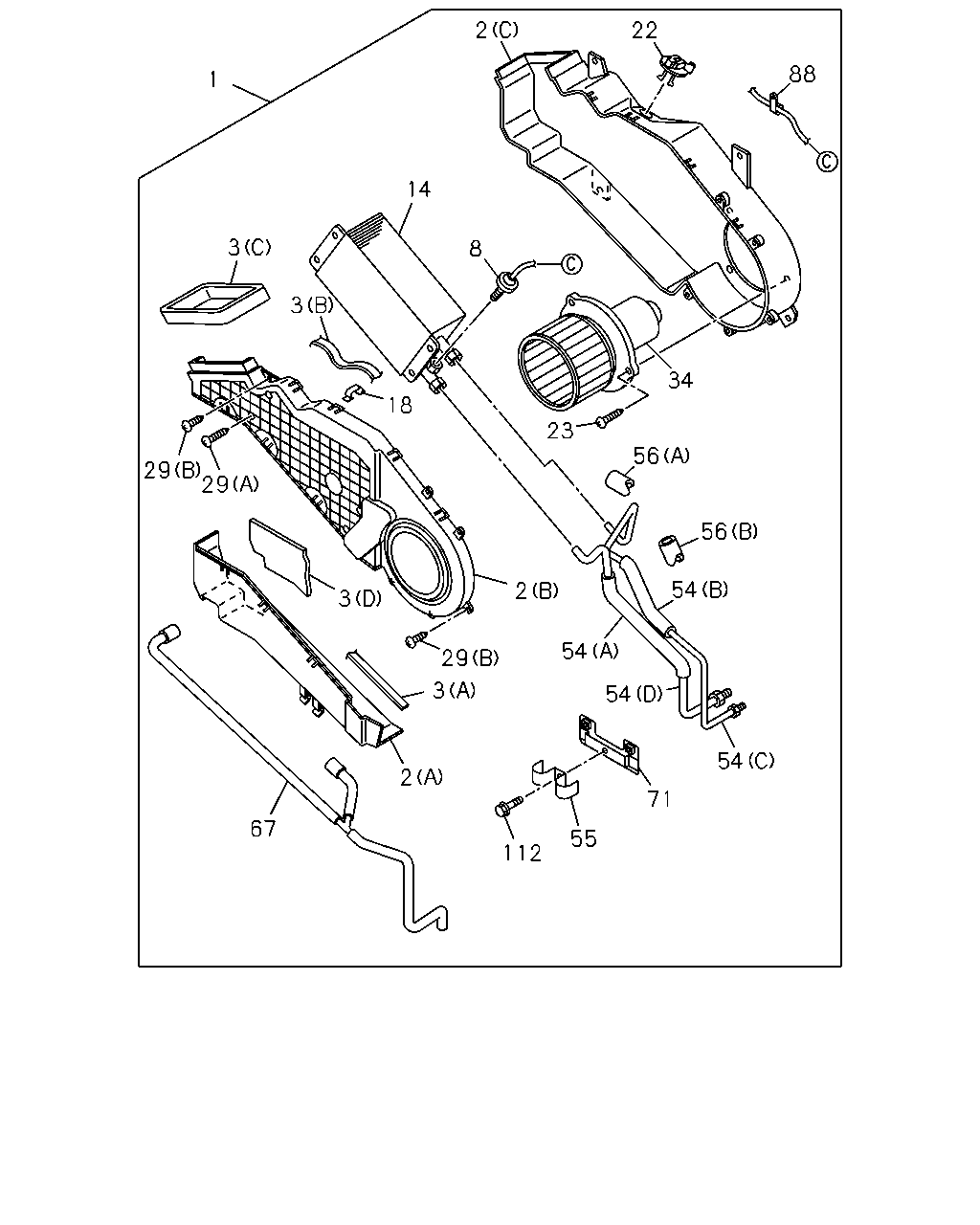

[872A] COOLING UNIT COMPONENT (27 parça)
▶
86
82
81
43
101
81
43
83
43
96
58
83
43
1
43
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLING UNIT; RR
PHI
8-97976-863-2
01
1
0103-
43
BOLT; COOLER UNIT
M6X20 FLANGE
0-28480-620-0
09
1
0103-0512
43
BOLT; COOLER UNIT
M6X20 FLANGE
0-28450-620-0
09
1
0601-
58
NUT; CASE
M6 FLANGE
8-97063-399-0
04
1
0103-
81
DUCT; RR COOLER
(A) PHI
8-97976-176-0
01
1
0103-
81
DUCT; RR COOLER
(B) LIGHT GRAY PHI
8-97976-471-0
01
1
0103-
82
SEAL; DUCT
PHI
8-97976-177-0
01
1
0103-
83
CAP
LIGHT GRAY PHI
8-97976-175-0
02
1
0103-
86
STUD; DUCT
8-97256-495-0
01
1
0103-
96
SWITCH ASM; FAN
LIGHT GRAY PHI
8-97976-180-0
01
1
0103-
101
NUT; DUCT
M6 FLANGE
8-94279-514-0
01
1
0103-
113
SEAL; RR PILLER
PHI
8-97976-870-0
01
1
0103-
2
22
88
1
14
3
8
3
34
18
23
56
29
29
56
54
2
3
54
29
3
54
54
2
71
67
55
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLING UNIT; RR
PHI
8-97976-863-2
01
1
0103-
2
CASE; RR COOLER
(A) PHI
8-97957-702-0
01
1
0103-
2
CASE; RR COOLER
(B) PHI
8-97957-703-0
01
1
0103-
2
CASE; RR COOLER
(C) PHI
8-97957-704-0
01
1
0103-
3
LINING; CASE
(A) PHI
8-97957-686-0
01
1
0103-
3
LINING; CASE
(B) PHI
8-97957-687-0
01
1
0103-
3
LINING; CASE
(C) PHI
8-97957-688-0
01
1
0103-
3
LINING; CASE
(D) PHI
8-97957-712-0
01
1
0103-
8
VALVE; EXPANSION
PHI
8-97959-643-0
01
1
0103-
14
EVAPORATOR; RR COOLER
PHI
8-97957-700-1
01
1
0103-
18
CLIP; CASE
PHI
8-97957-711-0
05
1
0103-
22
RESISTOR; RR COOLER
PHI
8-97957-697-0
01
1
0103-
23
SCREW; CASE TO MOTOR
PHI
8-97957-709-0
03
1
0103-
29
SCREW; CASE
(A) PHI
8-97957-707-0
03
1
0103-
29
SCREW; CASE
(B) M4X16 TAPPING PHI
8-97957-708-0
11
1
0103-
34
MOTOR; FAN,COOLER UNIT
PHI
8-97959-642-0
01
1
0103-
54
PIPE; COOLER UNIT
(A) PHI
8-97957-691-0
01
1
0103-
54
PIPE; COOLER UNIT
(B) PHI
8-97957-692-0
01
1
0103-
54
PIPE; COOLER UNIT
(C) PHI
8-97957-695-0
01
1
0103-
54
PIPE; COOLER UNIT
(D) PHI
8-97959-644-0
01
1
0103-
55
CLAMP; PIPE
PHI
8-97957-706-0
01
1
0103-
56
LINING; PIPE
(A) PHI
8-97957-689-0
01
1
0103-
56
LINING; PIPE
(B) PHI
8-97957-690-0
02
1
0103-
67
HOSE; DRAIN
PHI
8-97957-696-0
01
1
0103-
71
BRACKET; HOSE
PHI
8-97957-705-0
01
1
0103-
88
HOLDER; COOLING UNIT
PHI
8-97262-256-0
01
1
0103-
112
BOLT; CLIP
PHI
8-97957-710-0
01
1
0103-
