8-40 — HEATER SYSTEM
(#47190) — 25 parça
◀
[840A] RELAY (4 parça)

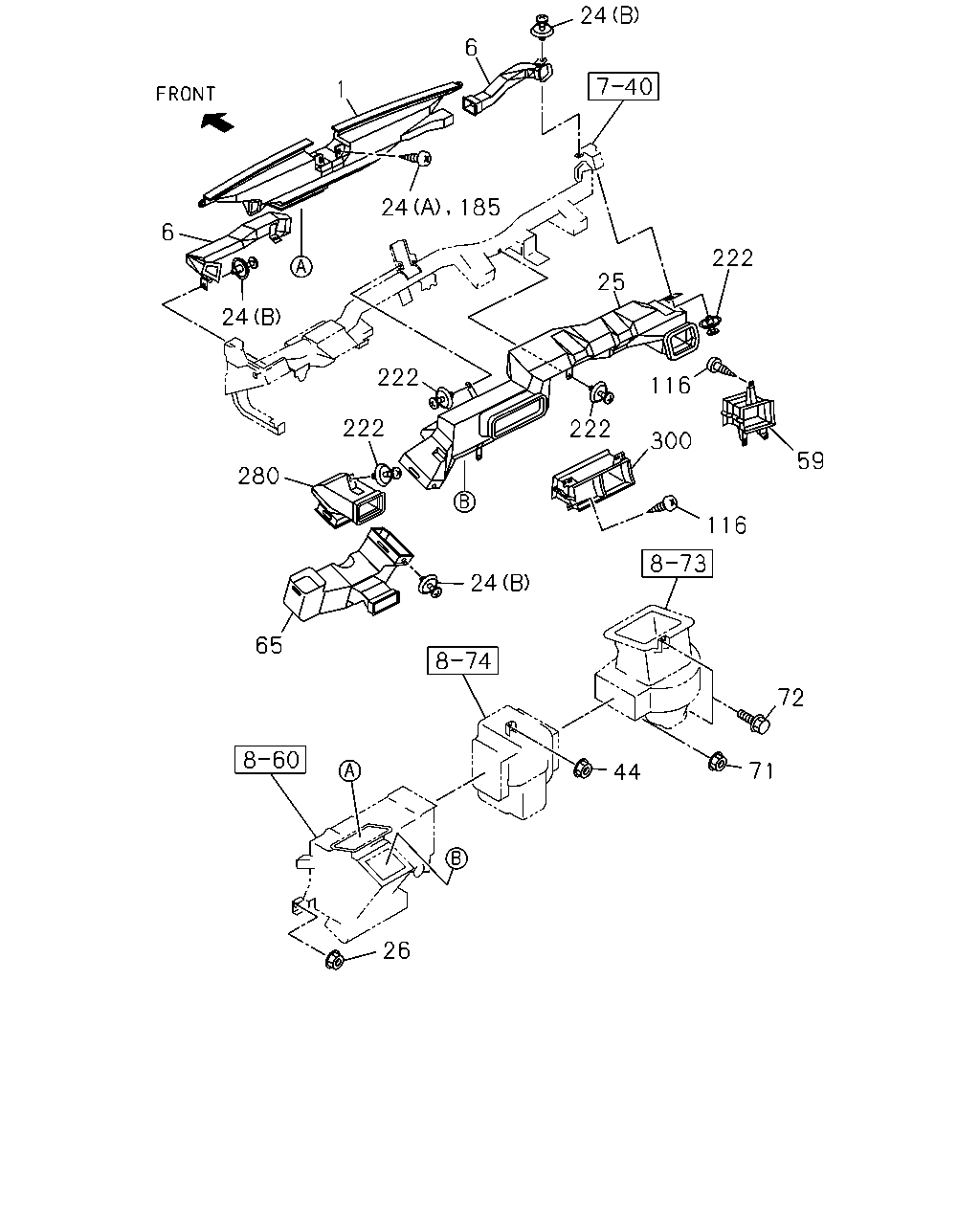

[840A] DUCT (21 parça)
▶
368
32
34
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
RELAY; A/C
PHI
8-97976-803-0
01
1
0103-
32
RELAY; A/C
PHI
8-97976-803-0
01
1
0103-
34
RELAY; A/C CUT
A/T AISIN(RMD) PHI
8-97976-803-0
01
1
0103-
368
RELAY; HEATER AND A/C
12V 20A
8-97060-926-1
01
1
0103-
24
6
1
24
185
6
222
25
24
222
116
222
222
300
59
280
116
24
65
72
71
44
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
NOZZLE; DEFROSTER,INST PNL
8-97107-800-0
01
1
0103-
6
DUCT; SIDE DEFROSTER
8-97119-906-1
01
1
0103-
6
DUCT; SIDE DEFROSTER
8-97100-190-0
01
1
0103-
24
SCREW; NOZZLE TO INST PNL
(A) M5X16 TAPPING W/PL WASHER
0-74315-516-0
04
1
0103-0604
24
SCREW; NOZZLE TO INST PNL
M5X16 TAPPING W/PL WASHER
0-74365-516-0
04
1
0605-
24
SCREW; NOZZLE TO INST PNL
(B) PHI
8-94243-190-0
05
1
0103-0112
24
SCREW; NOZZLE TO INST PNL
(B)
8-97327-315-0
05
1
0201-
25
DUCT; CENTER
8-97100-192-1
01
1
0103-
26
NUT; HTR
M6 FLANGE
8-97063-399-0
04
1
0103-
44
NUT; EVAP
M6 FLANGE
8-97063-399-0
02
1
0103-
59
DUCT; VENT,ASSIST SIDE
8-97101-305-0
01
1
0103-
65
DUCT; VENT,DRIVER SIDE
8-97100-193-0
01
1
0103-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
8-97063-399-0
01
1
0103-
72
BOLT; BLOWER UNIT
M6X16
8-94206-784-0
02
1
0103-
116
SCREW; TAP AIR DUCT
M5X16 TAPPING
9-09829-323-1
07
1
0103-
185
SCREW; VENT DUCT
M5X16 TAPPING W/PL WASHER
0-74315-516-0
01
1
0305-0604
185
SCREW; VENT DUCT
M5X16 TAPPING W/PL WASHER
0-74365-516-0
01
1
0605-
222
FASTENER; DUCT
PHI
8-94243-190-0
05
1
0103-0112
222
FASTENER; DUCT
8-97327-315-0
05
1
0201-
280
DUCT; VENT,DRIVER SIDE
8-97100-194-0
01
1
0103-
300
DUCT; VENT,CENTER
8-97118-559-1
01
1
0103-
