8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#47188) — 14 parça
◀

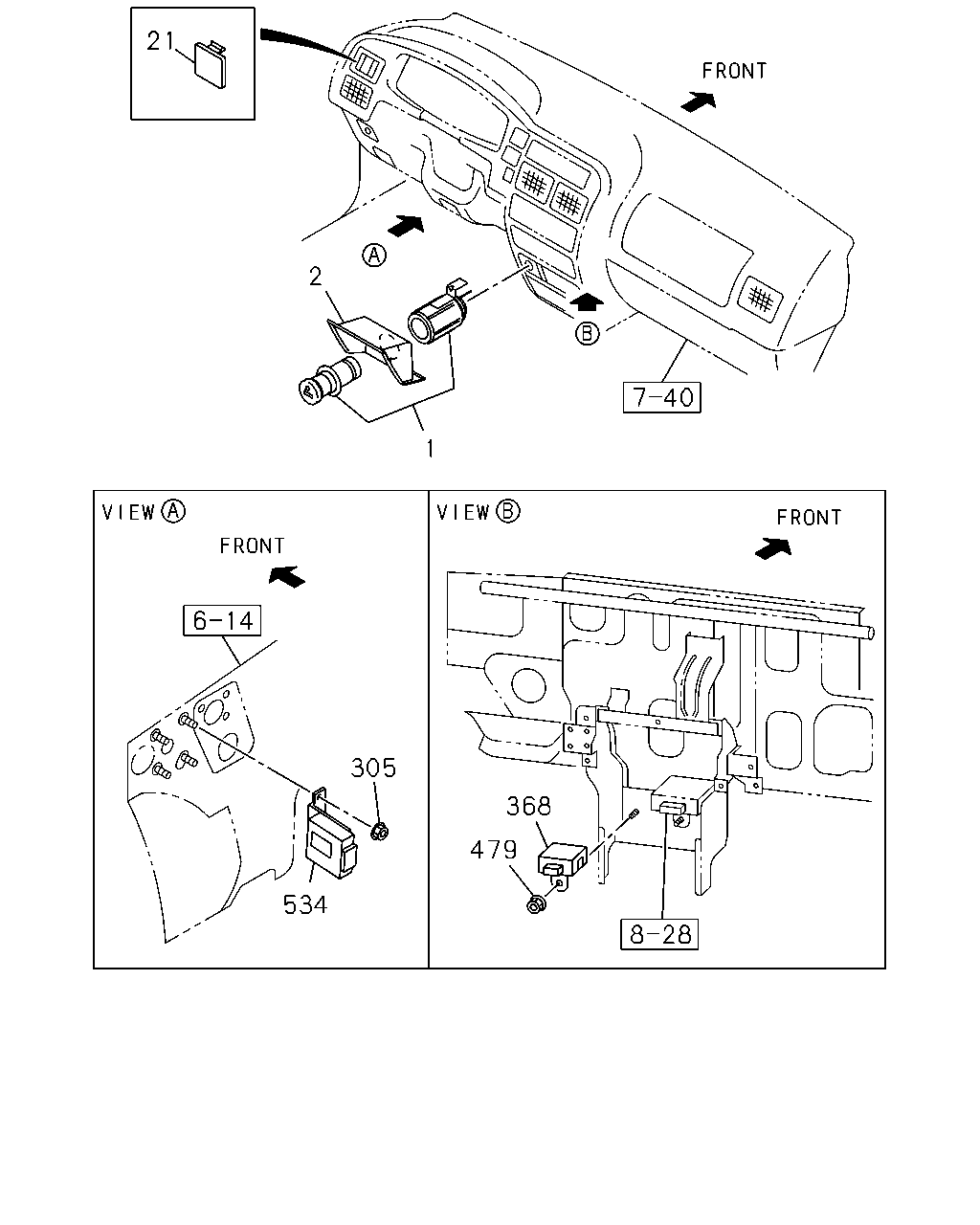

[826A] INST PANEL SIDE (12 parça)

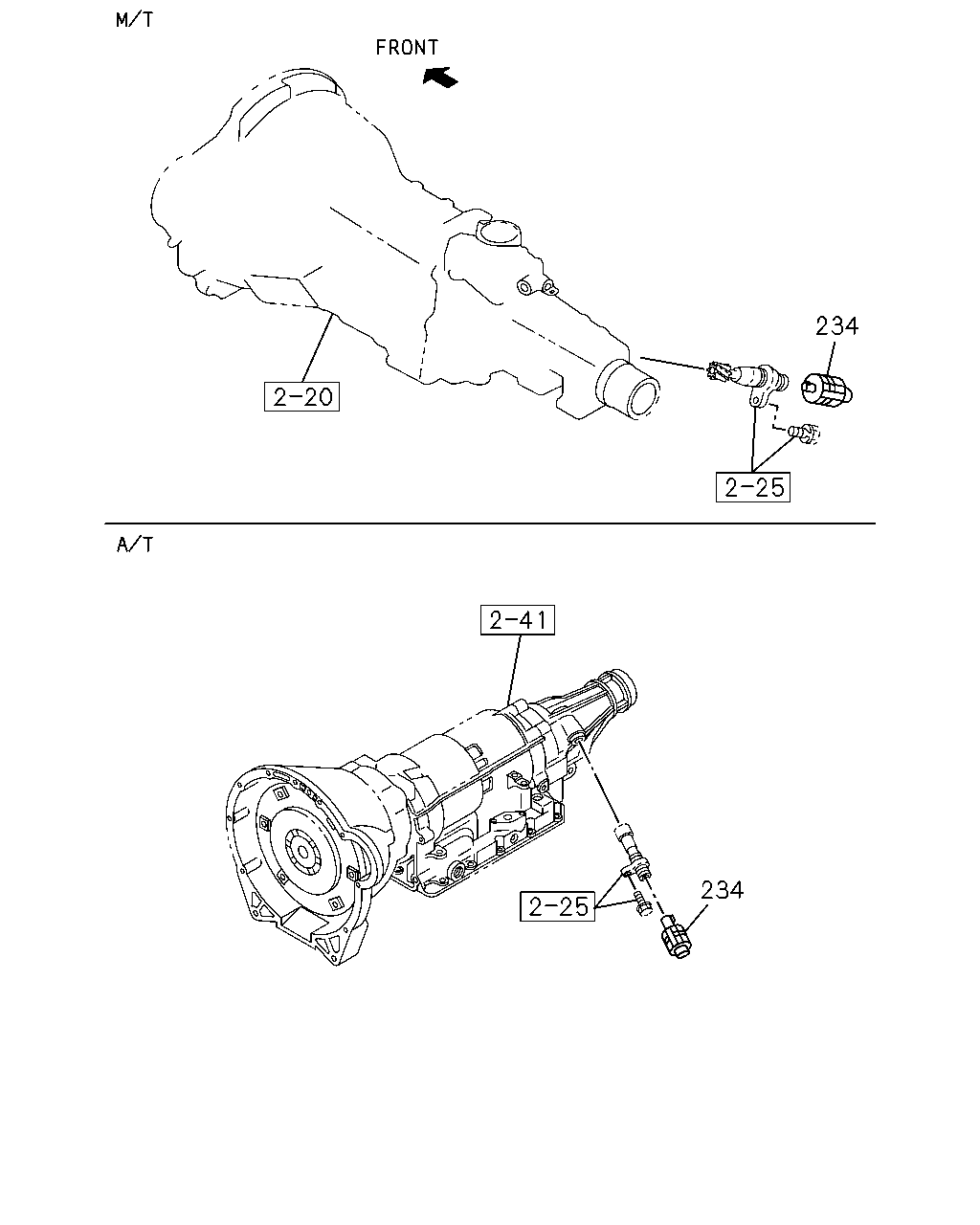

[826A] SENSOR (2 parça)
▶
21
2
1
305
368
479
534
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-97100-029-0
01
1
0103-0206
1
LIGHTER; CIGAR
8-97314-003-0
01
1
0207-
2
BEZEL; CIGAR LIGHTER
BLACK
8-94333-793-0
01
1
0103-0206
2
BEZEL; CIGAR LIGHTER
BLACK
8-97000-043-0
01
1
0207-
21
COVER; HOLE
FOG LAMP<T96> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> BLACK
8-97154-764-0
01
1
0311-
305
NUT; CONT UNIT
A/T AISIN(RMD) M8 FLANGE
0-91150-108-0
02
1
0103-0602
305
NUT; CONT UNIT
A/T AISIN(RMD) M8 FLANGE
0-91180-108-0
02
1
0603-
368
CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4>
8-97263-983-0
01
1
0103-
479
NUT; CONTR0LLER
AUTO DOOR LOCK<AU4> M6 FLANGE
0-91150-106-0
01
1
0103-0602
479
NUT; CONTR0LLER
AUTO DOOR LOCK<AU4> M6 FLANGE
0-91180-106-0
01
1
0603-
534
CONTROL UNIT; AUTO MISSION
A/T AISIN(RMD)
8-97263-314-0
01
1
0103-0202
534
CONTROL UNIT; AUTO MISSION
A/T AISIN(RMD)
8-97315-279-0
01
1
0203-
234
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
0103-0405
234
SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE
8-97377-920-0
01
1
0406-
