Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#47187) — 29 parça
◀
[825A] POWER WINDOW SWITCH (9 parça)
[825A] RELAY (3 parça)

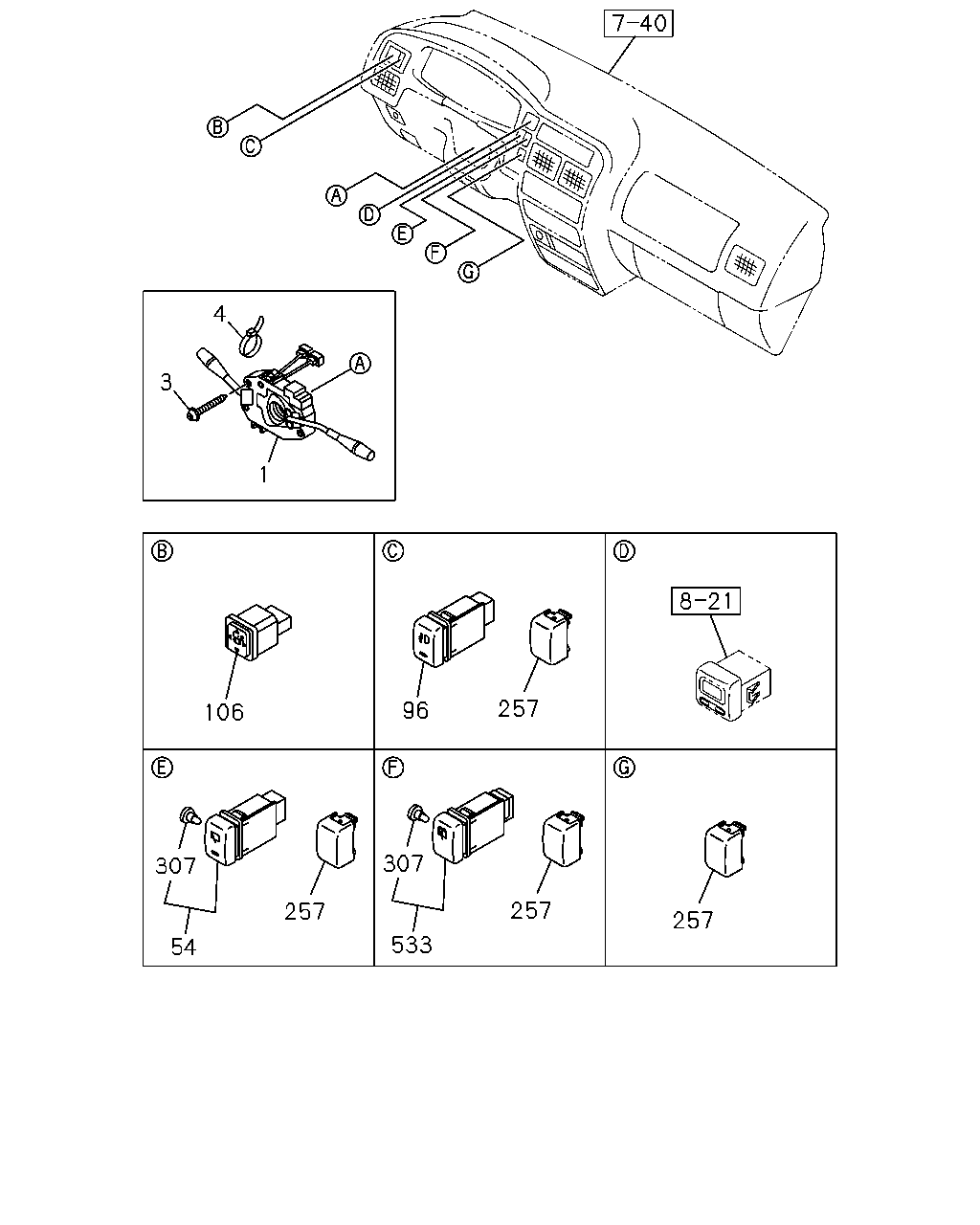

[825A] INSTRUMENT PANEL SWITCH (12 parça)

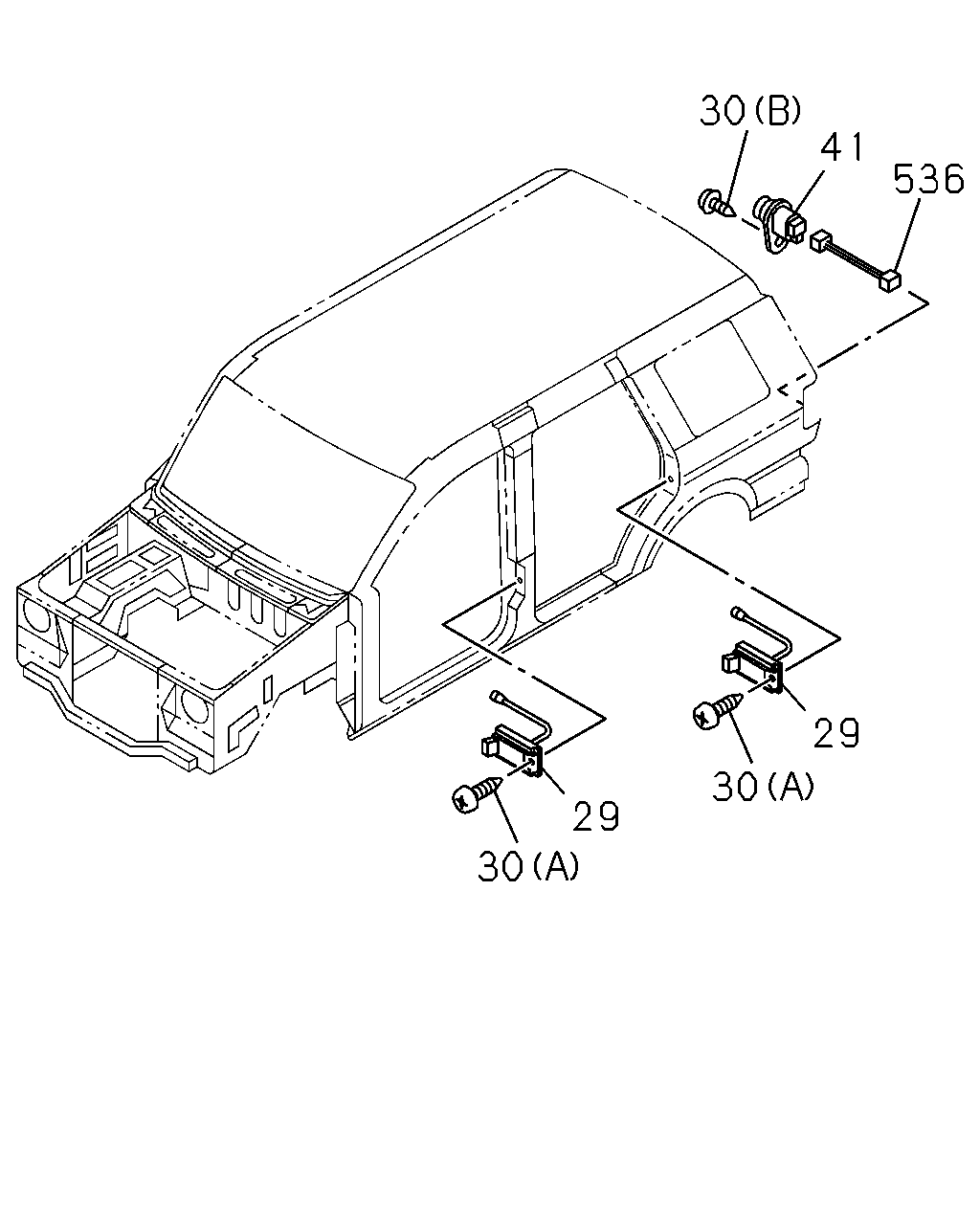

[825A] DOOR SWITCH (5 parça)
▶
8
8
144
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
SWITCH; POWER WINDOW
GRADE XTO(RBD) (B) PASSENGER GRAY
8-97299-331-0
01
1
0103-0103
8
SWITCH; POWER WINDOW
GRADE XTO(RBD) (B) PASSENGER GRAY
8-97390-757-0
01
1
0104-0110
8
SWITCH; POWER WINDOW
GRADE XTO(RBD),GRADE XTRM(RBG) (B) PASSENGER GRAY
8-97390-757-0
01
1
0111-0302
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) PASSENGER GRAY
8-97390-757-0
01
1
0303-
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) DRIVER GRAY
8-97299-330-0
01
1
0103-
144
SWITCH; POWER WINDOW,RR
GRADE XTO(RBD) GRAY
8-97299-331-0
02
1
0103-0103
144
SWITCH; POWER WINDOW,RR
GRADE XTO(RBD) GRAY
8-97390-757-0
02
1
0104-0110
144
SWITCH; POWER WINDOW,RR
GRADE XTO(RBD),GRADE XTRM(RBG) GRAY
8-97390-757-0
02
1
0111-0302
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> GRAY
8-97390-757-0
02
1
0303-
12
99
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
POWER WINDOW<A30> PHI
8-97976-803-0
01
1
0103-
85
RELAY; HEADLAMP
PHI
8-97976-803-0
01
1
0103-
99
RELAY; FOG LAMP
FOG LAMP<T96> PHI
8-97976-803-0
01
1
0103-
4
3
1
257
96
106
307
307
257
257
257
533
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-97193-519-1
01
1
0103-
3
SCREW; COMB SW
M5X14 W/LK WASHER
9-03910-514-0
02
1
0103-0604
3
SCREW; COMB SW
M5X14 W/LK WASHER
0-36220-514-0
02
1
0605-
4
CLIP; COMB SW
L=250
5-09707-030-1
02
1
0103-
54
SWITCH; RR WIPER
RR WIPER<C25>
8-97094-078-1
01
1
0103-
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97104-355-2
01
1
0103-
106
SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
8-97131-293-1
01
1
0103-
257
COVER; HOLE,SW
GRADE XL(RBA),GRADE XT(RBB)
8-97081-617-1
04
1
0103-
257
COVER; HOLE,SW
GRADE XTO(RBD)
8-97081-617-1
01
1
0103-0110
257
COVER; HOLE,SW
GRADE XTO(RBD),GRADE XTRM(RBG)
8-97081-617-1
01
1
0111-
307
BULB ASM; SW
RR WIPER<C25> 14V 0.84W
8-97117-108-0
02
1
0103-
533
SWITCH; WASHER
RR WIPER<C25>
8-97094-080-1
01
1
0103-
30
41
536
29
30
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97286-900-0
04
1
0103-
30
SCREW; DOOR SW
(A) M5X14
8-94120-095-0
04
1
0103-
30
SCREW; DOOR SW
(B) M5X14
8-94313-116-1
01
1
0103-
41
SWITCH; BACK DOOR LOCK
8-97192-273-0
01
1
0103-
536
HARNESS; SW
PHI
8-97957-586-1
01
1
0103-
