◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#47186) — 195 parça

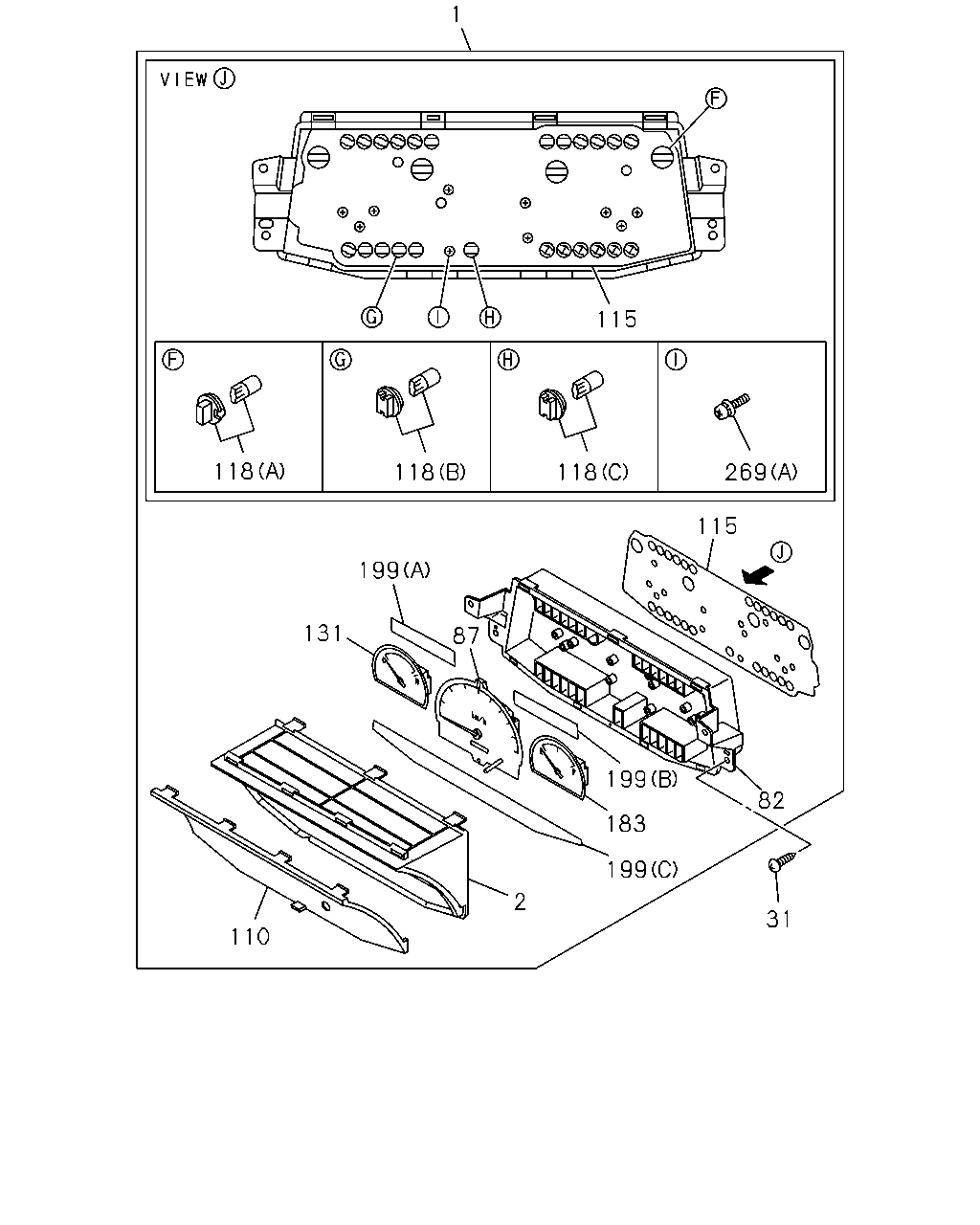

çizim 48648
1 115 118 118 118 269 115 199 131 87 199 82 183 199 2 31 110
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-732-0 01 1 0510-0510
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-732-0 01 1 0510-
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-731-0 01 1 0510-0510
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-731-0 01 1 0510-
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0408-0509
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0510-0510
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0510-0510
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0510-
1 METER COMPL; CLUSTER
TACHOMETER<U16> IDN 		8-97956-682-4 01 1 0103-0407
1 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0408-0509
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0510-0510
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0510-0510
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0510-
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> THA 		8-97956-681-4 01 1 0103-0407
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> THA 		8-97956-681-5 01 1 0408-
2 PANEL; CLUSTER
IDN 		8-97958-515-0 01 1 0103-0407
2 PANEL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0408-0509
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) IDN 		8-97958-515-0 01 1 0408-0509
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0510-
2 PANEL; CLUSTER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0510-
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0103-0604
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-
82 CASE ASM; CLUSTER METER
IDN 		8-97958-516-0 01 1 0103-0108
82 CASE ASM; CLUSTER METER
IDN 		8-97560-493-0 01 1 0109-0407
82 CASE ASM; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0408-0509
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97560-493-0 01 1 0408-0509
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0510-
82 CASE ASM; CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0510-
87 SPEEDOMETER
GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-738-0 01 1 0510-0510
87 SPEEDOMETER
GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-738-0 01 1 0510-
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97958-517-0 01 1 0103-0210
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0211-0509
87 SPEEDOMETER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0510-0510
87 SPEEDOMETER
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0510-0510
87 SPEEDOMETER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0510-
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97958-518-0 01 1 0103-0210
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0211-0407
87 SPEEDOMETER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0408-
110 GLASS; CLUSTER METER
IDN 		8-97958-514-0 01 1 0103-0210
110 GLASS; CLUSTER METER
IDN 		8-97359-566-0 01 1 0211-0407
110 GLASS; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0408-0509
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97359-566-0 01 1 0408-0509
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0510-
110 GLASS; CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-742-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-742-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-534-0 01 1 0103-0108
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0109-0509
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97560-496-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-535-0 01 1 0103-0108
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0109-0407
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0408-
118 BULB; CLUSTER METER
(A) 14V 3.4W BROWN IDN 		8-97958-542-0 AR 1 0103-
118 BULB; CLUSTER METER
(B) 14V 1.4W BROWN IDN 		8-97958-543-0 AR 1 0103-
118 BULB; CLUSTER METER
(C) 14V 2W BLUE IDN 		8-97958-545-0 AR 1 0103-
131 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-523-0 01 1 0103-0407
131 GAUGE; TEMP,CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-523-0 01 1 0408-
183 GAUGE; FUEL
EXC. TACHOMETER<U16> IDN 		8-97958-524-0 01 1 0103-0407
183 GAUGE; FUEL
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-524-0 01 1 0408-
199 LENS; WARNING LAMP
GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) (C) PHI 		8-97977-741-0 01 1 0510-0510
199 LENS; WARNING LAMP
GRADE XTRM(RBG) TACHOMETER<U16> (C) PHI 		8-97977-741-0 01 1 0510-
199 LENS; WARNING LAMP
(A) IDN 		8-97958-525-0 01 1 0103-0407
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (A) IDN 		8-97958-525-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0510-
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0510-
199 LENS; WARNING LAMP
(B) IDN 		8-97958-526-0 01 1 0103-0407
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (B) IDN 		8-97958-526-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0510-
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0510-
199 LENS; WARNING LAMP
(C) IDN 		8-97958-527-0 01 1 0103-0407
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (C) IDN 		8-97958-527-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-0510
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-0510
199 LENS; WARNING LAMP
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-0510
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-
269 SCREW; METER CLUSTER
(B) M5X16 TAPPING 		9-09829-323-1 03 1 0103-
269 SCREW; METER CLUSTER
TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0103-0509
269 SCREW; METER CLUSTER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0510-
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0103-0407
269 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0408-

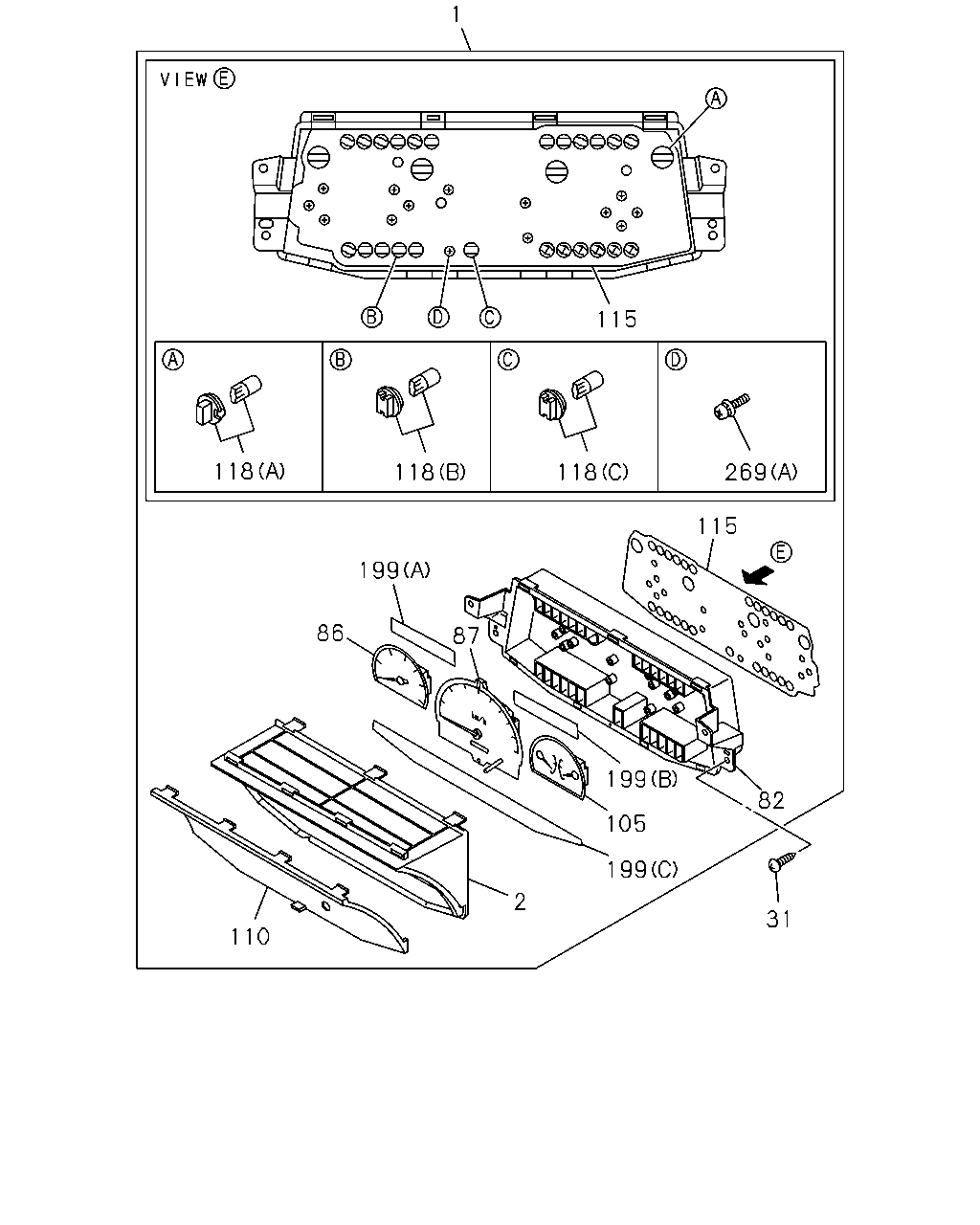

çizim 48649
1 115 118 118 118 269 115 199 86 87 199 82 105 199 2 31 110
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-732-0 01 1 0510-0510
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-732-0 01 1 0510-
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-731-0 01 1 0510-0510
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-731-0 01 1 0510-
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0408-0509
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0510-0510
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0510-0510
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0510-
1 METER COMPL; CLUSTER
TACHOMETER<U16> IDN 		8-97956-682-4 01 1 0103-0407
1 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0408-0509
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0510-0510
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0510-0510
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> PHI 		8-97956-682-5 01 1 0510-
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> THA 		8-97956-681-4 01 1 0103-0407
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> THA 		8-97956-681-5 01 1 0408-
2 PANEL; CLUSTER
IDN 		8-97958-515-0 01 1 0103-0407
2 PANEL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0408-0509
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) IDN 		8-97958-515-0 01 1 0408-0509
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0510-
2 PANEL; CLUSTER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0510-
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0103-0604
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-
82 CASE ASM; CLUSTER METER
IDN 		8-97958-516-0 01 1 0103-0108
82 CASE ASM; CLUSTER METER
IDN 		8-97560-493-0 01 1 0109-0407
82 CASE ASM; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0408-0509
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97560-493-0 01 1 0408-0509
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0510-
82 CASE ASM; CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0510-
86 TACHOMETER; CLUSTER METER
GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-739-0 01 1 0510-0510
86 TACHOMETER; CLUSTER METER
GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-739-0 01 1 0510-
86 TACHOMETER; CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-519-0 01 1 0103-0509
86 TACHOMETER; CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97958-519-0 01 1 0510-0510
86 TACHOMETER; CLUSTER METER
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> IDN 		8-97958-519-0 01 1 0510-0510
86 TACHOMETER; CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97958-519-0 01 1 0510-
87 SPEEDOMETER
GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-738-0 01 1 0510-0510
87 SPEEDOMETER
GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-738-0 01 1 0510-
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97958-517-0 01 1 0103-0210
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0211-0509
87 SPEEDOMETER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0510-0510
87 SPEEDOMETER
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0510-0510
87 SPEEDOMETER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0510-
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97958-518-0 01 1 0103-0210
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0211-0407
87 SPEEDOMETER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0408-
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-740-0 01 1 0510-0510
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-740-0 01 1 0510-
105 GAUGE; THERMO & FUEL,CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-522-0 01 1 0103-0509
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97958-522-0 01 1 0510-0510
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> IDN 		8-97958-522-0 01 1 0510-0510
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97958-522-0 01 1 0510-
110 GLASS; CLUSTER METER
IDN 		8-97958-514-0 01 1 0103-0210
110 GLASS; CLUSTER METER
IDN 		8-97359-566-0 01 1 0211-0407
110 GLASS; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0408-0509
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97359-566-0 01 1 0408-0509
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0510-
110 GLASS; CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97977-742-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) GRADE XTRM(RBG) TACHOMETER<U16> PHI 		8-97977-742-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-534-0 01 1 0103-0108
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0109-0509
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97560-496-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-0510
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0510-
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-535-0 01 1 0103-0108
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0109-0407
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0408-
118 BULB; CLUSTER METER
(A) 14V 3.4W BROWN IDN 		8-97958-542-0 AR 1 0103-
118 BULB; CLUSTER METER
(B) 14V 1.4W BROWN IDN 		8-97958-543-0 AR 1 0103-
118 BULB; CLUSTER METER
(C) 14V 2W BLUE IDN 		8-97958-545-0 AR 1 0103-
199 LENS; WARNING LAMP
GRADE XTRM(RBG) TACHOMETER<U16> EXC. VIETNAM EQUIPMENT(CL0) (C) PHI 		8-97977-741-0 01 1 0510-0510
199 LENS; WARNING LAMP
GRADE XTRM(RBG) TACHOMETER<U16> (C) PHI 		8-97977-741-0 01 1 0510-
199 LENS; WARNING LAMP
(A) IDN 		8-97958-525-0 01 1 0103-0407
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (A) IDN 		8-97958-525-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0510-
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0510-
199 LENS; WARNING LAMP
(B) IDN 		8-97958-526-0 01 1 0103-0407
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (B) IDN 		8-97958-526-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0510-
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0510-
199 LENS; WARNING LAMP
(C) IDN 		8-97958-527-0 01 1 0103-0407
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (C) IDN 		8-97958-527-0 01 1 0408-0509
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-0510
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-0510
199 LENS; WARNING LAMP
GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-0510
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-
199 LENS; WARNING LAMP
GRADE XT(RBB),GRADE XTO(RBD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0510-
269 SCREW; METER CLUSTER
(B) M5X16 TAPPING 		9-09829-323-1 03 1 0103-
269 SCREW; METER CLUSTER
TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0103-0509
269 SCREW; METER CLUSTER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0510-
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0103-0407
269 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0408-

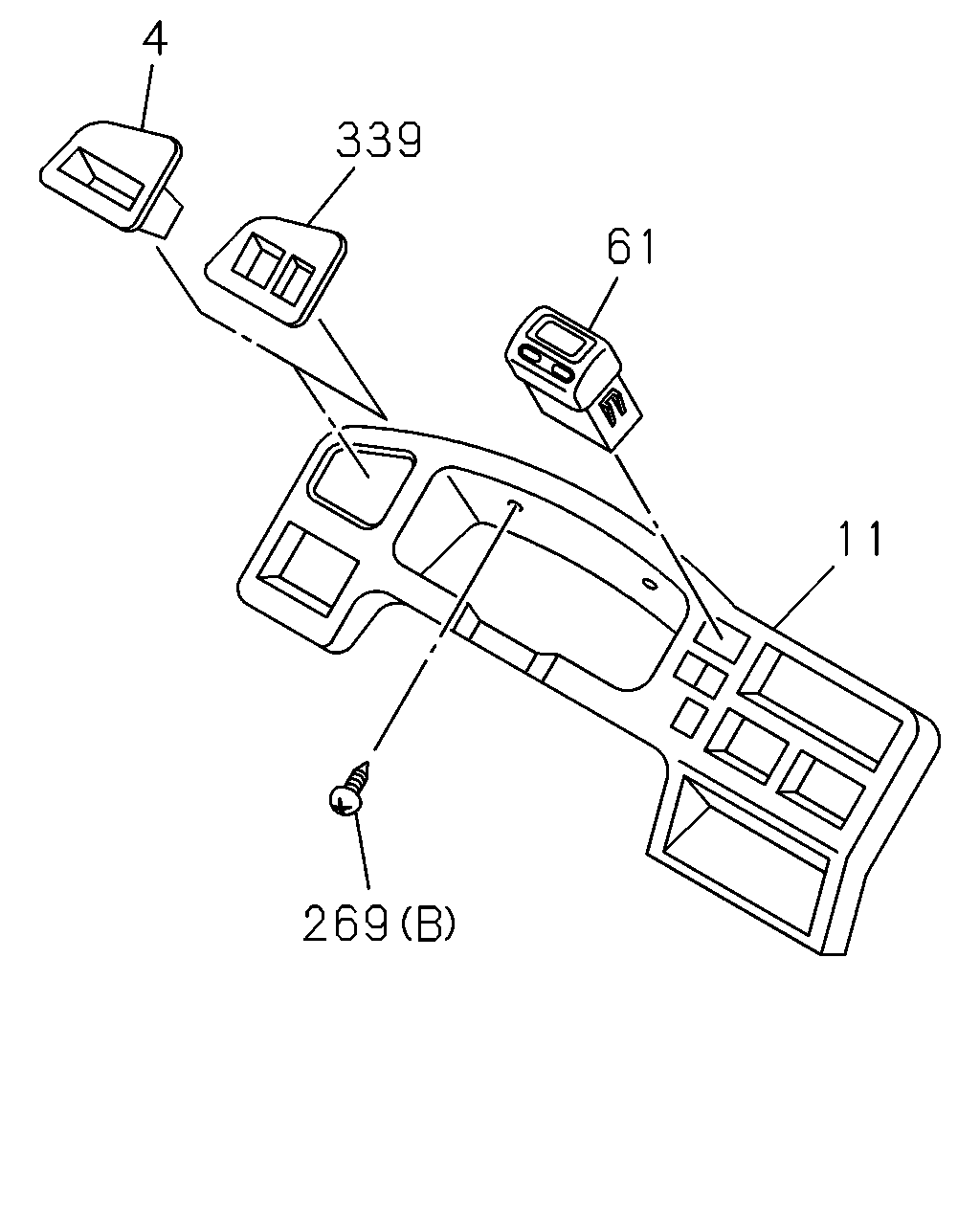

çizim 49766
4 339 61 11 269
BalonParca AdiParca NoAdetTipApplied Date
4 CLUSTER
EXC. FOG LAMP<T96>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97137-288-0 01 1 0103-
11 CLUSTER ASM; METER
BLACK 		8-97154-709-3 01 1 0103-
61 CLOCK; DIGITAL
IDN 		8-97956-847-1 01 1 0103-
269 SCREW; METER CLUSTER
(B) M5X16 TAPPING 		9-09829-323-1 03 1 0103-
269 SCREW; METER CLUSTER
TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0103-0509
269 SCREW; METER CLUSTER
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0510-
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0103-0407
269 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0408-
339 BEZEL; SW,CLUSTER METER
FOG LAMP<T96> 		8-97115-521-0 01 1 0103-0310
339 BEZEL; SW,CLUSTER METER
FOG LAMP<T96> 		8-97115-521-0 01 1 0311-
339 BEZEL; SW,CLUSTER METER
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. FOG LAMP<T96> 		8-97115-521-0 01 1 0311-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
