Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#47185) — 44 parça
◀
[815A] ENG (7 parça)
[815A] HARNESS FIXING AND SEAL (6 parça)
[815A] BODY (7 parça)
[815A] ENG ROOM(NO.2) (9 parça)
[815A] T/M (8 parça)
[815A] ENG ROOM(NO.1) (7 parça)
▶

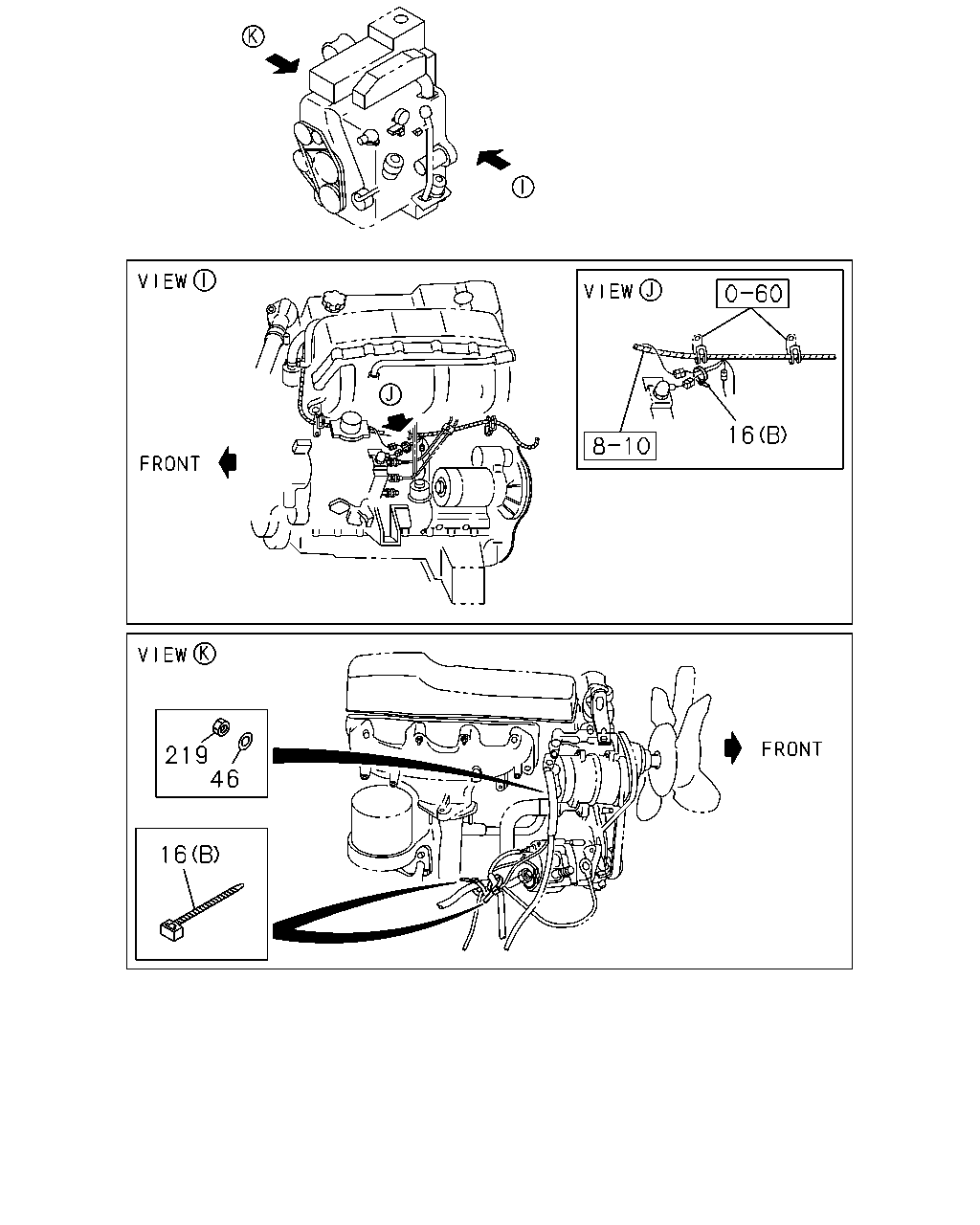

16
219
46
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; HARNESS
(A) ID=12
5-09700-350-0
01
1
0103-
16
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0103-
16
CLIP; HARNESS
(B) L=140
5-09707-031-1
02
1
0103-
46
WASHER; LK,GEN TERMINAL
ID=5.1
9-09150-505-0
01
1
0305-0603
46
WASHER; LK,GEN TERMINAL
ID=5.1
0-91510-505-0
01
1
0604-
219
NUT
M5
9-99110-405-0
01
1
0305-0512
219
NUT
M5
0-91110-505-0
01
1
0601-

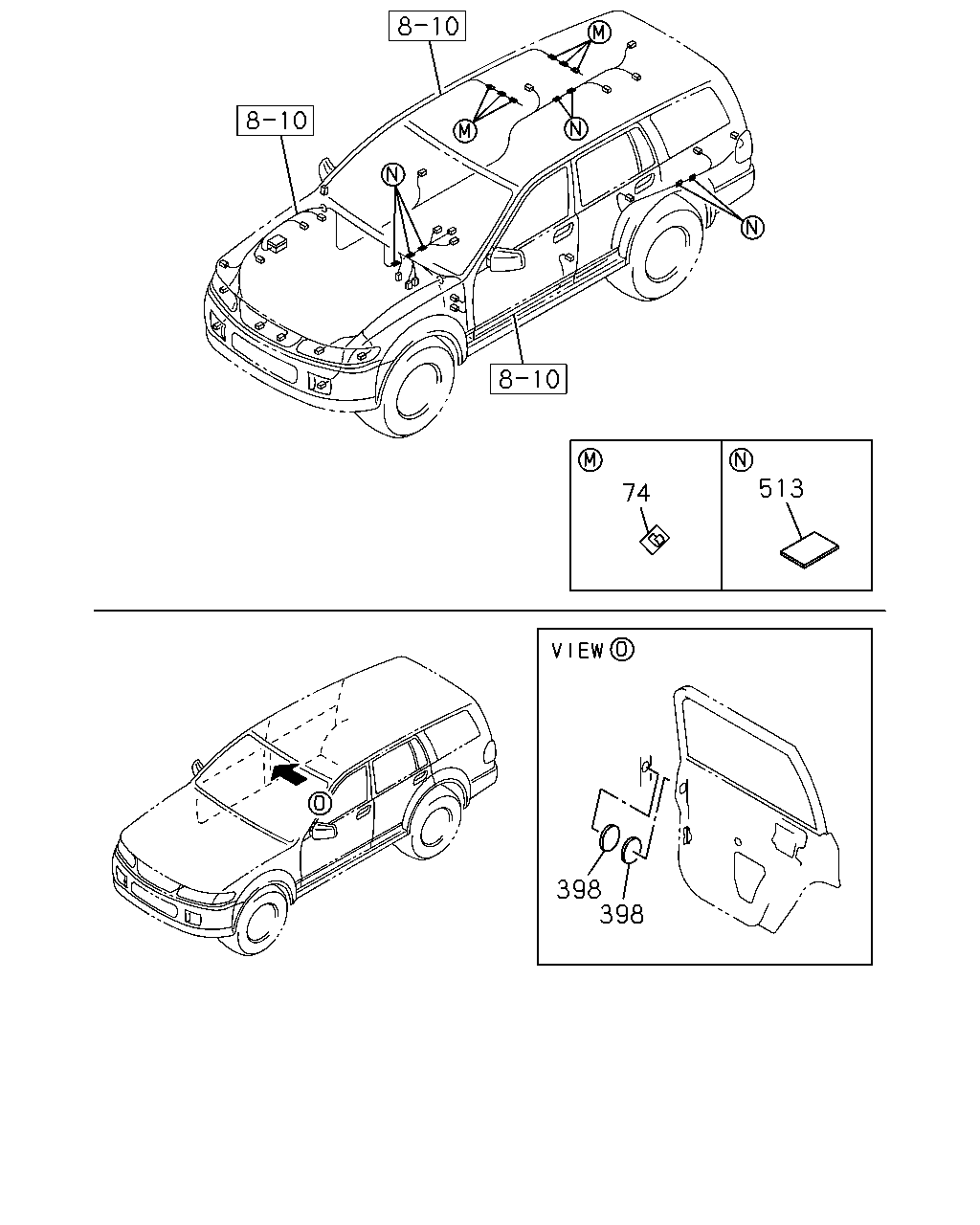

513
74
398
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
CLIP; ROOM LAMP HARNESS
8-94138-987-0
06
1
0103-
398
SEAL; RR DOOR,BODY SIDE
GRADE XL(RBA),GRADE XT(RBB) OD=50 T=0.08 BLACK PHI
8-94111-754-0
04
1
0103-0405
398
SEAL; RR DOOR,BODY SIDE
GRADE XL(RBA) OD=50 T=0.08 BLACK PHI
8-94111-754-0
04
1
0406-
398
SEAL; RR DOOR,BODY SIDE
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> OD=50 T=0.08 BLACK PHI
8-94111-754-0
04
1
0406-
513
TAPE; SOFT,HARNESS
PHI
8-97976-502-0
07
1
0103-
513
TAPE; SOFT,HARNESS
GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> PHI
8-97976-502-0
02
1
0402-

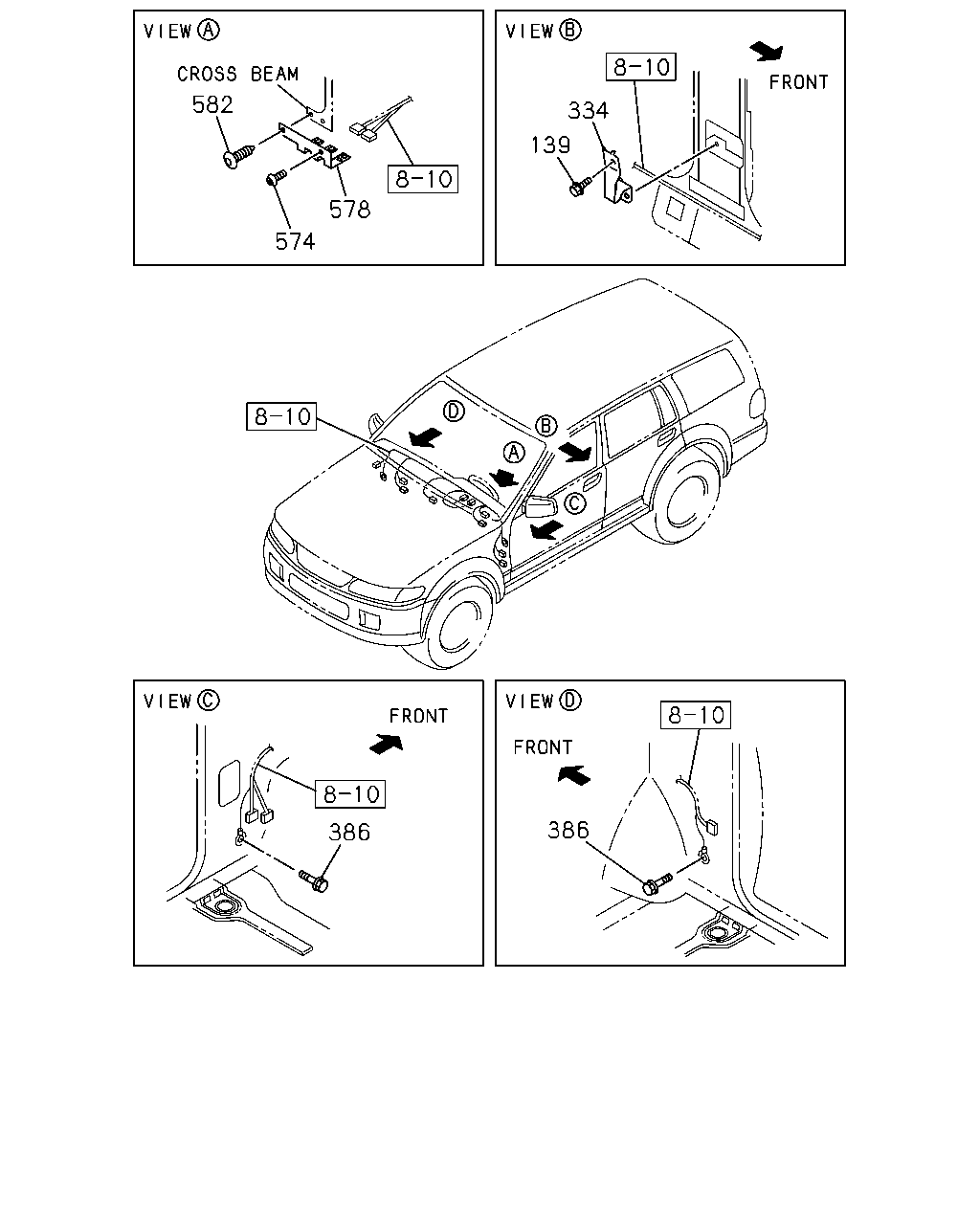

582
334
139
578
574
386
386
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
139
BOLT; BRKT
M6X12 W/WASHER ET SCREW
8-94430-946-0
02
1
0103-
334
BRACKET
PHI
8-97976-496-0
01
1
0103-
334
BRACKET
PHI
8-97976-497-0
01
1
0103-
386
BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER
8-97086-822-0
04
1
0103-
574
SCREW; FUSE BOX
M5X12
8-94120-094-0
01
1
0103-
578
BRACKET; FUSE BOX
PHI
8-97975-446-1
01
1
0103-
582
CLIP; FUSE BOX
LIGHT GRAY
8-97153-254-0
01
1
0103-

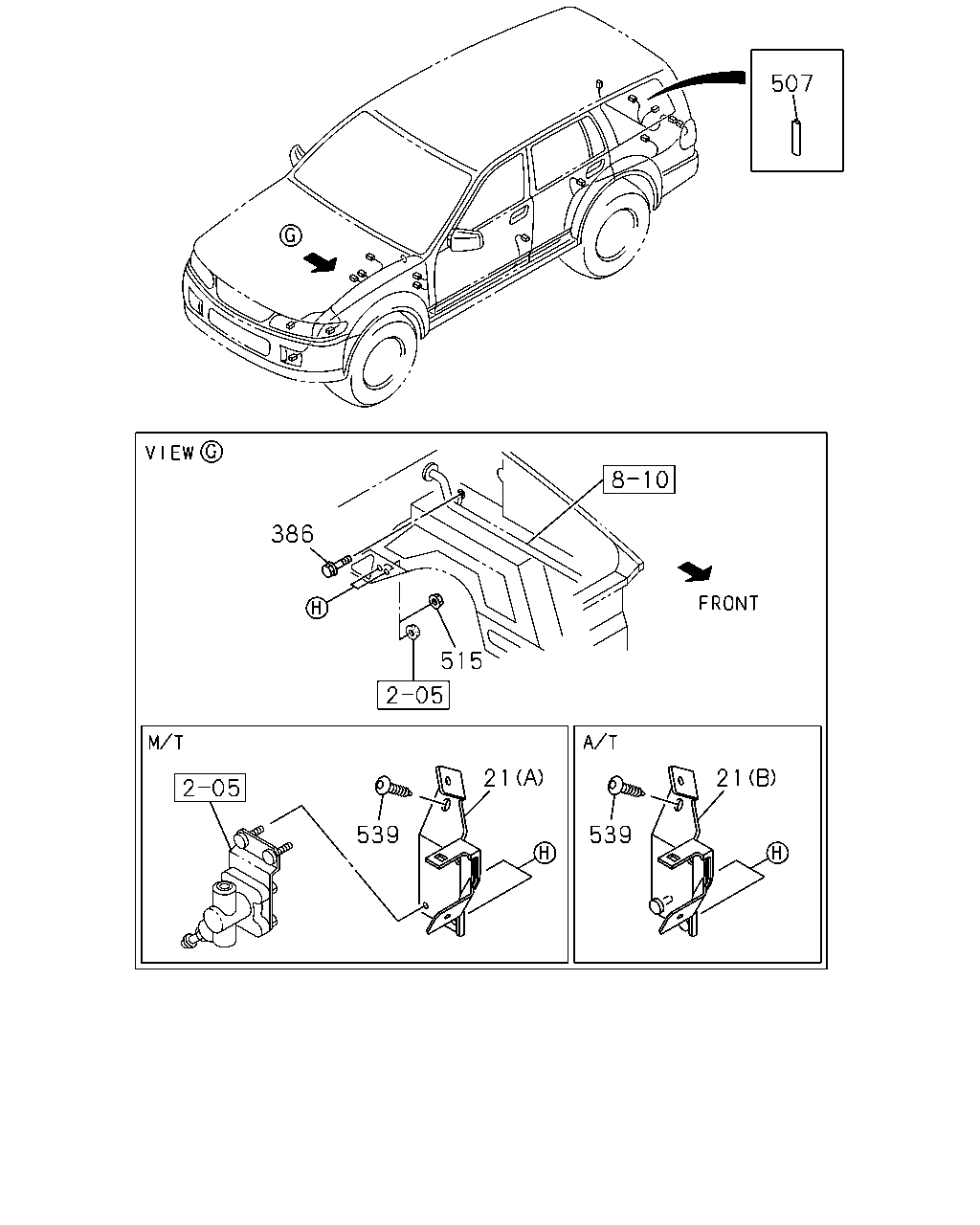

507
386
515
21
21
539
539
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; ENG HARNESS
A/T AISIN(RMD) (D) PHI
8-97976-498-0
01
1
0103-
21
BRACKET; ENG HARNESS
A/T AISIN(RMD) (B) PHI
8-97976-861-0
01
1
0103-
21
BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) (C) PHI
8-97976-495-0
01
1
0103-
21
BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) (A) PHI
8-97976-860-0
01
1
0103-
386
BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER
8-97086-822-0
04
1
0103-
507
FINISHER
GRADE XTRM(RBG) L=40 SERVICED BY L=190
1-71998-300-0
01
1
0111-
515
NUT; BRKT
A/T AISIN(RMD) M6 FLANGE
0-91150-106-0
02
1
0103-0602
515
NUT; BRKT
A/T AISIN(RMD) M6 FLANGE
0-91180-106-0
02
1
0603-
539
CLIP; SEAL
BLACK L=12.5
8-94345-178-0
01
1
0103-

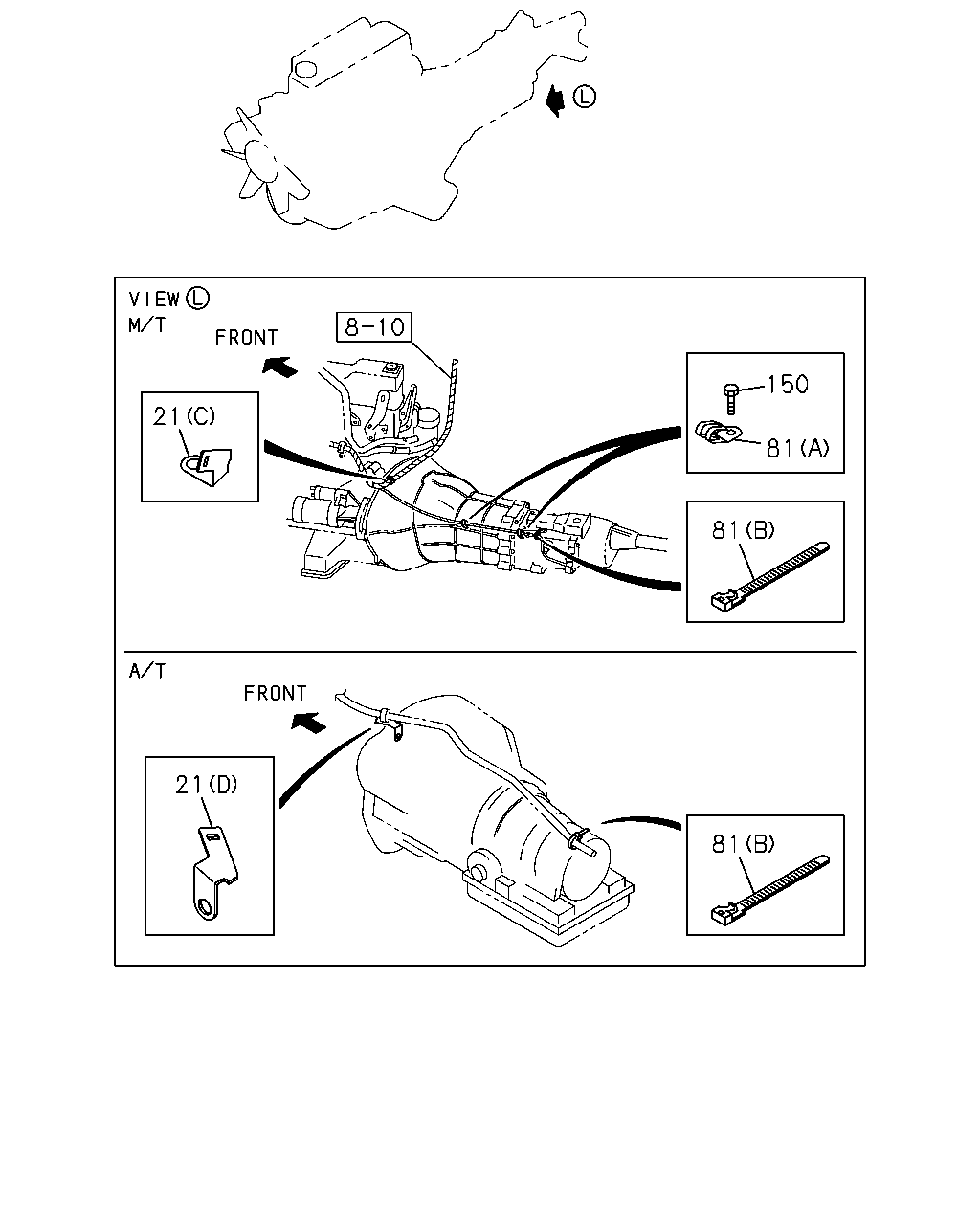

150
21
81
81
21
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; ENG HARNESS
A/T AISIN(RMD) (D) PHI
8-97976-498-0
01
1
0103-
21
BRACKET; ENG HARNESS
A/T AISIN(RMD) (B) PHI
8-97976-861-0
01
1
0103-
21
BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) (C) PHI
8-97976-495-0
01
1
0103-
21
BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) (A) PHI
8-97976-860-0
01
1
0103-
81
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0103-
81
CLIP; HARNESS
M/T MSG 5 SPEED(M75) (A) ID=12
5-09700-350-0
02
1
0103-
150
BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE
0-28080-812-0
02
1
0103-0512
150
BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE
0-28050-812-0
02
1
0601-

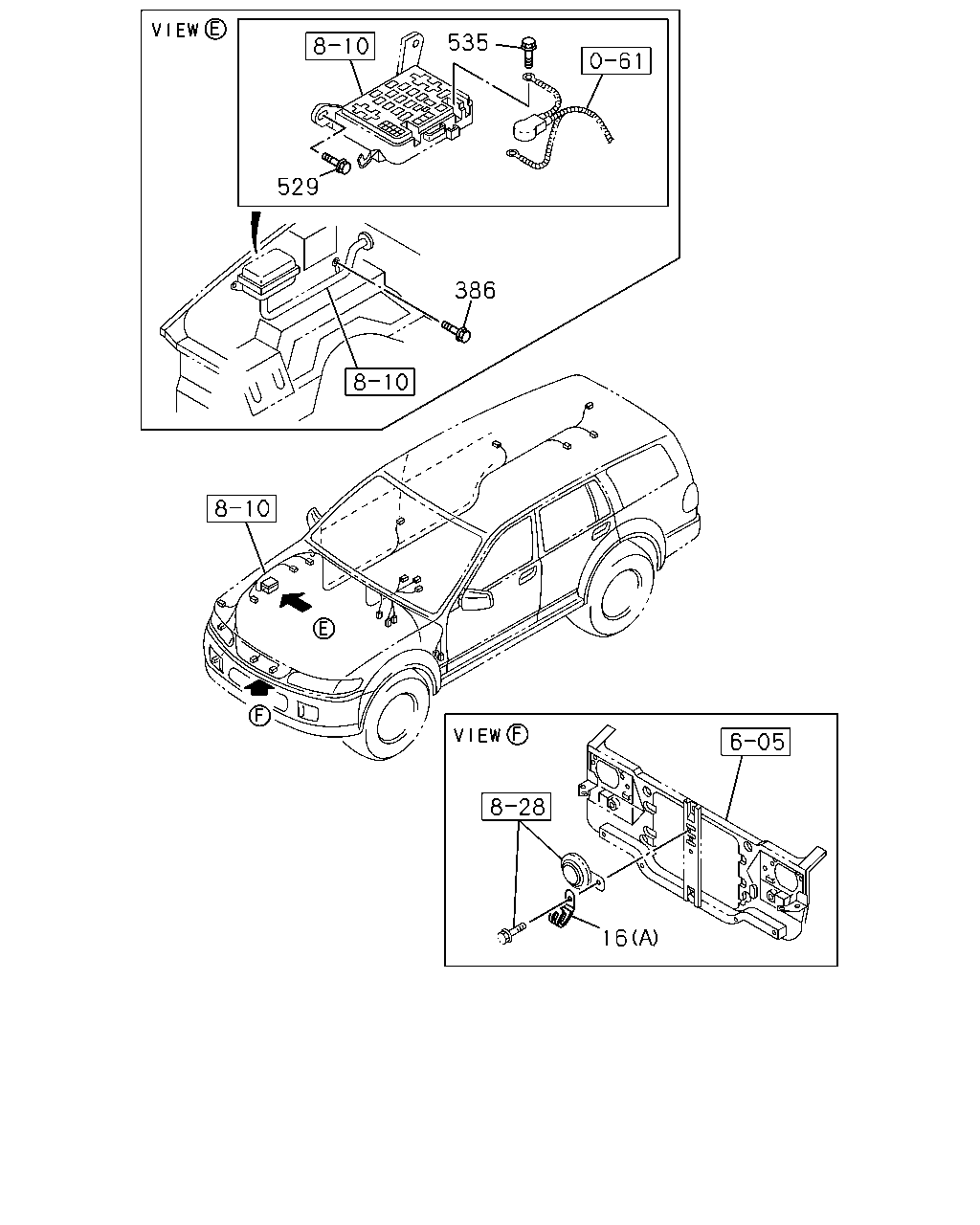

535
529
386
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; HARNESS
(A) ID=12
5-09700-350-0
01
1
0103-
16
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0103-
16
CLIP; HARNESS
(B) L=140
5-09707-031-1
02
1
0103-
386
BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER
8-97086-822-0
04
1
0103-
529
BOLT; RELAY BOX
M6X20
8-94412-422-0
02
1
0103-
535
BOLT; FUSE BOX
M6X12 FLANGE
0-28080-612-0
01
1
0103-0512
535
BOLT; FUSE BOX
M6X12 FLANGE
0-28050-612-0
01
1
0601-
