◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#47182) — 58 parça

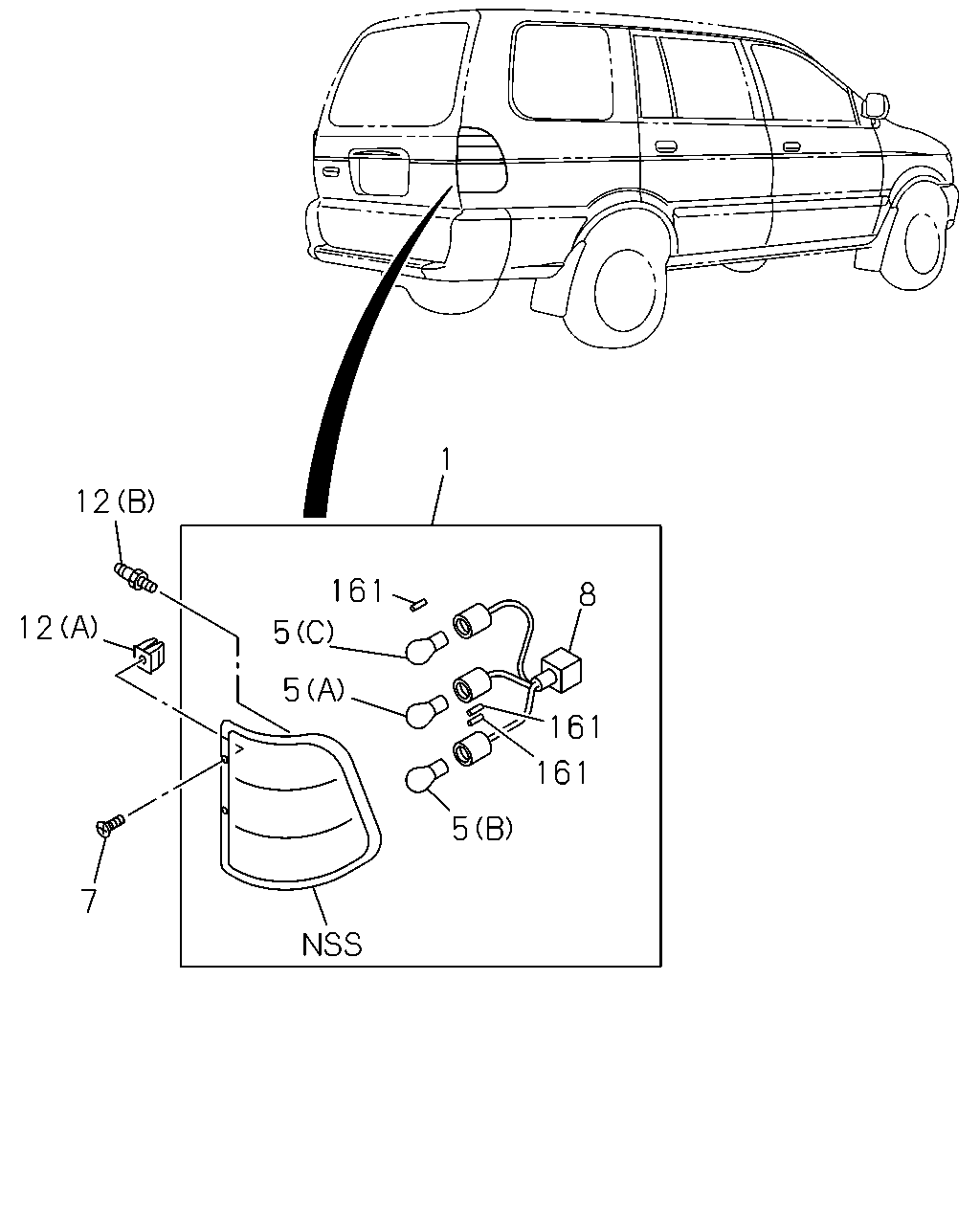

çizim 47853
1 12 161 8 12 5 5 161 161 5 7
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
IDN 		8-97959-343-1 01 1 0103-0302
1 LAMP ASM; RR COMB
GRADE XL(RBA),GRADE XT(RBB) IDN 		8-97959-343-1 01 1 0303-0405
1 LAMP ASM; RR COMB
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> IDN 		8-97959-343-1 01 1 0406-
1 LAMP ASM; RR COMB
IDN 		8-97959-342-1 01 1 0103-0302
1 LAMP ASM; RR COMB
GRADE XL(RBA),GRADE XT(RBB) IDN 		8-97959-342-1 01 1 0303-0405
1 LAMP ASM; RR COMB
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> IDN 		8-97959-342-1 01 1 0406-
1 LAMP ASM; RR COMB
GRADE XTO(RBD),GRADE XTRM(RBG) IDN 		8-97561-440-0 01 1 0303-0405
1 LAMP ASM; RR COMB
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> IDN 		8-97561-440-0 01 1 0406-
1 LAMP ASM; RR COMB
GRADE XTO(RBD),GRADE XTRM(RBG) IDN 		8-97561-440-0 01 1 0406-
1 LAMP ASM; RR COMB
GRADE XTO(RBD),GRADE XTRM(RBG) IDN 		8-97561-439-0 01 1 0303-0405
1 LAMP ASM; RR COMB
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> IDN 		8-97561-439-0 01 1 0406-
1 LAMP ASM; RR COMB
GRADE XTO(RBD),GRADE XTRM(RBG) IDN 		8-97561-439-0 01 1 0406-
5 BULB; RR COMB LAMP
(A) 12V 21W IDN 		8-94124-074-0 02 1 0103-0302
5 BULB; RR COMB LAMP
(A) 12V 21W IDN 		8-94124-074-0 02 1 0303-
5 BULB; RR COMB LAMP
(B) 12V 21/5W IDN 		8-94125-959-0 02 1 0103-0302
5 BULB; RR COMB LAMP
(B) 12V 21/5W IDN 		8-94125-959-0 02 1 0303-
5 BULB; RR COMB LAMP
(C) 12V 21W IDN 		8-97179-967-0 02 1 0103-0302
5 BULB; RR COMB LAMP
(C) 12V 21W IDN 		8-97179-967-0 02 1 0303-
7 SCREW; RR COMB LAMP
M5X16 		8-94243-069-0 04 1 0103-
8 HARNESS; RR COMB LAMP
PHI 		8-97305-669-0 02 1 0103-0302
8 HARNESS; RR COMB LAMP
GRADE XL(RBA),GRADE XT(RBB) PHI 		8-97305-669-0 02 1 0303-0405
8 HARNESS; RR COMB LAMP
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> PHI 		8-97305-669-0 02 1 0406-
8 HARNESS; RR COMB LAMP
GRADE XTO(RBD),GRADE XTRM(RBG) PHI 		8-97352-005-0 02 1 0303-0405
8 HARNESS; RR COMB LAMP
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97352-005-0 02 1 0406-
8 HARNESS; RR COMB LAMP
GRADE XTO(RBD),GRADE XTRM(RBG) PHI 		8-97352-005-0 02 1 0406-
12 GROMMET; RR COMB LAMP
(A) 		5-09983-007-0 04 1 0103-
12 GROMMET; RR COMB LAMP
(B) 		8-97175-217-0 04 1 0103-
161 TUBE; RR COMB LAMP
PHI 		8-97255-319-0 06 1 0103-0302
161 TUBE; RR COMB LAMP
GRADE XL(RBA),GRADE XT(RBB) PHI 		8-97255-319-0 06 1 0303-0405
161 TUBE; RR COMB LAMP
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> PHI 		8-97255-319-0 06 1 0406-
161 TUBE; RR COMB LAMP
GRADE XTO(RBD),GRADE XTRM(RBG) PHI 		8-97352-006-0 06 1 0303-0405
161 TUBE; RR COMB LAMP
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97352-006-0 06 1 0406-
161 TUBE; RR COMB LAMP
GRADE XTO(RBD),GRADE XTRM(RBG) PHI 		8-97352-006-0 06 1 0406-

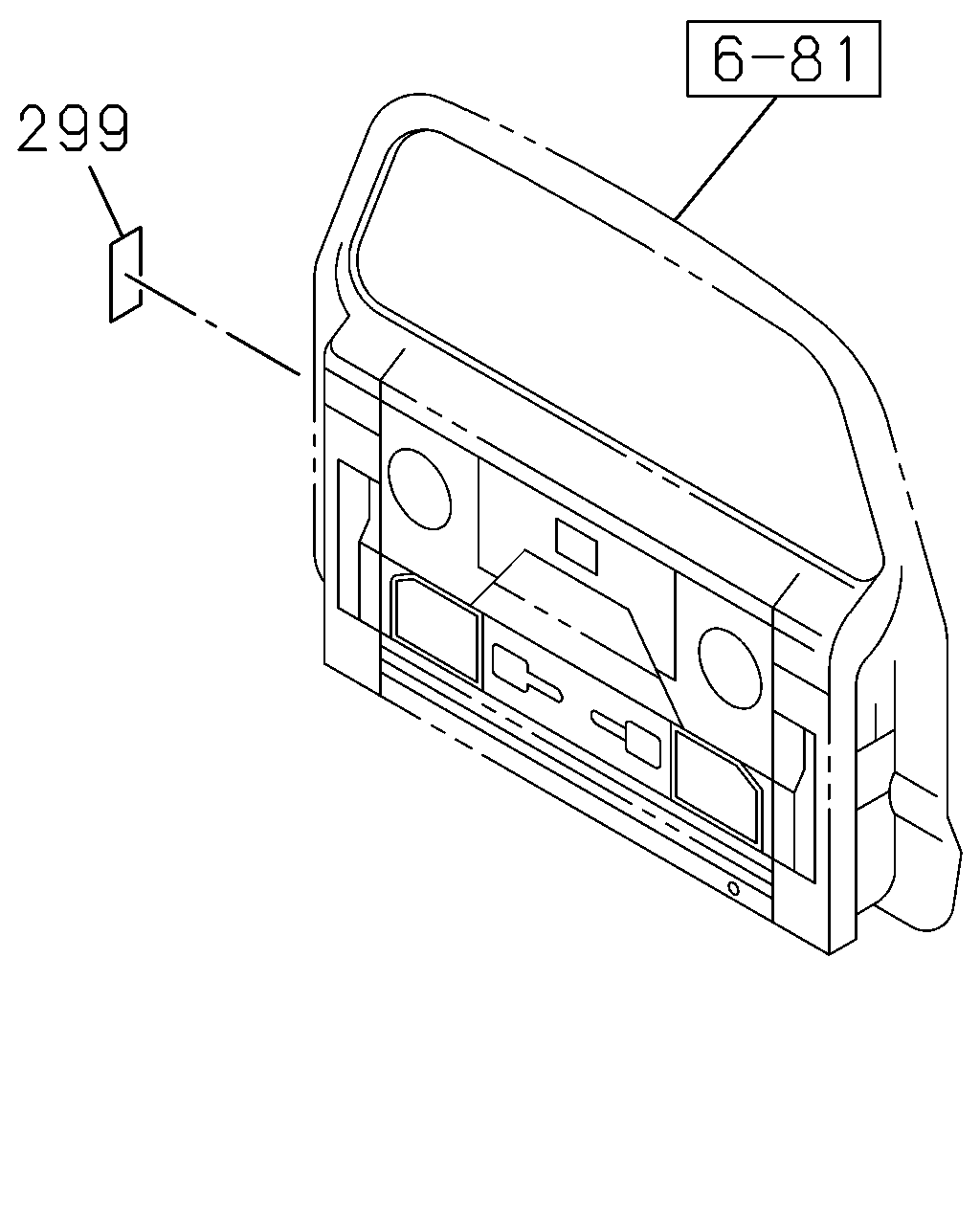

çizim 48504
299
BalonParca AdiParca NoAdetTipApplied Date
299 SEAL
GRADE XTRM(RBG) PHI 		8-97977-022-0 02 1 0111-

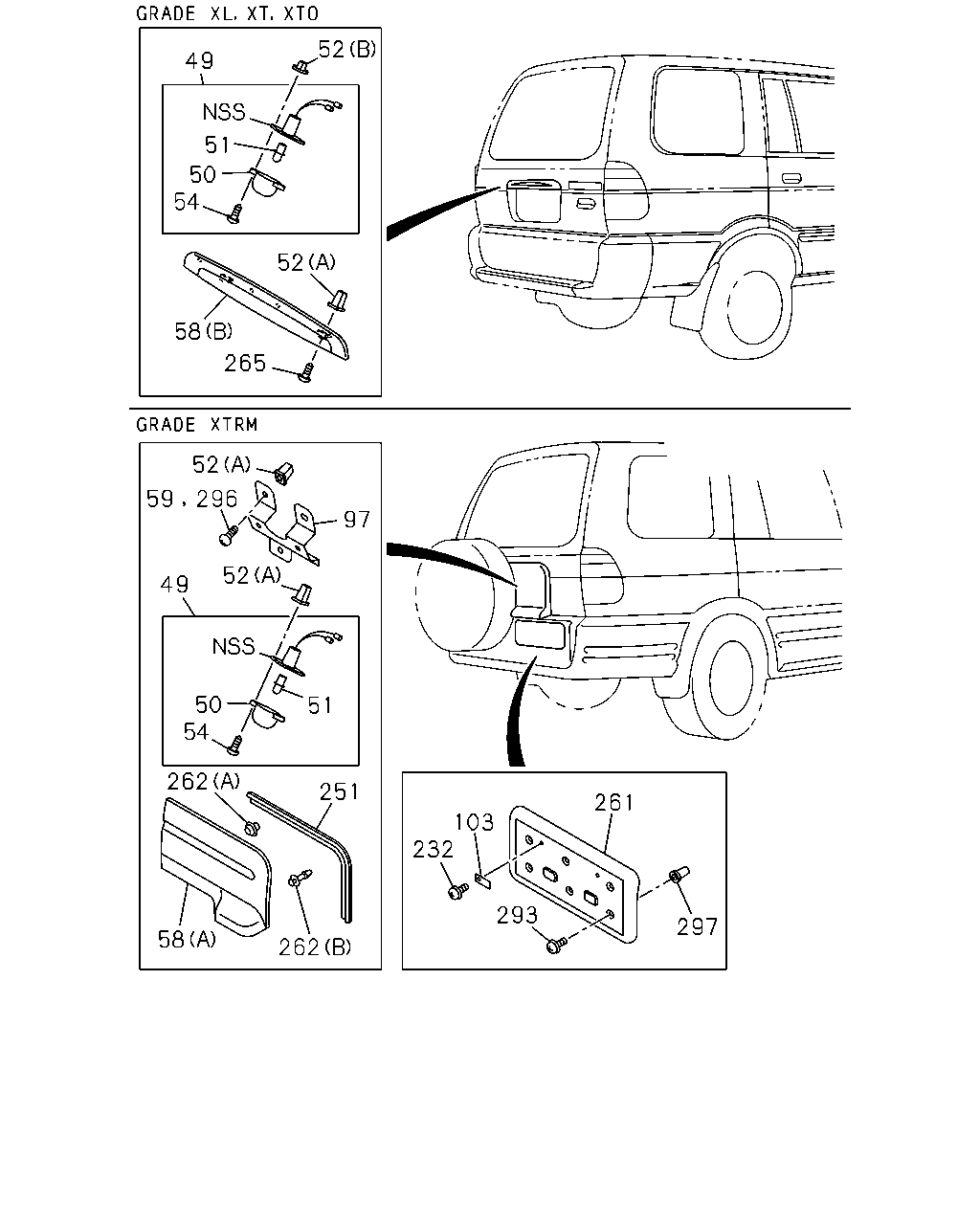

çizim 51998
52 49 51 50 54 52 58 265 52 296 97 52 49 50 54 51 262 251 261 103 232 293 297 58 262 59
BalonParca AdiParca NoAdetTipApplied Date
49 LAMP; LICENSE PLATE
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) 		8-97175-322-0 01 1 0103-
49 LAMP; LICENSE PLATE
GRADE XTRM(RBG) 		8-97263-635-1 01 1 0111-
50 LENS; LICENSE PLATE LAMP 8-97260-721-0 01 1 0103-
51 BULB; LICENSE PLATE LAMP
12V 5W 		5-82194-006-0 01 1 0103-
52 GROMMET; SCREW,LICENSE PLATE LAMP
(A) 		8-94152-494-0 02 1 0103-
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M4 		5-09470-002-0 02 1 0103-
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE XTRM(RBG) (A) 		8-94152-494-0 03 1 0111-
54 SCREW; LICENSE PLATE LAMP 0-71190-414-0 02 1 0103-
58 COVER; LICENSE PLATE LAMP
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0103-
58 COVER; LICENSE PLATE LAMP
GRADE XTRM(RBG) (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97313-430-0 01 1 0111-
59 SCREW; TAP,LICENSE LAMP BODY
GRADE XTRM(RBG) M6X12 		9-03900-612-0 02 1 0111-0604
59 SCREW; TAP,LICENSE LAMP BODY
GRADE XTRM(RBG) M6X12 W/PL WASHER 		0-36210-612-0 02 1 0605-
97 BRACKET; LICENSE PLATE LAMP
GRADE XTRM(RBG) PHI 		8-97959-369-1 01 1 0111-
103 NUT
GRADE XTRM(RBG) 		8-94279-501-0 02 1 0111-
232 BOLT; PLATE
GRADE XTRM(RBG) M6X14 FLANGE 		8-94327-380-0 02 1 0111-
251 FINISHER; RR LICENSE FRAME
GRADE XTRM(RBG) 		8-97306-501-0 01 1 0111-0412
251 FINISHER; RR LICENSE FRAME
GRADE XTRM(RBG) PHI 		8-97977-473-0 01 1 0501-
261 BEZEL; LICENSE PLATE
GRADE XTRM(RBG) PHI 		8-97306-502-2 01 1 0111-
262 CLIP; LICENSE PLATE
GRADE XTRM(RBG) (A) H=16.7 PHI 		8-97022-017-0 03 1 0111-
262 CLIP; LICENSE PLATE
GRADE XTRM(RBG) (B) 		8-97117-942-0 04 1 0111-
265 SCREW; COVER
M5X14 		8-94152-495-0 02 1 0103-
293 SCREW; BEZEL,LICENCE PLATE
GRADE XTRM(RBG) M5X19 		8-97142-720-1 06 1 0111-
296 SCREW; BRKT,LICENSE PLATE LAMP
GRADE XTRM(RBG) M5X14 		8-94152-495-0 03 1 0111-
297 GROMMET; LICENSE PLATE
GRADE XTRM(RBG) D=7.9X7.9 L=20 M5 		8-94441-539-0 06 1 0111-
