8-01 — LAMP; FRONT AND FRONT SIDE (#47181) — 117 parça

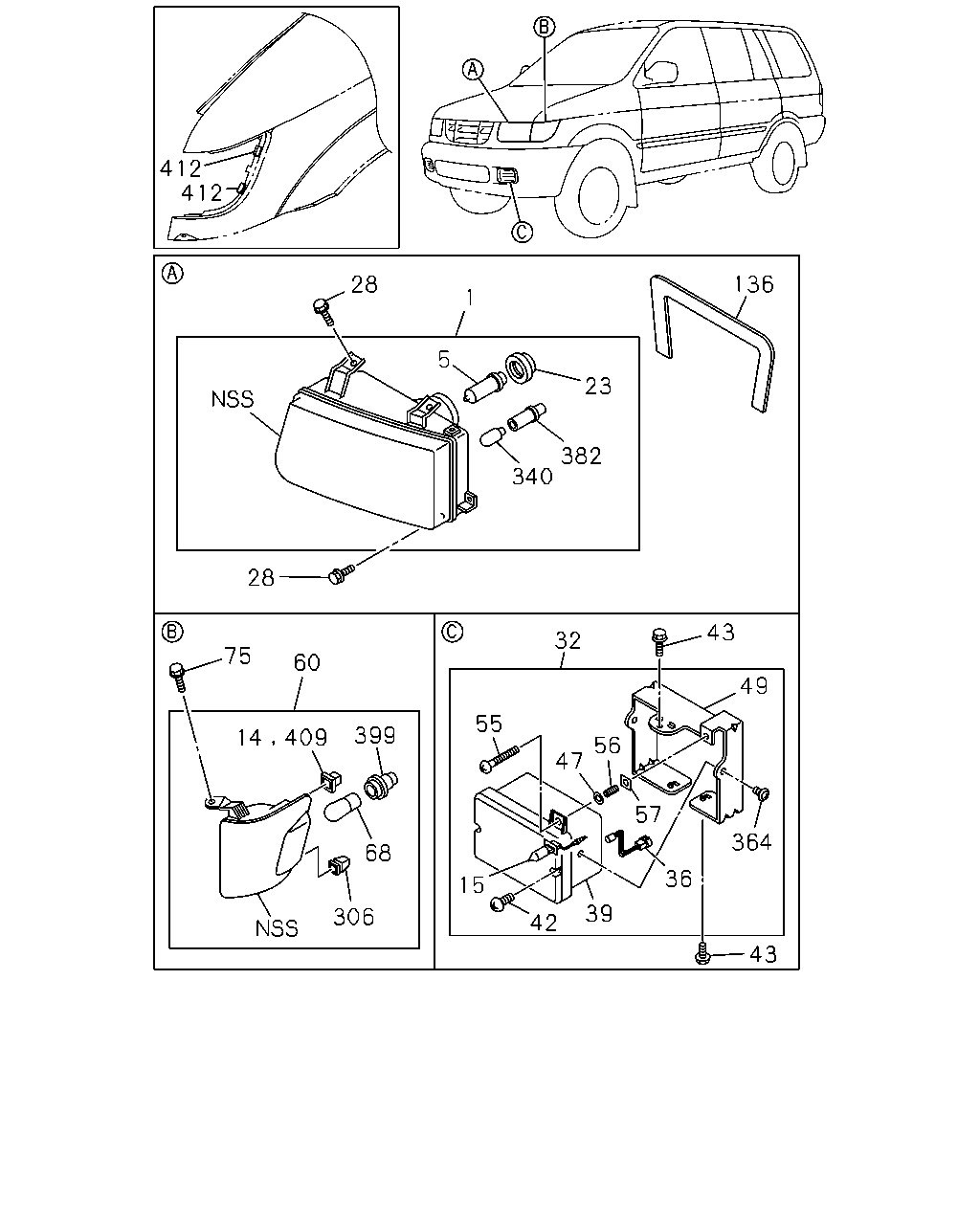

412 412 28 136 1 5 23 382 340 28 43 32 75 60 49 55 399 409 56 47 57 364 68 36 15 39 306 42 43 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD IDN	8-97956-928-0	01	1	0103-0302
1	LAMP ASM; HEAD IDN	8-97562-140-0	01	1	0303-0409
1	LAMP ASM; HEAD EXC. FACE LIFT MODEL<TX7> IDN	8-97562-140-0	01	1	0410-
1	LAMP ASM; HEAD IDN	8-97956-927-0	01	1	0103-0302
1	LAMP ASM; HEAD IDN	8-97562-139-0	01	1	0303-0409
1	LAMP ASM; HEAD EXC. FACE LIFT MODEL<TX7> IDN	8-97562-139-0	01	1	0410-
1	LAMP ASM; HEAD FACE LIFT MODEL<TX7> THA	8-97943-985-2	01	1	0410-
1	LAMP ASM; HEAD FACE LIFT MODEL<TX7> THA	8-97943-984-2	01	1	0410-
5	BULB; HEADLAMP FACE LIFT MODEL<TX7> 12V 60/55W THA	8-97914-323-0	02	1	0410-
5	BULB; HEADLAMP 12V 60/55W IDN	8-94217-817-0	02	1	0103-0409
5	BULB; HEADLAMP EXC. FACE LIFT MODEL<TX7> 12V 60/55W IDN	8-94217-817-0	02	1	0410-
14	CAP; BULB,LAMP IDN	8-97258-871-0	02	1	0103-0302
15	BULB; FOG LAMP FACE LIFT MODEL<TX7> FOG LAMP<T96> 12V 55W THA	8-97944-024-0	02	1	0410-
15	BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-94458-282-0	02	1	0103-0409
15	BULB; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> 12V 55W	8-94458-282-0	02	1	0410-
23	COVER; BULB,HEADLAMP FACE LIFT MODEL<TX7> THA	8-97332-448-0	02	1	0410-
23	COVER; BULB,HEADLAMP PHI	8-97258-867-0	02	1	0103-0302
23	COVER; BULB,HEADLAMP IDN	8-97562-252-0	02	1	0303-0409
23	COVER; BULB,HEADLAMP EXC. FACE LIFT MODEL<TX7> IDN	8-97562-252-0	02	1	0410-
28	BOLT; HEADLAMP M6X18 TAPPING W/LK&PL WASHER	8-94372-359-0	08	1	0103-
32	LAMP ASM; FOG FACE LIFT MODEL<TX7> FOG LAMP<T96> IDN	8-97944-042-0	02	1	0410-
32	LAMP ASM; FOG FOG LAMP<T96> PHI	8-97956-832-0	01	1	0103-0409
32	LAMP ASM; FOG FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97956-832-0	01	1	0410-
32	LAMP ASM; FOG FOG LAMP<T96> PHI	8-97956-831-0	01	1	0103-0409
32	LAMP ASM; FOG FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97956-831-0	01	1	0410-
36	CORD; FOG LAMP FOG LAMP<T96> PHI	8-97967-207-0	02	1	0103-0409
36	CORD; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97967-207-0	02	1	0410-
39	UNIT; FOG LAMP FOG LAMP<T96> PHI	8-97161-028-0	02	1	0103-0409
39	UNIT; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97161-028-0	02	1	0410-
42	SCREW; LENS,FOG LAMP FOG LAMP<T96> PHI	8-97161-024-0	04	1	0103-0409
42	SCREW; LENS,FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97161-024-0	04	1	0410-
43	BOLT; FOG LAMP FOG LAMP<T96> M6X12 FLANGE	0-28480-612-0	06	1	0103-0409
43	BOLT; FOG LAMP FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE	0-28480-612-0	04	1	0410-0512
43	BOLT; FOG LAMP FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE	0-28450-612-0	04	1	0601-
43	BOLT; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X12 FLANGE	0-28480-612-0	06	1	0410-0512
43	BOLT; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X12 FLANGE	0-28450-612-0	06	1	0601-
47	WASHER; PL,FOG LAMP FOG LAMP<T96> PHI	8-97967-208-0	02	1	0103-0409
47	WASHER; PL,FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97967-208-0	02	1	0410-
49	BRACKET; LAMP FOG LAMP<T96> PHI	8-97967-206-0	01	1	0103-0409
49	BRACKET; LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97967-206-0	01	1	0410-
49	BRACKET; LAMP FOG LAMP<T96> PHI	8-97967-205-0	01	1	0103-0409
49	BRACKET; LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97967-205-0	01	1	0410-
55	SCREW; ADJ,FOG LAMP FOG LAMP<T96> PHI	8-97161-034-0	02	1	0103-0409
55	SCREW; ADJ,FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97161-034-0	02	1	0410-
56	SPRING; COIL,FOG LAMP FOG LAMP<T96> PHI	8-97161-035-0	02	1	0103-0409
56	SPRING; COIL,FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97161-035-0	02	1	0410-
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> PHI	8-97161-036-0	02	1	0103-0409
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97161-036-0	02	1	0410-
60	LAMP ASM; FRT COMB IDN	8-97957-315-2	01	1	0103-0409
60	LAMP ASM; FRT COMB EXC. FACE LIFT MODEL<TX7> IDN	8-97957-315-2	01	1	0410-
60	LAMP ASM; FRT COMB IDN	8-97957-314-1	01	1	0103-0409
60	LAMP ASM; FRT COMB EXC. FACE LIFT MODEL<TX7> IDN	8-97957-314-1	01	1	0410-
68	BULB; FRT COMB LAMP 12V 21W IDN	8-97179-967-0	02	1	0103-0409
68	BULB; FRT COMB LAMP EXC. FACE LIFT MODEL<TX7> 12V 21W IDN	8-97179-967-0	02	1	0410-
75	SCREW; FRT COMB LAMP M4X16 W/WASHER	8-97809-122-0	02	1	0103-0409
75	SCREW; FRT COMB LAMP EXC. FACE LIFT MODEL<TX7> M4X16 W/WASHER	8-97809-122-0	02	1	0410-
136	SEAL; HEADLAMP PHI	8-97976-928-0	02	1	0103-0409
136	SEAL; HEADLAMP EXC. FACE LIFT MODEL<TX7> PHI	8-97976-928-0	02	1	0410-
306	PIVOT; FRT COMB LAMP IDN	8-97258-869-0	02	1	0103-0409
306	PIVOT; FRT COMB LAMP EXC. FACE LIFT MODEL<TX7> IDN	8-97258-869-0	02	1	0410-
340	BULB; POSITION 12V 5W	8-94124-595-0	02	1	0103-
364	FASTENER; FOG LAMP FOG LAMP<T96> PHI	8-97161-027-0	04	1	0103-0409
364	FASTENER; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97161-027-0	04	1	0410-
382	PLUG; SOCKET,HEADLAMP FACE LIFT MODEL<TX7> THA	8-97332-447-0	02	1	0410-
382	PLUG; SOCKET,HEADLAMP PHI	8-97258-868-0	02	1	0103-0409
382	PLUG; SOCKET,HEADLAMP EXC. FACE LIFT MODEL<TX7> PHI	8-97258-868-0	02	1	0410-
399	SOCKET; TURN SIGNAL FACE LIFT MODEL<TX7> THA	8-97944-175-0	02	1	0410-
399	SOCKET; TURN SIGNAL IDN	8-97258-870-0	02	1	0103-0409
399	SOCKET; TURN SIGNAL EXC. FACE LIFT MODEL<TX7> IDN	8-97258-870-0	02	1	0410-
409	CAP; BREATHER,SIDE COMB LAMP IDN	8-97258-871-0	02	1	0303-0409
409	CAP; BREATHER,SIDE COMB LAMP EXC. FACE LIFT MODEL<TX7> IDN	8-97258-871-0	02	1	0410-
412	TAPE; FRT COMB LAMP PHI	8-97976-926-0	02	1	0103-0409
412	TAPE; FRT COMB LAMP EXC. FACE LIFT MODEL<TX7> PHI	8-97976-926-0	02	1	0410-

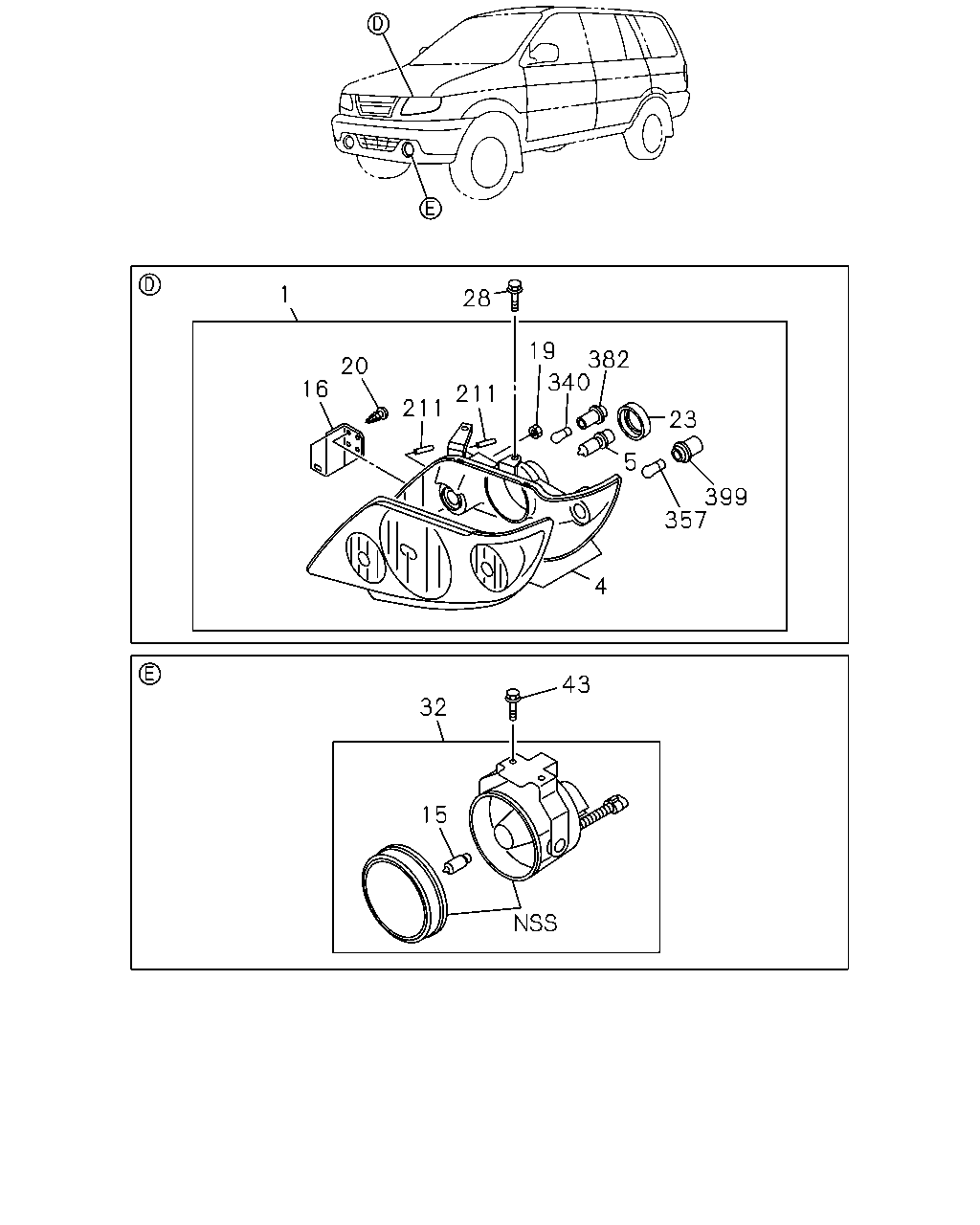

1 28 19 382 340 20 16 211 211 23 5 399 357 4 43 32 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD IDN	8-97956-928-0	01	1	0103-0302
1	LAMP ASM; HEAD IDN	8-97562-140-0	01	1	0303-0409
1	LAMP ASM; HEAD EXC. FACE LIFT MODEL<TX7> IDN	8-97562-140-0	01	1	0410-
1	LAMP ASM; HEAD IDN	8-97956-927-0	01	1	0103-0302
1	LAMP ASM; HEAD IDN	8-97562-139-0	01	1	0303-0409
1	LAMP ASM; HEAD EXC. FACE LIFT MODEL<TX7> IDN	8-97562-139-0	01	1	0410-
1	LAMP ASM; HEAD FACE LIFT MODEL<TX7> THA	8-97943-985-2	01	1	0410-
1	LAMP ASM; HEAD FACE LIFT MODEL<TX7> THA	8-97943-984-2	01	1	0410-
4	HEADLAMP UNIT FACE LIFT MODEL<TX7> THA	8-97944-169-0	01	1	0410-
4	HEADLAMP UNIT FACE LIFT MODEL<TX7> THA	8-97944-170-0	01	1	0410-
5	BULB; HEADLAMP FACE LIFT MODEL<TX7> 12V 60/55W THA	8-97914-323-0	02	1	0410-
5	BULB; HEADLAMP 12V 60/55W IDN	8-94217-817-0	02	1	0103-0409
5	BULB; HEADLAMP EXC. FACE LIFT MODEL<TX7> 12V 60/55W IDN	8-94217-817-0	02	1	0410-
15	BULB; FOG LAMP FACE LIFT MODEL<TX7> FOG LAMP<T96> 12V 55W THA	8-97944-024-0	02	1	0410-
15	BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-94458-282-0	02	1	0103-0409
15	BULB; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> 12V 55W	8-94458-282-0	02	1	0410-
16	BRACKET; HEADLAMP FACE LIFT MODEL<TX7> THA	8-97944-173-0	01	1	0410-
16	BRACKET; HEADLAMP FACE LIFT MODEL<TX7> THA	8-97944-174-0	01	1	0410-
19	NUT; HEADLAMP FACE LIFT MODEL<TX7> THA	8-97944-177-0	04	1	0410-
20	SCREW; HEADLAMP FACE LIFT MODEL<TX7> THA	8-97944-176-0	04	1	0410-
23	COVER; BULB,HEADLAMP FACE LIFT MODEL<TX7> THA	8-97332-448-0	02	1	0410-
23	COVER; BULB,HEADLAMP PHI	8-97258-867-0	02	1	0103-0302
23	COVER; BULB,HEADLAMP IDN	8-97562-252-0	02	1	0303-0409
23	COVER; BULB,HEADLAMP EXC. FACE LIFT MODEL<TX7> IDN	8-97562-252-0	02	1	0410-
28	BOLT; HEADLAMP M6X18 TAPPING W/LK&PL WASHER	8-94372-359-0	08	1	0103-
32	LAMP ASM; FOG FACE LIFT MODEL<TX7> FOG LAMP<T96> IDN	8-97944-042-0	02	1	0410-
32	LAMP ASM; FOG FOG LAMP<T96> PHI	8-97956-832-0	01	1	0103-0409
32	LAMP ASM; FOG FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97956-832-0	01	1	0410-
32	LAMP ASM; FOG FOG LAMP<T96> PHI	8-97956-831-0	01	1	0103-0409
32	LAMP ASM; FOG FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> PHI	8-97956-831-0	01	1	0410-
43	BOLT; FOG LAMP FOG LAMP<T96> M6X12 FLANGE	0-28480-612-0	06	1	0103-0409
43	BOLT; FOG LAMP FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE	0-28480-612-0	04	1	0410-0512
43	BOLT; FOG LAMP FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE	0-28450-612-0	04	1	0601-
43	BOLT; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X12 FLANGE	0-28480-612-0	06	1	0410-0512
43	BOLT; FOG LAMP FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X12 FLANGE	0-28450-612-0	06	1	0601-
211	TUBE; HEADLAMP FACE LIFT MODEL<TX7> THA	8-97333-983-0	04	1	0410-
340	BULB; POSITION 12V 5W	8-94124-595-0	02	1	0103-
357	BULB; TURN SIGNAL FACE LIFT MODEL<TX7> 12V 21W IDN	8-97179-967-0	02	1	0410-
382	PLUG; SOCKET,HEADLAMP FACE LIFT MODEL<TX7> THA	8-97332-447-0	02	1	0410-
382	PLUG; SOCKET,HEADLAMP PHI	8-97258-868-0	02	1	0103-0409
382	PLUG; SOCKET,HEADLAMP EXC. FACE LIFT MODEL<TX7> PHI	8-97258-868-0	02	1	0410-
399	SOCKET; TURN SIGNAL FACE LIFT MODEL<TX7> THA	8-97944-175-0	02	1	0410-
399	SOCKET; TURN SIGNAL IDN	8-97258-870-0	02	1	0103-0409
399	SOCKET; TURN SIGNAL EXC. FACE LIFT MODEL<TX7> IDN	8-97258-870-0	02	1	0410-
