50909 - TBR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#47180) — 21 parça
◀

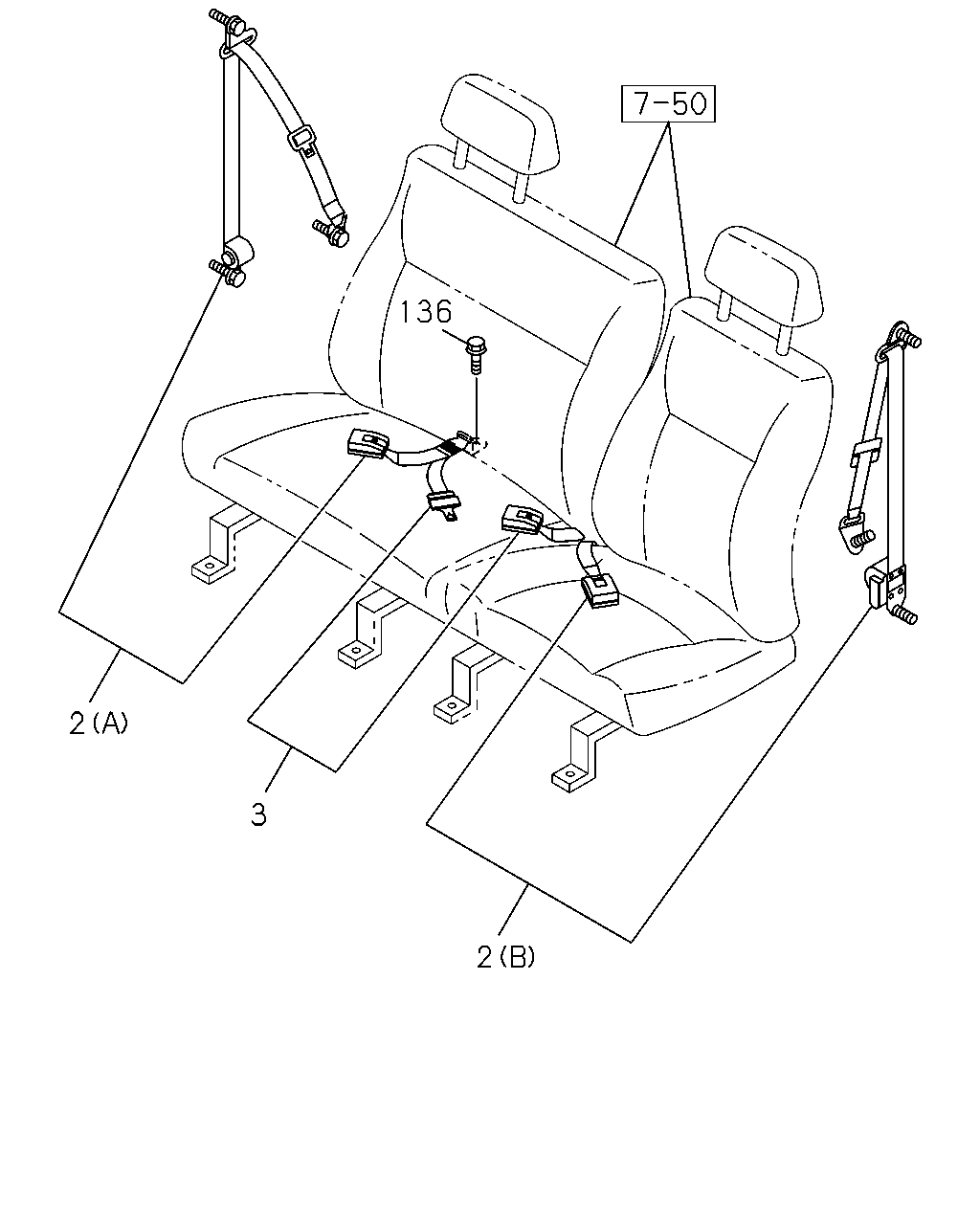

[760A] FRONT SEAT BELT (18 parça)
[760A] REAR SEAT BELT (3 parça)
▶
136
2
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
(B) PHI
8-97976-097-3
01
1
0103-
2
BELT; SEAT,TONGUE SIDE
(A) PHI
8-97976-096-3
01
1
0103-0302
2
BELT; SEAT,TONGUE SIDE
EXC. VIETNAM EQUIPMENT(CL0) (A) PHI
8-97976-096-3
01
1
0303-0401
2
BELT; SEAT,TONGUE SIDE
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) (A) PHI
8-97976-096-3
01
1
0402-
2
BELT; SEAT,TONGUE SIDE
VIETNAM EQUIPMENT(CL0) (A) PHI
8-97977-251-0
01
1
0303-0401
2
BELT; SEAT,TONGUE SIDE
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) (A) PHI
8-97977-251-0
01
1
0402-
2
BELT; SEAT,TONGUE SIDE
VIETNAM EQUIPMENT(CL0) (A) PHI
8-97977-251-0
01
1
0402-
3
BELT; SEAT,BUCKLE SIDE
PHI
8-97976-095-1
01
1
0103-0302
3
BELT; SEAT,BUCKLE SIDE
EXC. VIETNAM EQUIPMENT(CL0) PHI
8-97976-095-1
01
1
0303-0401
3
BELT; SEAT,BUCKLE SIDE
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) PHI
8-97976-095-1
01
1
0402-
136
BOLT; SEAT BELT
M10X19
8-94427-095-2
01
1
0104-0104
136
BOLT; SEAT BELT
M10X19
8-94427-095-2
02
1
0104-0104
136
BOLT; SEAT BELT
7/16"X14 UNF
8-94445-803-0
02
1
0104-0302
136
BOLT; SEAT BELT
EXC. VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF
8-94445-803-0
02
1
0303-0401
136
BOLT; SEAT BELT
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF
8-94445-803-0
02
1
0402-
136
BOLT; SEAT BELT
VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF
8-94445-803-0
03
1
0303-0401
136
BOLT; SEAT BELT
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF
8-94445-803-0
03
1
0402-
136
BOLT; SEAT BELT
VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF
8-94445-803-0
03
1
0402-
18
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BELT; SEAT,RR
GRADE XTO(RBD) PHI
8-97976-100-1
02
1
0103-0103
18
BELT; SEAT,RR
PHI
8-97976-100-2
02
1
0104-
23
BELT; SEAT,CENTER
PHI
8-97976-099-1
01
1
0103-
