◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#47177) — 119 parça

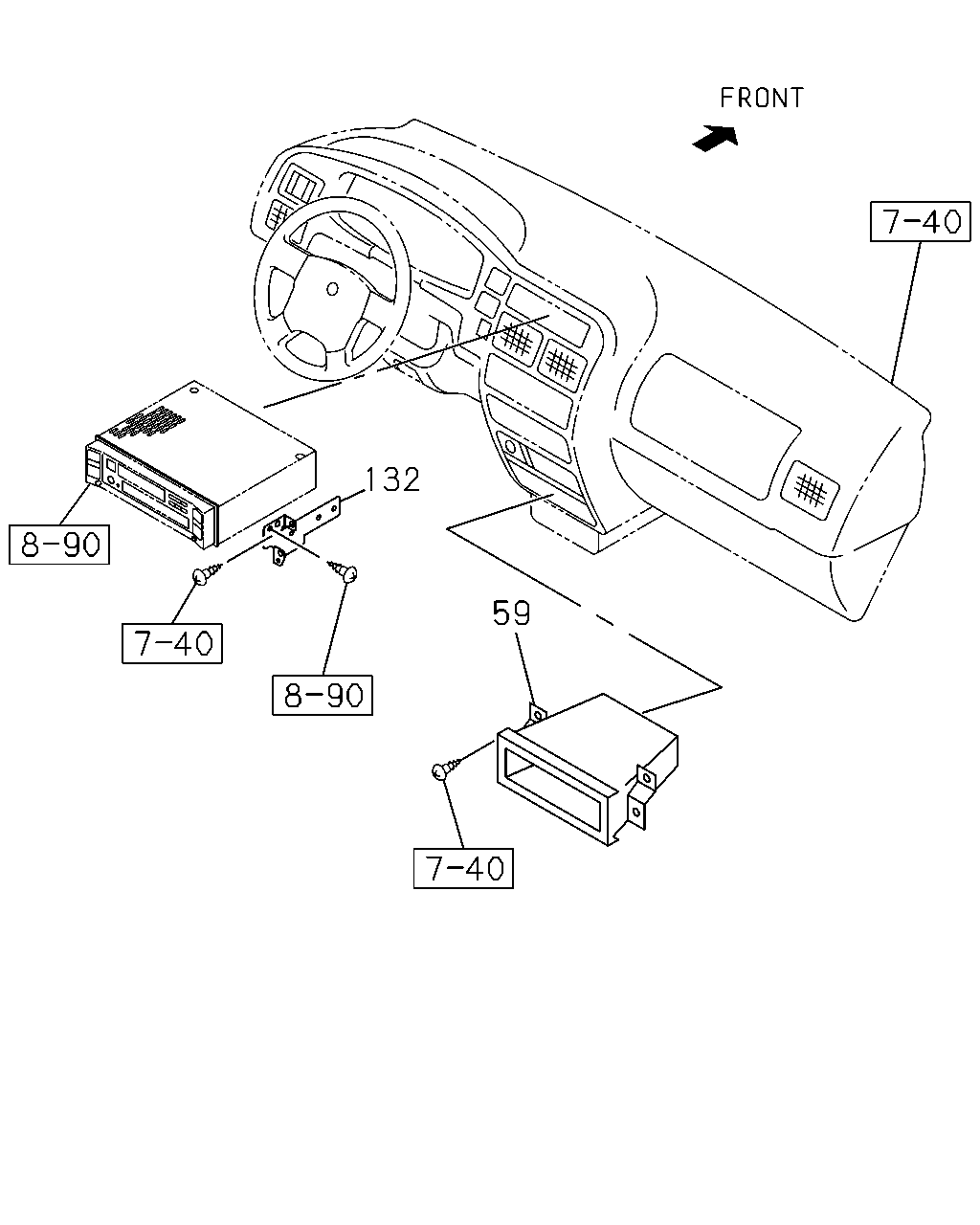

çizim 12164
132 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
59 BOX; FRT CONSOLE 8-97114-757-0 01 1 0103- ● ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-583-2 01 1 0103- ● ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-582-2 01 1 0103- ● ● ● ●

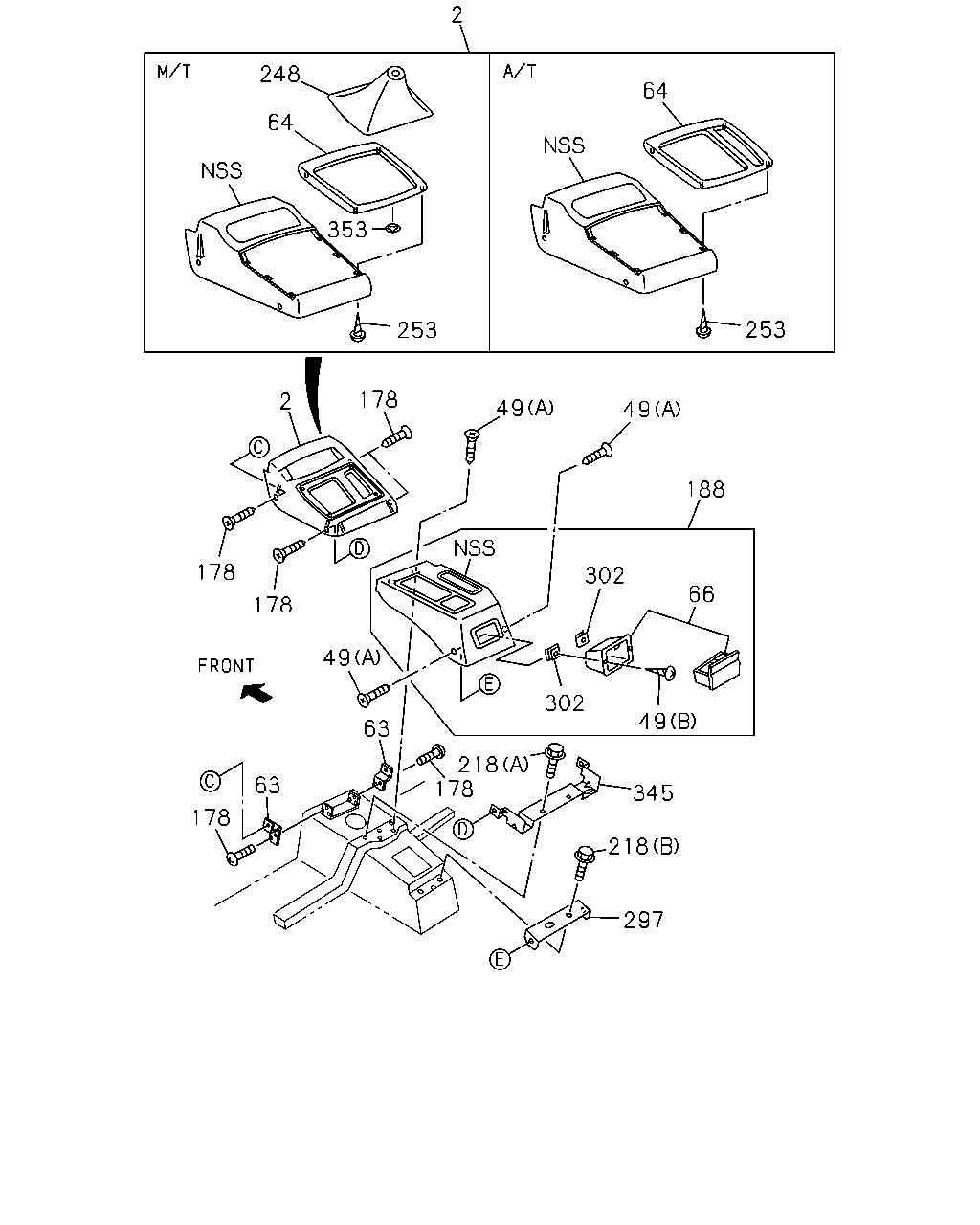

çizim 46950
2 248 64 64 353 253 253 178 2 49 49 188 178 302 66 178 49 302 49 63 218 178 63 345 178 218 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97959-125-0 01 1 0103-0310 ●
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97959-125-0 01 1 0311- ● ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY PHI 		8-97976-431-1 01 1 0103-0110 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY PHI 		8-97976-431-1 01 1 0111-0405 ● ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-431-1 01 1 0406- ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY PHI 		8-97976-431-1 01 1 0406- ● ●
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (A) M5X16 		8-94279-312-0 04 1 0303-0401 ● ●
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (A) M5X16 		8-94279-312-0 04 1 0402- ●
49 SCREW; CONSOLE
(A) M5X16 		8-94279-312-0 04 1 0402- ●
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0303-0401 ● ●
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0402- ●
49 SCREW; CONSOLE
(B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0402- ●
63 BRACKET; FRT CONSOLE
IDN 		8-97956-301-1 02 1 0103-0103 ●
63 BRACKET; FRT CONSOLE
PHI 		8-97976-986-0 02 1 0104-0110 ●
63 BRACKET; FRT CONSOLE
PHI 		8-97976-986-0 02 1 0111-0405 ● ●
63 BRACKET; FRT CONSOLE
CONVENIENT PACKAGE<6QZ> PHI 		8-97976-986-0 02 1 0406- ●
63 BRACKET; FRT CONSOLE
PHI 		8-97976-986-0 02 1 0406- ● ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) BLACK IDN 		8-97957-230-2 01 1 0103-0310 ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) BLACK IDN 		8-97957-230-2 01 1 0311- ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-309-3 01 1 0103-0110 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-309-3 01 1 0111-0405 ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> BLACK IDN 		8-97957-309-3 01 1 0406- ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-309-3 01 1 0406- ● ●
66 TRAY ASM; ASH
VIETNAM EQUIPMENT(CL0) GRAY 		8-97150-683-1 01 1 0303-0401 ● ●
66 TRAY ASM; ASH
VIETNAM EQUIPMENT(CL0) GRAY 		8-97150-683-1 01 1 0402- ●
66 TRAY ASM; ASH
GRAY 		8-97150-683-1 01 1 0402- ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0103-0110 ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0111-0405 ● ●
178 SCREW; CTR,CONSOLE
CONVENIENT PACKAGE<6QZ> M5X16 		8-94279-312-0 08 1 0406- ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0406- ● ●
188 CONSOLE; RR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97957-228-1 01 1 0303-0409 ● ●
188 CONSOLE; RR
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97957-228-1 01 1 0410- ● ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-460-0 01 1 0402-0409 ●
188 CONSOLE; RR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-460-0 01 1 0410- ●
188 CONSOLE; RR
GRAY PHI 		8-97977-460-0 01 1 0410- ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0103-0110 ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0111-0405 ● ●
218 BOLT; BRKT
CONVENIENT PACKAGE<6QZ> (A) M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ● ●
218 BOLT; BRKT
CONVENIENT PACKAGE<6QZ> (A) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 01 1 0303-0401 ● ●
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 01 1 0402-0408 ●
218 BOLT; BRKT
(B) M10X19 		8-94427-095-2 01 1 0402-0408 ●
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 02 1 0409- ●
218 BOLT; BRKT
(B) M10X19 		8-94427-095-2 02 1 0409- ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK PHI 		8-97976-753-1 01 1 0103-0110 ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK PHI 		8-97976-753-1 01 1 0111-0405 ● ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97976-753-1 01 1 0406- ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK PHI 		8-97976-753-1 01 1 0406- ● ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0103-0110 ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0111-0405 ● ●
253 SCREW; BEZEL
CONVENIENT PACKAGE<6QZ> M5X12 TAPPING 		9-09829-321-1 04 1 0406- ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0406- ● ●
297 BRACKET; RR CONSOLE
VIETNAM EQUIPMENT(CL0) IDN 		8-97956-302-1 01 1 0303-0401 ● ●
297 BRACKET; RR CONSOLE
VIETNAM EQUIPMENT(CL0) IDN 		8-97956-302-1 01 1 0402- ●
297 BRACKET; RR CONSOLE
IDN 		8-97956-302-1 01 1 0402- ●
302 RETAINER; ASH TRAY
VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 0303-0401 ● ●
302 RETAINER; ASH TRAY
VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 0402- ●
302 RETAINER; ASH TRAY 8-94123-300-5 02 1 0402- ●
345 BRACKET; CTR CONSOLE
PHI 		8-97976-985-0 01 1 0103-0110 ●
345 BRACKET; CTR CONSOLE
PHI 		8-97976-985-0 01 1 0111-0405 ● ●
345 BRACKET; CTR CONSOLE
CONVENIENT PACKAGE<6QZ> PHI 		8-97976-985-0 01 1 0406- ●
345 BRACKET; CTR CONSOLE
PHI 		8-97976-985-0 01 1 0406- ● ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0103-0110 ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0111-0405 ● ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> 		8-94324-737-0 08 1 0406- ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0406- ● ●

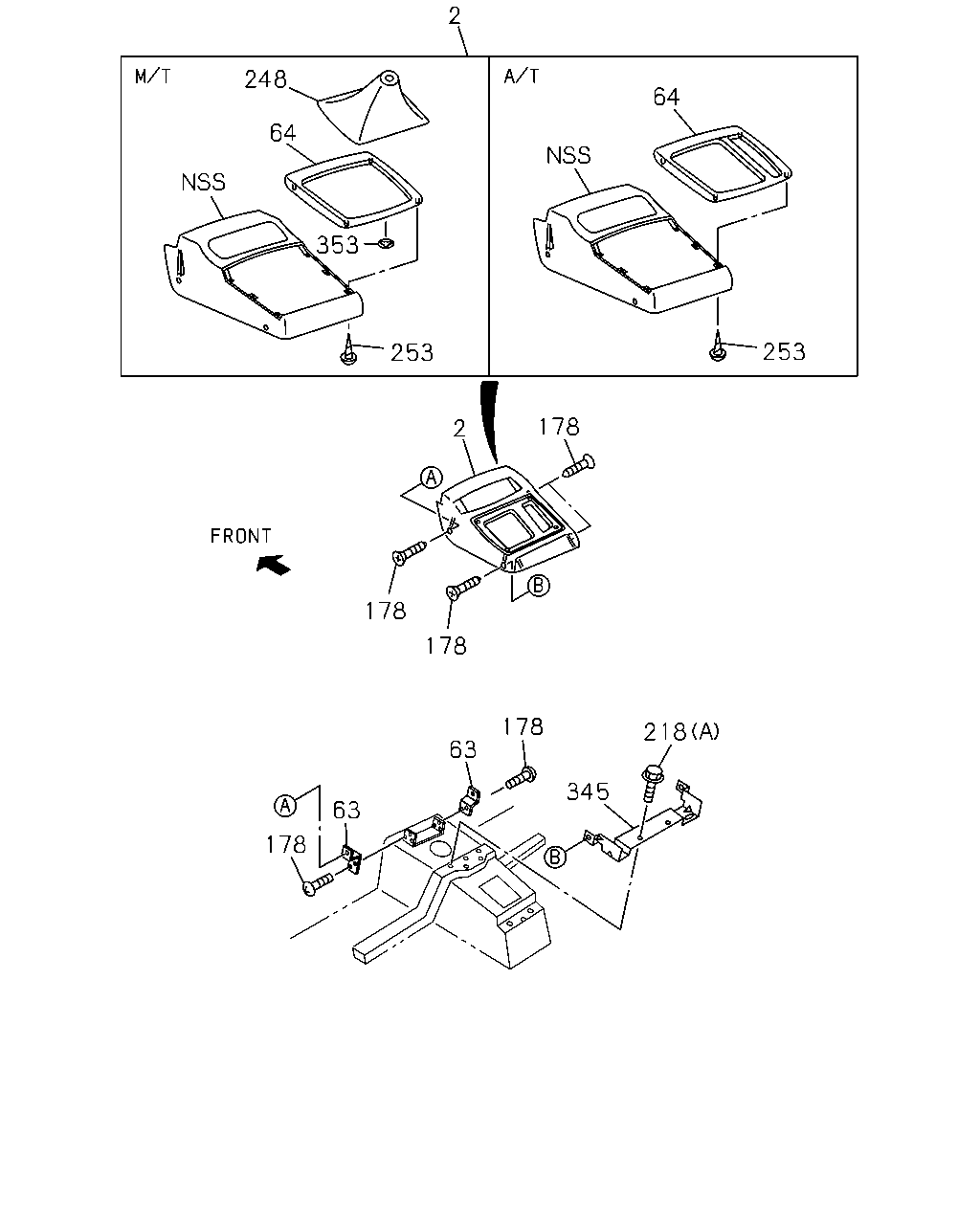

çizim 51036
2 248 64 64 353 253 253 178 2 178 178 178 218 63 345 63 178
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97959-125-0 01 1 0103-0310 ●
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97959-125-0 01 1 0311- ● ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY PHI 		8-97976-431-1 01 1 0103-0110 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY PHI 		8-97976-431-1 01 1 0111-0405 ● ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-431-1 01 1 0406- ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY PHI 		8-97976-431-1 01 1 0406- ● ●
63 BRACKET; FRT CONSOLE
IDN 		8-97956-301-1 02 1 0103-0103 ●
63 BRACKET; FRT CONSOLE
PHI 		8-97976-986-0 02 1 0104-0110 ●
63 BRACKET; FRT CONSOLE
PHI 		8-97976-986-0 02 1 0111-0405 ● ●
63 BRACKET; FRT CONSOLE
CONVENIENT PACKAGE<6QZ> PHI 		8-97976-986-0 02 1 0406- ●
63 BRACKET; FRT CONSOLE
PHI 		8-97976-986-0 02 1 0406- ● ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) BLACK IDN 		8-97957-230-2 01 1 0103-0310 ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) BLACK IDN 		8-97957-230-2 01 1 0311- ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-309-3 01 1 0103-0110 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-309-3 01 1 0111-0405 ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> BLACK IDN 		8-97957-309-3 01 1 0406- ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-309-3 01 1 0406- ● ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0103-0110 ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0111-0405 ● ●
178 SCREW; CTR,CONSOLE
CONVENIENT PACKAGE<6QZ> M5X16 		8-94279-312-0 08 1 0406- ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0406- ● ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0103-0110 ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0111-0405 ● ●
218 BOLT; BRKT
CONVENIENT PACKAGE<6QZ> (A) M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ● ●
218 BOLT; BRKT
CONVENIENT PACKAGE<6QZ> (A) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
218 BOLT; BRKT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 01 1 0303-0401 ● ●
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 01 1 0402-0408 ●
218 BOLT; BRKT
(B) M10X19 		8-94427-095-2 01 1 0402-0408 ●
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 02 1 0409- ●
218 BOLT; BRKT
(B) M10X19 		8-94427-095-2 02 1 0409- ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK PHI 		8-97976-753-1 01 1 0103-0110 ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK PHI 		8-97976-753-1 01 1 0111-0405 ● ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97976-753-1 01 1 0406- ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK PHI 		8-97976-753-1 01 1 0406- ● ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0103-0110 ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0111-0405 ● ●
253 SCREW; BEZEL
CONVENIENT PACKAGE<6QZ> M5X12 TAPPING 		9-09829-321-1 04 1 0406- ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0406- ● ●
345 BRACKET; CTR CONSOLE
PHI 		8-97976-985-0 01 1 0103-0110 ●
345 BRACKET; CTR CONSOLE
PHI 		8-97976-985-0 01 1 0111-0405 ● ●
345 BRACKET; CTR CONSOLE
CONVENIENT PACKAGE<6QZ> PHI 		8-97976-985-0 01 1 0406- ●
345 BRACKET; CTR CONSOLE
PHI 		8-97976-985-0 01 1 0406- ● ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0103-0110 ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0111-0405 ● ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) CONVENIENT PACKAGE<6QZ> 		8-94324-737-0 08 1 0406- ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
