7-40 — INSTRUMENT PANEL AND BOX (#47174) — 104 parça

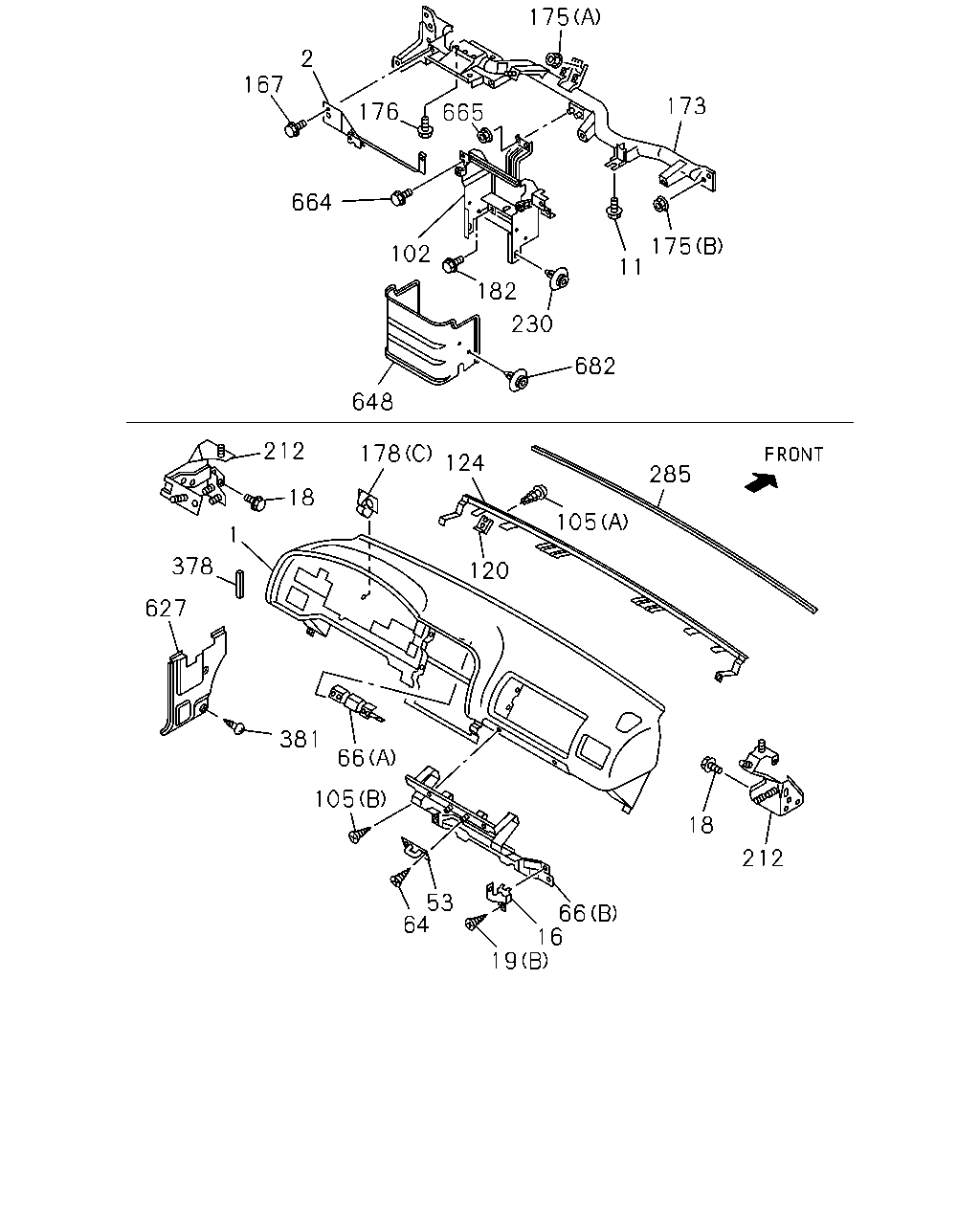

çizim 9624
175 2 167 173 176 665 664 175 102 11 182 230 682 648 212 178 124 285 18 105 1 378 120 627 381 66 105 18 212 53 64 66 16 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97156-099-2 01 1 0103-
2 REINFORCEMENT; INST PNL,LWR
A/T AISIN(RMD) 		8-97112-305-4 01 1 0103-
2 REINFORCEMENT; INST PNL,LWR
M/T MSG 5 SPEED(M75) 		8-97187-497-1 01 1 0103-
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 0103-
16 BRACKET; INST PNL 8-97114-331-1 01 1 0103-
18 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 08 1 0103-0512
18 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 08 1 0601-
19 SCREW; BRKT
(A) M5X14 TAPPING 		9-07066-514-0 05 1 0103-0603
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 0604-
19 SCREW; BRKT
(B) M5X14 TAPPING 		9-07076-514-0 01 1 0103-0603
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0604-
53 STRIKER; GLOVE BOX 8-97125-756-0 01 1 0103-
64 SCREW; STRIKER
M5X14 TAPPING 		9-07066-514-0 02 1 0103-0603
64 SCREW; STRIKER
M5X14 TAPPING 		0-71040-514-0 02 1 0604-
66 REINFORCEMENT; INST PANEL
(A) 		8-97114-725-0 01 1 0103-
66 REINFORCEMENT; INST PANEL
(B) 		8-97217-988-1 01 1 0103-
102 BRACKET; INST PANEL TO FLOOR
PHI 		8-97976-235-3 01 1 0103-
105 SCREW; REINF
(A) M4X12 		8-94279-351-0 11 1 0103-
105 SCREW; REINF
(B) M5X14 TAPPING 		9-07066-514-0 04 1 0103-0603
105 SCREW; REINF
(B) M5X14 TAPPING 		0-71040-514-0 04 1 0604-
120 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 06 1 0103-
124 REINFORCEMENT; INST PNL,UPR 8-97218-067-0 01 1 0103-
167 BOLT; REINF TO INST
M6X20 W/WASHER 		8-94112-987-1 02 1 0103-
173 BEAM ASM; CROSS,INST PANEL 8-97219-003-0 01 1 0103-
175 NUT; CROSS BEAM
(A) M6 FLANGE 		8-97063-399-0 01 1 0103-
175 NUT; CROSS BEAM
(B) M8 FLANGE 		8-97065-435-0 04 1 0103-
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 0103-0512
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
178 NUT; INST PANEL
(A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 0103-
178 NUT; INST PANEL
(B) M5 SPIRE NUT 		8-94217-271-0 02 1 0103-
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 0103-
182 BOLT; BRKT,INST PANEL
M6X12 FLANGE 		0-28080-612-0 02 1 0309-0512
182 BOLT; BRKT,INST PANEL
M6X12 FLANGE 		0-28050-612-0 02 1 0601-
212 BRACKET; INST PNL SIDE
PHI 		8-97975-556-0 01 1 0103-
212 BRACKET; INST PNL SIDE
PHI 		8-97975-555-0 01 1 0103-
230 CLIP; INST
GRADE XL(RBA),GRADE XT(RBB) GRAY 		8-97289-384-0 04 1 0104-
285 FINISHER; INST PANEL 8-97142-524-0 01 1 0103-
378 SEAL; INST PANEL 8-97204-877-0 01 1 0103-
381 CLIP; HARNESS
GRADE XT(RBB),GRADE XTO(RBD) BLACK 		8-94145-515-0 04 1 0103-0110
381 CLIP; HARNESS
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) BLACK 		8-94145-515-0 04 1 0111-
627 TRIM
GRADE XT(RBB),GRADE XTO(RBD) GRAY PHI 		8-97976-433-3 01 1 0103-0110
627 TRIM
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) GRAY PHI 		8-97976-433-3 01 1 0111-
627 TRIM
GRADE XT(RBB),GRADE XTO(RBD) GRAY PHI 		8-97976-432-3 01 1 0103-0110
627 TRIM
GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) GRAY PHI 		8-97976-432-3 01 1 0111-
648 COVER; BRKT
GRADE XL(RBA),GRADE XT(RBB) PHI 		8-97976-976-0 01 1 0104-0405
648 COVER; BRKT
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> PHI 		8-97976-976-0 01 1 0406-
664 BOLT; EXT,FLOOR TO INST PANEL
M6X16 FLANGE 		8-97803-298-0 06 1 0103-
665 NUT; BRKT,FLOOR TO INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 0103-
682 CLIP
GRADE XL(RBA),GRADE XT(RBB) GRAY 		8-97289-384-0 04 1 0104-0405
682 CLIP
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-97289-384-0 04 1 0406-

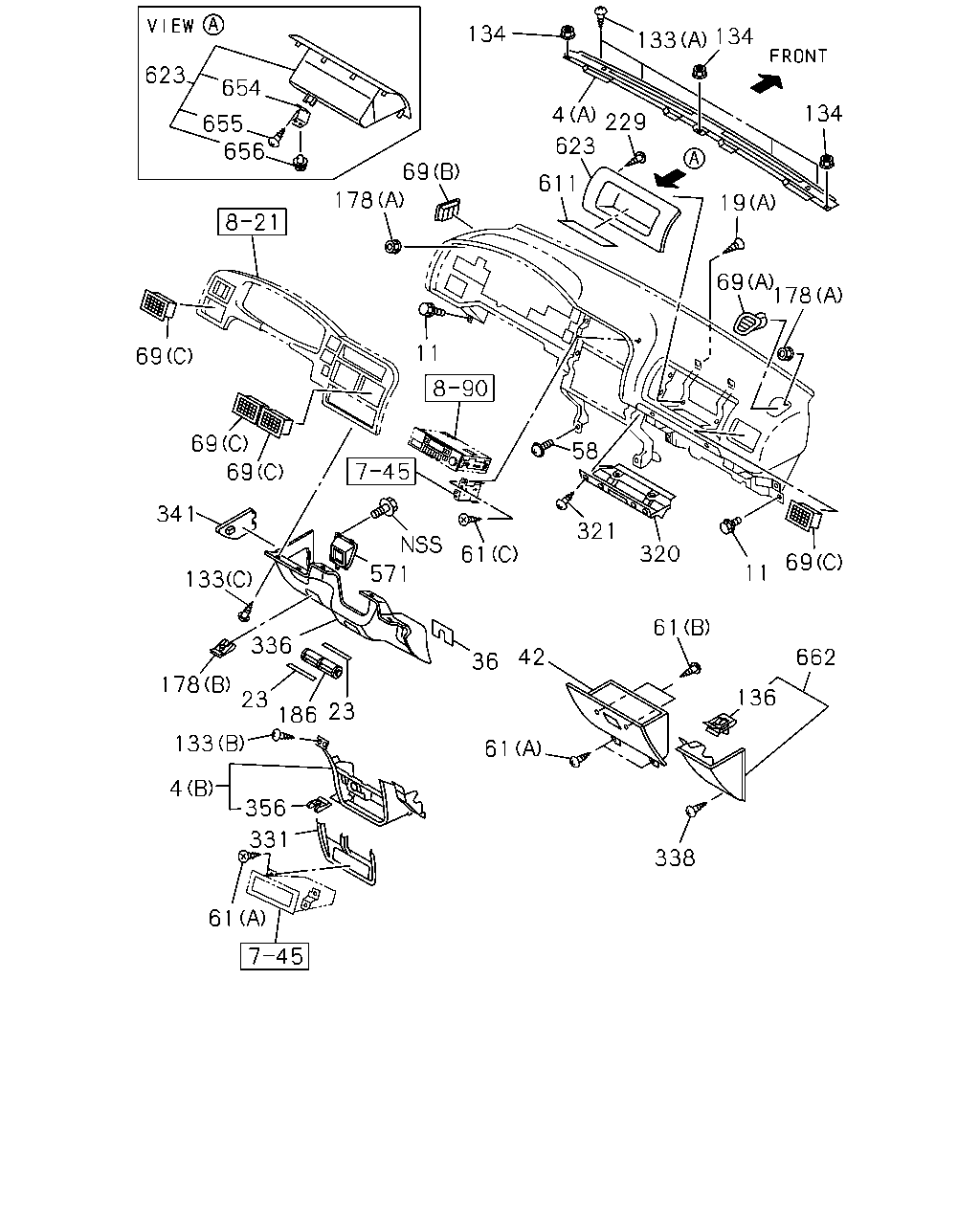

çizim 10543
134 134 133 623 654 134 4 229 623 655 656 69 611 178 19 69 178 11 69 69 58 69 341 321 320 61 69 11 571 133 61 336 42 662 36 178 136 23 23 186 133 61 4 356 331 338 61
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 0103-
4 COVER; INST PNL
GRADE XL(RBA),GRADE XT(RBB) (A) GRAY IDN 		8-97958-817-0 01 1 0103-
4 COVER; INST PNL
GRADE XTO(RBD) (A) GRAY IDN 		8-97958-818-0 01 1 0103-0110
4 COVER; INST PNL
GRADE XTO(RBD),GRADE XTRM(RBG) (A) GRAY IDN 		8-97958-818-0 01 1 0111-
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 0103-
19 SCREW; BRKT
(A) M5X14 TAPPING 		9-07066-514-0 05 1 0103-0603
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 0604-
19 SCREW; BRKT
(B) M5X14 TAPPING 		9-07076-514-0 01 1 0103-0603
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0604-
23 CUSHION; INST,PANEL 8-97185-832-0 02 1 0103-
36 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-097-0 01 1 0103-0401
36 BEZEL; INST SIDE CLUSTER
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-097-0 01 1 0402-
36 BEZEL; INST SIDE CLUSTER
PARKING BRAKE FLOOR<7XW> GRAY 		8-97196-066-0 01 1 0402-0405
42 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 0103-
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0103-0604
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0605-
61 SCREW; GLOVE BOX
(A) M5X16 		8-94279-312-0 04 1 0103-
61 SCREW; GLOVE BOX
(B) M4X14 TAPPING 		8-97111-555-0 02 1 0103-
61 SCREW; GLOVE BOX
(C) M5X16 TAPPING 		9-09829-323-1 04 1 0103-
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97152-701-1 04 1 0103-
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97150-595-1 01 1 0103-
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97150-594-5 01 1 0103-
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0103-
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 07 1 0103-
133 SCREW; COVER,INST PNL
(C) M5X16 TAPPING 		9-09829-323-1 08 1 0103-
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0103-
136 CLIP; INST COVER 8-97148-012-0 02 1 0103-0401
136 CLIP; INST COVER 8-97148-012-0 01 1 0402-0405
136 CLIP; INST COVER 8-97148-012-0 01 1 0406-
136 CLIP; INST COVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97148-012-0 01 1 0406-
178 NUT; INST PANEL
(A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 0103-
178 NUT; INST PANEL
(B) M5 SPIRE NUT 		8-94217-271-0 02 1 0103-
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 0103-
186 GRILLE; LAP VENTILATOR
BLACK 		8-97806-851-2 01 1 0103-0206
186 GRILLE; LAP VENTILATOR
BLACK 		8-97394-945-0 01 1 0207-
229 SCREW; BOX,INST
M5X14 TAPPING 		9-07066-514-0 06 1 0103-0603
229 SCREW; BOX,INST
M5X14 TAPPING 		0-71040-514-0 06 1 0604-
320 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 0103-
321 SCREW; COVER,GLOVE BOX
M5X16 TAPPING 		9-09829-323-1 04 1 0103-
331 CLUSTER; INST SIDE
PHI 		8-97131-756-1 01 1 0103-
336 COVER; INST PANEL SIDE
GRAY 		8-97156-095-1 01 1 0103-0405
336 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-095-1 01 1 0406-
336 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-209-4 01 1 0406-
338 SCREW; COVER
M5X16 		8-94279-312-0 01 1 0103-
341 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 0103-
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 0103-
571 BEZEL; POCKET
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-211-0 01 1 0406-
611 SHEET
BLACK 		8-97198-544-0 01 1 0103-
623 BOX; UTILITY
GRAY 		8-97199-868-1 01 1 0103-
654 BRACKET; UTILITY BOX 8-97218-109-0 01 1 0103-
655 SCREW; BRKT,UTILITY BOX
M5X14 TAPPING 		9-07066-514-0 02 1 0103-0603
655 SCREW; BRKT,UTILITY BOX
M5X14 TAPPING 		0-71040-514-0 02 1 0604-
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 0103-
662 COVER; LWR,INST PANEL
GRAY 		8-97150-598-3 01 1 0103-
