50909 - TBR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

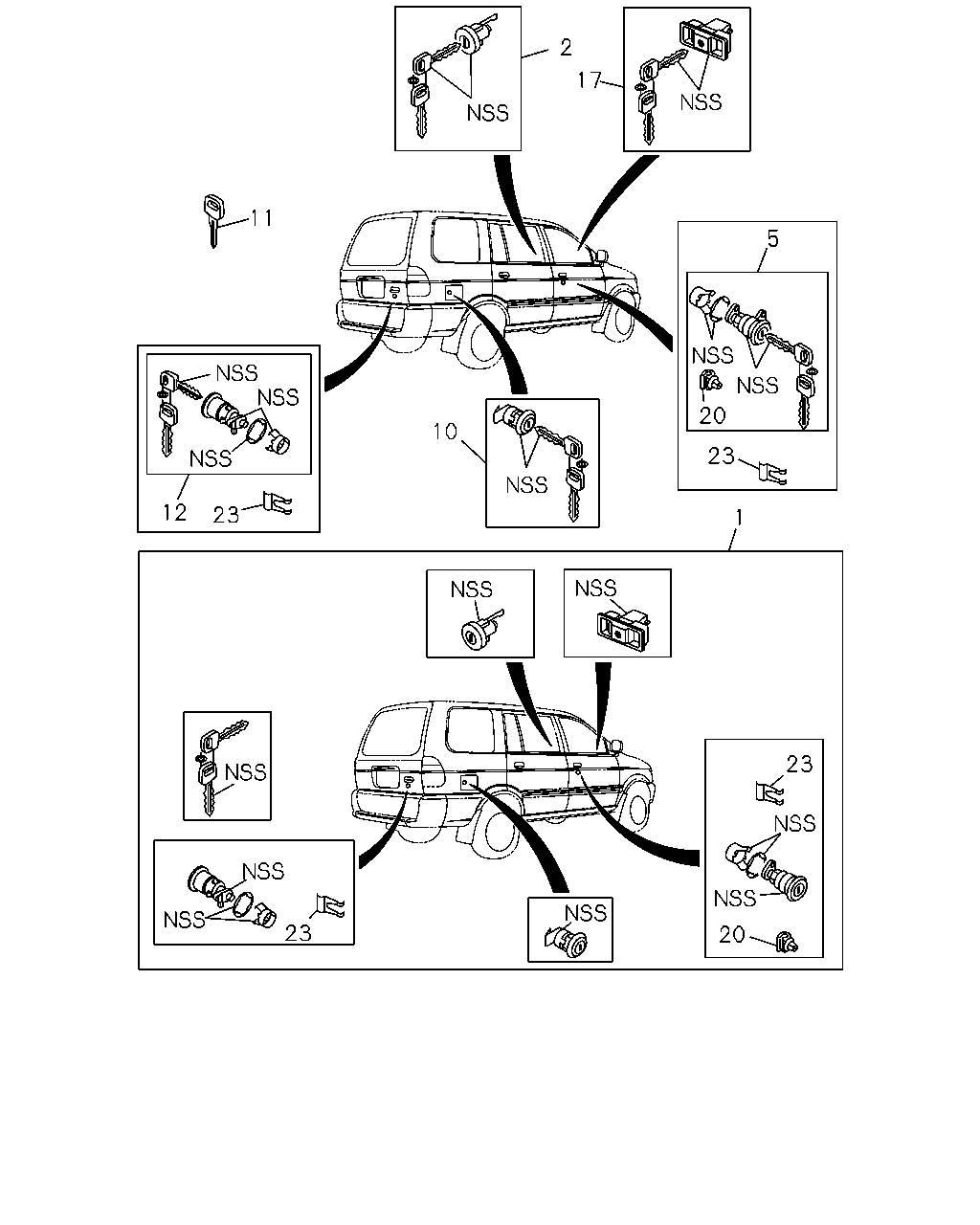

7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#47173) — 12 parça
2
17
11
5
10
2
12
23
1
23
23
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
GRAY PHI
8-97976-466-0
01
1
0103-
2
BARREL ASM; W/KEY,STRG LOCK
PHI
8-97806-931-0
01
1
0103-
5
CYLINDER ASM; DOOR LOCK
PHI
8-97264-617-0
01
1
0103-
5
CYLINDER ASM; DOOR LOCK
PHI
8-97264-618-0
01
1
0103-
10
CYLINDER ASM; W/KEY,FUEL FILLER
PHI
8-94320-981-3
01
1
0103-
11
KEY; BLANK
WO/NOTCH PHI
8-94320-972-0
AR
1
0103-
11
KEY; BLANK
W/NOTCH PHI
8-94320-973-0
AR
1
0103-
12
CYLINDER ASM; W/KEY,BACK DOOR
PHI
8-97264-617-0
01
1
0103-
17
CYLINDER ASM; W/KEY,GLOVE BOX LOCK
PHI
5-87410-704-0
01
1
0103-
20
SNAP; DOOR LOCK CYL
YELLOW PHI
8-97040-452-0
02
1
0103-
20
SNAP; DOOR LOCK CYL
BROWN PHI
8-97040-453-0
01
1
0103-
23
RETAINER; BACK DOOR LOCK CYL
PHI
8-97019-016-0
03
1
0103-
