Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

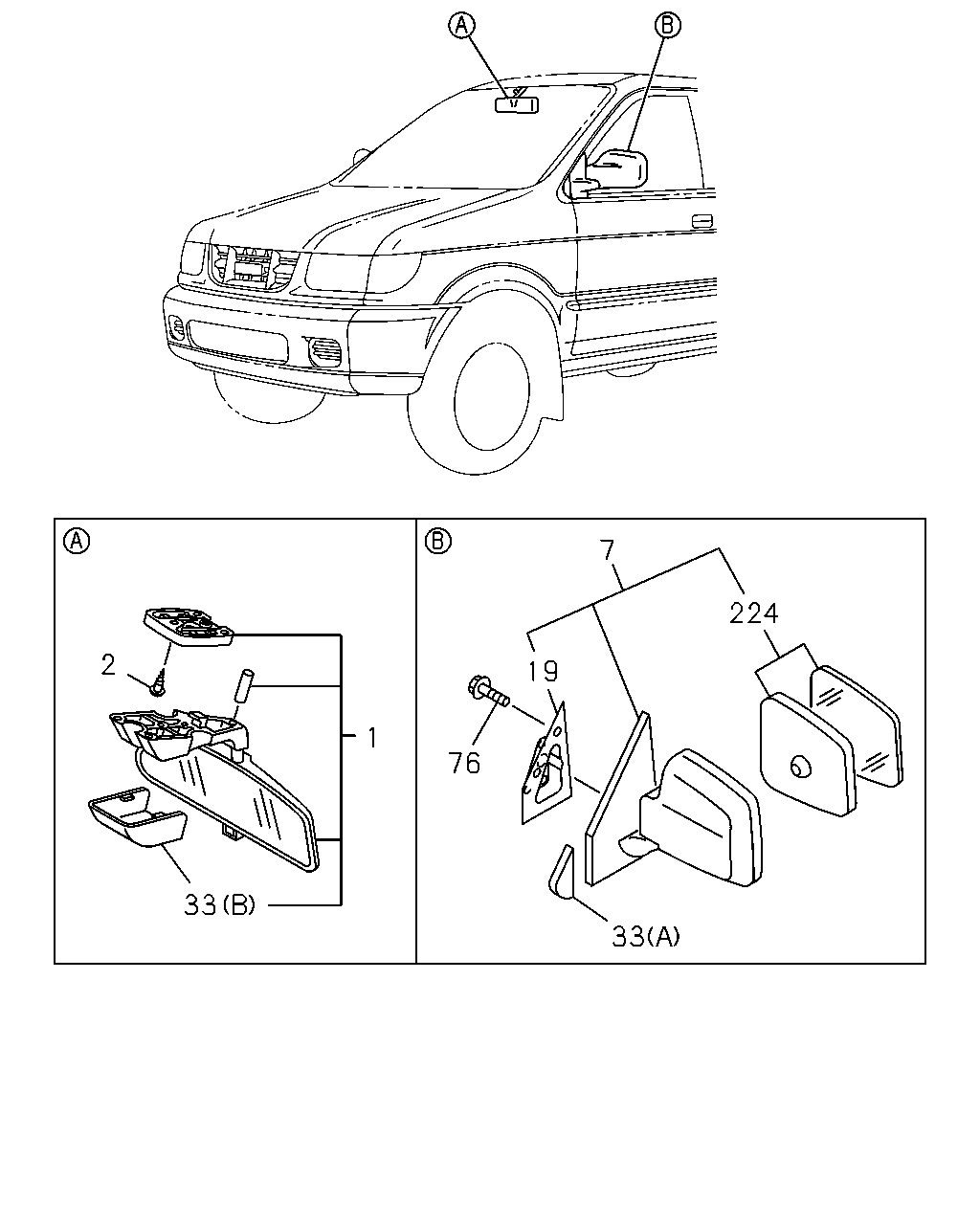

7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#47172) — 14 parça
7
224
2
19
1
76
33
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
GRAY
8-97293-272-1
01
1
0103-
2
SCREW; MIRROR TO BODY
M4X16 TAPPING OVAL-HEAD
9-07037-416-0
03
1
0103-
7
MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> IDN
8-97957-544-1
01
1
0103-
7
MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> IDN
8-97957-543-1
01
1
0103-
7
MIRROR ASM; DOOR
EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> IDN
8-97957-542-0
01
1
0103-
7
MIRROR ASM; DOOR
EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> IDN
8-97957-541-0
01
1
0103-
19
GASKET; MIRROR
IDN
8-97958-559-0
01
1
0103-
19
GASKET; MIRROR
IDN
8-97958-558-0
01
1
0103-
33
COVER; MIRROR
(B) GRAY
8-97293-274-0
01
1
0103-
33
COVER; MIRROR
(A)
8-97201-963-1
01
1
0103-
33
COVER; MIRROR
(A)
8-97201-962-1
01
1
0103-
76
BOLT; STAY BRKT
M6X14 FLANGE
8-94327-380-0
06
1
0103-
224
MIRROR; DOOR
IDN
8-97958-557-0
01
1
0103-0302
224
MIRROR; DOOR
IDN
8-97958-556-0
01
1
0103-0302
