Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#4717) — 307 parça

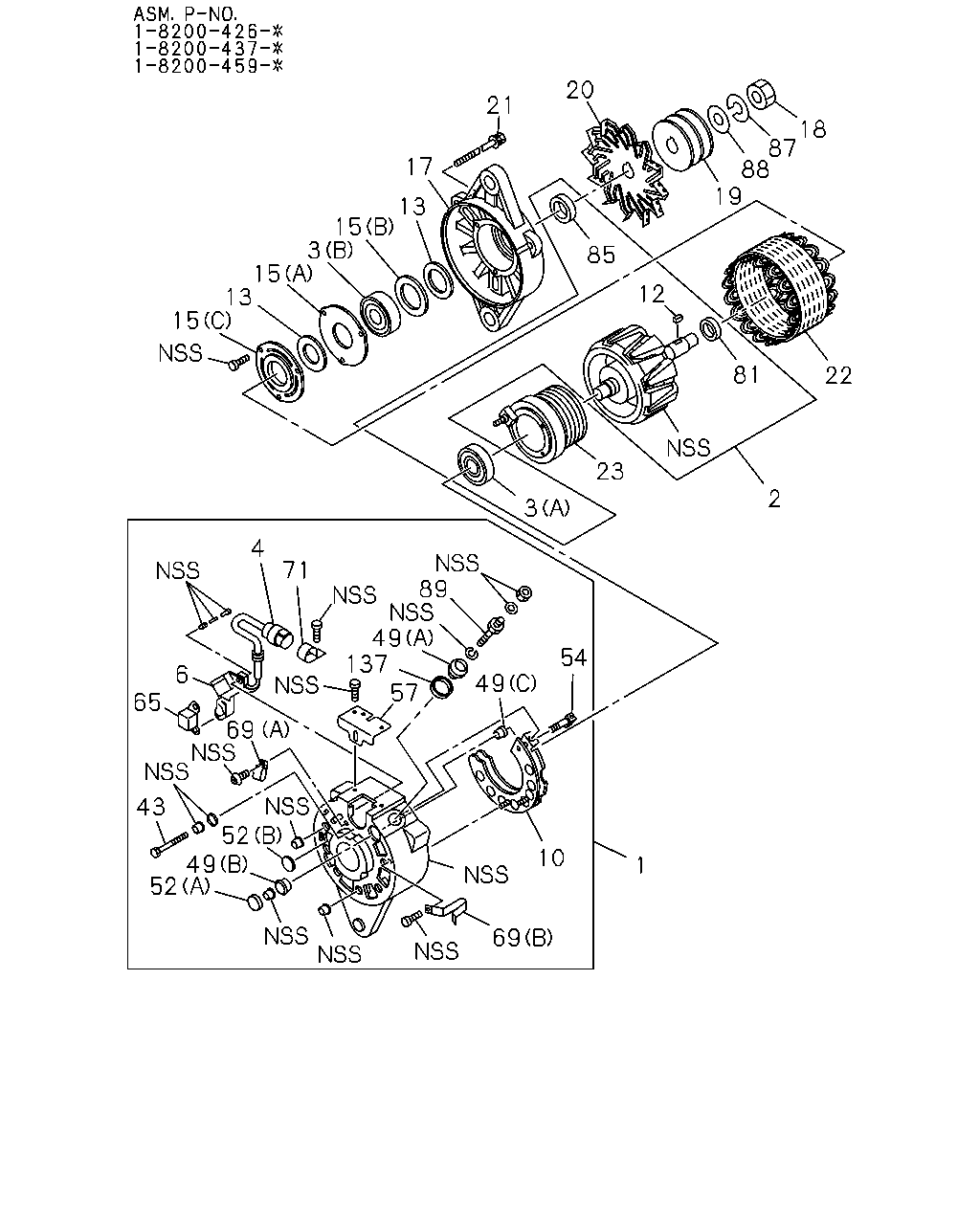

20 21 18 87 88 19 17 13 15 3 85 12 15 13 15 81 22 23 2 3 4 89 49 137 57 71 54 6 49 65 69 52 49 52 43 10 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-459-2	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-470-3	1-81214-339-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: J = 1-81200-572-0	1-81214-377-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-426-2	1-81222-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81222-135-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81222-165-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81211-105-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81211-121-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: J = 1-81200-572-0	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2	1-81229-645-0	01	1	-9603
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-437-4, C = 1-81200-459-2	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2	1-81229-739-0	01	1	9604-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 1-81200-572-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: J = 1-81200-572-0	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: C = 1-81200-459-2	1-81229-517-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4	1-81229-679-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: D = 1-81200-469-4	1-81229-725-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: E = 1-81200-470-3	1-81229-726-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 1-81200-572-0	1-81260-019-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81219-107-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81219-117-0	01	1	-
10	RECTIFIER; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81219-121-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81219-126-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 1-81200-572-0	1-81219-141-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: J = 1-81200-572-0	1-81229-822-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	8-97094-161-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-426-2	1-81213-076-0	01	1	-9603
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-459-2	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-426-2	1-81213-092-0	01	1	9604-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 1-81200-572-0	1-81213-116-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81213-117-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-474-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81222-091-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-470-3	1-81222-101-0	01	1	-
19	PULLEY; GEN ASM PART: D = 1-81200-469-4	1-81222-101-0	01	1	-9910
19	PULLEY; GEN ASM PART: B = 1-81200-437-4	1-81222-123-0	01	1	-9910
19	PULLEY; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81222-130-0	01	1	-
19	PULLEY; GEN ASM PART: J = 1-81200-572-0	1-81222-139-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-437-4, D = 1-81200-469-4	1-81222-154-0	01	1	9911-
20	FAN; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-437-4	1-81223-017-0	01	1	-
20	FAN; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81223-019-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-437-4	1-81229-382-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81211-106-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-469-4	1-81211-122-0	01	1	-9910
22	STATOR; GEN ASM PART: E = 1-81200-470-3	1-81211-122-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-469-4	1-81211-124-0	01	1	9911-
22	STATOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: J = 1-81200-572-0	1-81211-131-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 1-81200-459-2	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: J = 1-81200-572-0	1-81212-027-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-426-2	1-81222-093-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81222-102-0	01	1	-
43	SCREW; RR END COVER ASM PART: B = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81229-477-0	03	1	-
43	SCREW; RR END COVER ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0, J = 1-81200-572-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: J = 1-81200-572-0	1-81229-817-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-650-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-727-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-728-0	02	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-729-0	01	1	-
52	CAP; RUBBER,TERMINAL (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-653-0	01	1	-
54	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-647-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81214-296-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-84132-008-0	01	1	-
65	CONDENSER; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-84132-012-0	01	1	-
65	CONDENSER; GEN ASM PART: J = 1-81200-572-0	1-84132-016-0	01	1	-
69	CLIP; WIRE,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4	1-81229-516-0	01	1	-
69	CLIP; WIRE,GEN (A) ASM PART: E = 1-81200-470-3	1-81229-516-0	02	1	-
69	CLIP; WIRE,GEN (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4	9-82215-810-0	02	1	-
71	HOLDER; TERMINAL,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: J = 1-81200-572-0	1-81229-813-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-722-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-478-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-646-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-731-0	01	1	-
137	GASKET; RECTIFIER,GENERATOR ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-651-0	01	1	-

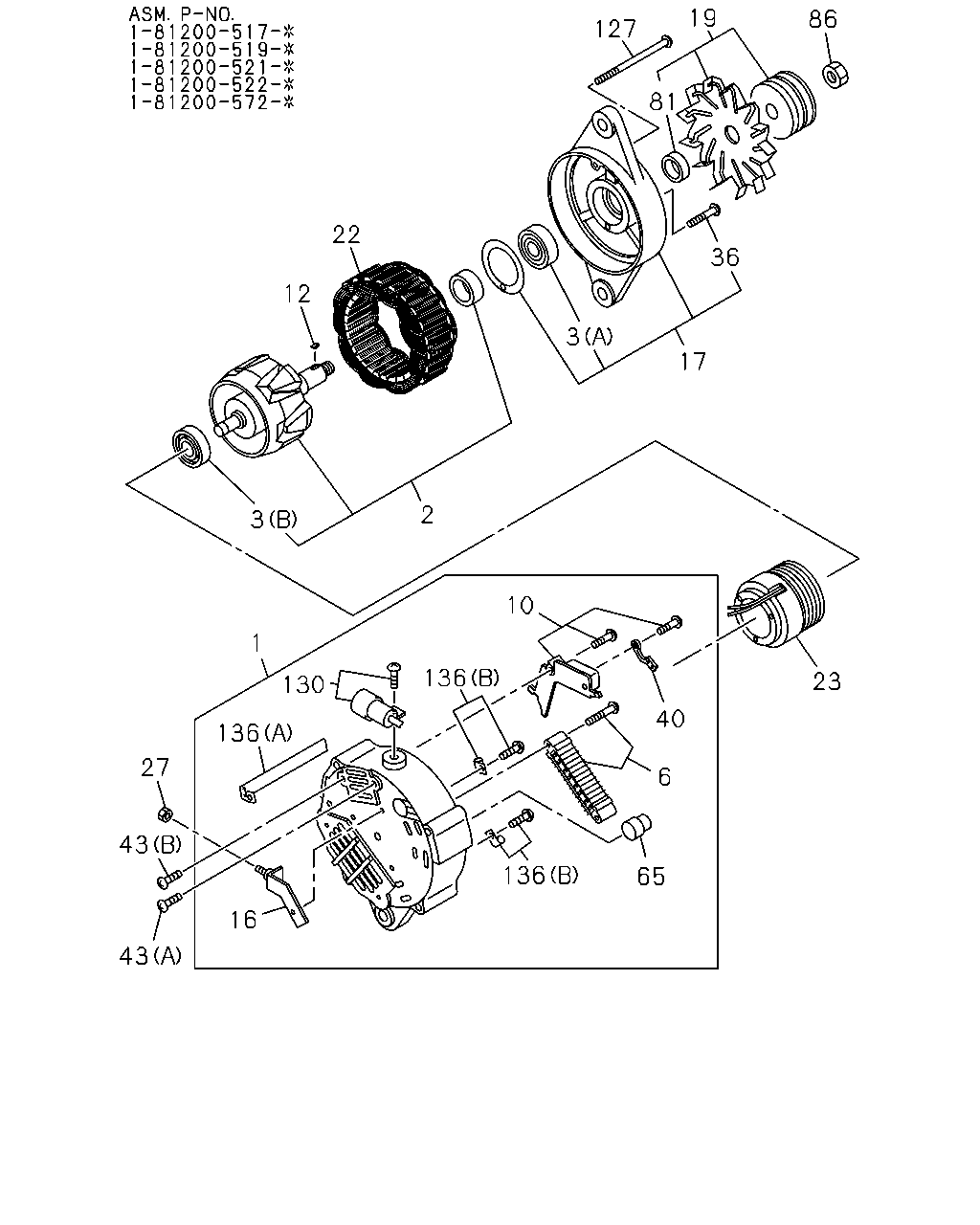

19 86 127 81 22 36 12 3 17 2 3 10 1 136 23 130 40 136 27 6 43 136 65 16 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-459-2	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-470-3	1-81214-339-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: J = 1-81200-572-0	1-81214-377-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-426-2	1-81222-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81222-135-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81222-165-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81211-105-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81211-121-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: J = 1-81200-572-0	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2	1-81229-645-0	01	1	-9603
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-437-4, C = 1-81200-459-2	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2	1-81229-739-0	01	1	9604-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 1-81200-572-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: J = 1-81200-572-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 1-81200-572-0	1-81260-019-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81219-107-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81219-117-0	01	1	-
10	RECTIFIER; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81219-121-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81219-126-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 1-81200-572-0	1-81219-141-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: J = 1-81200-572-0	1-81229-822-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	9-82215-867-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81229-771-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81229-804-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: J = 1-81200-572-0	1-81229-890-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-426-2	1-81213-076-0	01	1	-9603
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-459-2	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-426-2	1-81213-092-0	01	1	9604-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 1-81200-572-0	1-81213-116-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81213-117-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81222-091-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-470-3	1-81222-101-0	01	1	-
19	PULLEY; GEN ASM PART: D = 1-81200-469-4	1-81222-101-0	01	1	-9910
19	PULLEY; GEN ASM PART: B = 1-81200-437-4	1-81222-123-0	01	1	-9910
19	PULLEY; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81222-130-0	01	1	-
19	PULLEY; GEN ASM PART: J = 1-81200-572-0	1-81222-139-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-437-4, D = 1-81200-469-4	1-81222-154-0	01	1	9911-
22	STATOR; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81211-106-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-469-4	1-81211-122-0	01	1	-9910
22	STATOR; GEN ASM PART: E = 1-81200-470-3	1-81211-122-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-469-4	1-81211-124-0	01	1	9911-
22	STATOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: J = 1-81200-572-0	1-81211-131-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 1-81200-459-2	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: J = 1-81200-572-0	1-81212-027-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-426-2	1-81222-093-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81222-102-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0, J = 1-81200-572-0	1-81229-772-0	01	1	-
36	SCREW; FRT COVER ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: J = 1-81200-572-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: J = 1-81200-572-0	1-81222-164-0	01	1	-
43	SCREW; RR END COVER ASM PART: B = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81229-477-0	03	1	-
43	SCREW; RR END COVER ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0, J = 1-81200-572-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: J = 1-81200-572-0	1-81229-817-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-84132-008-0	01	1	-
65	CONDENSER; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-84132-012-0	01	1	-
65	CONDENSER; GEN ASM PART: J = 1-81200-572-0	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: J = 1-81200-572-0	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0, J = 1-81200-572-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: J = 1-81200-572-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81229-810-0	01	1	-
130	CONNECTOR; GEN ASM PART: J = 1-81200-572-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0, J = 1-81200-572-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: J = 1-81200-572-0	1-81229-897-0	01	1	-

18 87 21 17 19 3 1 13 85 20 15 22 13 15 81 2 23 3 62 71 69 4 89 49 6 69 49 10 65 49 39 1 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-459-2	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-470-3	1-81214-339-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: J = 1-81200-572-0	1-81214-377-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-426-2	1-81222-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81222-135-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81222-165-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81211-105-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81211-121-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: J = 1-81200-572-0	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2	1-81229-645-0	01	1	-9603
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-437-4, C = 1-81200-459-2	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2	1-81229-739-0	01	1	9604-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 1-81200-572-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: J = 1-81200-572-0	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: C = 1-81200-459-2	1-81229-517-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4	1-81229-679-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: D = 1-81200-469-4	1-81229-725-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: E = 1-81200-470-3	1-81229-726-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 1-81200-572-0	1-81260-019-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81219-107-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81219-117-0	01	1	-
10	RECTIFIER; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81219-121-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81219-126-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 1-81200-572-0	1-81219-141-0	01	1	-
13	GASKET; ROTOR,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	8-97094-161-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-426-2	1-81213-076-0	01	1	-9603
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-459-2	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-426-2	1-81213-092-0	01	1	9604-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: H = 1-81200-521-0, I = 1-81200-522-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 1-81200-572-0	1-81213-116-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0	1-81213-117-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-474-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81222-091-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-470-3	1-81222-101-0	01	1	-
19	PULLEY; GEN ASM PART: D = 1-81200-469-4	1-81222-101-0	01	1	-9910
19	PULLEY; GEN ASM PART: B = 1-81200-437-4	1-81222-123-0	01	1	-9910
19	PULLEY; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81222-130-0	01	1	-
19	PULLEY; GEN ASM PART: J = 1-81200-572-0	1-81222-139-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-437-4, D = 1-81200-469-4	1-81222-154-0	01	1	9911-
20	FAN; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-437-4	1-81223-017-0	01	1	-
20	FAN; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81223-019-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-437-4	1-81229-382-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81211-106-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-469-4	1-81211-122-0	01	1	-9910
22	STATOR; GEN ASM PART: E = 1-81200-470-3	1-81211-122-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-469-4	1-81211-124-0	01	1	9911-
22	STATOR; GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: J = 1-81200-572-0	1-81211-131-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 1-81200-459-2	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: J = 1-81200-572-0	1-81212-027-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-426-2	1-81222-093-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81222-102-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: D = 1-81200-469-4	1-81214-342-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: E = 1-81200-470-3	1-81214-343-0	01	1	-
43	SCREW; RR END COVER ASM PART: B = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER ASM PART: A = 1-81200-426-2, C = 1-81200-459-2	1-81229-477-0	03	1	-
43	SCREW; RR END COVER ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (A) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: F = 1-81200-517-0, G = 1-81200-519-0, H = 1-81200-521-0, I = 1-81200-522-0, J = 1-81200-572-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: J = 1-81200-572-0	1-81229-817-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-650-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-727-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-728-0	02	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-729-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: E = 1-81200-470-3	1-81118-011-0	03	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-84132-008-0	01	1	-
65	CONDENSER; GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-84132-012-0	01	1	-
65	CONDENSER; GEN ASM PART: J = 1-81200-572-0	1-84132-016-0	01	1	-
69	CLIP; WIRE,GEN (A) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4	1-81229-516-0	01	1	-
69	CLIP; WIRE,GEN (A) ASM PART: E = 1-81200-470-3	1-81229-516-0	02	1	-
69	CLIP; WIRE,GEN (B) ASM PART: A = 1-81200-426-2, B = 1-81200-437-4	9-82215-810-0	02	1	-
71	HOLDER; TERMINAL,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: J = 1-81200-572-0	1-81229-813-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-722-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2, D = 1-81200-469-4, E = 1-81200-470-3	1-81229-479-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-426-2, B = 1-81200-437-4, C = 1-81200-459-2	1-81229-646-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: D = 1-81200-469-4, E = 1-81200-470-3	1-81229-731-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
