◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#47167) — 13 parça

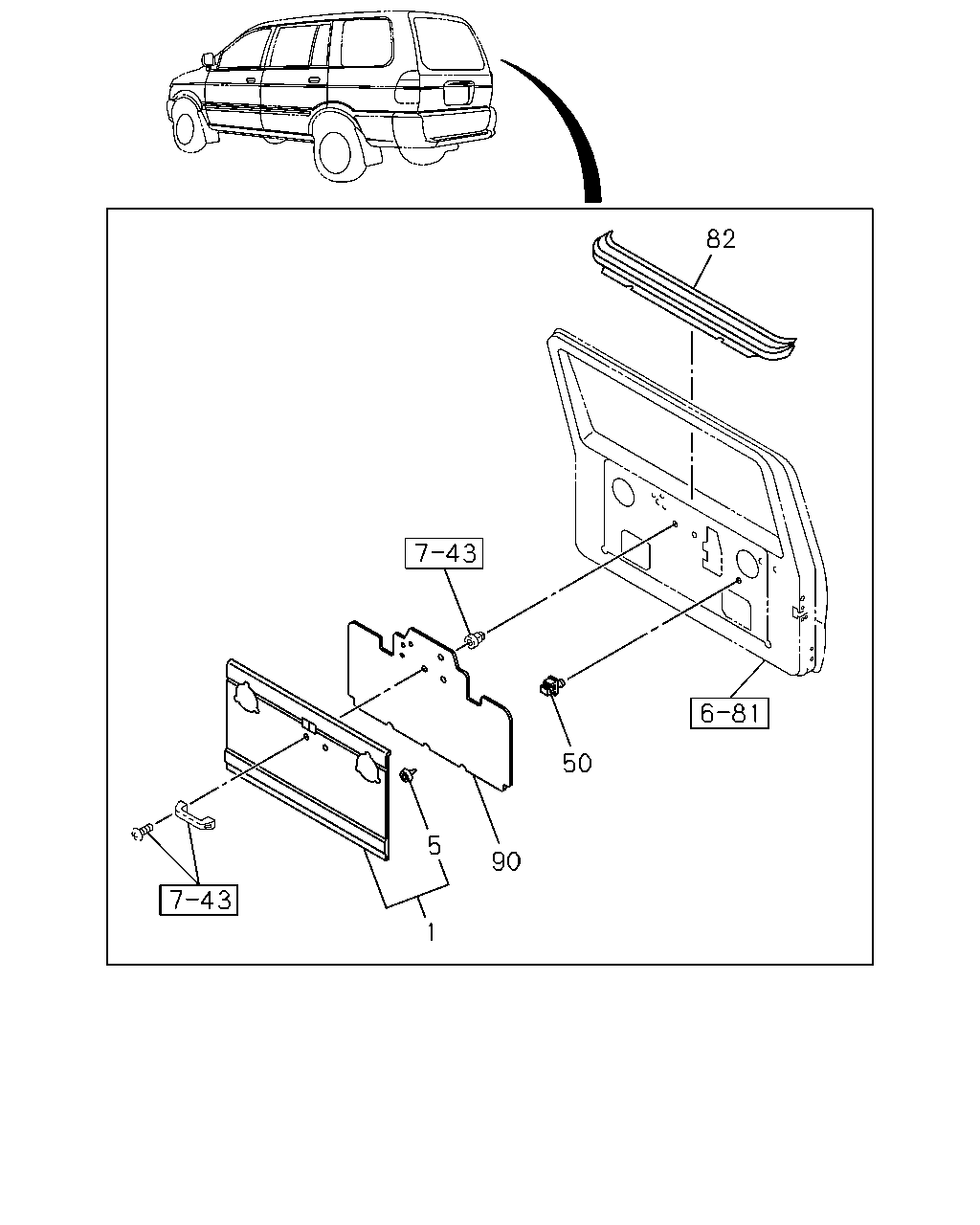

çizim 50674
82 50 5 90 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> GRAY PHI 		8-97976-462-4 01 1 0103- ● ● ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI 		8-97976-464-4 01 1 0103- ● ● ● ●
1 PAD; TRIM,BACK DOOR
EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI 		8-97976-463-4 01 1 0103- ● ● ● ●
5 CLIP; BACK DOOR TRIM
H=20.6 D8X13.8 PHI 		8-97260-948-0 12 1 0103-0103 ● ● ●
5 CLIP; BACK DOOR TRIM
PHI 		8-97313-153-0 12 1 0104-0310 ● ● ●
5 CLIP; BACK DOOR TRIM
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97313-153-0 12 1 0311- ● ● ● ●
5 CLIP; BACK DOOR TRIM
EXC. RR WIPER<C25> PHI 		8-97313-153-0 12 1 0311- ● ● ● ●
50 ANTIRATTLER; TAIL GATE 8-97126-660-0 04 1 0103- ● ● ● ●
82 COVER; TRIM,BACK DOOR
PHI 		8-97976-465-3 01 1 0103- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97976-090-1 01 1 0103-0104 ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> PHI 		8-97976-090-1 01 1 0105- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97976-092-1 01 1 0103- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97976-091-1 01 1 0103- ● ● ● ●
