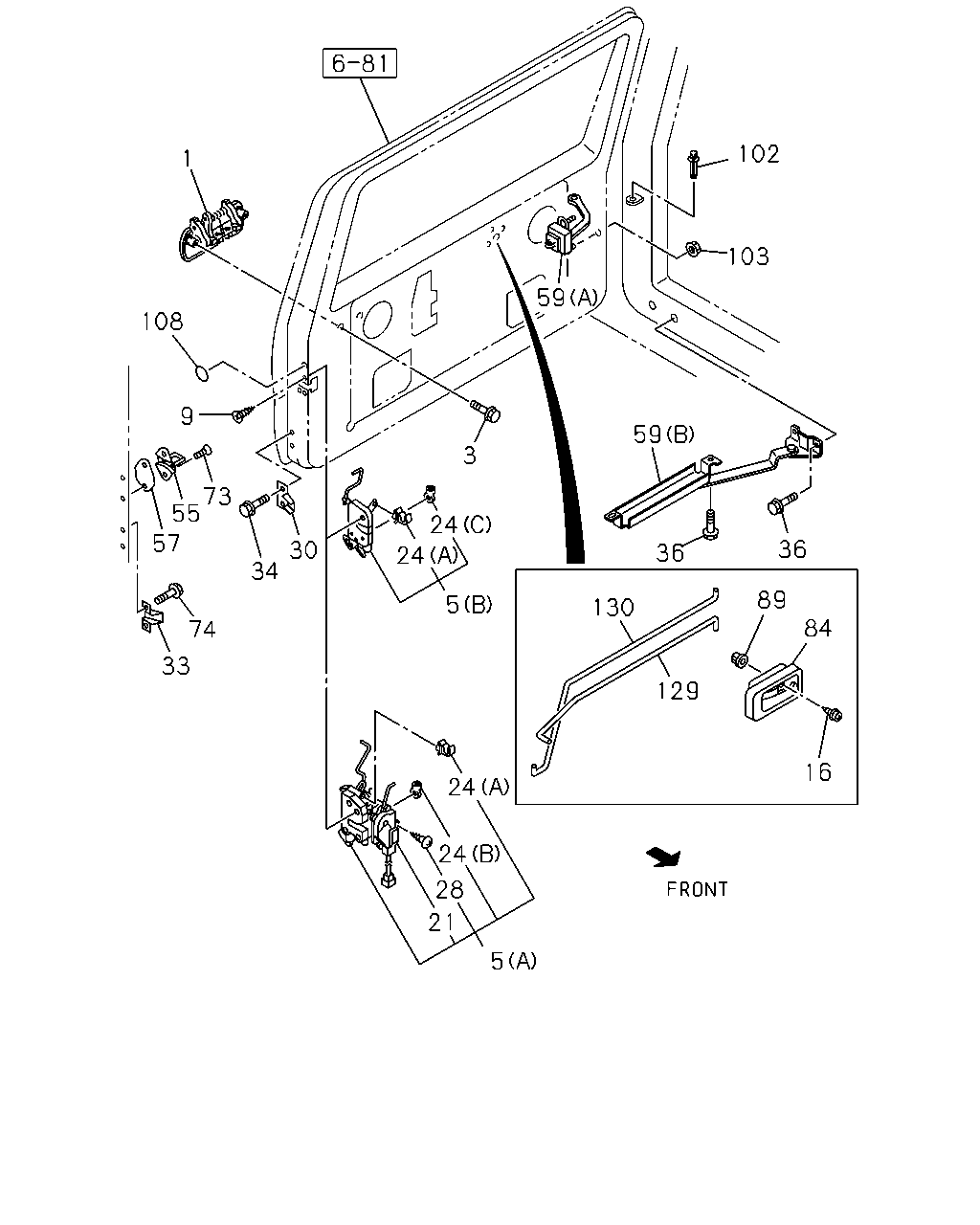

1 |
HANDLE; OUTSIDE,BACK DOOR
|
8-97072-485-1 |
01 |
1 |
0103- |
| |
3 |
BOLT; TAIL GATE HANDLE
M6X8
|
8-94155-893-0 |
02 |
1 |
0103- |
| |
5 |
LOCK; BACK DOOR
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK<6NF>
(A)
|
8-97254-541-1 |
01 |
1 |
0103-0108 |
| |
5 |
LOCK; BACK DOOR
AUTO DOOR LOCK<AU4>
(A)
|
8-97254-541-2 |
01 |
1 |
0109- |
| |
5 |
LOCK; BACK DOOR
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF>
(B)
|
8-97254-540-1 |
01 |
1 |
0103- |
| |
9 |
SCREW; LOCK TO BACK DOOR
|
8-97811-252-0 |
03 |
1 |
0103- |
| |
16 |
SCREW; INSIDE LEVER,BACK DOOR
M5X14
|
8-94152-495-0 |
01 |
1 |
0103- |
| |
21 |
ACTUATOR; BACK DOOR LOCK
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK<6NF>
|
8-97287-429-0 |
01 |
1 |
0103-0108 |
| |
21 |
ACTUATOR; BACK DOOR LOCK
AUTO DOOR LOCK<AU4>
|
8-97287-429-1 |
01 |
1 |
0109- |
| |
24 |
CLIP; LINK ROD
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK<6NF>
(A)
|
8-97264-614-0 |
01 |
1 |
0103-0108 |
| |
24 |
CLIP; LINK ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF>
(A)
|
8-97264-614-0 |
01 |
1 |
0103-0108 |
| |
24 |
CLIP; LINK ROD
AUTO DOOR LOCK<AU4>
(A)
|
8-97264-614-0 |
01 |
1 |
0109- |
| |
24 |
CLIP; LINK ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF>
(A)
|
8-97264-614-0 |
01 |
1 |
0109- |
| |
24 |
CLIP; LINK ROD
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK<6NF>
(B)
|
8-97264-640-0 |
01 |
1 |
0103-0108 |
| |
24 |
CLIP; LINK ROD
AUTO DOOR LOCK<AU4>
(B)
|
8-97264-640-0 |
01 |
1 |
0109- |
| |
24 |
CLIP; LINK ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF>
(C)
|
8-97264-639-0 |
01 |
1 |
0103- |
| |
28 |
SCREW; ACTUATOR
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK<6NF>
|
8-97264-615-0 |
02 |
1 |
0103-0108 |
| |
28 |
SCREW; ACTUATOR
AUTO DOOR LOCK<AU4>
|
8-97264-615-0 |
02 |
1 |
0109- |
| |
30 |
DOVETAIL; BACK DOOR
|
8-94198-167-0 |
01 |
1 |
0103- |
| |
33 |
STRIKER; DOVETAIL
|
8-94353-030-0 |
01 |
1 |
0103- |
| |
34 |
BOLT; DOVETAIL TO BACK DOOR
M8X23 FLANGE
|
8-97105-376-0 |
02 |
1 |
0103- |
| |
36 |
BOLT; LINK
GRADE XTRM(RBG)
M8X23 FLANGE
|
8-97105-376-0 |
04 |
1 |
0111- |
| |
55 |
STRIKER; BACK DOOR
|
8-97147-406-0 |
01 |
1 |
0103- |
| |
57 |
SEAT; DOOR STRIKER,BACK DOOR
|
8-94239-378-0 |
AR |
1 |
0103- |
| |
59 |
ARM ASM; CHECK,BACK DOOR
(A)
|
8-97174-265-0 |
01 |
1 |
0103-0104 |
| |
59 |
ARM ASM; CHECK,BACK DOOR
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
(A)
|
8-97174-265-0 |
01 |
1 |
0105- |
| |
59 |
ARM ASM; CHECK,BACK DOOR
GRADE XTRM(RBG)
(B)
|
8-97306-840-1 |
01 |
1 |
0111- |
| |
73 |
SCREW; STRIKER TO BACK DOOR
M8X20
|
9-03097-820-0 |
02 |
1 |
0103-0604 |
| |
73 |
SCREW; STRIKER TO BACK DOOR
|
0-30218-820-0 |
02 |
1 |
0605- |
| |
74 |
BOLT; DOVETAIL STRIKER
M8X23 FLANGE
|
8-97105-376-0 |
02 |
1 |
0103- |
| |
84 |
HANDLE; INSIDE,BACK DOOR
GRAY
|
8-97196-874-0 |
01 |
1 |
0103-0305 |
| |
84 |
HANDLE; INSIDE,BACK DOOR
GRAY
|
8-97398-370-0 |
01 |
1 |
0306- |
| |
89 |
SCREW; HANDLE
|
8-94152-494-0 |
01 |
1 |
0103- |
| |
102 |
PIN; DOOR CHECK ARM
|
8-94111-468-0 |
01 |
1 |
0103-0104 |
| |
102 |
PIN; DOOR CHECK ARM
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
|
8-94111-468-0 |
01 |
1 |
0105- |
| |
103 |
NUT
M8 FLANGE
|
5-09440-005-0 |
02 |
1 |
0103-0104 |
| |
103 |
NUT
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
M8 FLANGE
|
5-09440-005-0 |
02 |
1 |
0105- |
| |
108 |
SEAL; TOOL HOLE
OD=36 T=0.05 BLACK
PHI
|
5-76777-035-0 |
01 |
1 |
0105- |
| |
129 |
LINK; DOOR LOCK
PHI
|
8-97976-371-0 |
01 |
1 |
0103- |
| |
130 |
LINK; INSIDE LEVER
PHI
|
8-97976-372-0 |
01 |
1 |
0103- |
