◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#47165) — 9 parça

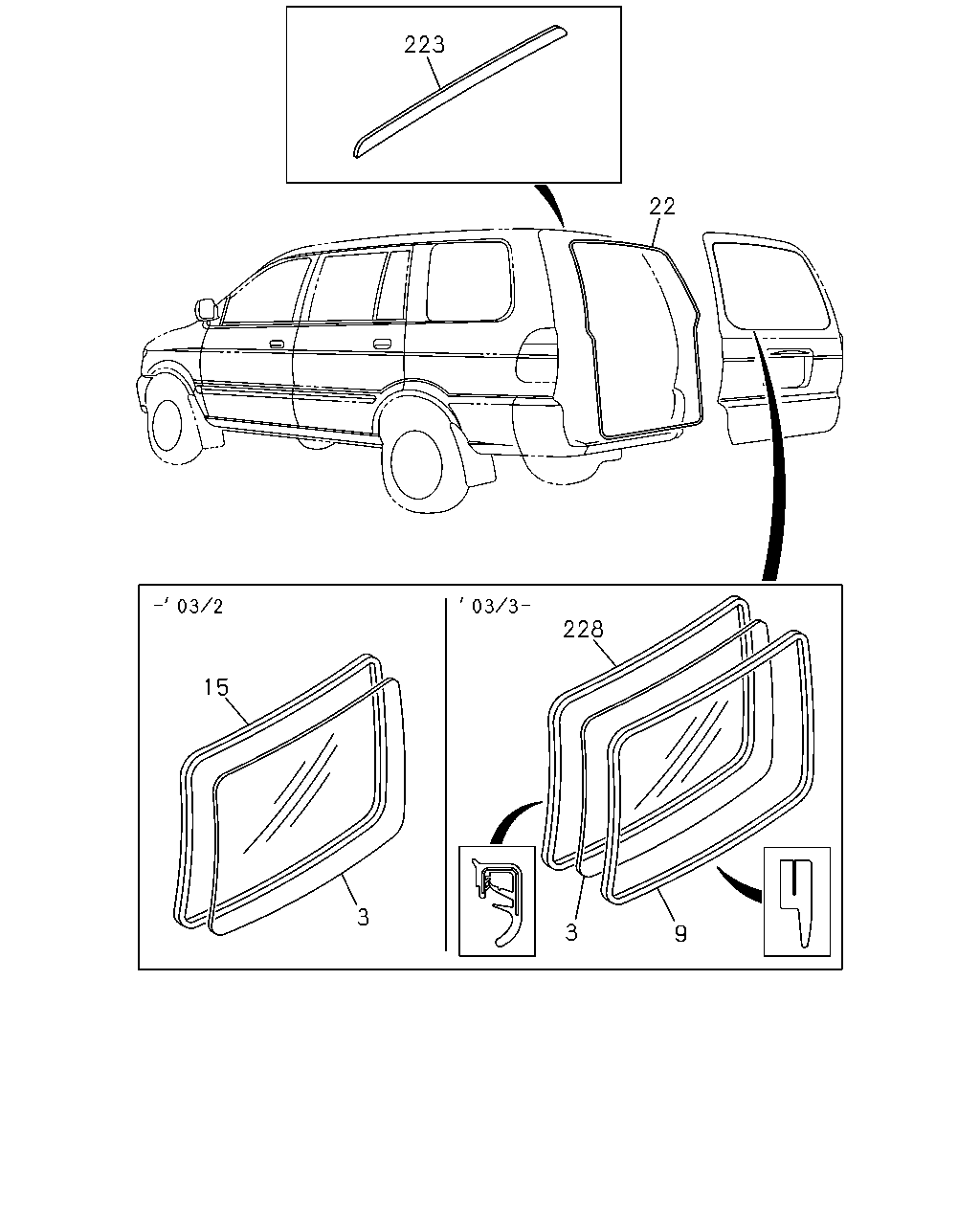

çizim 46952
223 22 228 15 3 3 9
BalonParca AdiParca NoAdetTipApplied Date
3 GLASS; BACK DOOR WINDOW
PHI 		8-97976-084-2 01 1 0103-0302
3 GLASS; BACK DOOR WINDOW
PHI 		8-97977-236-1 01 1 0303-0311
3 GLASS; BACK DOOR WINDOW
PHI 		8-97977-347-0 01 1 0312-
9 MOLDING; BACK DOOR WINDOW
IDN 		8-97561-162-2 01 1 0303-0407
9 MOLDING; BACK DOOR WINDOW
PHI 		8-97977-364-0 01 1 0408-
15 WEATHERSTRIP; BACK DOOR GLASS
PHI 		8-97976-085-1 01 1 0103-0302
22 WEATHERSTRIP; BACK DOOR
PHI 		8-97976-093-0 01 1 0103-
223 SEAL; DRIP
PHI 		8-97976-094-0 01 1 0103-
228 FINISHER; BACK DOOR GLASS
IDN 		8-97561-164-2 01 1 0303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
