6-70 — FLOOR PANEL (#47159) — 52 parça

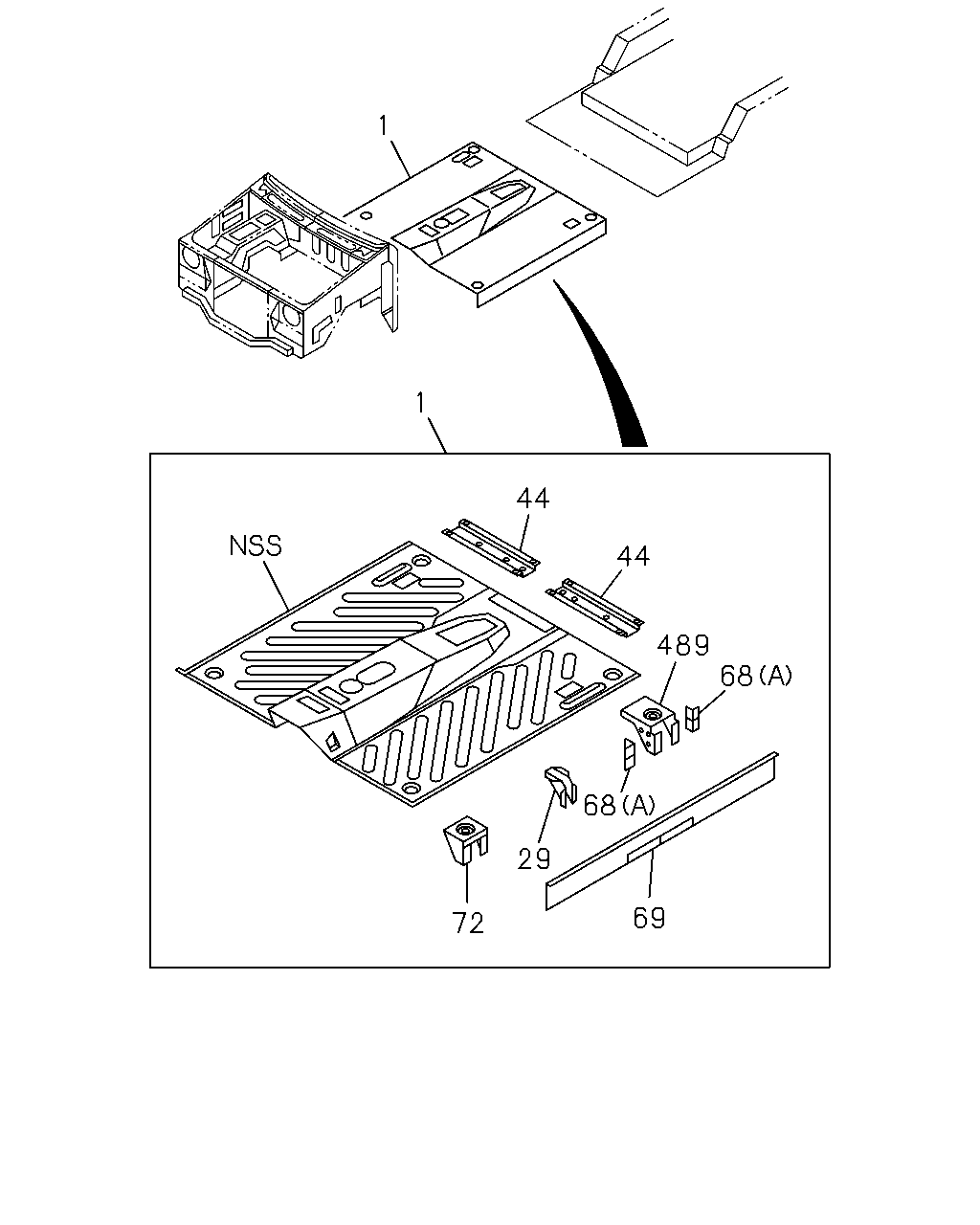

çizim 12238
1 1 44 44 489 68 68 29 69 72
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
A/T AISIN(RMD) IDN 		8-97958-118-2 01 1 0103-0401
1 PANEL; FLOOR
A/T AISIN(RMD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-118-2 01 1 0402-0404
1 PANEL; FLOOR
A/T AISIN(RMD) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97958-118-2 01 1 0405-
1 PANEL; FLOOR
A/T AISIN(RMD) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97562-393-0 01 1 0402-0404
1 PANEL; FLOOR
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> IDN 		8-97562-393-0 01 1 0405-
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) IDN 		8-97958-117-2 01 1 0103-0401
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-117-2 01 1 0402-0404
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97958-117-2 01 1 0405-
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97562-392-0 01 1 0402-0404
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> IDN 		8-97562-392-0 01 1 0405-
29 GUSSET
IDN 		8-94366-724-0 02 1 0103-
44 BAR; FRT COMPT PAN,RR
PHI 		8-97958-986-1 01 1 0103-
44 BAR; FRT COMPT PAN,RR
PHI 		8-97958-985-1 01 1 0103-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97119-625-0 04 1 0103-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-287-0 01 1 0103-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-286-0 01 1 0103-
69 PANEL; ROCKER INNER
IDN 		8-97955-253-0 01 1 0103-
69 PANEL; ROCKER INNER
IDN 		8-97955-252-0 01 1 0103-
72 BRACKET; CAB MTG,RR
IDN 		8-97956-568-2 02 1 0103-
489 BRACKET; CAB MTG,NO 3
PHI 		8-97958-990-2 02 1 0103-

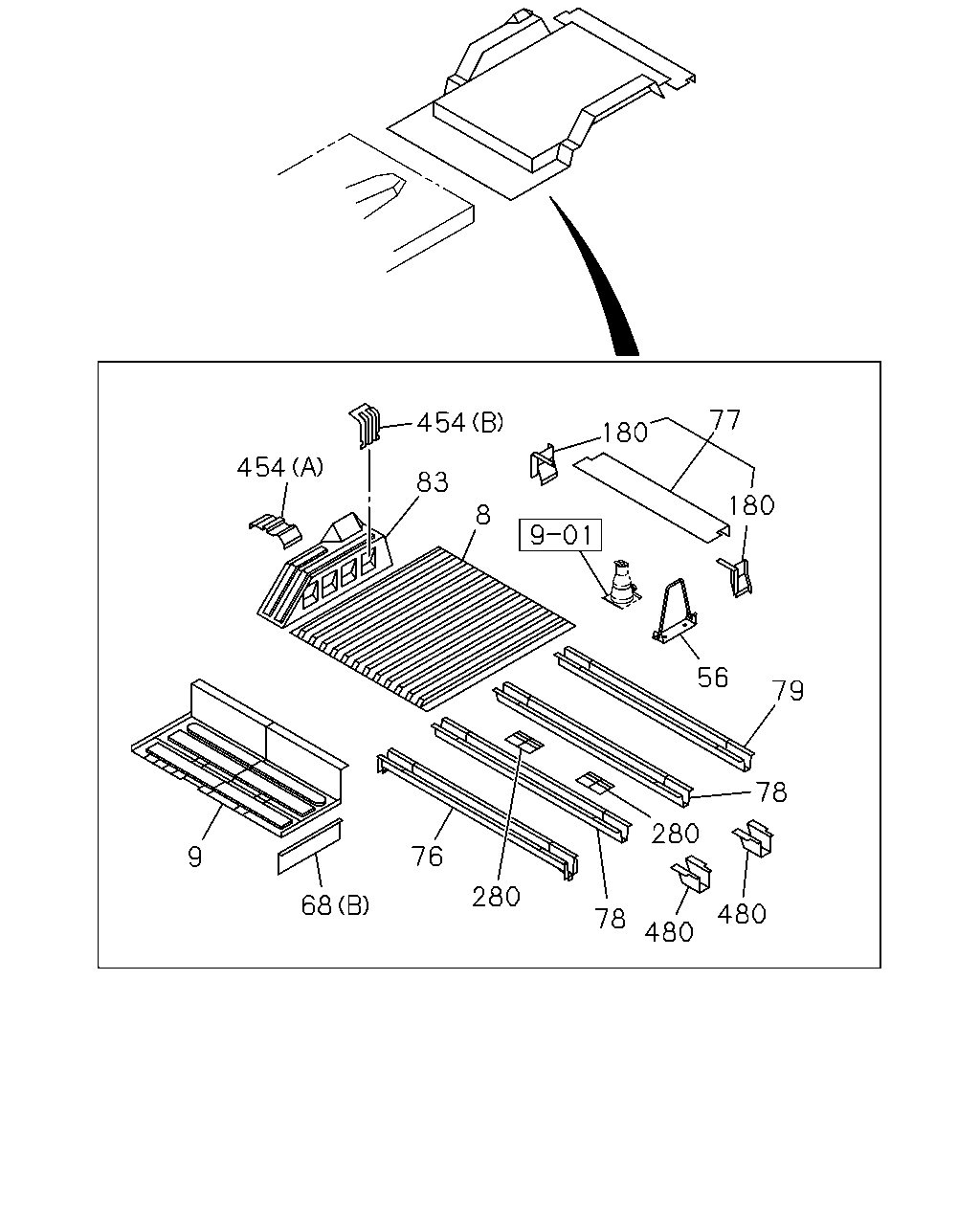

çizim 50215
77 454 180 454 83 180 8 56 79 78 280 76 9 280 68 480 78 480
BalonParca AdiParca NoAdetTipApplied Date
8 PANEL; RR FLOOR,RR
IDN 		8-97957-828-0 01 1 0103-
9 PANEL; RR FLOOR,FRT
IDN 		8-97958-991-1 01 1 0103-
56 BRACKET; JACK
PHI 		8-97956-676-0 01 1 0103-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97119-625-0 04 1 0103-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-287-0 01 1 0103-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-286-0 01 1 0103-
76 BOLSTER ASM; RR FLOOR NO 1
IDN 		8-97126-616-1 01 1 0103-
77 BOLSTER ASM; END
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97958-997-0 01 1 0103-
77 BOLSTER ASM; END
GRADE XTRM(RBG) IDN 		8-97959-115-0 01 1 0111-
78 BOLSTER ASM; RR FLOOR NO 2
IDN 		8-97955-296-0 02 1 0103-
79 BOLSTER ASM; RR FLOOR NO 3
IDN 		8-97958-996-0 01 1 0103-
83 ARCH ASM; WHEEL
IDN 		8-97958-594-0 01 1 0103-0401
83 ARCH ASM; WHEEL
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-594-0 01 1 0402-0404
83 ARCH ASM; WHEEL
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97958-594-0 01 1 0405-
83 ARCH ASM; WHEEL
PARKING BRAKE FLOOR<7XW> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-594-0 01 1 0405-
83 ARCH ASM; WHEEL
IDN 		8-97958-593-0 01 1 0103-0401
83 ARCH ASM; WHEEL
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-593-0 01 1 0402-0404
83 ARCH ASM; WHEEL
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97958-593-0 01 1 0405-
83 ARCH ASM; WHEEL
PARKING BRAKE FLOOR<7XW> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-593-0 01 1 0405-
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97562-405-0 01 1 0402-0404
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97562-405-0 01 1 0405-
83 ARCH ASM; WHEEL
VIETNAM EQUIPMENT(CL0) IDN 		8-97562-405-0 01 1 0405-
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97562-404-0 01 1 0402-0404
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97562-404-0 01 1 0405-
83 ARCH ASM; WHEEL
VIETNAM EQUIPMENT(CL0) IDN 		8-97562-404-0 01 1 0405-
180 GUSSET; RR END
IDN 		8-97955-307-0 01 1 0103-
180 GUSSET; RR END
IDN 		8-97955-306-0 01 1 0103-
280 PATCH; SEAT BELT
IDN 		8-97957-826-0 02 1 0103-
454 PATCH; 3RD SEAT
(A) IDN 		8-97955-278-0 02 1 0103-
454 PATCH; 3RD SEAT
VIETNAM EQUIPMENT(CL0) (B) IDN 		8-97959-273-0 01 1 0303-0406
454 PATCH; 3RD SEAT
VIETNAM EQUIPMENT(CL0) (B) IDN 		8-97959-272-0 01 1 0303-0406
480 EXTENSION; MTG,BOLSTER
GRADE XTRM(RBG) PHI 		8-97956-627-1 04 1 0111-
