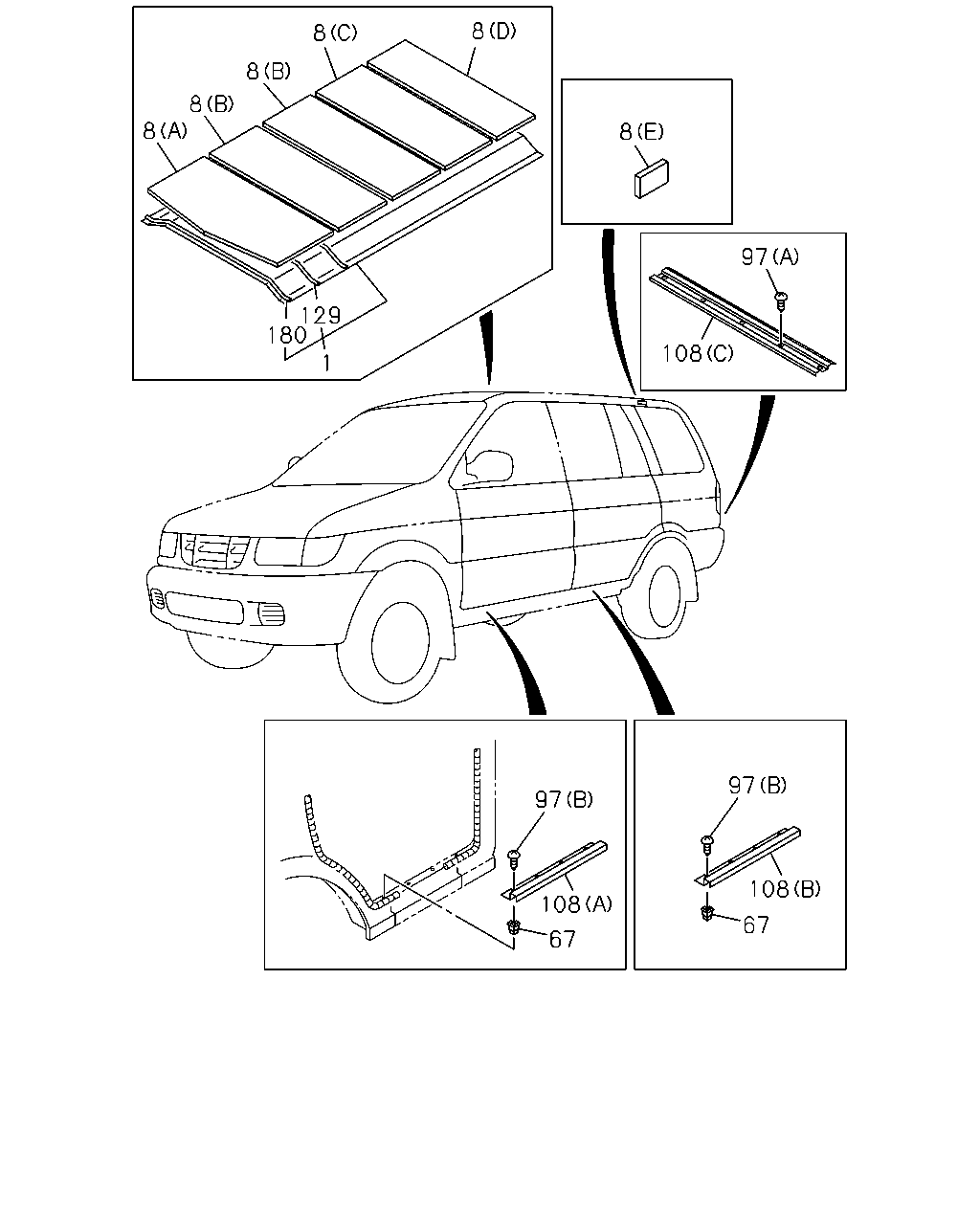

6-66 — HEAD LINING AND TRIM
(#47158) — 15 parça
Tümü
A - GRADE XL
B - GRADE XT
C - GRADE XTO
D - GRADE XTRM
8
8
8
8
8
8
97
129
180
108
1
97
97
108
108
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
LINING; HD
LIGHT GRAY PHI
8-97957-252-3
01
1
0103-
●
●
●
●
8
PAD; HEADLINING
(A) PHI
8-97976-020-2
01
1
0103-
●
●
●
●
8
PAD; HEADLINING
(B) PHI
8-97976-021-2
02
1
0103-
●
●
●
●
8
PAD; HEADLINING
(C) PHI
8-97976-022-2
01
1
0103-
●
●
●
●
8
PAD; HEADLINING
(D) PHI
8-97976-023-2
01
1
0103-
●
●
●
●
8
PAD; HEADLINING
(E) PHI
8-97976-905-1
04
1
0103-
●
●
●
●
67
GROMMET; SCREW
D=7.9X7.9 L=11.4 M5
8-94367-528-0
14
1
0103-
●
●
●
●
97
SCREW; TAP
(A) M4X16 TAPPING W/PL WASHER
0-74300-416-0
05
1
0103-0604
●
●
●
●
97
SCREW; TAP
(A)
0-74360-416-0
05
1
0605-
●
●
●
●
97
SCREW; TAP
(B) M5X16
8-94380-268-0
14
1
0103-
●
●
●
●
108
PLATE; TREAD
(A) GRAY IDN
8-97959-085-0
02
1
0103-
●
●
●
●
108
PLATE; TREAD
(B) GRAY IDN
8-97959-086-0
02
1
0103-
●
●
●
●
108
PLATE; TREAD
(C) PHI
8-97976-005-1
01
1
0103-
●
●
●
●
129
RAIL; LISTING,NO 2
IDN
8-97955-662-1
07
1
0103-
●
●
●
●
180
RAIL; LISTING,NO 1
IDN
8-97955-661-1
01
1
0103-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
