6-55 — REAR DOOR TRIM (#47156) — 104 parça

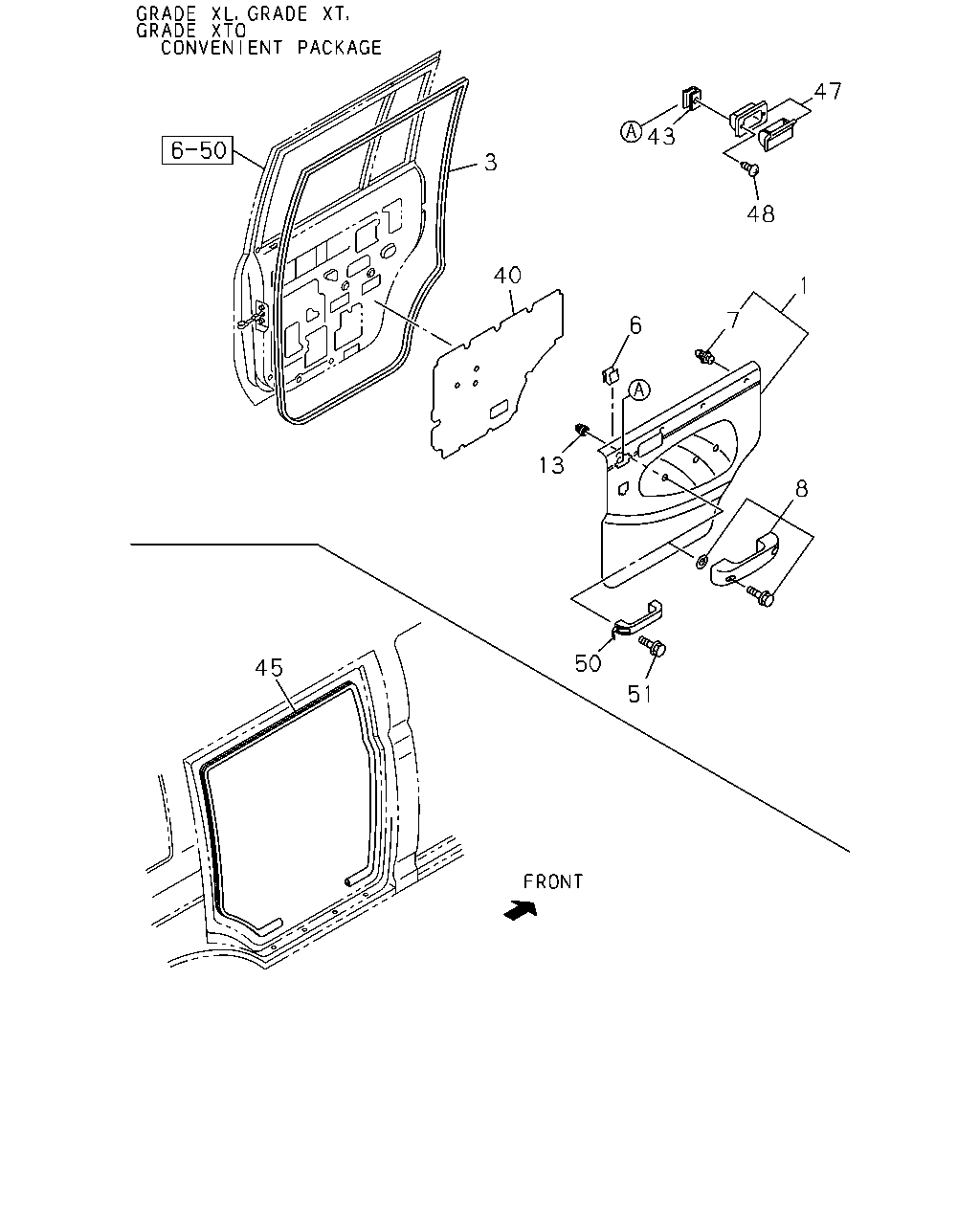

47 43 3 48 40 1 7 6 13 8 45 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-458-3	01	1	0103-	●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-457-3	01	1	0103-	●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-460-4	01	1	0103-0405		●
1	PAD; TRIM,RR DOOR EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-460-4	01	1	0406-		●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-459-4	01	1	0103-0405		●
1	PAD; TRIM,RR DOOR EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-459-4	01	1	0406-		●
1	PAD; TRIM,RR DOOR CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-528-0	01	1	0406-		●
1	PAD; TRIM,RR DOOR CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-527-0	01	1	0406-		●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-771-4	01	1	0103-			●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-770-4	01	1	0103-			●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-773-4	01	1	0111-				●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-772-4	01	1	0111-				●
3	WEATHERSTRIP; RR DOOR PHI	8-97976-083-0	01	1	0103-	●	●	●	●
3	WEATHERSTRIP; RR DOOR PHI	8-97976-082-0	01	1	0103-	●	●	●	●
6	CLIP; DOOR PAD B=8.4 H=16 CR-PLATED	8-94116-002-3	06	1	0107-0110		●	●
6	CLIP; DOOR PAD B=8.4 H=16 CR-PLATED	8-94116-002-3	06	1	0111-		●	●	●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0103-0405	●	●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0406-	●
7	CLIP; DOOR PAD EXC. CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0406-		●
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0103-0110	●	●	●
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0111-	●	●	●	●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	18	1	0103-0104			●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0105-0110			●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0111-0405			●	●
7	CLIP; DOOR PAD CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0406-		●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0406-			●	●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	14	1	0105-0106			●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	12	1	0107-0110			●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	12	1	0111-0405			●	●
7	CLIP; DOOR PAD CONVENIENT PACKAGE<6QZ> H=16.3 PHI	8-97126-393-0	12	1	0406-		●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	12	1	0406-			●	●
8	REST; ARM,RR DOOR GRAY IDN	8-97957-281-2	02	1	0103-0405		●
8	REST; ARM,RR DOOR EXC. CONVENIENT PACKAGE<6QZ> GRAY IDN	8-97957-281-2	02	1	0406-		●
13	GROMMET; SCREW,ARM REST	8-94481-286-2	04	1	0103-0405	●	●
13	GROMMET; SCREW,ARM REST EXC. CONVENIENT PACKAGE<6QZ>	8-94481-286-2	04	1	0406-	●	●
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-078-0	01	1	0103-	●	●	●	●
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-077-0	01	1	0103-	●	●	●	●
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-080-0	01	1	0103-	●	●	●	●
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-079-0	01	1	0103-	●	●	●	●
43	RETAINER; ASH TRAY,RR DOOR	8-94123-300-5	04	1	0103-0405	●	●
43	RETAINER; ASH TRAY,RR DOOR EXC. CONVENIENT PACKAGE<6QZ>	8-94123-300-5	04	1	0406-	●	●
45	FINISHER; RR DOOR PHI	8-97976-081-0	02	1	0103-	●	●	●	●
47	TRAY; ASH,RR GRAY	8-97150-683-1	02	1	0103-0405	●	●
47	TRAY; ASH,RR EXC. CONVENIENT PACKAGE<6QZ> GRAY	8-97150-683-1	02	1	0406-	●	●
48	SCREW; RET,ASH TRAY M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0103-0405	●	●
48	SCREW; RET,ASH TRAY EXC. CONVENIENT PACKAGE<6QZ> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0406-	●	●
50	GRIP; ASSIST,RR DOOR TRIM GRAY	8-97152-650-2	02	1	0103-	●
51	SCREW; ASSIST GRIP,RR DOOR TRIM M6X25 TAPPING	9-07077-625-0	04	1	0103-	●

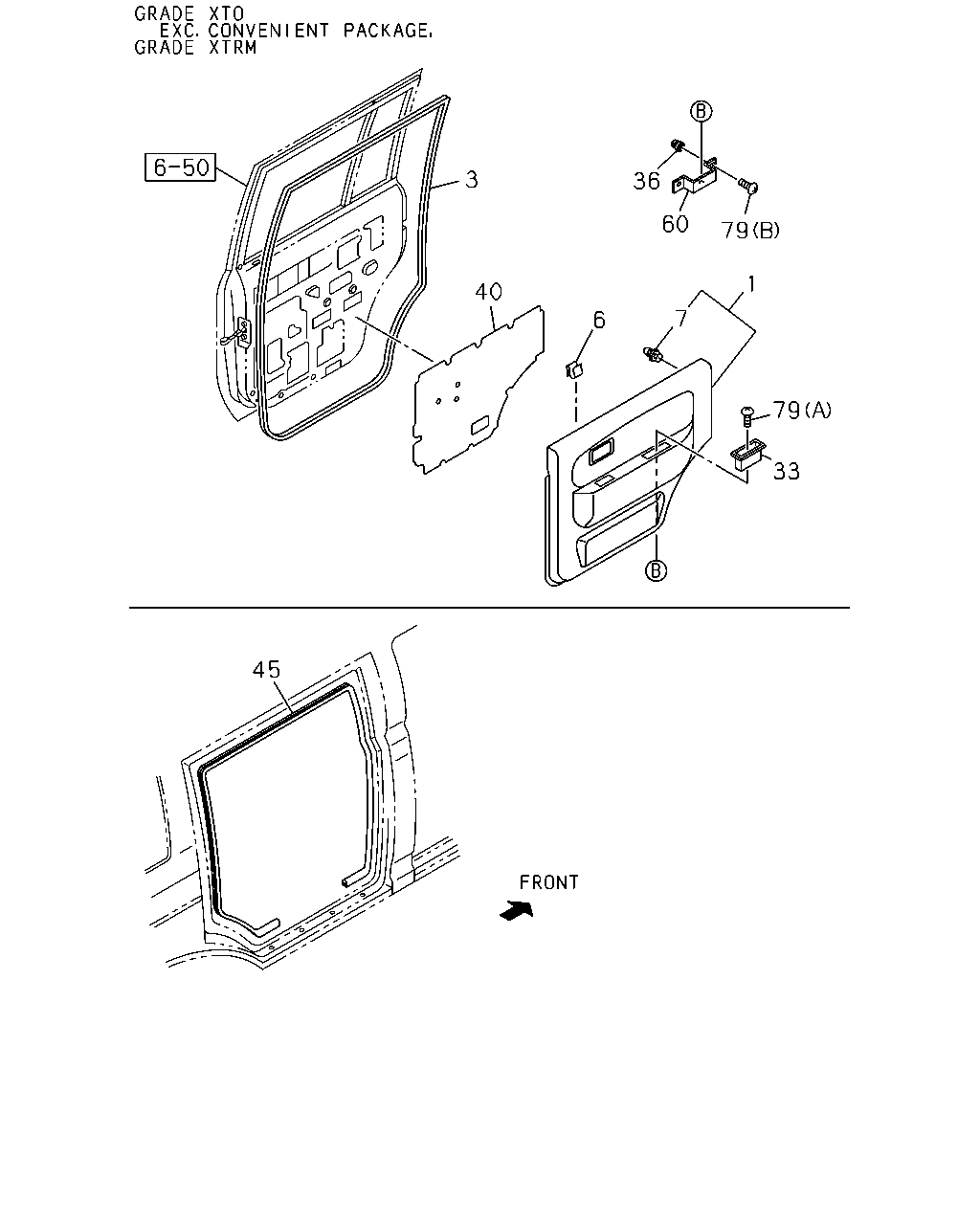

3 36 60 79 1 40 7 6 79 33 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-458-3	01	1	0103-	●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-457-3	01	1	0103-	●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-460-4	01	1	0103-0405		●
1	PAD; TRIM,RR DOOR EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-460-4	01	1	0406-		●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-459-4	01	1	0103-0405		●
1	PAD; TRIM,RR DOOR EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-459-4	01	1	0406-		●
1	PAD; TRIM,RR DOOR CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-528-0	01	1	0406-		●
1	PAD; TRIM,RR DOOR CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-527-0	01	1	0406-		●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-771-4	01	1	0103-			●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-770-4	01	1	0103-			●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-773-4	01	1	0111-				●
1	PAD; TRIM,RR DOOR GRAY PHI	8-97976-772-4	01	1	0111-				●
3	WEATHERSTRIP; RR DOOR PHI	8-97976-083-0	01	1	0103-	●	●	●	●
3	WEATHERSTRIP; RR DOOR PHI	8-97976-082-0	01	1	0103-	●	●	●	●
6	CLIP; DOOR PAD B=8.4 H=16 CR-PLATED	8-94116-002-3	06	1	0107-0110		●	●
6	CLIP; DOOR PAD B=8.4 H=16 CR-PLATED	8-94116-002-3	06	1	0111-		●	●	●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0103-0405	●	●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0406-	●
7	CLIP; DOOR PAD EXC. CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0406-		●
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0103-0110	●	●	●
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0111-	●	●	●	●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	18	1	0103-0104			●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0105-0110			●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0111-0405			●	●
7	CLIP; DOOR PAD CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0406-		●
7	CLIP; DOOR PAD H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0406-			●	●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	14	1	0105-0106			●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	12	1	0107-0110			●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	12	1	0111-0405			●	●
7	CLIP; DOOR PAD CONVENIENT PACKAGE<6QZ> H=16.3 PHI	8-97126-393-0	12	1	0406-		●
7	CLIP; DOOR PAD H=16.3 PHI	8-97126-393-0	12	1	0406-			●	●
33	BOX; RR DOOR GRAY	8-97196-884-0	02	1	0103-0110			●
33	BOX; RR DOOR GRAY	8-97196-884-0	02	1	0111-0405			●	●
33	BOX; RR DOOR CONVENIENT PACKAGE<6QZ> GRAY	8-97196-884-0	02	1	0406-		●
33	BOX; RR DOOR GRAY	8-97196-884-0	02	1	0406-			●	●
36	GROMMET; SCREW,DOOR TRIM	8-94481-286-2	06	1	0103-0110			●
36	GROMMET; SCREW,DOOR TRIM	8-94481-286-2	06	1	0111-0405			●	●
36	GROMMET; SCREW,DOOR TRIM CONVENIENT PACKAGE<6QZ>	8-94481-286-2	06	1	0406-		●
36	GROMMET; SCREW,DOOR TRIM	8-94481-286-2	06	1	0406-			●	●
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-078-0	01	1	0103-	●	●	●	●
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-077-0	01	1	0103-	●	●	●	●
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-080-0	01	1	0103-	●	●	●	●
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-079-0	01	1	0103-	●	●	●	●
45	FINISHER; RR DOOR PHI	8-97976-081-0	02	1	0103-	●	●	●	●
60	BRACKET; BOX PHI	8-97976-056-1	02	1	0103-0110			●
60	BRACKET; BOX PHI	8-97976-056-1	02	1	0111-0405			●	●
60	BRACKET; BOX CONVENIENT PACKAGE<6QZ> PHI	8-97976-056-1	02	1	0406-		●
60	BRACKET; BOX PHI	8-97976-056-1	02	1	0406-			●	●
79	SCREW; BRKT (A) M5X16	8-94380-268-0	02	1	0103-0110			●
79	SCREW; BRKT (A) M5X16	8-94380-268-0	02	1	0111-0405			●	●
79	SCREW; BRKT CONVENIENT PACKAGE<6QZ> (A) M5X16	8-94380-268-0	02	1	0406-		●
79	SCREW; BRKT (A) M5X16	8-94380-268-0	02	1	0406-			●	●
79	SCREW; BRKT (B) M6X25 TAPPING	9-07077-625-0	06	1	0103-0110			●
79	SCREW; BRKT (B) M6X25 TAPPING	9-07077-625-0	06	1	0111-0405			●	●
79	SCREW; BRKT CONVENIENT PACKAGE<6QZ> (B) M6X25 TAPPING	9-07077-625-0	06	1	0406-		●
79	SCREW; BRKT (B) M6X25 TAPPING	9-07077-625-0	06	1	0406-			●	●
