6-47 — MUD GUARD AND INSULATOR (#47152) — 36 parça

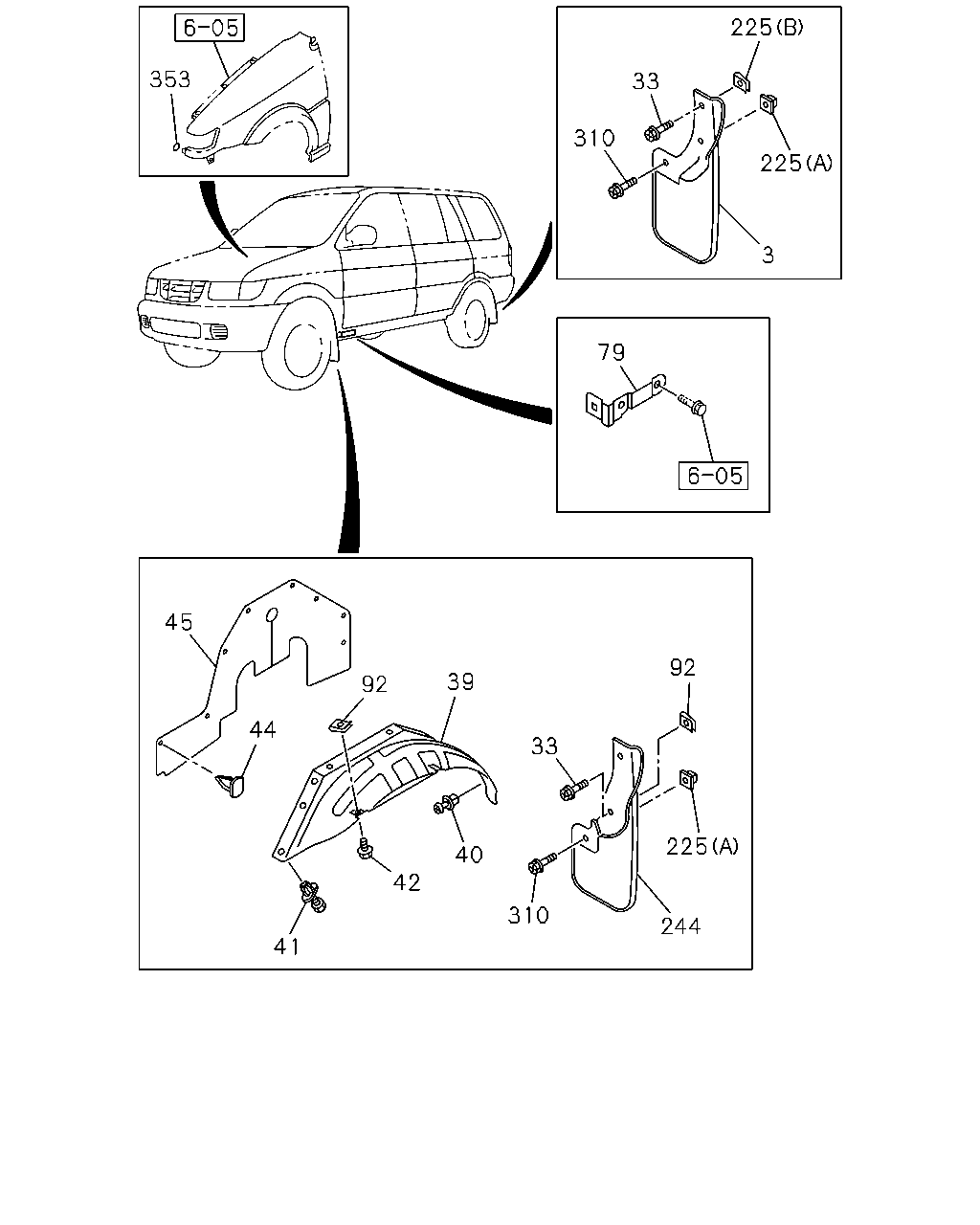

çizim 51323
225 353 33 310 225 3 79 45 92 39 92 44 33 225 40 42 310 244 41
BalonParca AdiParca NoAdetTipApplied Date
3 GUARD; MUD,RR
IDN 		8-97955-913-1 01 1 0103-0110
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97955-913-1 01 1 0111-0302
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97561-080-0 01 1 0303-
3 GUARD; MUD,RR
IDN 		8-97955-912-1 01 1 0103-0110
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97955-912-1 01 1 0111-0302
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97561-079-0 01 1 0303-
33 BOLT; MUD COVER
M6X16 W/PL WASHER 		8-97803-781-0 08 1 0103-0110
33 BOLT; MUD COVER
MUD FLAP<VH4> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0111-
39 LINER; FENDER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) FRONT PHI 		8-97955-565-3 01 1 0103-
39 LINER; FENDER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) FRONT PHI 		8-97955-564-3 01 1 0103-
39 LINER; FENDER
GRADE XTRM(RBG) FRONT PHI 		8-97956-932-3 01 1 0111-
39 LINER; FENDER
GRADE XTRM(RBG) FRONT PHI 		8-97956-931-3 01 1 0111-
40 CLIP; INNER LINER
GRADE XTRM(RBG) 		8-94244-699-0 02 1 0111-
41 RIVET; INNER LINER 8-94221-150-0 20 1 0103-
42 BOLT; INNER LINER TO FENDER
M6X16 W/PL WASHER 		8-97803-781-0 04 1 0103-
44 CLIP; ANCHOR 8-94215-211-0 16 1 0103-
45 COVER; MUD,FENDER SKIRT
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI 		8-97976-900-0 02 1 0103-0204
45 COVER; MUD,FENDER SKIRT
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI 		8-97353-756-0 02 1 0205-
45 COVER; MUD,FENDER SKIRT
GRADE XTRM(RBG) PHI 		8-97976-967-0 02 1 0111-0204
45 COVER; MUD,FENDER SKIRT
GRADE XTRM(RBG) PHI 		8-97353-757-0 02 1 0205-
79 RETAINER; MUD COVER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97957-552-0 01 1 0103-
79 RETAINER; MUD COVER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97957-551-0 01 1 0103-
92 NUT; MUD COVER 8-94334-769-0 04 1 0103-
225 NUT; MUD GUARD
(A) D=9X9 L=8 M6 		8-94222-314-0 04 1 0103-0110
225 NUT; MUD GUARD
MUD FLAP<VH4> (A) D=9X9 L=8 M6 		8-94222-314-0 04 1 0111-0204
225 NUT; MUD GUARD
(B) 		8-94334-769-0 08 1 0103-0110
225 NUT; MUD GUARD
MUD FLAP<VH4> (B) 		8-94334-769-0 08 1 0111-
225 NUT; MUD GUARD
MUD FLAP<VH4> (A) D=9X9 L=8 M6 		8-94222-314-0 04 1 0205-
244 GUARD; MUD,SPLASH
IDN 		8-97955-902-1 01 1 0103-0110
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> IDN 		8-97955-902-1 01 1 0111-
244 GUARD; MUD,SPLASH
IDN 		8-97955-901-1 01 1 0103-0110
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> IDN 		8-97955-901-1 01 1 0111-
310 SCREW; MUD COVER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0103-0110
310 SCREW; MUD COVER
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0111-
353 TAPE; FENDER,CHIPPING GUARD
PHI 		8-97959-084-0 02 1 0103-0603
353 TAPE; FENDER,CHIPPING GUARD
EXC. FACE LIFT MODEL<TX7> PHI 		8-97959-084-0 02 1 0604-
