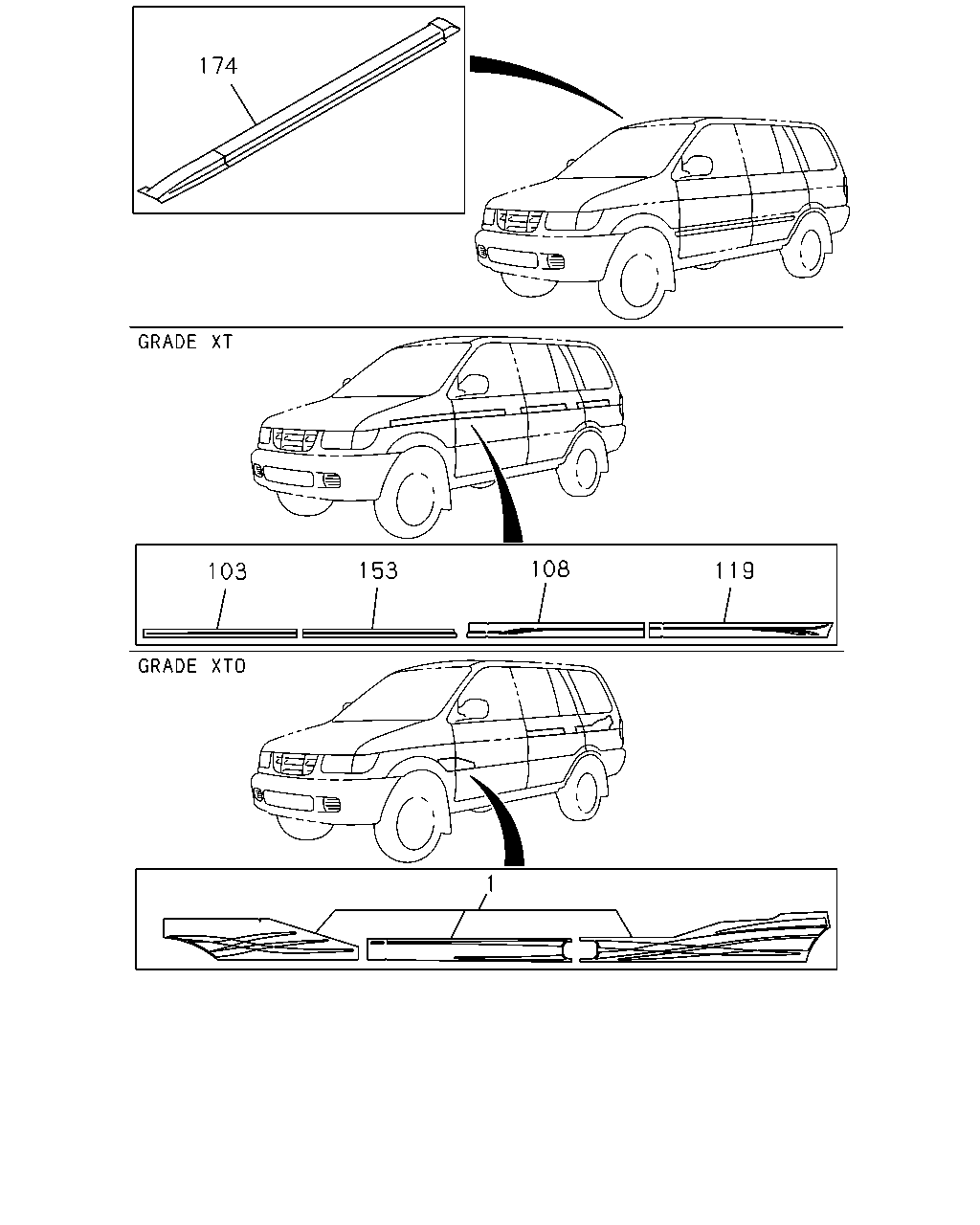

6-45 — MOLDING AND STRIPE (#47151) — 22 parça

174 108 153 119 103 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STRIPE SET; BODY SIDE BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) PHI	5-87832-025-0	01	1	0106-	●
1	STRIPE SET; BODY SIDE BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) PHI	5-87832-024-0	01	1	0106-	●
1	STRIPE SET; BODY SIDE BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) PHI	5-87832-021-0	01	1	0103-0105	●
1	STRIPE SET; BODY SIDE BODY COLOR ALPINE WHITE(617),BODY COLOR GALA PEACOCK MICA(621),BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CHIANTI RED MICA(623),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637),BODY COLOR ALPINE WHITE/LT.SILVER(661) PHI	5-87832-021-0	01	1	0106-0302	●
1	STRIPE SET; BODY SIDE BODY COLOR ALPINE WHITE(617),BODY COLOR GALA PEACOCK MICA(621),BODY COLOR CHIANTI RED MICA(623), BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636), BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637), BODY COLOR ALPINE WHITE/LT.SILVER(661) PHI	5-87832-021-0	01	1	0303-	●
1	STRIPE SET; BODY SIDE BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) PHI	5-87832-020-0	01	1	0103-0105	●
1	STRIPE SET; BODY SIDE BODY COLOR ALPINE WHITE(617),BODY COLOR GALA PEACOCK MICA(621),BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CHIANTI RED MICA(623),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637),BODY COLOR ALPINE WHITE/LT.SILVER(661) PHI	5-87832-020-0	01	1	0106-0302	●
1	STRIPE SET; BODY SIDE BODY COLOR ALPINE WHITE(617),BODY COLOR GALA PEACOCK MICA(621),BODY COLOR CHIANTI RED MICA(623), BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636), BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637), BODY COLOR ALPINE WHITE/LT.SILVER(661) PHI	5-87832-020-0	01	1	0303-	●
1	STRIPE SET; BODY SIDE BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR GALA PEACOCK MICA(621),BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) PHI	5-87832-019-0	01	1	0103-0105	●
1	STRIPE SET; BODY SIDE BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) PHI	5-87832-019-0	01	1	0106-	●
1	STRIPE SET; BODY SIDE BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR GALA PEACOCK MICA(621),BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) PHI	5-87832-018-0	01	1	0103-0105	●
1	STRIPE SET; BODY SIDE BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) PHI	5-87832-018-0	01	1	0106-	●
103	STRIPE; FENDER PHI	8-97976-850-0	01	1	0103-		●
103	STRIPE; FENDER PHI	8-97976-849-0	01	1	0103-		●
108	STRIPE; RR DOOR PHI	8-97976-854-0	01	1	0103-		●
108	STRIPE; RR DOOR PHI	8-97976-853-0	01	1	0103-		●
119	STRIPE; QUARTER PHI	8-97976-856-0	01	1	0103-		●
119	STRIPE; QUARTER PHI	8-97976-855-0	01	1	0103-		●
153	STRIPE; FRT DOOR PHI	8-97976-852-0	01	1	0103-		●
153	STRIPE; FRT DOOR PHI	8-97976-851-0	01	1	0103-		●
174	MOLDING; ROOF	8-97174-034-3	01	1	0103-	●	●	●	●
174	MOLDING; ROOF	8-97174-033-3	01	1	0103-	●	●	●	●
