6-43 — SIDE TRIM (#47150) — 104 parça

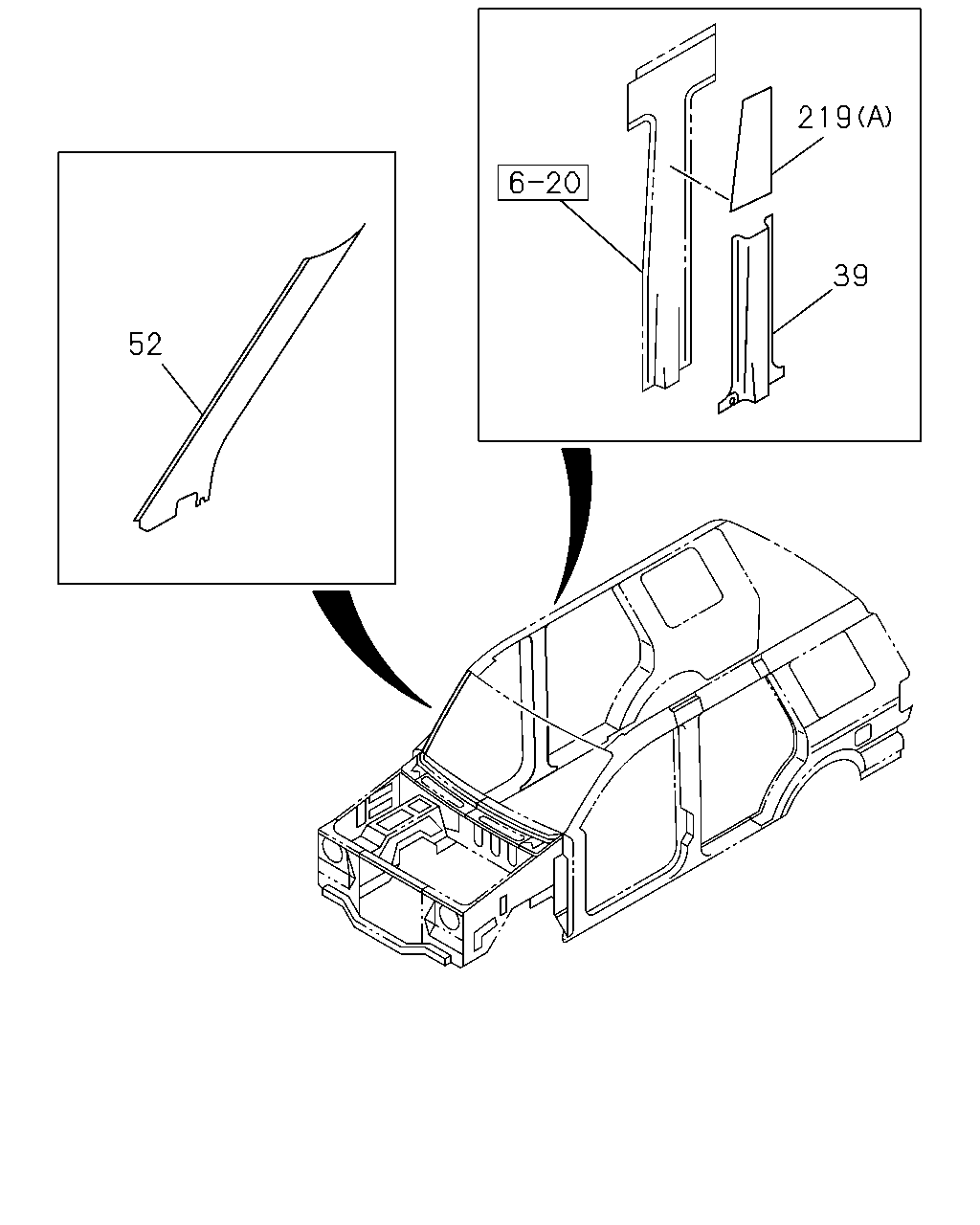

çizim 11701
219 39 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 COVER; TRIM,CENTER PILLAR
PHI 		8-97976-442-3 01 1 0103- ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
PHI 		8-97976-441-3 01 1 0103- ● ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-220-2 01 1 0103- ● ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-219-2 01 1 0103- ● ● ● ●
219 PAD; PILLAR,SOFT
(A) PHI 		8-97976-857-0 02 1 0103- ● ● ● ●
219 PAD; PILLAR,SOFT
(B) PHI 		8-97976-859-0 01 1 0103- ● ● ● ●
219 PAD; PILLAR,SOFT
(B) PHI 		8-97976-858-0 01 1 0103- ● ● ● ●

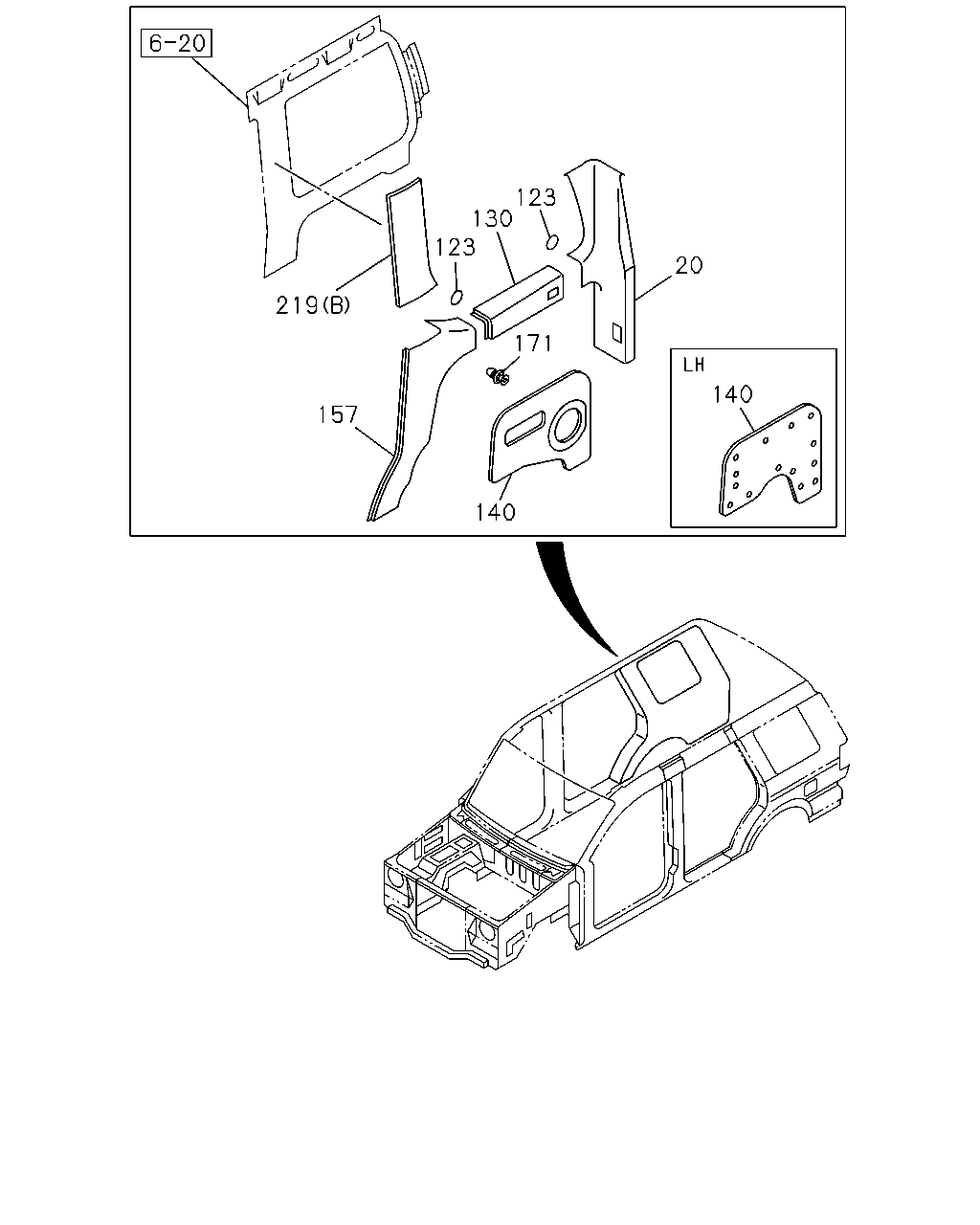

çizim 50310
123 130 123 20 219 171 140 157 140
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 COVER; TRIM,RR PILLAR
PHI 		8-97976-444-3 01 1 0103-0302 ● ● ● ●
20 COVER; TRIM,RR PILLAR
EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97976-444-3 01 1 0303-0401 ● ● ● ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) PHI 		8-97976-444-3 01 1 0402- ● ● ● ●
20 COVER; TRIM,RR PILLAR
PHI 		8-97976-443-3 01 1 0103-0302 ● ● ● ●
20 COVER; TRIM,RR PILLAR
EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97976-443-3 01 1 0303-0401 ● ● ● ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) PHI 		8-97976-443-3 01 1 0402- ● ● ● ●
20 COVER; TRIM,RR PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-266-0 01 1 0303-0401 ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-266-0 01 1 0402- ● ● ● ●
20 COVER; TRIM,RR PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-266-0 01 1 0402- ● ● ● ●
20 COVER; TRIM,RR PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-265-0 01 1 0303-0401 ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-265-0 01 1 0402- ● ● ● ●
20 COVER; TRIM,RR PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-265-0 01 1 0402- ● ● ● ●
123 SEAL; RR QUARTER
OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0103- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY PHI 		8-97976-448-3 01 1 0103-0302 ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-448-3 01 1 0303-0401 ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-448-3 01 1 0402- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY PHI 		8-97976-447-3 01 1 0103-0302 ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-447-3 01 1 0303-0401 ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-447-3 01 1 0402- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-270-0 01 1 0303-0401 ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-270-0 01 1 0402- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-270-0 01 1 0402- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-269-0 01 1 0303-0401 ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-269-0 01 1 0402- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-269-0 01 1 0402- ● ● ● ●
140 PAD; TRIM,QTR
GRAY PHI 		8-97976-809-2 01 1 0103-0302 ● ● ● ●
140 PAD; TRIM,QTR
EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-809-2 01 1 0303-0401 ● ● ● ●
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-809-2 01 1 0402- ● ● ● ●
140 PAD; TRIM,QTR
GRAY PHI 		8-97976-807-2 01 1 0103-0302 ● ● ● ●
140 PAD; TRIM,QTR
EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-807-2 01 1 0303-0401 ● ● ● ●
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-807-2 01 1 0402- ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-457-0 01 1 0402-0409 ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-457-0 01 1 0410-0410 ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-457-0 01 1 0410-0410 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-457-0 01 1 0410- ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-457-0 01 1 0410- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-459-0 01 1 0402-0409 ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-459-0 01 1 0410-0410 ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-459-0 01 1 0410-0410 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-459-0 01 1 0410- ● ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-459-0 01 1 0410- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-672-0 01 1 0410-0410 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-672-0 01 1 0410- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-674-0 01 1 0410-0410 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-674-0 01 1 0410- ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-302-1 01 1 0303-0401 ● ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-302-1 01 1 0402-0408 ● ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-302-1 01 1 0409-0409 ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-302-1 01 1 0410- ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-304-0 01 1 0303-0401 ● ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-304-0 01 1 0402-0408 ● ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-304-0 01 1 0409-0409 ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-304-0 01 1 0410- ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-689-0 01 1 0409-0409 ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-689-0 01 1 0410- ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-687-0 01 1 0409-0409 ●
140 PAD; TRIM,QTR
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-687-0 01 1 0410- ●
157 COVER; TRIM,RR QUARTER
GRAY PHI 		8-97976-446-4 01 1 0103-0302 ● ● ● ●
157 COVER; TRIM,RR QUARTER
EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-446-4 01 1 0303-0401 ● ● ● ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97976-446-4 01 1 0402- ● ● ● ●
157 COVER; TRIM,RR QUARTER
PHI 		8-97976-445-4 01 1 0103-0302 ● ● ● ●
157 COVER; TRIM,RR QUARTER
EXC. VIETNAM EQUIPMENT(CL0) PHI 		8-97976-445-4 01 1 0303-0401 ● ● ● ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) PHI 		8-97976-445-4 01 1 0402- ● ● ● ●
157 COVER; TRIM,RR QUARTER
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-268-0 01 1 0303-0401 ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-268-0 01 1 0402- ● ● ● ●
157 COVER; TRIM,RR QUARTER
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-268-0 01 1 0402- ● ● ● ●
157 COVER; TRIM,RR QUARTER
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-267-0 01 1 0303-0401 ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-267-0 01 1 0402- ● ● ● ●
157 COVER; TRIM,RR QUARTER
VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-267-0 01 1 0402- ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=19.1 PHI 		8-94385-553-0 02 1 0305-0401 ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=19.1 PHI 		8-94385-553-0 02 1 0305-0401 ● ●
171 CLIP; TRIM PAD
H=19.1 PHI 		8-94385-553-0 02 1 0305-0401 ● ●
171 CLIP; TRIM PAD
H=19.1 PHI 		8-94385-553-0 04 1 0402-0408 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=19.1 PHI 		8-94385-553-0 04 1 0409-0409 ● ●
171 CLIP; TRIM PAD
H=19.1 PHI 		8-94385-553-0 04 1 0409-0409 ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=19.1 PHI 		8-94385-553-0 04 1 0410- ● ● ● ●
171 CLIP; TRIM PAD
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> H=19.1 PHI 		8-94385-553-0 04 1 0410- ● ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> H=19.1 PHI 		8-94385-553-0 04 1 0410- ● ●
171 CLIP; TRIM PAD
H=29.8 PHI 		8-97262-708-0 12 1 0103-0302 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 12 1 0303-0304 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 10 1 0305-0310 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 10 1 0311-0401 ● ●
171 CLIP; TRIM PAD
H=29.8 PHI 		8-97262-708-0 10 1 0311-0401 ● ●
171 CLIP; TRIM PAD
H=29.8 PHI 		8-97262-708-0 21 1 0402-0408 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 21 1 0409-0409 ● ●
171 CLIP; TRIM PAD
H=29.8 PHI 		8-97262-708-0 21 1 0409-0409 ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 21 1 0410- ● ● ● ●
171 CLIP; TRIM PAD
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> H=29.8 PHI 		8-97262-708-0 21 1 0410- ● ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> H=29.8 PHI 		8-97262-708-0 21 1 0410- ● ●
171 CLIP; TRIM PAD
H=29.8 PHI 		8-97262-708-0 13 1 0103-0302 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 13 1 0303-0304 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 11 1 0305-0310 ● ● ● ●
171 CLIP; TRIM PAD
EXC. VIETNAM EQUIPMENT(CL0) H=29.8 PHI 		8-97262-708-0 11 1 0311-0401 ● ●
171 CLIP; TRIM PAD
H=29.8 PHI 		8-97262-708-0 11 1 0311-0401 ● ●
219 PAD; PILLAR,SOFT
(A) PHI 		8-97976-857-0 02 1 0103- ● ● ● ●
219 PAD; PILLAR,SOFT
(B) PHI 		8-97976-859-0 01 1 0103- ● ● ● ●
219 PAD; PILLAR,SOFT
(B) PHI 		8-97976-858-0 01 1 0103- ● ● ● ●
