6-35 — FRONT DOOR TRIM (#47148) — 106 parça

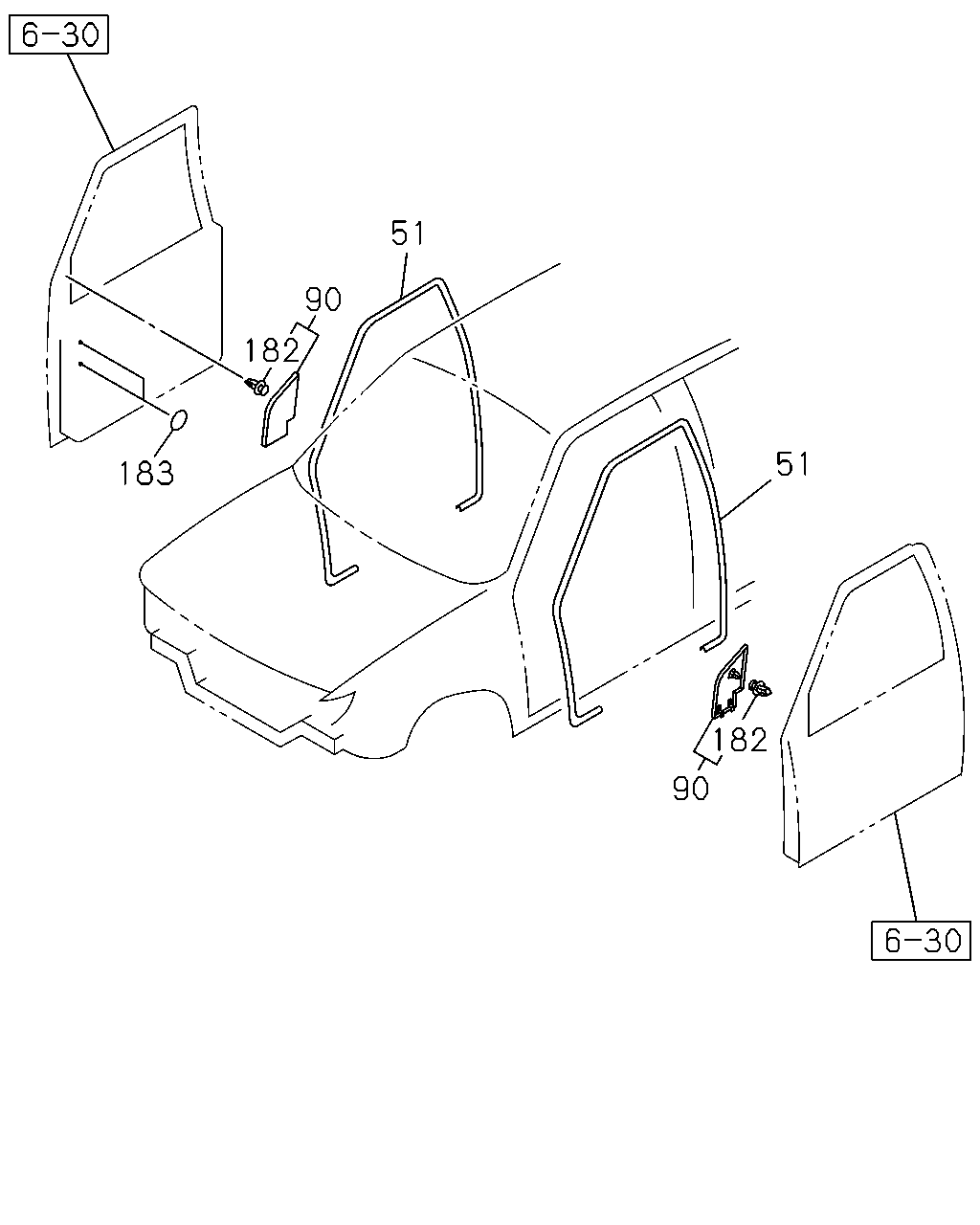

çizim 9366
51 90 182 51 183 182 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 WEATHERSTRIP; FRONT DOOR
PHI 		8-97976-063-0 02 1 0103- ● ● ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-004-2 01 1 0103-0405 ● ●
90 COVER; DOOR CORNER
EXC. CONVENIENT PACKAGE<6QZ> IDN 		8-97956-004-2 01 1 0406- ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-003-2 01 1 0103-0405 ● ●
90 COVER; DOOR CORNER
EXC. CONVENIENT PACKAGE<6QZ> IDN 		8-97956-003-2 01 1 0406- ● ●
90 COVER; DOOR CORNER
IDN 		8-97959-122-0 01 1 0103-0110 ●
90 COVER; DOOR CORNER
IDN 		8-97959-122-0 01 1 0111-0405 ● ●
90 COVER; DOOR CORNER
CONVENIENT PACKAGE<6QZ> IDN 		8-97959-122-0 01 1 0406- ●
90 COVER; DOOR CORNER
IDN 		8-97959-122-0 01 1 0406- ● ●
90 COVER; DOOR CORNER
IDN 		8-97959-121-0 01 1 0103-0110 ●
90 COVER; DOOR CORNER
IDN 		8-97959-121-0 01 1 0111-0405 ● ●
90 COVER; DOOR CORNER
CONVENIENT PACKAGE<6QZ> IDN 		8-97959-121-0 01 1 0406- ●
90 COVER; DOOR CORNER
IDN 		8-97959-121-0 01 1 0406- ● ●
182 CLIP; COVER
H=20.6 D8X13.8 PHI 		8-97260-948-0 02 1 0103-0104 ● ● ●
182 CLIP; COVER
H=16.3 PHI 		8-97126-393-0 02 1 0105-0110 ● ● ●
182 CLIP; COVER
H=16.3 PHI 		8-97126-393-0 02 1 0111-0405 ● ● ● ●
182 CLIP; COVER
EXC. CONVENIENT PACKAGE<6QZ> H=16.3 PHI 		8-97126-393-0 02 1 0406- ●
182 CLIP; COVER
H=16.3 PHI 		8-97126-393-0 02 1 0406- ● ● ●
183 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK PHI 		5-76777-036-0 04 1 0107-0405 ● ●
183 SEAL; LOCATION HOLE
EXC. CONVENIENT PACKAGE<6QZ> OD=20 T=0.05 BLACK PHI 		5-76777-036-0 04 1 0406- ● ●
çizim 11996
1 18 18 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-452-3 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-451-3 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-454-4 01 1 0103-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-454-4 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-453-4 01 1 0103-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-453-4 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-526-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-525-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-761-4 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-760-4 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
DARK GRAY PHI 		8-97976-763-4 01 1 0111- ●
1 PAD; TRIM,FRT DOOR
DARK GRAY PHI 		8-97976-762-4 01 1 0111- ●
5 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 0103-0405 ●
5 POCKET; DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-665-1 02 1 0406- ●
9 REST; ARM,FRT DOOR
GRAY IDN 		8-97957-281-2 02 1 0103-0405 ●
9 REST; ARM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY IDN 		8-97957-281-2 02 1 0406- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0103-0405 ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0406- ●
18 CLIP; DOOR PAD
EXC. CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0406- ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 06 1 0103-0110 ● ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 06 1 0111- ● ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 20 1 0103-0103 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0104-0110 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0111-0405 ● ●
18 CLIP; DOOR PAD
CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0406- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0406- ● ●
18 CLIP; DOOR PAD
(C) GRAY 		8-97307-929-0 04 1 0103-0110 ●
18 CLIP; DOOR PAD
(C) GRAY 		8-97307-929-0 04 1 0111-0511 ● ●
18 CLIP; DOOR PAD
CONVENIENT PACKAGE<6QZ> (C) GRAY 		8-97307-929-0 04 1 0512- ●
18 CLIP; DOOR PAD
(C) GRAY 		8-97307-929-0 04 1 0512- ● ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 14 1 0104-0106 ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 12 1 0107-0110 ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 12 1 0111-0405 ● ●
18 CLIP; DOOR PAD
CONVENIENT PACKAGE<6QZ> (A) H=16.3 PHI 		8-97126-393-0 12 1 0406- ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 12 1 0406- ● ●
çizim 49789
1 18 1 18 18 128 54 87 23 84 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-452-3 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-451-3 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-454-4 01 1 0103-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-454-4 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-453-4 01 1 0103-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-453-4 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-526-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-525-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-761-4 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
GRAY PHI 		8-97976-760-4 01 1 0103- ●
1 PAD; TRIM,FRT DOOR
DARK GRAY PHI 		8-97976-763-4 01 1 0111- ●
1 PAD; TRIM,FRT DOOR
DARK GRAY PHI 		8-97976-762-4 01 1 0111- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0103-0405 ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0406- ●
18 CLIP; DOOR PAD
EXC. CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0406- ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 06 1 0103-0110 ● ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 06 1 0111- ● ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 20 1 0103-0103 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0104-0110 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0111-0405 ● ●
18 CLIP; DOOR PAD
CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0406- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0406- ● ●
18 CLIP; DOOR PAD
(C) GRAY 		8-97307-929-0 04 1 0103-0110 ●
18 CLIP; DOOR PAD
(C) GRAY 		8-97307-929-0 04 1 0111-0511 ● ●
18 CLIP; DOOR PAD
CONVENIENT PACKAGE<6QZ> (C) GRAY 		8-97307-929-0 04 1 0512- ●
18 CLIP; DOOR PAD
(C) GRAY 		8-97307-929-0 04 1 0512- ● ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 14 1 0104-0106 ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 12 1 0107-0110 ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 12 1 0111-0405 ● ●
18 CLIP; DOOR PAD
CONVENIENT PACKAGE<6QZ> (A) H=16.3 PHI 		8-97126-393-0 12 1 0406- ●
18 CLIP; DOOR PAD
(A) H=16.3 PHI 		8-97126-393-0 12 1 0406- ● ●
23 BRACKET; DOOR TRIM
PHI 		8-97976-056-1 02 1 0103-0110 ●
23 BRACKET; DOOR TRIM
PHI 		8-97976-056-1 02 1 0111-0405 ● ●
23 BRACKET; DOOR TRIM
CONVENIENT PACKAGE<6QZ> PHI 		8-97976-056-1 02 1 0406- ●
23 BRACKET; DOOR TRIM
PHI 		8-97976-056-1 02 1 0406- ● ●
54 BOX; FRT DOOR
GRAY 		8-97196-884-0 02 1 0103-0110 ●
54 BOX; FRT DOOR
GRAY 		8-97196-884-0 02 1 0111-0405 ● ●
54 BOX; FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-97196-884-0 02 1 0406- ●
54 BOX; FRT DOOR
GRAY 		8-97196-884-0 02 1 0406- ● ●
84 SCREW; BOX BRKT
M6X25 TAPPING 		9-07077-625-0 06 1 0103-0110 ●
84 SCREW; BOX BRKT
M6X25 TAPPING 		9-07077-625-0 06 1 0111-0405 ● ●
84 SCREW; BOX BRKT
CONVENIENT PACKAGE<6QZ> M6X25 TAPPING 		9-07077-625-0 06 1 0406- ●
84 SCREW; BOX BRKT
M6X25 TAPPING 		9-07077-625-0 06 1 0406- ● ●
87 GROMMET; SCREW,BRKT 8-94481-286-2 06 1 0103-0110 ●
87 GROMMET; SCREW,BRKT 8-94481-286-2 06 1 0111-0405 ● ●
87 GROMMET; SCREW,BRKT
CONVENIENT PACKAGE<6QZ> 		8-94481-286-2 06 1 0406- ●
87 GROMMET; SCREW,BRKT 8-94481-286-2 06 1 0406- ● ●
128 SCREW; TAP
M5X16 		8-94380-268-0 02 1 0103-0110 ●
128 SCREW; TAP
M5X16 		8-94380-268-0 02 1 0111-0405 ● ●
128 SCREW; TAP
CONVENIENT PACKAGE<6QZ> M5X16 		8-94380-268-0 02 1 0406- ●
128 SCREW; TAP
M5X16 		8-94380-268-0 02 1 0406- ● ●
