6-31 — FRONT DOOR GLASS AND REGULATOR (#47146) — 42 parça
çizim 49932
7 1 27 19 19 27 26 26 36 43 25 25 265 39
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
PHI 		8-97976-049-1 01 1 0103-0311
1 GLASS; FRT DOOR
PHI 		8-97977-340-0 01 1 0312-
1 GLASS; FRT DOOR
PHI 		8-97976-048-1 01 1 0103-0311
1 GLASS; FRT DOOR
PHI 		8-97977-339-0 01 1 0312-
7 GLASS RUN; FRT DOOR
PHI 		8-97976-047-0 01 1 0103-
7 GLASS RUN; FRT DOOR
PHI 		8-97976-046-0 01 1 0103-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> PHI 		8-97955-947-2 01 1 0103-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> PHI 		8-97955-946-2 01 1 0103-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-949-2 01 1 0103-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-948-2 01 1 0103-
25 BOLT; WINDOW REG
M6X8 		8-94155-893-0 08 1 0103-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91150-106-0 04 1 0103-0602
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0603-
27 BOLT; GLASS FIX
M6X8 		8-94155-893-0 04 1 0103-
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94220-668-1 02 1 0103-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-97196-875-0 02 1 0103-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 0103-
265 CLIP; HARNESS
POWER WINDOW<A30> L=140 		5-09707-031-1 02 1 0103-

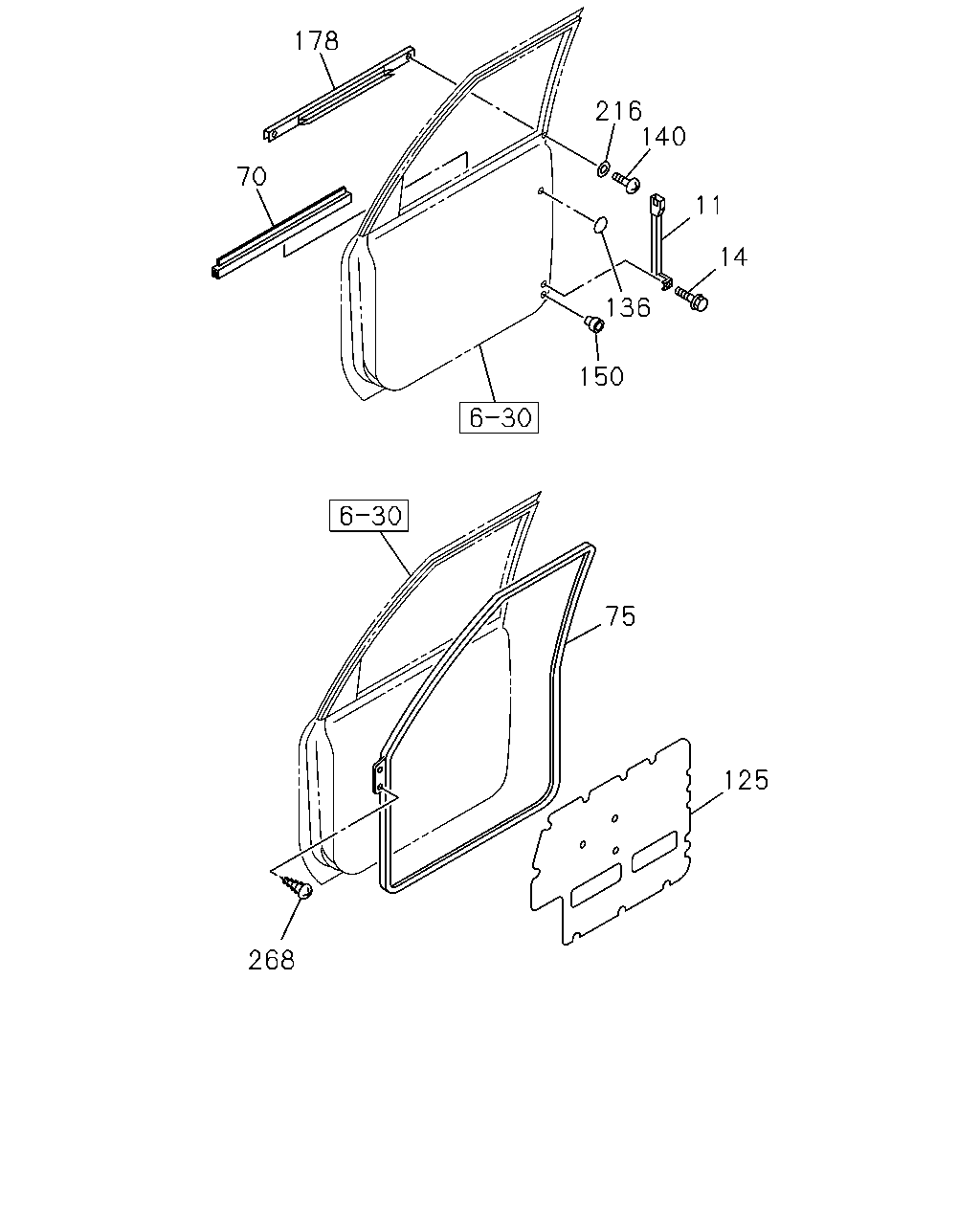

çizim 50316
178 216 140 70 11 14 136 150 75 125 268
BalonParca AdiParca NoAdetTipApplied Date
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-953-1 01 1 0103-
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-952-1 01 1 0103-
14 BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER PHI 		8-94232-078-0 04 1 0103-0307
14 BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER PHI 		8-94232-078-0 02 1 0308-
70 SEAL; WAIST,FRT DOOR INNER 8-97174-424-0 01 1 0103-0401
70 SEAL; WAIST,FRT DOOR INNER 8-97371-600-0 01 1 0402-0412
70 SEAL; WAIST,FRT DOOR INNER 8-97174-424-0 01 1 0501-
70 SEAL; WAIST,FRT DOOR INNER 8-97174-423-0 01 1 0103-0401
70 SEAL; WAIST,FRT DOOR INNER 8-97371-599-0 01 1 0402-0412
70 SEAL; WAIST,FRT DOOR INNER 8-97174-423-0 01 1 0501-
75 WEATHERSTRIP; FRT DOOR
PHI 		8-97976-062-1 01 1 0103-
75 WEATHERSTRIP; FRT DOOR
PHI 		8-97976-061-1 01 1 0103-
125 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> PHI 		8-97976-058-1 01 1 0103-
125 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> PHI 		8-97976-057-1 01 1 0103-
125 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> PHI 		8-97976-060-1 01 1 0103-
125 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> PHI 		8-97976-059-1 01 1 0103-
136 SEAL; DOOR INNER,FRT DOOR
OD=25 BLACK 		1-76798-019-0 02 1 0103-
140 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 0103-
150 BUFFER; FRT DOOR
PHI 		8-97957-223-0 04 1 0103-
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-422-3 01 1 0103-
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-421-3 01 1 0103-
216 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 0103-
268 SCREW; WEATHER STRIP
M4X8 TAPPING W/PL WASHER 		0-74100-408-0 04 1 0103-0604
268 SCREW; WEATHER STRIP
M4X8 TAPPING W/PL WASHER 		0-74160-408-0 04 1 0605-
