6-20 — SIDE PANEL AND STEP (#47144) — 194 parça

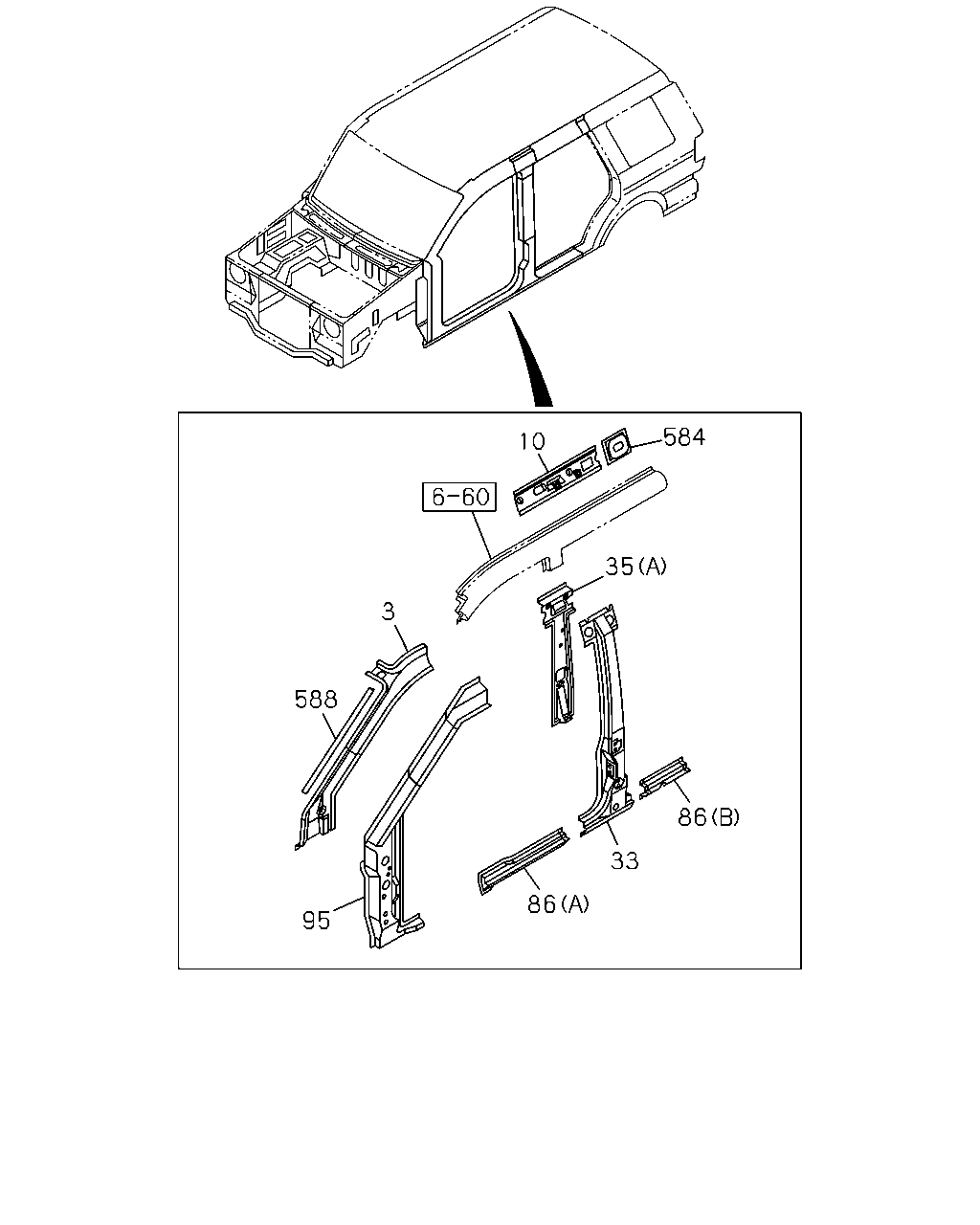

çizim 48037
584 10 35 3 588 86 33 86 95
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-733-0 01 1 0103-
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-732-0 01 1 0103-
10 CLOSING; ROOF SIDE
IDN 		8-97955-771-1 01 1 0103-
10 CLOSING; ROOF SIDE
IDN 		8-97955-770-1 01 1 0103-
33 PANEL; CENTER PILLAR,OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97958-608-0 01 1 0103-
33 PANEL; CENTER PILLAR,OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97958-607-0 01 1 0103-
33 PANEL; CENTER PILLAR,OUTER
GRADE XTRM(RBG) IDN 		8-97959-031-0 01 1 0111-
33 PANEL; CENTER PILLAR,OUTER
GRADE XTRM(RBG) IDN 		8-97959-030-0 01 1 0111-
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-116-0 01 1 0103-0401
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-116-0 01 1 0402-0404
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97956-116-0 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97956-739-0 01 1 0103-0404
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97956-739-0 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97957-980-0 01 1 0103-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0103-0404
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0103-0401
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0402-0404
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97956-115-0 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97957-979-0 01 1 0103-
35 PANEL; CENTER PILLAR,INNER
3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97957-163-0 01 1 0402-0404
35 PANEL; CENTER PILLAR,INNER
GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0405-0405
35 PANEL; CENTER PILLAR,INNER
VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0405-0405
35 PANEL; CENTER PILLAR,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0405-0405
35 PANEL; CENTER PILLAR,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0406-
35 PANEL; CENTER PILLAR,INNER
GRADE XTO(RBD),GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0406-
86 PANEL; ROCKER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) REAR IDN 		8-97957-763-0 02 1 0103-
86 PANEL; ROCKER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) FRONT IDN 		8-97957-770-0 01 1 0103-
86 PANEL; ROCKER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) FRONT IDN 		8-97957-769-0 01 1 0103-
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (A) FRONT IDN 		8-97958-031-2 01 1 0111-0310
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (A) FRONT IDN 		8-97958-031-2 01 1 0311-
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (B) REAR IDN 		8-97958-035-1 01 1 0111-0310
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (B) REAR IDN 		8-97958-035-1 01 1 0311-
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (A) FRONT IDN 		8-97958-030-2 01 1 0111-0310
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (A) FRONT IDN 		8-97958-030-2 01 1 0311-
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (B) REAR IDN 		8-97958-034-1 01 1 0111-0310
86 PANEL; ROCKER OUTER
GRADE XTRM(RBG) (B) REAR IDN 		8-97958-034-1 01 1 0311-
95 PILLAR; FRT
IDN 		8-97957-405-0 01 1 0103-
95 PILLAR; FRT
IDN 		8-97957-404-0 01 1 0103-
584 PALTE; ROOF SIDE
IDN 		8-97957-590-0 02 1 0103-
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-892-0 01 1 0103-
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-891-0 01 1 0103-

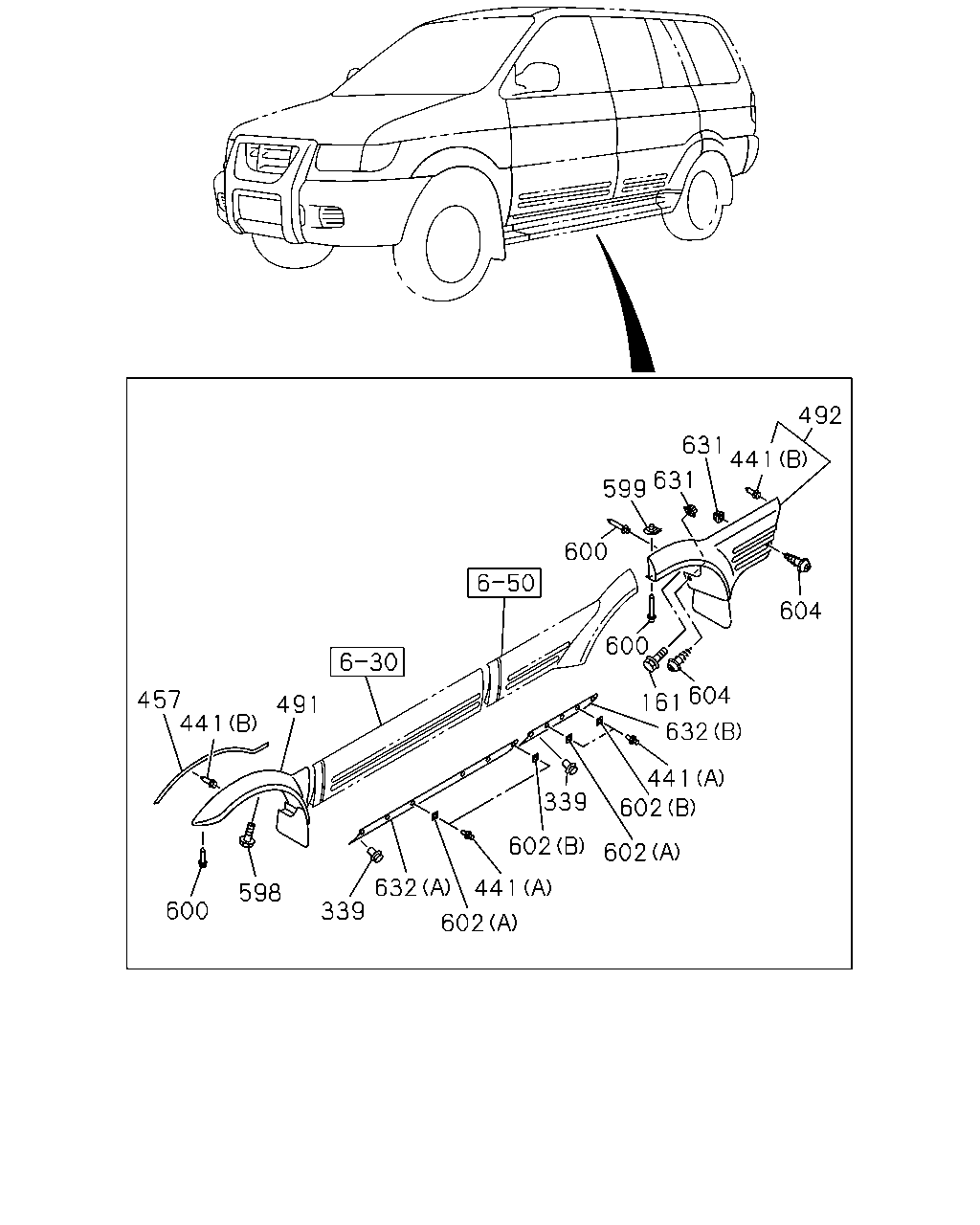

çizim 48455
492 631 441 631 599 600 604 600 604 457 441 161 632 491 441 602 339 602 602 632 441 598 600 339 602
BalonParca AdiParca NoAdetTipApplied Date
161 BOLT; FIX
OVER FENDER<6GH> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0111-
339 FASTENER; SIDE
GRADE XTRM(RBG) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0111-
339 FASTENER; SIDE
GRADE XTRM(RBG) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 0111-
441 CLIP
GRADE XTRM(RBG) (A) OD=14.2 L=19.0 		8-94340-505-0 22 1 0111-
441 CLIP
OVER FENDER<6GH> (B) 		8-97117-942-0 26 1 0111-
457 FINISHER
OVER FENDER<6GH> 		8-97307-301-1 01 1 0111-
457 FINISHER
OVER FENDER<6GH> 		8-97307-300-1 01 1 0111-
491 EXTENSION; WHL,FRT
OVER FENDER<6GH> PHI 		8-97959-994-1 01 1 0111-
491 EXTENSION; WHL,FRT
OVER FENDER<6GH> PHI 		8-97959-993-1 01 1 0111-
492 EXTENSION; WHL,RR
OVER FENDER<6GH> LIGHT SILVER PHI 		8-97959-374-1 01 1 0111-
492 EXTENSION; WHL,RR
OVER FENDER<6GH> LIGHT SILVER PHI 		8-97959-373-1 01 1 0111-
598 BOLT; EXTENSION
OVER FENDER<6GH> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0111-
599 NUT; EXTENSION
OVER FENDER<6GH> 		8-94334-769-0 16 1 0111-
600 RIVET; EXTENSION
OVER FENDER<6GH> 		8-97122-143-0 04 1 0111-
600 RIVET; EXTENSION
OVER FENDER<6GH> 		8-97122-143-0 06 1 0111-
602 PLATE
GRADE XTRM(RBG) (B) PHI 		8-97958-012-1 04 1 0111-0207
602 PLATE
GRADE XTRM(RBG) (A) PHI 		8-97958-010-1 09 1 0111-
602 PLATE
GRADE XTRM(RBG) (A) PHI 		8-97958-011-1 09 1 0111-
602 PLATE
GRADE XTRM(RBG) (B) PHI 		8-97958-012-1 04 1 0303-
604 SCREW; EXTENSION
OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 02 1 0111-
631 GROMMET; SCREW
OVER FENDER<6GH> D=9X9 L=8 M6 		8-94222-314-0 02 1 0111-
632 EXTENSION; ROCKR FRT
GRADE XTRM(RBG) (A) PHI 		8-97560-020-0 01 1 0111-
632 EXTENSION; ROCKR FRT
GRADE XTRM(RBG) (B) PHI 		8-97560-024-0 01 1 0111-
632 EXTENSION; ROCKR FRT
GRADE XTRM(RBG) (A) PHI 		8-97560-019-0 01 1 0111-
632 EXTENSION; ROCKR FRT
GRADE XTRM(RBG) (B) PHI 		8-97560-023-0 01 1 0111-

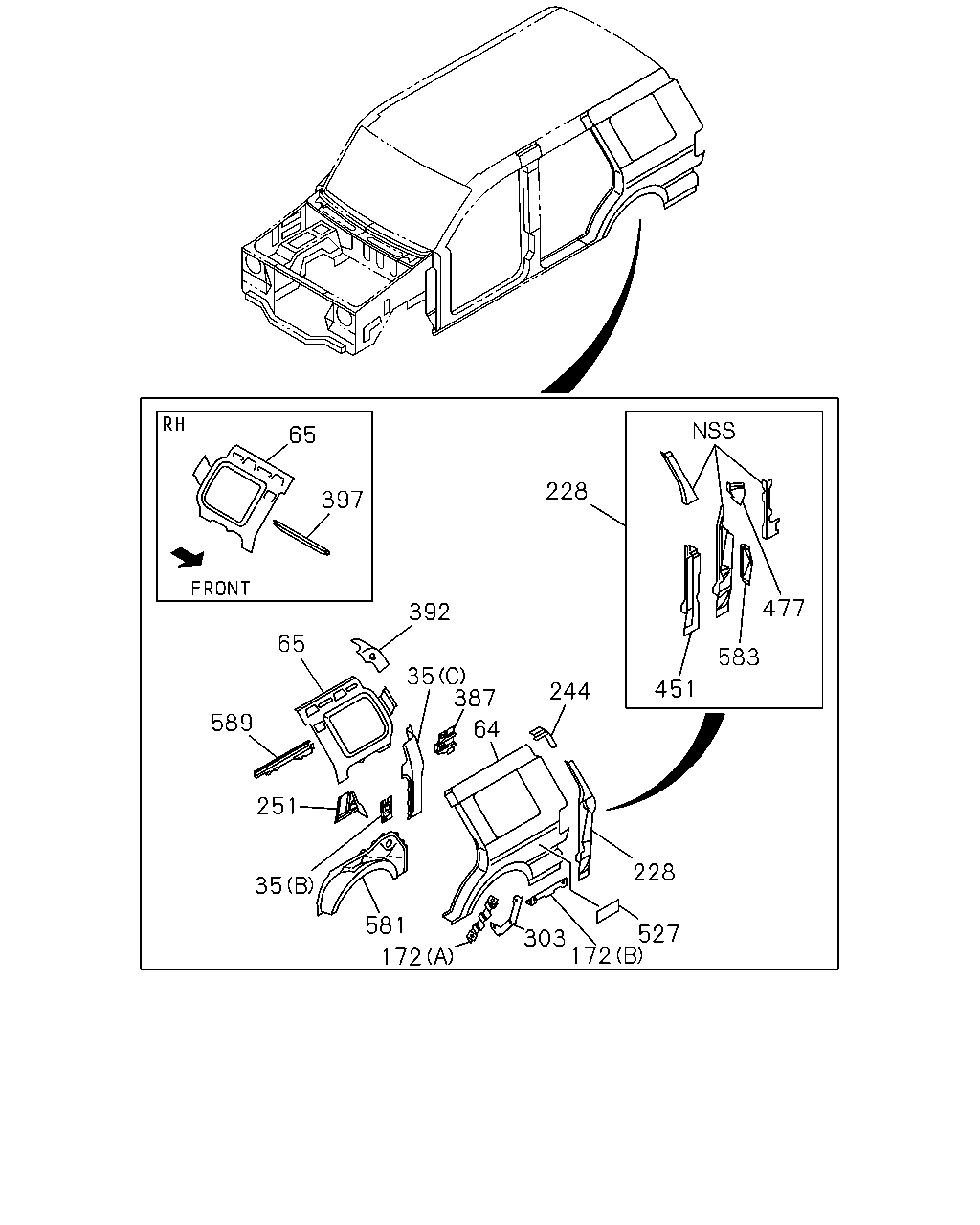

çizim 48610
65 228 397 477 392 65 583 35 387 451 244 589 64 251 228 35 581 303 527 172 172
BalonParca AdiParca NoAdetTipApplied Date
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-116-0 01 1 0103-0401
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-116-0 01 1 0402-0404
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97956-116-0 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97956-739-0 01 1 0103-0404
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97956-739-0 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97957-980-0 01 1 0103-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0103-0404
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0103-0401
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0402-0404
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97956-115-0 01 1 0405-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97957-979-0 01 1 0103-
35 PANEL; CENTER PILLAR,INNER
3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97957-163-0 01 1 0402-0404
35 PANEL; CENTER PILLAR,INNER
GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0405-0405
35 PANEL; CENTER PILLAR,INNER
VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0405-0405
35 PANEL; CENTER PILLAR,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0405-0405
35 PANEL; CENTER PILLAR,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0406-
35 PANEL; CENTER PILLAR,INNER
GRADE XTO(RBD),GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) (C) IDN 		8-97957-163-0 01 1 0406-
64 PANEL; QUARTER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97957-415-0 01 1 0103-0302
64 PANEL; QUARTER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97562-098-0 01 1 0303-
64 PANEL; QUARTER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97957-414-0 01 1 0103-0302
64 PANEL; QUARTER OUTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97562-097-0 01 1 0303-
64 PANEL; QUARTER OUTER
GRADE XTRM(RBG) IDN 		8-97959-083-0 01 1 0111-0302
64 PANEL; QUARTER OUTER
GRADE XTRM(RBG) IDN 		8-97562-100-0 01 1 0303-
64 PANEL; QUARTER OUTER
GRADE XTRM(RBG) IDN 		8-97959-082-0 01 1 0111-0302
64 PANEL; QUARTER OUTER
GRADE XTRM(RBG) IDN 		8-97562-099-0 01 1 0303-
65 PANEL; QUARTER,INNER
IDN 		8-97956-064-0 01 1 0103-0401
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97956-064-0 01 1 0402-0404
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) IDN 		8-97956-064-0 01 1 0405-
65 PANEL; QUARTER,INNER
IDN 		8-97955-809-0 01 1 0103-0310
65 PANEL; QUARTER,INNER
IDN 		8-97955-809-0 01 1 0311-0401
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-809-0 01 1 0402-0404
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) IDN 		8-97955-809-0 01 1 0405-
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-161-0 01 1 0402-0404
65 PANEL; QUARTER,INNER
GRADE XTO(RBD) VIETNAM EQUIPMENT(CL0) IDN 		8-97957-161-0 01 1 0405-0405
65 PANEL; QUARTER,INNER
VIETNAM EQUIPMENT(CL0) IDN 		8-97957-161-0 01 1 0405-0405
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97957-161-0 01 1 0405-0405
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97957-161-0 01 1 0406-
65 PANEL; QUARTER,INNER
GRADE XTO(RBD),GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) IDN 		8-97957-161-0 01 1 0406-
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-159-0 01 1 0402-0404
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97957-159-0 01 1 0405-
65 PANEL; QUARTER,INNER
GRADE XTO(RBD),GRADE XTRM(RBG) VIETNAM EQUIPMENT(CL0) IDN 		8-97957-159-0 01 1 0405-
172 EXTENSION; QUARTER PANEL
GRADE XTRM(RBG) (A) IDN 		8-97958-107-0 01 1 0111-
172 EXTENSION; QUARTER PANEL
GRADE XTRM(RBG) (B) IDN 		8-97958-109-1 01 1 0111-
172 EXTENSION; QUARTER PANEL
GRADE XTRM(RBG) (A) IDN 		8-97958-106-0 01 1 0111-
172 EXTENSION; QUARTER PANEL
GRADE XTRM(RBG) (B) IDN 		8-97958-108-1 01 1 0111-0310
172 EXTENSION; QUARTER PANEL
GRADE XTRM(RBG) (B) IDN 		8-97958-108-1 01 1 0311-
228 PANEL; RR PILLAR OUTER
IDN 		8-97957-422-0 01 1 0103-0310
228 PANEL; RR PILLAR OUTER
IDN 		8-97957-422-0 01 1 0311-
228 PANEL; RR PILLAR OUTER
IDN 		8-97957-421-0 01 1 0103-0310
228 PANEL; RR PILLAR OUTER
IDN 		8-97957-421-0 01 1 0311-
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-836-0 01 1 0103-0404
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-836-0 01 1 0405-
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-835-0 01 1 0103-0404
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-835-0 01 1 0405-
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-800-0 01 1 0103-0404
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-800-0 01 1 0405-
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-799-0 01 1 0103-0404
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-799-0 01 1 0405-
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-915-1 01 1 0103-0401
303 RETAINER; SIDE SKIRT,ROCKER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-915-1 01 1 0402-0402
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-915-1 01 1 0402-0404
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-915-1 01 1 0405-
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-914-1 01 1 0103-0310
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-914-1 01 1 0311-0401
303 RETAINER; SIDE SKIRT,ROCKER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-914-1 01 1 0402-0402
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-914-1 01 1 0402-0404
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-914-1 01 1 0405-
303 RETAINER; SIDE SKIRT,ROCKER
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-759-0 01 1 0402-0402
303 RETAINER; SIDE SKIRT,ROCKER
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-758-0 01 1 0402-0402
387 BRACKET; 3RD SEAT
IDN 		8-97956-457-0 01 1 0103-
387 BRACKET; 3RD SEAT
IDN 		8-97956-457-0 01 1 0103-
392 GUSSET; RR PILLAR
IDN 		8-97955-832-0 01 1 0103-0310
392 GUSSET; RR PILLAR
IDN 		8-97955-832-0 01 1 0311-
392 GUSSET; RR PILLAR
IDN 		8-97955-831-0 01 1 0103-0310
392 GUSSET; RR PILLAR
IDN 		8-97955-831-0 01 1 0311-
397 REINFORCEMENT; QUARTER PILLAR INNER
IDN 		8-97956-608-1 01 1 0103-
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97957-426-0 01 1 0103-0310
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97957-426-0 01 1 0311-
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97957-425-0 01 1 0103-0310
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97957-425-0 01 1 0311-
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-818-1 01 1 0103-
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-817-1 01 1 0103-0302
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-817-1 01 1 0303-
527 STIFFENER; QTR OUTER
PHI 		8-97248-768-0 03 1 0103-
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97958-616-0 01 1 0103-
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97958-615-0 01 1 0103-
583 BRACKET; STRIKER,BACK DOOR
IDN 		8-97957-433-0 01 1 0103-
589 REINFORCEMENT; COOLER UNIT
IDN 		8-97956-610-1 01 1 0103-

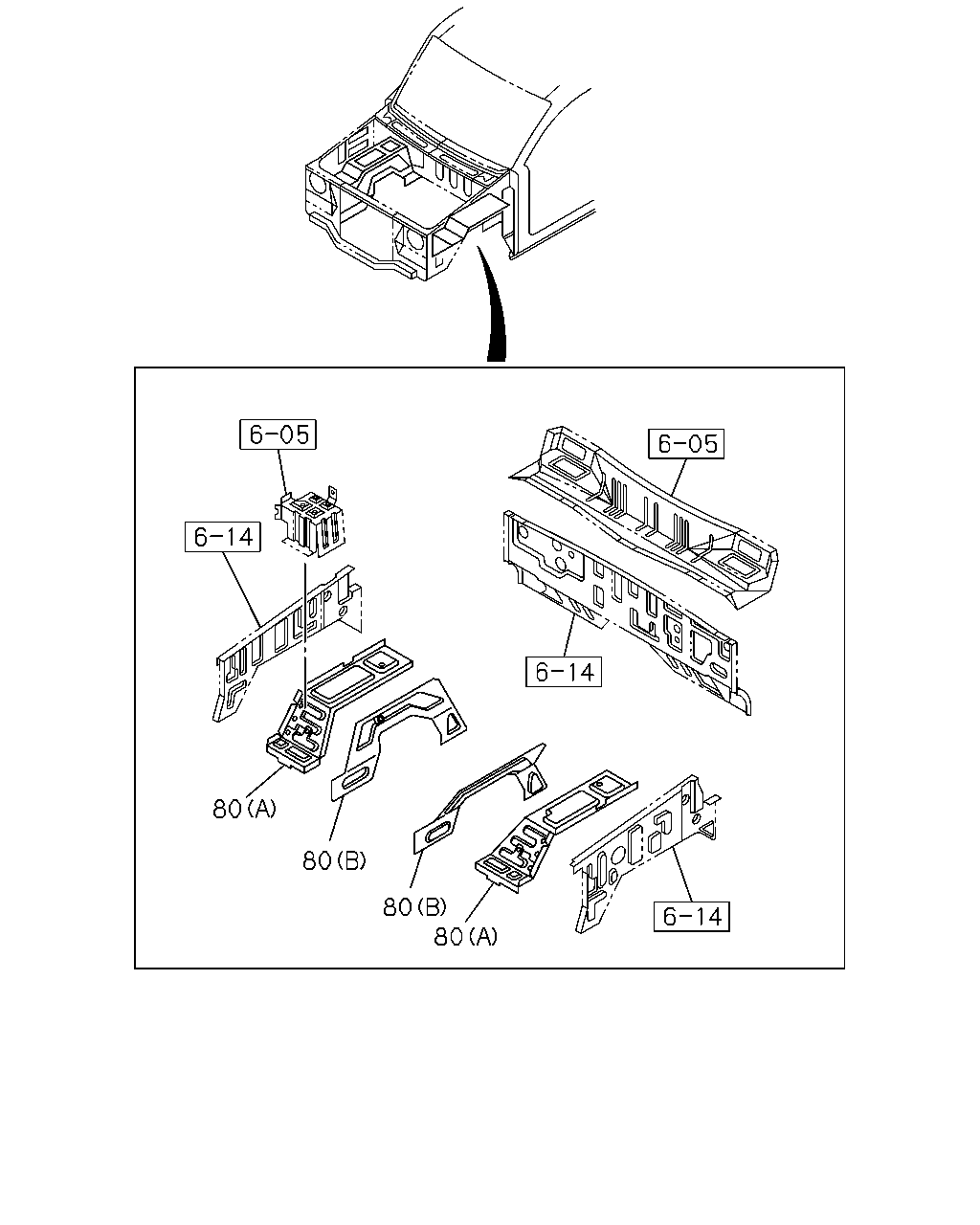

çizim 49633
80 80 80 80
BalonParca AdiParca NoAdetTipApplied Date
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97957-388-1 01 1 0103-
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97957-390-1 01 1 0103-
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97957-387-1 01 1 0103-
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97957-389-1 01 1 0103-
çizim 51001
582 374 199 199 199 199
BalonParca AdiParca NoAdetTipApplied Date
199 PANEL; RR SIDE
(A) IDN 		8-97955-265-0 01 1 0103-
199 PANEL; RR SIDE
(B) IDN 		8-97956-092-1 01 1 0103-
199 PANEL; RR SIDE
(A) IDN 		8-97955-264-0 01 1 0103-
199 PANEL; RR SIDE
(B) IDN 		8-97956-091-1 01 1 0103-
374 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 02 1 0103-0512
374 BOLT; BRKT
M6X16 FLANGE 		0-28050-616-0 02 1 0601-
582 BRACKET; CHECK ARM
IDN 		8-97956-002-0 01 1 0103-0103
582 BRACKET; CHECK ARM
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN 		8-97956-002-0 01 1 0104-

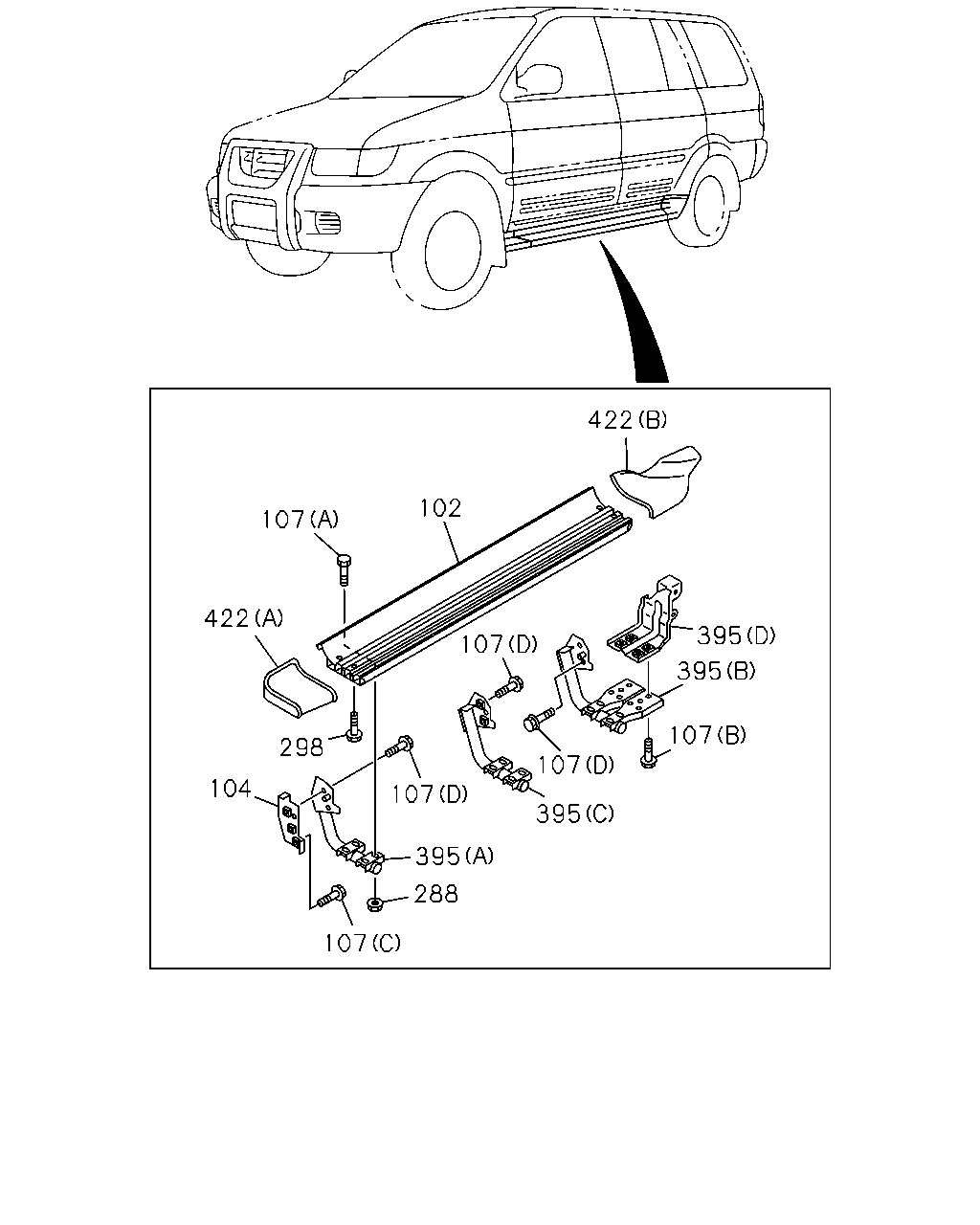

çizim 51362
422 102 107 422 395 107 395 107 298 107 104 107 395 395 288 107
BalonParca AdiParca NoAdetTipApplied Date
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97956-534-1 01 1 0111-
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97959-922-0 01 1 0111-
104 PLATE; SIDE STEP
SIDE STEP<6TC> IDN 		8-97956-507-2 01 1 0111-
104 PLATE; SIDE STEP
SIDE STEP<6TC> IDN 		8-97956-506-2 01 1 0111-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) M6X16 		0-20800-616-0 24 1 0111-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (C) M6X12 FLANGE 		0-28080-612-0 02 1 0111-0512
107 BOLT; SIDE STEP
SIDE STEP<6TC> (C) M6X12 FLANGE 		0-28050-612-0 02 1 0601-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M6X12 FLANGE 		0-28080-612-0 08 1 0111-0512
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M6X12 FLANGE 		0-28050-612-0 08 1 0601-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (D) M8X22 FLANGE 		8-97131-511-0 12 1 0111-
288 NUT; STEP
SIDE STEP<6TC> M6 FLANGE 		0-91150-106-0 24 1 0111-0602
288 NUT; STEP
SIDE STEP<6TC> M6 FLANGE 		0-91180-106-0 24 1 0603-
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X12 TAPPING W/PL WASHER 		0-74100-512-0 12 1 0111-0604
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X12 TAPPING W/PL WASHER 		0-74160-512-0 12 1 0605-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97956-509-4 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) IDN 		8-97956-511-4 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (C) IDN 		8-97958-059-0 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (D) IDN 		8-97958-125-3 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97956-508-4 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) IDN 		8-97956-510-4 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (C) IDN 		8-97958-058-0 01 1 0111-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (D) IDN 		8-97958-124-3 01 1 0111-
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97958-055-1 01 1 0111-
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) DARK GRAY PHI 		8-97959-465-2 01 1 0111-
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97958-054-1 01 1 0111-
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) DARK GRAY PHI 		8-97959-464-2 01 1 0111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
