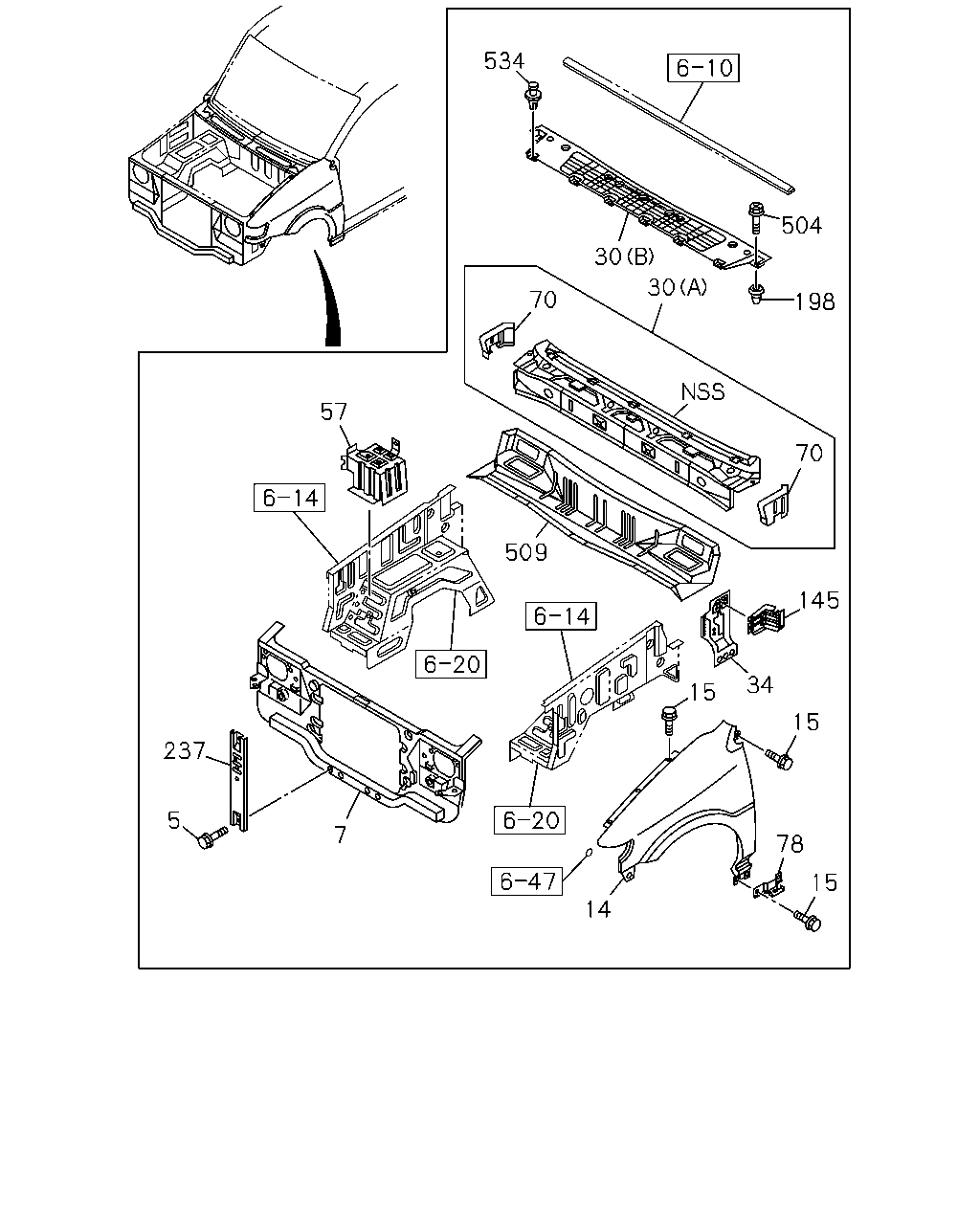

6-05 — FRONT PANEL (#47140) — 121 parça

15 532 6 532 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT BODY COLOR ALPINE WHITE(617) PHI	8-97958-835-2	01	1	0103-0105
6	PANEL; FRONT BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) PHI	8-97958-835-2	01	1	0106-0409
6	PANEL; FRONT BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-835-2	01	1	0410-
6	PANEL; FRONT BODY COLOR ASTRAL SILVER MET(619) PHI	8-97958-836-2	01	1	0103-0105
6	PANEL; FRONT BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRALSILVER MET/KAISER SILVERMET(662) PHI	8-97958-836-2	01	1	0106-0409
6	PANEL; FRONT BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRALSILVER MET/KAISER SILVERMET(662) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-836-2	01	1	0410-
6	PANEL; FRONT BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTIRED MICA/LT.SILVER MET(637) PHI	8-97958-840-2	01	1	0103-0409
6	PANEL; FRONT BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTIRED MICA/LT.SILVER MET(637) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-840-2	01	1	0410-
6	PANEL; FRONT BODY COLOR COPPER ORANGE(625) PHI	8-97958-834-2	01	1	0111-0409
6	PANEL; FRONT BODY COLOR COPPER ORANGE(625) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-834-2	01	1	0410-
6	PANEL; FRONT BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635) PHI	8-97958-838-2	01	1	0103-0302
6	PANEL; FRONT BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) PHI	8-97958-841-2	01	1	0103-0409
6	PANEL; FRONT BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-841-2	01	1	0410-
6	PANEL; FRONT BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) PHI	8-97958-837-2	01	1	0103-0409
6	PANEL; FRONT BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-837-2	01	1	0410-
6	PANEL; FRONT BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCEGREEN MICA/LT.SILVER MET(638) PHI	8-97958-839-2	01	1	0103-0409
6	PANEL; FRONT BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCEGREEN MICA/LT.SILVER MET(638) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-839-2	01	1	0410-
6	PANEL; FRONT BODY COLOR STEEL BLACK MET(626) PHI	8-97958-867-2	01	1	0111-0409
6	PANEL; FRONT BODY COLOR STEEL BLACK MET(626) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-867-2	01	1	0410-
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0103-0310
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0311-0512
15	BOLT; FENDER M6X16 FLANGE	0-28650-616-0	02	1	0601-
15	BOLT; FENDER M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0103-0310
15	BOLT; FENDER M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0311-0409
15	BOLT; FENDER FACE LIFT MODEL<TX7> M6X16 W/PL WASHER PHI	8-94204-636-0	08	1	0410-
15	BOLT; FENDER M6X12 W/PL WASHER PHI	8-94232-078-0	06	1	0103-0310
15	BOLT; FENDER M6X12 W/PL WASHER PHI	8-94232-078-0	06	1	0311-
15	BOLT; FENDER EXC. FACE LIFT MODEL<TX7> M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0410-
532	BOLT; FRT PANEL M6X16 FLANGE	0-28480-616-0	06	1	0103-0409
532	BOLT; FRT PANEL EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE	0-28480-616-0	06	1	0410-0512
532	BOLT; FRT PANEL EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE	0-28450-616-0	06	1	0601-

534 504 30 30 70 198 57 70 509 145 34 15 15 237 5 7 78 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0103-0310
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0311-
7	PANEL; DEFLECTOR IDN	8-97957-531-2	01	1	0103-0310
7	PANEL; DEFLECTOR IDN	8-97957-531-3	01	1	0311-0409
7	PANEL; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97957-531-3	01	1	0410-
7	PANEL; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-303-2	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-297-1	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-296-1	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-550-1	01	1	0103-0409
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97957-550-1	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-549-1	01	1	0103-0409
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97957-549-1	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) IDN	8-97958-160-2	01	1	0111-0409
14	FENDER; FRT GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97958-160-2	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) IDN	8-97958-159-2	01	1	0111-0409
14	FENDER; FRT GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97958-159-2	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-293-1	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-292-1	01	1	0410-
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0103-0310
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0311-0512
15	BOLT; FENDER M6X16 FLANGE	0-28650-616-0	02	1	0601-
15	BOLT; FENDER M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0103-0310
15	BOLT; FENDER M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0311-0409
15	BOLT; FENDER FACE LIFT MODEL<TX7> M6X16 W/PL WASHER PHI	8-94204-636-0	08	1	0410-
15	BOLT; FENDER M6X12 W/PL WASHER PHI	8-94232-078-0	06	1	0103-0310
15	BOLT; FENDER M6X12 W/PL WASHER PHI	8-94232-078-0	06	1	0311-
15	BOLT; FENDER EXC. FACE LIFT MODEL<TX7> M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0410-
30	PANEL; COWL UPR (B) IDN	8-97956-984-0	01	1	0103-
30	PANEL; COWL UPR (A) PHI	8-97957-530-1	01	1	0103-
34	PANEL; DASH SIDE IDN	8-97958-600-0	01	1	0103-
34	PANEL; DASH SIDE IDN	8-97958-599-0	01	1	0103-
57	TRAY; BATTERY IDN	8-97957-723-0	01	1	0103-
70	PANEL ASM; COWL SIDE IDN	8-97955-346-3	01	1	0103-
70	PANEL ASM; COWL SIDE IDN	8-97955-345-3	01	1	0103-
78	BRACKET; FENDER GRADE XTRM(RBG) IDN	8-97958-105-0	01	1	0111-
78	BRACKET; FENDER GRADE XTRM(RBG) IDN	8-97958-104-0	01	1	0111-
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-361-1	01	1	0103-
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-360-1	01	1	0103-
198	NUT; PANEL D=7.9X7.9 L=20 M5	8-94441-539-0	07	1	0103-
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0103-0409
237	SUPPORT; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97955-896-1	01	1	0410-
237	SUPPORT; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-314-0	01	1	0410-
504	SCREW; COWL M5X19	8-97142-720-1	07	1	0103-
509	PANEL; DASH IDN	8-97976-008-3	01	1	0103-
534	FASTENER D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0103-

534 504 30 198 30 70 57 70 509 145 34 15 15 237 5 78 7 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0103-0310
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0311-
7	PANEL; DEFLECTOR IDN	8-97957-531-2	01	1	0103-0310
7	PANEL; DEFLECTOR IDN	8-97957-531-3	01	1	0311-0409
7	PANEL; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97957-531-3	01	1	0410-
7	PANEL; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-303-2	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-297-1	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-296-1	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-550-1	01	1	0103-0409
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97957-550-1	01	1	0410-
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-549-1	01	1	0103-0409
14	FENDER; FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97957-549-1	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) IDN	8-97958-160-2	01	1	0111-0409
14	FENDER; FRT GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97958-160-2	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) IDN	8-97958-159-2	01	1	0111-0409
14	FENDER; FRT GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97958-159-2	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-293-1	01	1	0410-
14	FENDER; FRT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-292-1	01	1	0410-
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0103-0310
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0311-0512
15	BOLT; FENDER M6X16 FLANGE	0-28650-616-0	02	1	0601-
15	BOLT; FENDER M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0103-0310
15	BOLT; FENDER M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0311-0409
15	BOLT; FENDER FACE LIFT MODEL<TX7> M6X16 W/PL WASHER PHI	8-94204-636-0	08	1	0410-
15	BOLT; FENDER M6X12 W/PL WASHER PHI	8-94232-078-0	06	1	0103-0310
15	BOLT; FENDER M6X12 W/PL WASHER PHI	8-94232-078-0	06	1	0311-
15	BOLT; FENDER EXC. FACE LIFT MODEL<TX7> M6X16 W/PL WASHER PHI	8-94204-636-0	10	1	0410-
30	PANEL; COWL UPR (B) IDN	8-97956-984-0	01	1	0103-
30	PANEL; COWL UPR (A) PHI	8-97957-530-1	01	1	0103-
34	PANEL; DASH SIDE IDN	8-97958-600-0	01	1	0103-
34	PANEL; DASH SIDE IDN	8-97958-599-0	01	1	0103-
57	TRAY; BATTERY IDN	8-97957-723-0	01	1	0103-
70	PANEL ASM; COWL SIDE IDN	8-97955-346-3	01	1	0103-
70	PANEL ASM; COWL SIDE IDN	8-97955-345-3	01	1	0103-
78	BRACKET; FENDER GRADE XTRM(RBG) IDN	8-97958-105-0	01	1	0111-
78	BRACKET; FENDER GRADE XTRM(RBG) IDN	8-97958-104-0	01	1	0111-
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-361-1	01	1	0103-
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-360-1	01	1	0103-
198	NUT; PANEL D=7.9X7.9 L=20 M5	8-94441-539-0	07	1	0103-
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0103-0409
237	SUPPORT; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97955-896-1	01	1	0410-
237	SUPPORT; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-314-0	01	1	0410-
504	SCREW; COWL M5X19	8-97142-720-1	07	1	0103-
509	PANEL; DASH IDN	8-97976-008-3	01	1	0103-
534	FASTENER D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0103-
