◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#47139) — 142 parça
çizim 11397
21 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 GUARD ASM; RAD GRILLE
GRILLE GUARD<6GA> IDN 		8-97956-741-0 01 1 0111-0409 ●
21 GUARD ASM; RAD GRILLE
GRILLE GUARD<6GA> EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-741-0 01 1 0410- ●
22 BOLT; GUARD,RAD GRILLE
GRILLE GUARD<6GA> (A) M8X12 FLANGE 		0-28080-812-0 03 1 0111-0409 ●
22 BOLT; GUARD,RAD GRILLE
GRILLE GUARD<6GA> EXC. FACE LIFT MODEL<TX7> (A) M8X12 FLANGE 		0-28080-812-0 03 1 0410-0512 ●
22 BOLT; GUARD,RAD GRILLE
GRILLE GUARD<6GA> EXC. FACE LIFT MODEL<TX7> (A) M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
22 BOLT; GUARD,RAD GRILLE
GRILLE GUARD<6GA> (B) M8X22 FLANGE 		8-94448-815-3 05 1 0111-0409 ●
22 BOLT; GUARD,RAD GRILLE
GRILLE GUARD<6GA> EXC. FACE LIFT MODEL<TX7> (B) M8X22 FLANGE 		8-94448-815-3 05 1 0410- ●

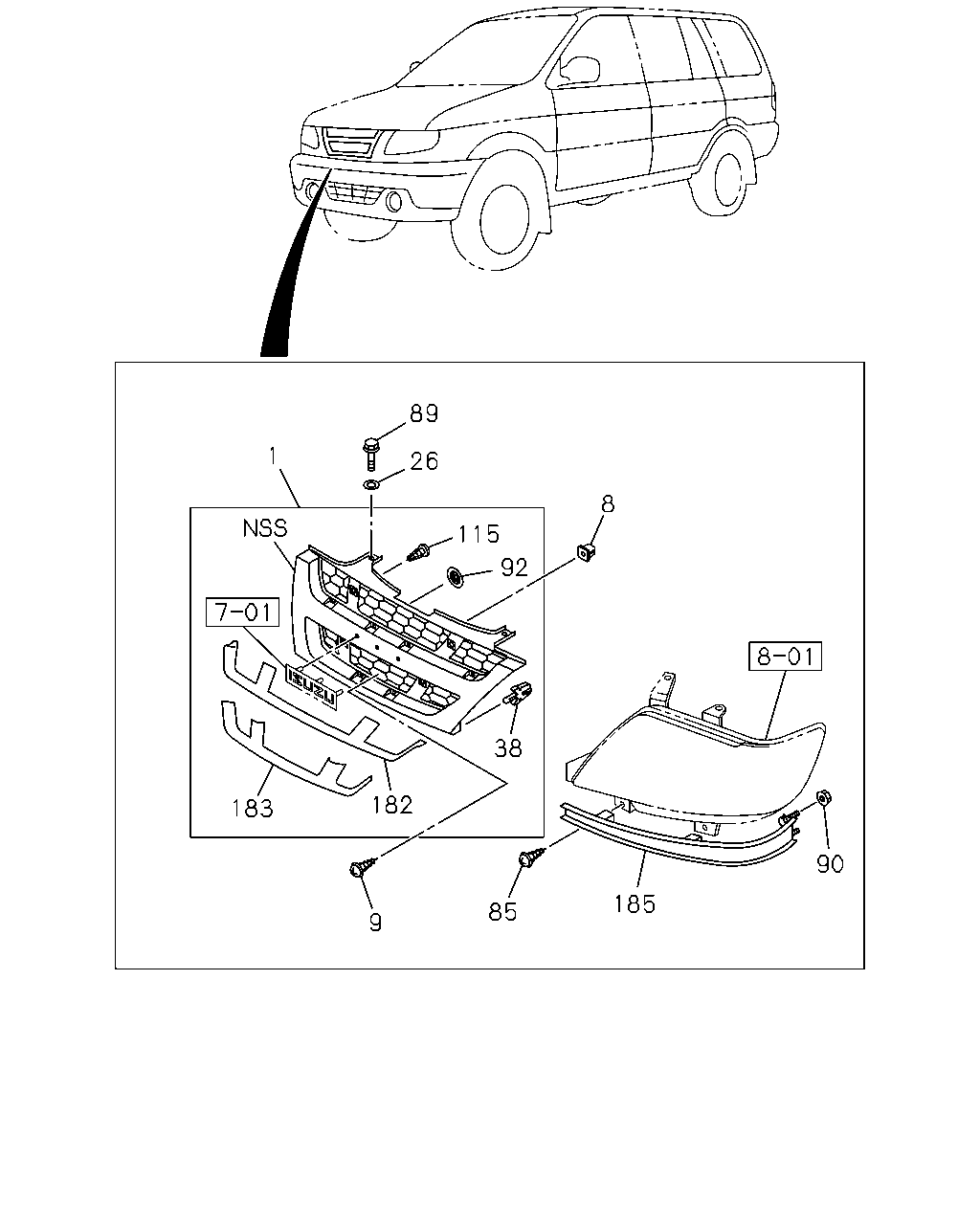

çizim 50423
89 1 26 8 115 92 38 182 183 90 185 85 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
DARK GRAY PHI 		8-97959-490-1 01 1 0103-0310 ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ASTRAL SILVER MET(619),BODY COLOR LIBERTY BLUE MICA(620) ,BODY COLOR CHIANTI RED MICA(623),BODY COLOR SPRUCE GREEN MICA(624) DARK GRAY PHI 		8-97959-490-1 01 1 0311-0409 ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ASTRAL SILVER MET(619),BODY COLOR LIBERTY BLUE MICA(620) ,BODY COLOR CHIANTI RED MICA(623),BODY COLOR SPRUCE GREEN MICA(624) EXC. FACE LIFT MODEL<TX7> DARK GRAY PHI 		8-97959-490-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-601-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-609-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-602-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-610-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED PHI 		8-97399-606-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> RED PHI 		8-97399-614-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ORANGE PHI 		8-97399-613-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> ORANGE PHI 		8-97399-605-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-607-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-615-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-603-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-611-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN PHI 		8-97399-604-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> GREEN PHI 		8-97399-612-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLACK PHI 		8-97399-616-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLACK PHI 		8-97399-608-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) WHITE PHI 		8-97560-519-1 01 1 0106-0302 ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) WHITE PHI 		8-97560-519-1 01 1 0303-0409 ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) EXC. FACE LIFT MODEL<TX7> WHITE PHI 		8-97560-519-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) SILVER PHI 		8-97958-826-1 01 1 0106-0409 ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) EXC. FACE LIFT MODEL<TX7> SILVER PHI 		8-97958-826-1 01 1 0410- ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) RED PHI 		8-97958-831-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) RED PHI 		8-97958-831-1 01 1 0111-0409 ● ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) EXC. FACE LIFT MODEL<TX7> RED PHI 		8-97958-831-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635) GREEN PHI 		8-97958-828-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635) GREEN PHI 		8-97958-828-1 01 1 0111-0302 ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) BLUE PHI 		8-97958-832-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) BLUE PHI 		8-97958-832-1 01 1 0111-0409 ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) EXC. FACE LIFT MODEL<TX7> BLUE PHI 		8-97958-832-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) BLUE PHI 		8-97958-827-1 01 1 0103-0310 ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) BLUE PHI 		8-97958-827-1 01 1 0311-0409 ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) EXC. FACE LIFT MODEL<TX7> BLUE PHI 		8-97958-827-1 01 1 0410- ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) GREEN PHI 		8-97958-829-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) GREEN PHI 		8-97958-829-1 01 1 0111-0409 ● ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) EXC. FACE LIFT MODEL<TX7> GREEN PHI 		8-97958-829-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) ORANGE PHI 		8-97958-830-1 01 1 0111-0409 ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) EXC. FACE LIFT MODEL<TX7> ORANGE PHI 		8-97958-830-1 01 1 0410- ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) BLACK PHI 		8-97958-833-1 01 1 0111-0409 ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) EXC. FACE LIFT MODEL<TX7> BLACK PHI 		8-97958-833-1 01 1 0410- ●
8 GROMMET; SCREW,RAD GRILLE
FACE LIFT MODEL<TX7> 		8-94291-927-0 01 1 0410- ● ● ● ●
9 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> M5X16 		8-94380-268-0 01 1 0410- ● ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0103-0409 ● ● ● ●
26 WASHER; PL
FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 02 1 0410-0605 ● ● ● ●
26 WASHER; PL
FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 03 1 0410-0605 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ● ● ● ●
38 CLIP; GRILLE
FACE LIFT MODEL<TX7> BLACK 		8-94218-027-0 02 1 0410- ● ● ● ●
85 SCREW; RAD GRILLE SIDE
FACE LIFT MODEL<TX7> M5X16 		8-94380-268-0 04 1 0410- ● ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0103-0409 ● ● ● ●
89 BOLT; RAD GRILLE
FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0410- ● ● ● ●
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0410- ● ● ● ●
90 NUT; RAD GRILLE
FACE LIFT MODEL<TX7> M6 FLANGE 		0-91150-106-0 02 1 0410-0602 ● ● ● ●
90 NUT; RAD GRILLE
FACE LIFT MODEL<TX7> M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
92 STOPPER; RAD GRILLE 8-97182-223-0 03 1 0103- ● ● ● ●
115 SCREW; FRT GRILLE
FACE LIFT MODEL<TX7> IDN 		8-97944-140-0 14 1 0410- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-977-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-653-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-656-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-680-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-674-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-686-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-662-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-668-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-692-0 01 1 0410- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-979-0 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0410- ● ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0410- ● ● ● ●
çizim 51322
92 89 26 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
DARK GRAY PHI 		8-97959-490-1 01 1 0103-0310 ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ASTRAL SILVER MET(619),BODY COLOR LIBERTY BLUE MICA(620) ,BODY COLOR CHIANTI RED MICA(623),BODY COLOR SPRUCE GREEN MICA(624) DARK GRAY PHI 		8-97959-490-1 01 1 0311-0409 ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ASTRAL SILVER MET(619),BODY COLOR LIBERTY BLUE MICA(620) ,BODY COLOR CHIANTI RED MICA(623),BODY COLOR SPRUCE GREEN MICA(624) EXC. FACE LIFT MODEL<TX7> DARK GRAY PHI 		8-97959-490-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-601-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-609-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-602-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-610-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED PHI 		8-97399-606-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> RED PHI 		8-97399-614-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ORANGE PHI 		8-97399-613-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> ORANGE PHI 		8-97399-605-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-607-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-615-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-603-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE PHI 		8-97399-611-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN PHI 		8-97399-604-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> GREEN PHI 		8-97399-612-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLACK PHI 		8-97399-616-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLACK PHI 		8-97399-608-2 01 1 0410- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) WHITE PHI 		8-97560-519-1 01 1 0106-0302 ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) WHITE PHI 		8-97560-519-1 01 1 0303-0409 ● ●
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) EXC. FACE LIFT MODEL<TX7> WHITE PHI 		8-97560-519-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) SILVER PHI 		8-97958-826-1 01 1 0106-0409 ●
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(619),BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) EXC. FACE LIFT MODEL<TX7> SILVER PHI 		8-97958-826-1 01 1 0410- ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) RED PHI 		8-97958-831-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) RED PHI 		8-97958-831-1 01 1 0111-0409 ● ●
1 GRILLE; RAD
BODY COLOR CHIANTI RED MICA(623),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637) EXC. FACE LIFT MODEL<TX7> RED PHI 		8-97958-831-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635) GREEN PHI 		8-97958-828-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(622),BODY COLOR CYPRESS GREEN MICA/LT.SILVER MET(635) GREEN PHI 		8-97958-828-1 01 1 0111-0302 ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) BLUE PHI 		8-97958-832-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) BLUE PHI 		8-97958-832-1 01 1 0111-0409 ● ●
1 GRILLE; RAD
BODY COLOR GALA PEACOCK MICA(621),BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636) EXC. FACE LIFT MODEL<TX7> BLUE PHI 		8-97958-832-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) BLUE PHI 		8-97958-827-1 01 1 0103-0310 ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) BLUE PHI 		8-97958-827-1 01 1 0311-0409 ●
1 GRILLE; RAD
BODY COLOR LIBERTY BLUE MICA(620),BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634) EXC. FACE LIFT MODEL<TX7> BLUE PHI 		8-97958-827-1 01 1 0410- ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) GREEN PHI 		8-97958-829-1 01 1 0103-0110 ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) GREEN PHI 		8-97958-829-1 01 1 0111-0409 ● ●
1 GRILLE; RAD
BODY COLOR SPRUCE GREEN MICA(624),BODY COLOR SPRUCE GREEN MICA/LT.SILVER MET(638) EXC. FACE LIFT MODEL<TX7> GREEN PHI 		8-97958-829-1 01 1 0410- ● ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) ORANGE PHI 		8-97958-830-1 01 1 0111-0409 ●
1 GRILLE; RAD
BODY COLOR COPPER ORANGE(625) EXC. FACE LIFT MODEL<TX7> ORANGE PHI 		8-97958-830-1 01 1 0410- ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) BLACK PHI 		8-97958-833-1 01 1 0111-0409 ●
1 GRILLE; RAD
BODY COLOR STEEL BLACK MET(626) EXC. FACE LIFT MODEL<TX7> BLACK PHI 		8-97958-833-1 01 1 0410- ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0103-0409 ● ● ● ●
26 WASHER; PL
FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 02 1 0410-0605 ● ● ● ●
26 WASHER; PL
FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 03 1 0410-0605 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ● ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0103-0409 ● ● ● ●
89 BOLT; RAD GRILLE
FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0410- ● ● ● ●
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0410- ● ● ● ●
92 STOPPER; RAD GRILLE 8-97182-223-0 03 1 0103- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
