Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#47138) — 292 parça

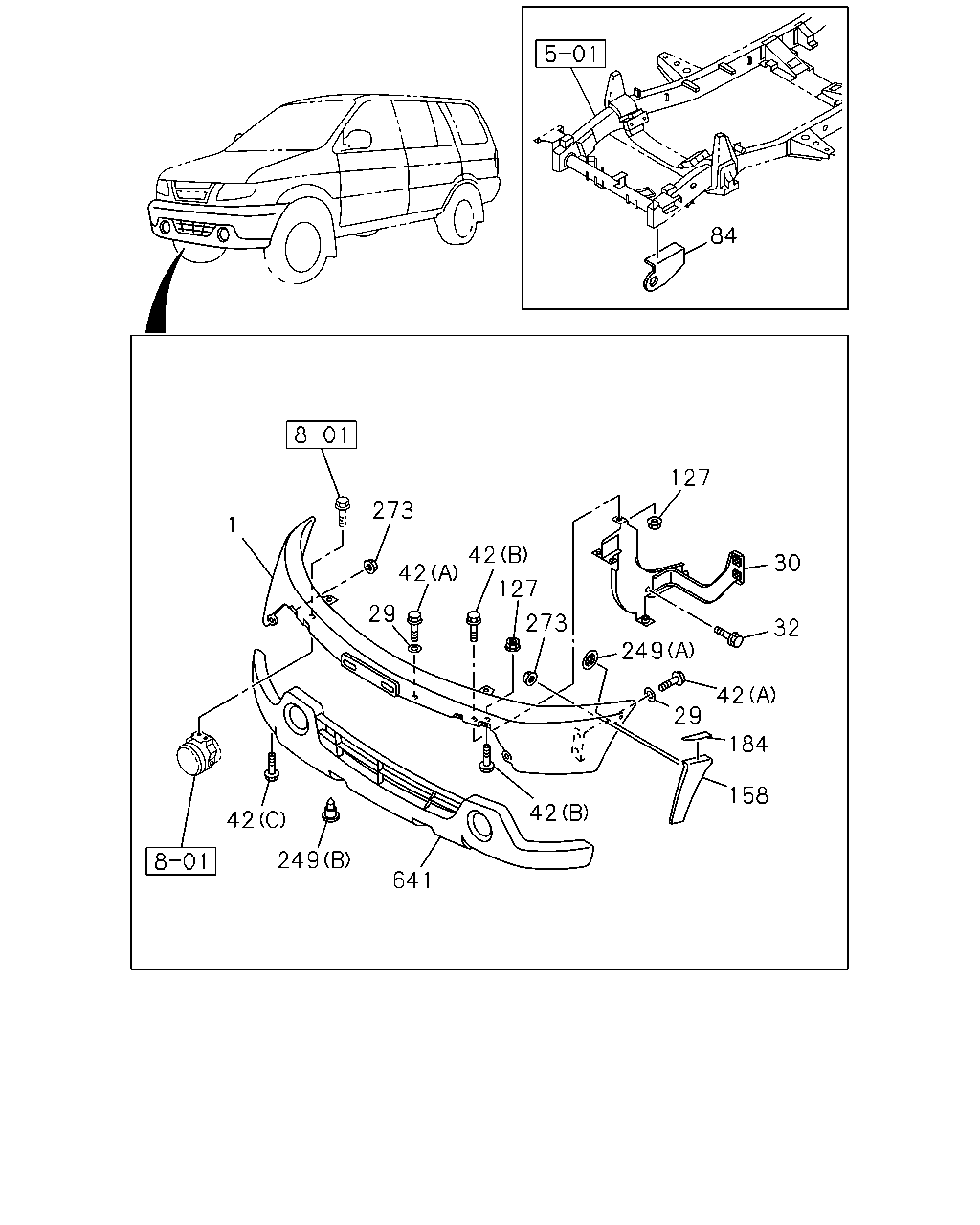

84 127 273 1 42 30 42 127 29 273 32 249 42 29 184 158 42 42 249 641

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BODY COLOR ALPINE WHITE(617) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT BODY COLOR ASTRAL SILVER MET(619) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT BODY COLOR CHIANTI RED MICA(623) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT BODY COLOR GALA PEACOCK MICA(621) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT BODY COLOR LIBERTY BLUE MICA(620) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634), BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637),BODY COLORSPRUCE GREEN MICA/LT.SILVER MET(638),BODY COLOR ALPINE WHITE/LT.SILVER(661),BODY COLOR ASTRAL SILVERMET/KAISER SILVERMET(662) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT BODY COLOR SPRUCE GREEN MICA(624) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0410-
1	BUMPER ASM; FRT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-991-3	01	1	0410-
29	WASHER; FRT BUMPER FACE LIFT MODEL<TX7> ID=8.4 OD=22	9-09160-708-0	04	1	0410-0605
29	WASHER; FRT BUMPER FACE LIFT MODEL<TX7> ID=8.4 OD=22	0-91610-708-0	04	1	0606-
30	BRACKET; FRT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-017-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-019-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-016-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-018-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97955-583-2	01	1	0103-0409
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-583-2	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-432-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97955-582-2	01	1	0103-0409
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-582-2	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-431-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) IDN	8-97956-553-1	01	1	0111-0409
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97956-553-1	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-434-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) IDN	8-97956-552-1	01	1	0111-0409
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97956-552-1	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-433-0	01	1	0411-
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28691-230-0	04	1	0103-0512
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28661-230-0	04	1	0601-
42	BOLT; BUMPER (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
42	BOLT; BUMPER (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
42	BOLT; BUMPER (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0103-0409
42	BOLT; BUMPER EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0410-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28680-820-0	03	1	0410-0512
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	06	1	0410-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (C) M6X12	8-97351-109-0	06	1	0410-
84	HOOK IDN	8-97958-976-0	01	1	0308-0311
84	HOOK IDN	8-97958-976-0	01	1	0103-0307
84	HOOK FACE LIFT MODEL<TX7> IDN	8-97562-381-0	01	1	0410-0603
84	HOOK FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0604-
84	HOOK PARKING BRAKE FLOOR<7XW> IDN	8-97958-976-0	01	1	0312-0402
84	HOOK IDN	8-97958-976-0	01	1	0403-0406
84	HOOK PHI	8-97977-478-0	01	1	0407-0409
84	HOOK EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0410-
127	NUT; FRT BUMPER M8 FLANGE	5-09440-005-0	08	1	0103-0409
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	08	1	0410-
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	06	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR ASTRAL SILVER MET(619) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR ASTRAL SILVER MET(619) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR CHIANTI RED MICA(623) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR CHIANTI RED MICA(623) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR GALA PEACOCK MICA(621) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR GALA PEACOCK MICA(621) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR LIBERTY BLUE MICA(620) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR LIBERTY BLUE MICA(620) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634), BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637),BODY COLORSPRUCE GREEN MICA/LT.SILVER MET(638),BODY COLOR ALPINE WHITE/LT.SILVER(661),BODY COLOR ASTRAL SILVERMET/KAISER SILVERMET(662) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR LIBERTY BLUE MICA/LT.SILVER MET(634), BODY COLOR GALA PEACOCK MICA/LT.SILVER MET(636),BODY COLOR CHIANTI RED MICA/LT.SILVER MET(637),BODY COLORSPRUCE GREEN MICA/LT.SILVER MET(638),BODY COLOR ALPINE WHITE/LT.SILVER(661),BODY COLOR ASTRAL SILVERMET/KAISER SILVERMET(662) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR SPRUCE GREEN MICA(624) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0410-
158	EXTENSION; FRT BUMPER BODY COLOR SPRUCE GREEN MICA(624) GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0410-
158	EXTENSION; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> TAI	8-97943-996-0	01	1	0410-
158	EXTENSION; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> TAI	8-97943-995-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97958-888-0	01	1	0103-0409
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-888-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97958-887-0	01	1	0103-0409
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-887-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-554-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-553-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) PHI	8-97959-275-0	01	1	0111-0409
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97959-275-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) PHI	8-97959-274-0	01	1	0111-0409
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97959-274-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-557-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-556-0	01	1	0410-
249	RETAINER; BEAM LWR FACE LIFT MODEL<TX7> (B) THA	8-97301-188-0	02	1	0410-
249	RETAINER; BEAM LWR GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> (A)	8-97182-223-0	02	1	0410-
273	NUT; BUMPER TO EXT FACE LIFT MODEL<TX7> M6 FLANGE	0-91150-106-0	06	1	0410-0602
273	NUT; BUMPER TO EXT FACE LIFT MODEL<TX7> M6 FLANGE	0-91180-106-0	06	1	0603-
273	NUT; BUMPER TO EXT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> M6 FLANGE	0-91150-106-0	04	1	0410-0602
273	NUT; BUMPER TO EXT GRADE XTRM(RBG) FACE LIFT MODEL<TX7> M6 FLANGE	0-91180-106-0	04	1	0603-
641	BUMPER; FRT,LWR FACE LIFT MODEL<TX7> IDN	8-97944-041-0	01	1	0410-

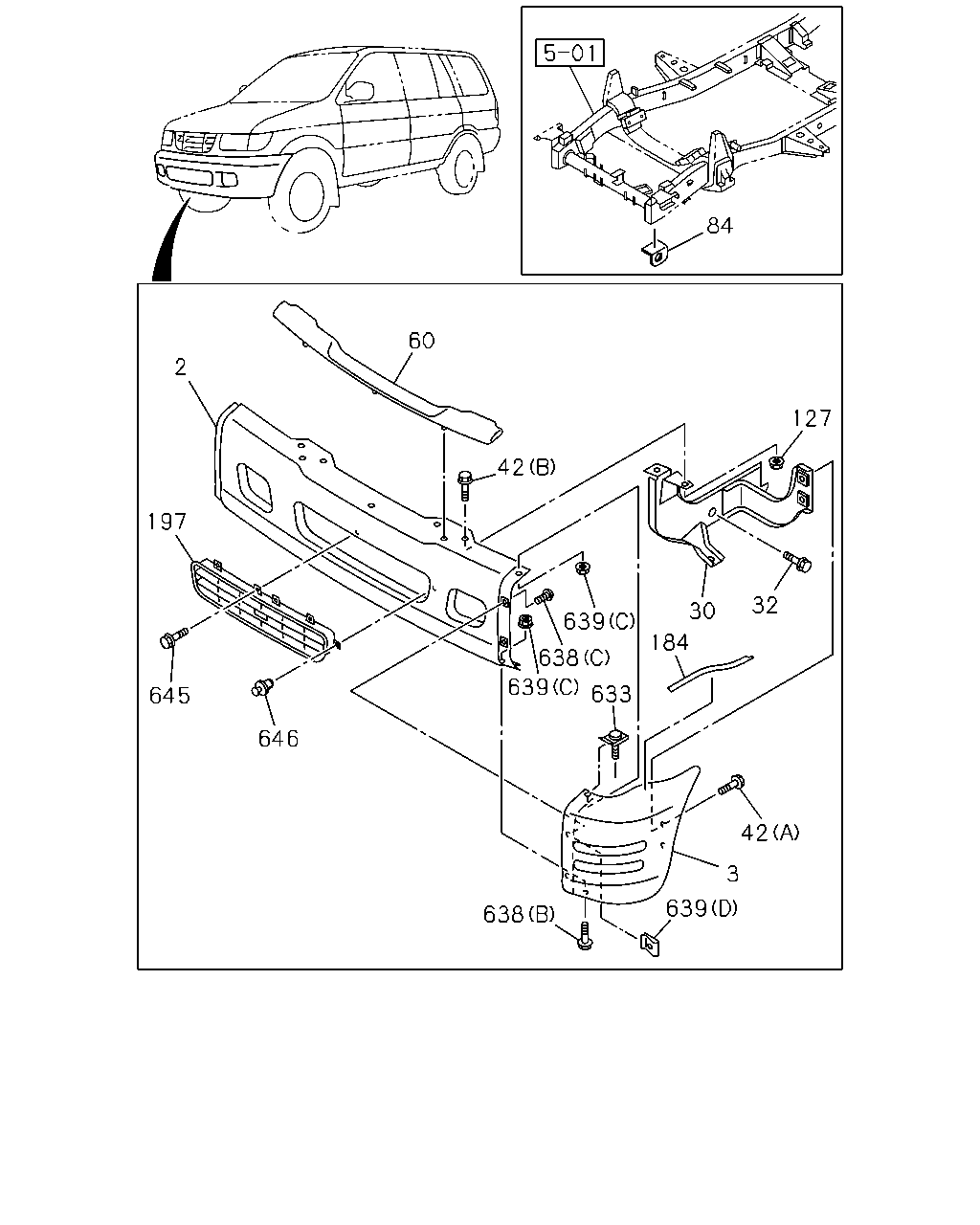

84 60 2 127 42 197 32 30 639 184 638 639 633 645 646 42 3 639 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BUMPER; FRT,CENTER GRADE XL(RBA) PHI	8-97976-892-0	01	1	0103-
2	BUMPER; FRT,CENTER GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97976-893-0	01	1	0103-
2	BUMPER; FRT,CENTER GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-893-0	01	1	0410-
2	BUMPER; FRT,CENTER GRADE XTRM(RBG) PHI	8-97957-993-1	01	1	0111-0409
2	BUMPER; FRT,CENTER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97957-993-1	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97976-895-0	01	1	0103-0409
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-895-0	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97976-894-0	01	1	0103-0409
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-894-0	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) PHI	8-97957-996-3	01	1	0111-0409
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97957-996-3	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) PHI	8-97957-995-3	01	1	0111-0409
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97957-995-3	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-017-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-019-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-016-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-018-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97955-583-2	01	1	0103-0409
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-583-2	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-432-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97955-582-2	01	1	0103-0409
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-582-2	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-431-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) IDN	8-97956-553-1	01	1	0111-0409
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97956-553-1	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-434-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) IDN	8-97956-552-1	01	1	0111-0409
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97956-552-1	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-433-0	01	1	0411-
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28691-230-0	04	1	0103-0512
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28661-230-0	04	1	0601-
42	BOLT; BUMPER (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
42	BOLT; BUMPER (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
42	BOLT; BUMPER (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0103-0409
42	BOLT; BUMPER EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0410-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28680-820-0	03	1	0410-0512
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	06	1	0410-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (C) M6X12	8-97351-109-0	06	1	0410-
60	SPACER; FRT BUMPER OVER FENDER<6GH> IDN	8-97959-477-2	01	1	0111-0207
60	SPACER; FRT BUMPER GRADE XTRM(RBG) IDN	8-97959-477-2	01	1	0208-0409
60	SPACER; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97959-477-2	01	1	0410-
84	HOOK IDN	8-97958-976-0	01	1	0308-0311
84	HOOK IDN	8-97958-976-0	01	1	0103-0307
84	HOOK FACE LIFT MODEL<TX7> IDN	8-97562-381-0	01	1	0410-0603
84	HOOK FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0604-
84	HOOK PARKING BRAKE FLOOR<7XW> IDN	8-97958-976-0	01	1	0312-0402
84	HOOK IDN	8-97958-976-0	01	1	0403-0406
84	HOOK PHI	8-97977-478-0	01	1	0407-0409
84	HOOK EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0410-
127	NUT; FRT BUMPER M8 FLANGE	5-09440-005-0	08	1	0103-0409
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	08	1	0410-
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	06	1	0410-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97958-888-0	01	1	0103-0409
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-888-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97958-887-0	01	1	0103-0409
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-887-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-554-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-553-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) PHI	8-97959-275-0	01	1	0111-0409
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97959-275-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) PHI	8-97959-274-0	01	1	0111-0409
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97959-274-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-557-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-556-0	01	1	0410-
197	GRILLE; BUMPER GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-167-0	01	1	0103-0110
197	GRILLE; BUMPER GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) IDN	8-97957-167-0	01	1	0111-0409
197	GRILLE; BUMPER GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97957-167-0	01	1	0410-
633	CLIP; BUMPER GRADE XTRM(RBG)	8-97806-845-2	02	1	0111-0409
633	CLIP; BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7>	8-97806-845-2	02	1	0410-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8X20 DACRO-COATING	8-94241-821-0	08	1	0103-0311
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0312-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0312-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0410-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0410-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (C) M6X20 FLANGE	0-28680-620-0	04	1	0111-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6X20 FLANGE	0-28680-620-0	04	1	0410-0512
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6X20 FLANGE	0-28650-620-0	04	1	0601-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (B) M6X12	8-97807-917-0	02	1	0111-0208
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (B) M6X12	8-97351-109-0	02	1	0209-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (B) M6X12	8-97351-109-0	02	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8 FLANGE	5-09440-005-0	08	1	0103-0311
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8 FLANGE	5-09440-005-0	04	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8 FLANGE	5-09440-005-0	04	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE	5-09440-005-0	04	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE	5-09440-005-0	04	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M8 FLANGE	8-97065-435-0	04	1	0103-0311
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M8 FLANGE	8-97065-435-0	02	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M8 FLANGE	8-97065-435-0	02	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (B) M8 FLANGE	8-97065-435-0	02	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (B) M8 FLANGE	8-97065-435-0	02	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (C) M6 FLANGE	0-91150-106-0	04	1	0111-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6 FLANGE	0-91150-106-0	04	1	0410-0602
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6 FLANGE	0-91180-106-0	04	1	0603-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (D)	8-94471-330-2	04	1	0111-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (D)	8-94471-330-2	04	1	0410-
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD) M6X12	8-97807-917-0	05	1	0103-0110
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) M6X12	8-97807-917-0	05	1	0111-0208
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) M6X12	8-97351-109-0	05	1	0209-0409
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> M6X12	8-97351-109-0	05	1	0410-
646	FASTENER; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0103-0110
646	FASTENER; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0111-0409
646	FASTENER; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0410-

84 2 104 127 42 197 32 30 639 184 639 639 638 645 646 42 638 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BUMPER; FRT,CENTER GRADE XL(RBA) PHI	8-97976-892-0	01	1	0103-
2	BUMPER; FRT,CENTER GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97976-893-0	01	1	0103-
2	BUMPER; FRT,CENTER GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-893-0	01	1	0410-
2	BUMPER; FRT,CENTER GRADE XTRM(RBG) PHI	8-97957-993-1	01	1	0111-0409
2	BUMPER; FRT,CENTER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97957-993-1	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97976-895-0	01	1	0103-0409
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-895-0	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97976-894-0	01	1	0103-0409
3	BUMPER; FRT,SIDE GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-894-0	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) PHI	8-97957-996-3	01	1	0111-0409
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97957-996-3	01	1	0410-
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) PHI	8-97957-995-3	01	1	0111-0409
3	BUMPER; FRT,SIDE GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97957-995-3	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-017-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-019-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-016-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-018-2	01	1	0410-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97955-583-2	01	1	0103-0409
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-583-2	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-432-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97955-582-2	01	1	0103-0409
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-582-2	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-431-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) IDN	8-97956-553-1	01	1	0111-0409
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97956-553-1	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-434-0	01	1	0411-
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) IDN	8-97956-552-1	01	1	0111-0409
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97956-552-1	01	1	0410-0410
30	BRACKET; FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-433-0	01	1	0411-
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28691-230-0	04	1	0103-0512
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28661-230-0	04	1	0601-
42	BOLT; BUMPER (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
42	BOLT; BUMPER (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
42	BOLT; BUMPER (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0103-0409
42	BOLT; BUMPER EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0410-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28680-820-0	03	1	0410-0512
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	06	1	0410-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (C) M6X12	8-97351-109-0	06	1	0410-
84	HOOK IDN	8-97958-976-0	01	1	0308-0311
84	HOOK IDN	8-97958-976-0	01	1	0103-0307
84	HOOK FACE LIFT MODEL<TX7> IDN	8-97562-381-0	01	1	0410-0603
84	HOOK FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0604-
84	HOOK PARKING BRAKE FLOOR<7XW> IDN	8-97958-976-0	01	1	0312-0402
84	HOOK IDN	8-97958-976-0	01	1	0403-0406
84	HOOK PHI	8-97977-478-0	01	1	0407-0409
84	HOOK EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0410-
104	COVER; HOLE,FOG LAMP EXC. FOG LAMP<T96> IDN	8-97956-714-1	01	1	0103-0409
104	COVER; HOLE,FOG LAMP EXC. FACE LIFT MODEL<TX7>,FOG LAMP<T96> IDN	8-97956-714-1	01	1	0410-
104	COVER; HOLE,FOG LAMP EXC. FOG LAMP<T96> IDN	8-97956-713-1	01	1	0103-0409
104	COVER; HOLE,FOG LAMP EXC. FACE LIFT MODEL<TX7>,FOG LAMP<T96> IDN	8-97956-713-1	01	1	0410-
127	NUT; FRT BUMPER M8 FLANGE	5-09440-005-0	08	1	0103-0409
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	08	1	0410-
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	06	1	0410-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97958-888-0	01	1	0103-0409
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-888-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97958-887-0	01	1	0103-0409
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-887-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-554-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XT(RBB),GRADE XTO(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-553-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) PHI	8-97959-275-0	01	1	0111-0409
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97959-275-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) PHI	8-97959-274-0	01	1	0111-0409
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97959-274-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-557-0	01	1	0410-
184	TAPE; FRONT BUMPER GRADE XTRM(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-556-0	01	1	0410-
197	GRILLE; BUMPER GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-167-0	01	1	0103-0110
197	GRILLE; BUMPER GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) IDN	8-97957-167-0	01	1	0111-0409
197	GRILLE; BUMPER GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> IDN	8-97957-167-0	01	1	0410-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8X20 DACRO-COATING	8-94241-821-0	08	1	0103-0311
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0312-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0312-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0410-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8X20 DACRO-COATING	8-94241-821-0	04	1	0410-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (C) M6X20 FLANGE	0-28680-620-0	04	1	0111-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6X20 FLANGE	0-28680-620-0	04	1	0410-0512
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6X20 FLANGE	0-28650-620-0	04	1	0601-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (B) M6X12	8-97807-917-0	02	1	0111-0208
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (B) M6X12	8-97351-109-0	02	1	0209-0409
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (B) M6X12	8-97351-109-0	02	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8 FLANGE	5-09440-005-0	08	1	0103-0311
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8 FLANGE	5-09440-005-0	04	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) M8 FLANGE	5-09440-005-0	04	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE	5-09440-005-0	04	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE	5-09440-005-0	04	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M8 FLANGE	8-97065-435-0	04	1	0103-0311
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M8 FLANGE	8-97065-435-0	02	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) M8 FLANGE	8-97065-435-0	02	1	0312-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (B) M8 FLANGE	8-97065-435-0	02	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. FACE LIFT MODEL<TX7> (B) M8 FLANGE	8-97065-435-0	02	1	0410-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (C) M6 FLANGE	0-91150-106-0	04	1	0111-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6 FLANGE	0-91150-106-0	04	1	0410-0602
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (C) M6 FLANGE	0-91180-106-0	04	1	0603-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) (D)	8-94471-330-2	04	1	0111-0409
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> (D)	8-94471-330-2	04	1	0410-
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD) M6X12	8-97807-917-0	05	1	0103-0110
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) M6X12	8-97807-917-0	05	1	0111-0208
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) M6X12	8-97351-109-0	05	1	0209-0409
645	BOLT; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> M6X12	8-97351-109-0	05	1	0410-
646	FASTENER; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0103-0110
646	FASTENER; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0111-0409
646	FASTENER; BUMPER GRILLE GRADE XT(RBB),GRADE XTO(RBD),GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> D5.8 SCREW & GROMMET NYLON	8-94242-150-0	06	1	0410-

70 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BOLT; BRKT TO FRAME GRADE XTRM(RBG) M6X10 FLANGE	0-28080-610-0	02	1	0111-0409
53	BOLT; BRKT TO FRAME GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> M6X10 FLANGE	0-28080-610-0	02	1	0410-0512
53	BOLT; BRKT TO FRAME GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> M6X10 FLANGE	0-28050-610-0	02	1	0601-
70	BRACKET; LICENSE PLATE,FRT GRADE XTRM(RBG) PHI	8-97977-004-1	01	1	0111-0409
70	BRACKET; LICENSE PLATE,FRT GRADE XTRM(RBG) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-004-1	01	1	0410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
