5-01 — FRAME AND OTHER PARTS (#47133) — 67 parça

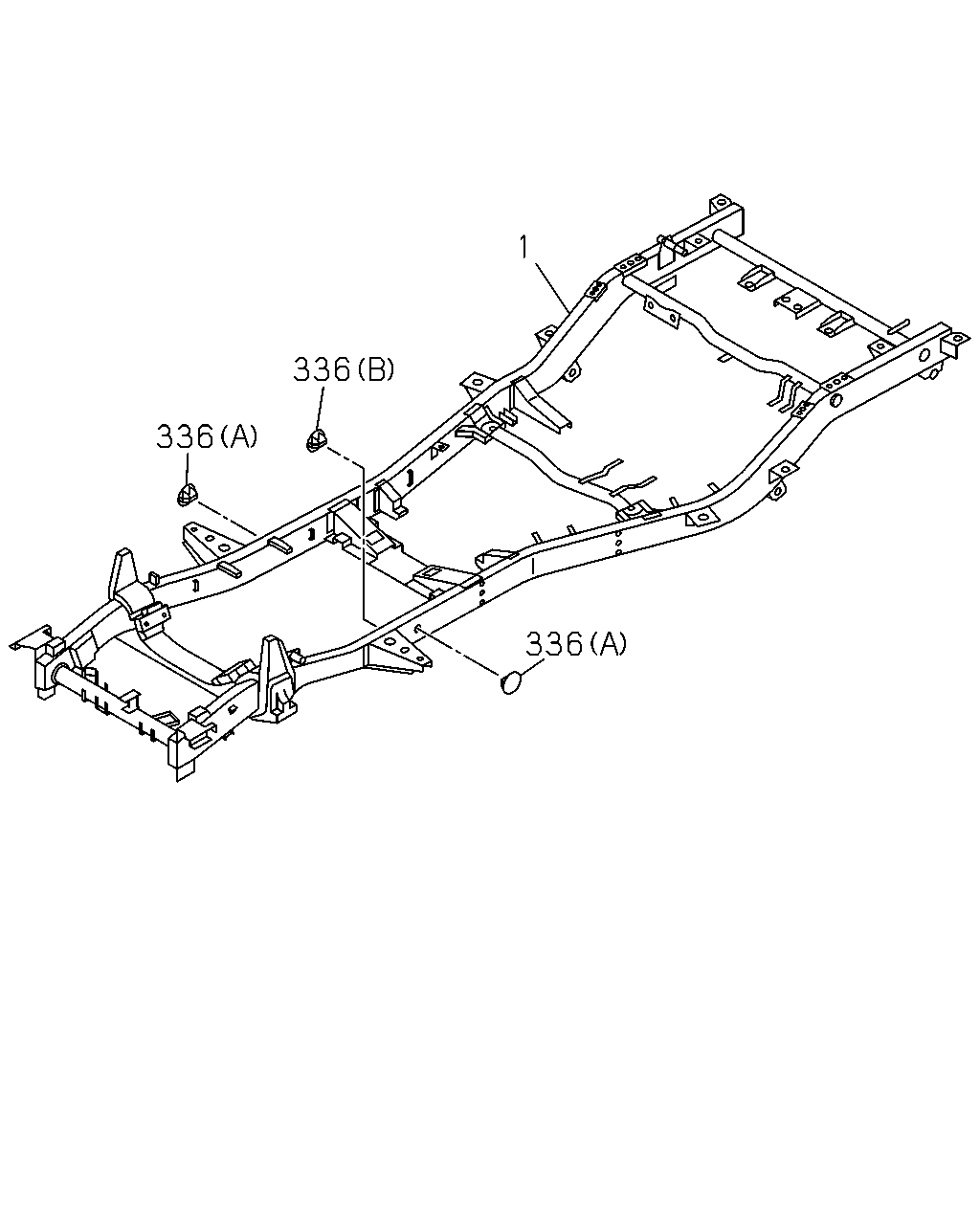

çizim 49797
1 336 336 336
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T AISIN(RMD) PHI 		8-97976-902-1 01 1 0103-0103
1 FRAME ASM
A/T AISIN(RMD) PHI 		8-97976-961-6 01 1 0103-0401
1 FRAME ASM
A/T AISIN(RMD) EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97976-961-7 01 1 0402-0409
1 FRAME ASM
A/T AISIN(RMD) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-961-7 01 1 0410-
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-383-1 01 1 0410-
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-377-1 01 1 0410-
1 FRAME ASM
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> PHI 		8-97977-381-1 01 1 0402-0409
1 FRAME ASM
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-381-1 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) PHI 		8-97976-901-1 01 1 0103-0103
1 FRAME ASM
M/T MSG 5 SPEED(M75) PHI 		8-97976-960-6 01 1 0103-0401
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97976-960-7 01 1 0402-0409
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-960-7 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-382-1 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-376-1 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> PHI 		8-97977-380-1 01 1 0402-0409
1 FRAME ASM
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-380-1 01 1 0410-
336 PLUG; HOLE
(A) OD=40 BLACK 		8-97806-918-0 02 1 0103-
336 PLUG; HOLE
(B) OD=33 BLUE 		8-97806-919-0 04 1 0103-0207

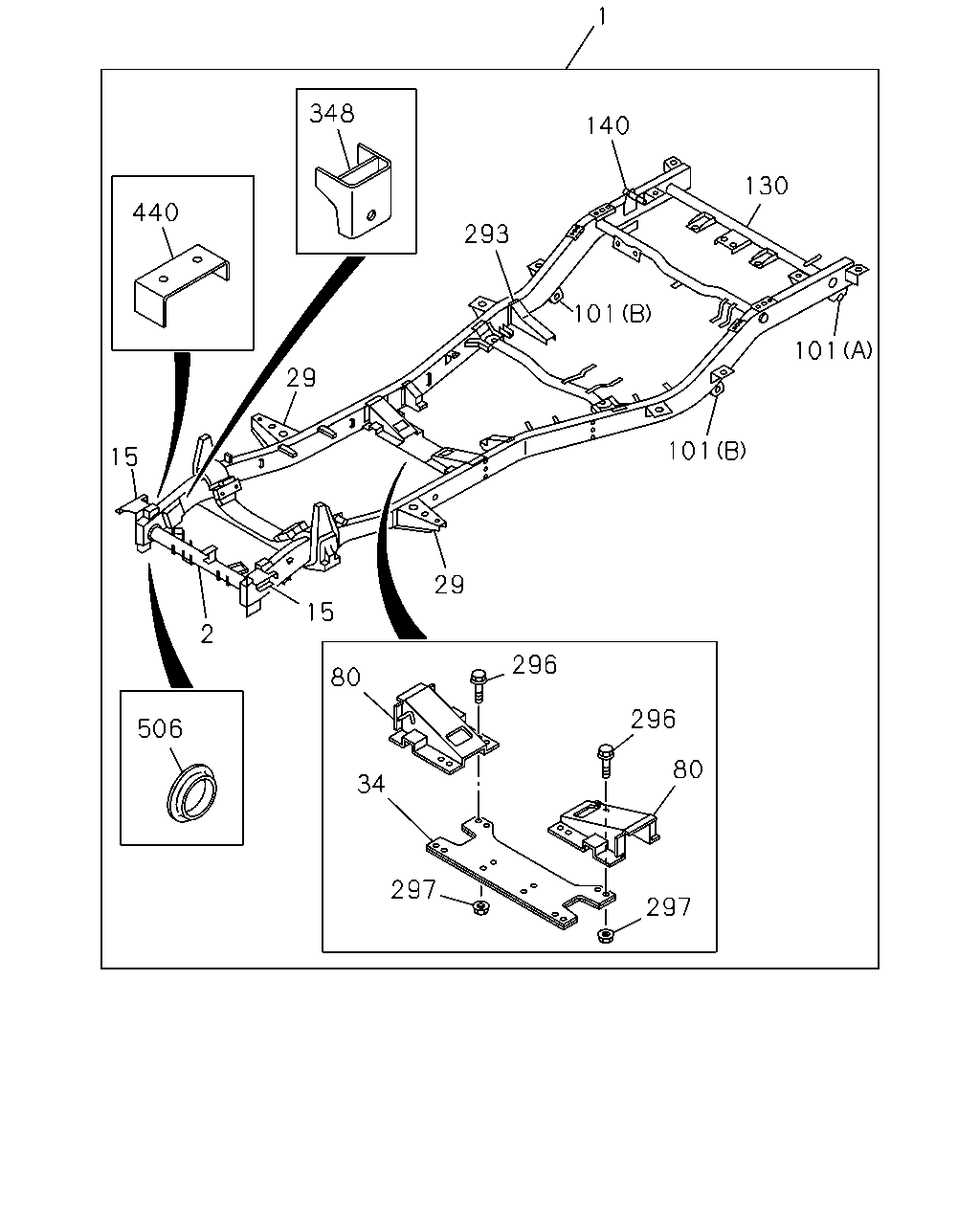

çizim 52079
1 348 140 130 440 293 101 101 29 101 15 29 15 2 296 80 296 506 80 34 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T AISIN(RMD) PHI 		8-97976-902-1 01 1 0103-0103
1 FRAME ASM
A/T AISIN(RMD) PHI 		8-97976-961-6 01 1 0103-0401
1 FRAME ASM
A/T AISIN(RMD) EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97976-961-7 01 1 0402-0409
1 FRAME ASM
A/T AISIN(RMD) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-961-7 01 1 0410-
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-383-1 01 1 0410-
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-377-1 01 1 0410-
1 FRAME ASM
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> PHI 		8-97977-381-1 01 1 0402-0409
1 FRAME ASM
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-381-1 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) PHI 		8-97976-901-1 01 1 0103-0103
1 FRAME ASM
M/T MSG 5 SPEED(M75) PHI 		8-97976-960-6 01 1 0103-0401
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97976-960-7 01 1 0402-0409
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-960-7 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-382-1 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-376-1 01 1 0410-
1 FRAME ASM
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> PHI 		8-97977-380-1 01 1 0402-0409
1 FRAME ASM
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-380-1 01 1 0410-
2 MEMBER; CROSS,1ST
IDN 		8-97956-145-1 01 1 0103-0311
2 MEMBER; CROSS,1ST
PHI 		8-97977-318-0 01 1 0312-
15 BRACKET; BODY MTG,FRT
IDN 		8-97956-584-0 01 1 0103-0409
15 BRACKET; BODY MTG,FRT
PHI 		8-97977-554-0 01 1 0410-
15 BRACKET; BODY MTG,FRT
IDN 		8-97956-585-0 01 1 0103-0409
15 BRACKET; BODY MTG,FRT
PHI 		8-97977-555-0 01 1 0410-
29 BRACKET; CAB MTG
IDN 		8-97956-586-0 02 1 0103-0603
29 BRACKET; CAB MTG
PHI 		8-97977-720-0 02 1 0604-
34 MEMBER; CROSS,3RD
IDN 		8-97956-156-3 01 1 0103-
80 BRACKET; C/MBR
PHI 		8-97956-171-1 01 1 0103-
80 BRACKET; C/MBR
PHI 		8-97957-989-1 01 1 0103-
101 BRACKET; RR SPR,FRT
(A) IDN 		8-97956-591-0 02 1 0103-
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97958-926-0 01 1 0103-0103
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97959-861-0 01 1 0103-0409
101 BRACKET; RR SPR,FRT
(B) PHI 		8-97976-962-0 01 1 0410-
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97958-925-0 01 1 0103-0103
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97959-862-0 01 1 0103-0409
101 BRACKET; RR SPR,FRT
(B) PHI 		8-97976-963-0 01 1 0410-
130 MEMBER; CROSS,END
IDN 		8-97956-168-2 01 1 0103-
140 BRACKET; S/ABS,RR
IDN 		8-97956-128-0 01 1 0103-0409
140 BRACKET; S/ABS,RR
PHI 		8-97977-545-0 01 1 0410-
140 BRACKET; S/ABS,RR
IDN 		8-97956-129-0 01 1 0103-0409
140 BRACKET; S/ABS,RR
PHI 		8-97977-546-0 01 1 0410-
293 BRACKET; FUEL TANK,FRT
IDN 		8-97956-130-0 01 1 0103-0409
293 BRACKET; FUEL TANK,FRT
PHI 		8-97977-548-0 01 1 0410-
296 BOLT; 3RD C/MBR
M10X25 FLANGE 		0-28681-025-0 08 1 0103-0512
296 BOLT; 3RD C/MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
297 NUT; 3RD C/MBR
M10 FLANGE 		0-91150-210-0 08 1 0103-0602
297 NUT; 3RD C/MBR
M10 FLANGE 		0-91180-210-0 08 1 0603-
348 BRACKET; STRG STOPPER
IDN 		8-97956-111-2 02 1 0103-
440 BRACKET; HOSE
IDN 		8-97958-972-0 01 1 0103-0409
440 BRACKET; HOSE
PHI 		8-97977-564-0 01 1 0410-
506 REINFORCEMENT; C/MBR
IDN 		8-97958-974-0 04 1 0103-0409
