4-65 — REAR LEAF SPRING (#47131) — 116 parça

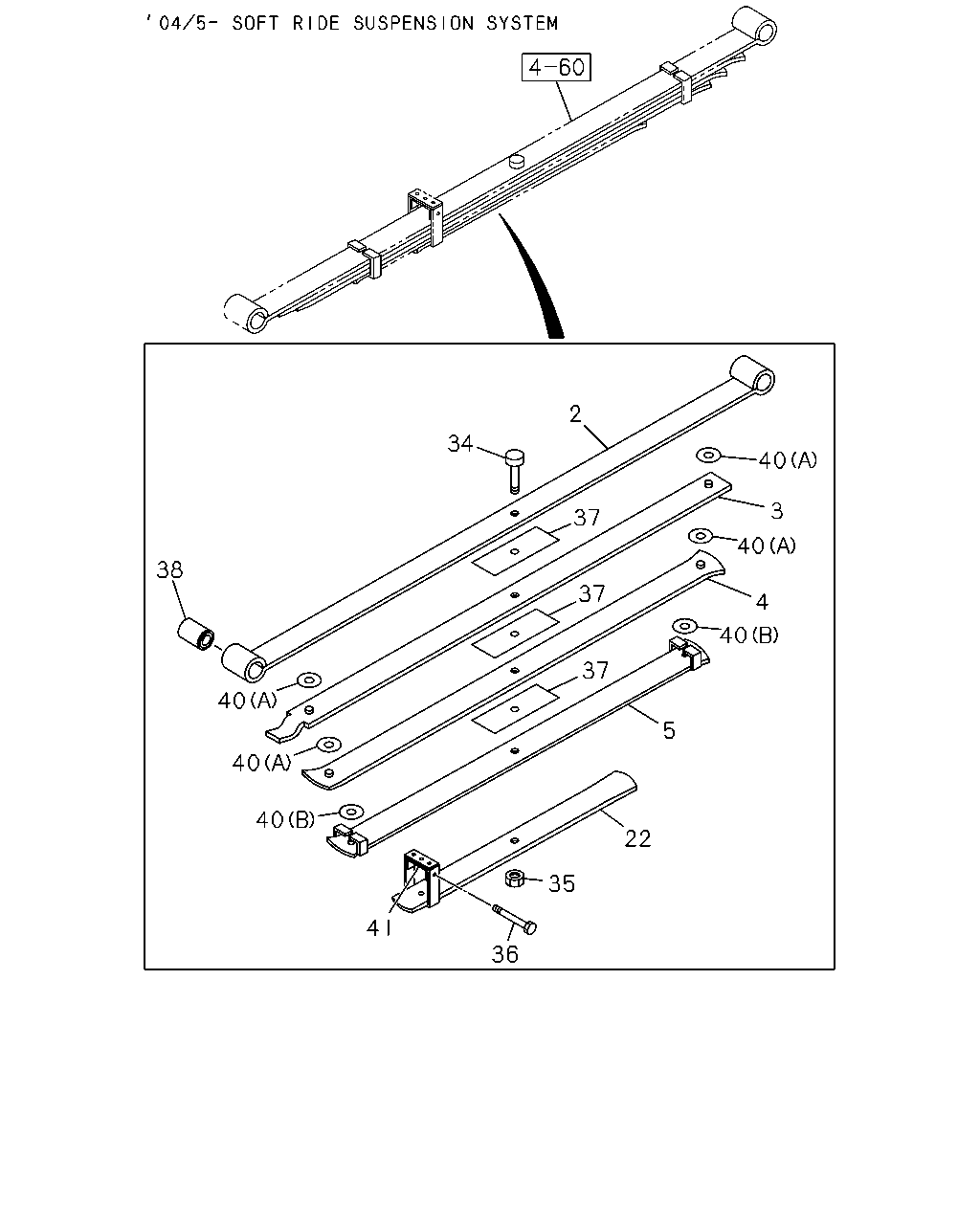

2 34 40 3 37 40 38 37 4 40 37 40 5 40 40 22 35 4 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-091-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-415-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-599-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: B = 8-97562-227-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97958-498-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PHI ASM PART: B = 8-97562-227-0	8-97365-493-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-092-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-416-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-600-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: E = 8-97959-017-1	8-97959-018-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: F = 8-97959-200-1	8-97959-852-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-093-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-417-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-601-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: E = 8-97959-017-1	8-97959-019-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: B = 8-97562-227-0, F = 8-97959-200-1	8-97959-286-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-418-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-602-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: A = 8-97561-089-0	8-97561-094-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: C = 8-97562-414-0	8-97562-419-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: D = 8-97562-523-0	8-97562-603-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: E = 8-97959-017-1	8-97958-501-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: B = 8-97562-227-0, F = 8-97959-200-1	8-97959-287-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PHI ASM PART: A = 8-97561-089-0	8-97560-591-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-422-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-595-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: B = 8-97562-227-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97958-502-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-943-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97561-089-0	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: C = 8-97562-414-0	9-09110-508-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 8-97562-414-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR PHI ASM PART: A = 8-97561-089-0	8-97560-595-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-949-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97562-414-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR IDN ASM PART: D = 8-97562-523-0	8-97562-598-0	03	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: C = 8-97562-414-0	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), IDN ASM PART: D = 8-97562-523-0	8-97300-652-0	02	1	-
40	LINER; LEAF SPR,RR (A), IDN ASM PART: E = 8-97959-017-1	8-97300-660-0	02	1	-
40	LINER; LEAF SPR,RR (A), IDN ASM PART: F = 8-97959-200-1	8-97300-660-0	04	1	-
40	LINER; LEAF SPR,RR (A), PHI ASM PART: B = 8-97562-227-0, D = 8-97562-523-0	8-97365-488-0	04	1	-
40	LINER; LEAF SPR,RR (A), PHI ASM PART: A = 8-97561-089-0, C = 8-97562-414-0	8-97560-596-0	04	1	-

2 34 40 3 38 4 37 40 22 35 4 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-091-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-415-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-599-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: B = 8-97562-227-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97958-498-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PHI ASM PART: B = 8-97562-227-0	8-97365-493-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-092-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-416-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-600-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: E = 8-97959-017-1	8-97959-018-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: F = 8-97959-200-1	8-97959-852-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-093-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-417-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-601-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: E = 8-97959-017-1	8-97959-019-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: B = 8-97562-227-0, F = 8-97959-200-1	8-97959-286-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: A = 8-97561-089-0	8-97561-094-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: C = 8-97562-414-0	8-97562-419-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: D = 8-97562-523-0	8-97562-603-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: E = 8-97959-017-1	8-97958-501-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: B = 8-97562-227-0, F = 8-97959-200-1	8-97959-287-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PHI ASM PART: A = 8-97561-089-0	8-97560-591-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-422-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-595-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: B = 8-97562-227-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97958-502-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-943-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97561-089-0	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: C = 8-97562-414-0	9-09110-508-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 8-97562-414-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR PHI ASM PART: A = 8-97561-089-0	8-97560-595-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-949-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97562-414-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR IDN ASM PART: D = 8-97562-523-0	8-97562-598-0	03	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: C = 8-97562-414-0	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), IDN ASM PART: D = 8-97562-523-0	8-97300-652-0	02	1	-
40	LINER; LEAF SPR,RR (A), IDN ASM PART: E = 8-97959-017-1	8-97300-660-0	02	1	-
40	LINER; LEAF SPR,RR (A), IDN ASM PART: F = 8-97959-200-1	8-97300-660-0	04	1	-
40	LINER; LEAF SPR,RR (A), PHI ASM PART: B = 8-97562-227-0, D = 8-97562-523-0	8-97365-488-0	04	1	-
40	LINER; LEAF SPR,RR (A), PHI ASM PART: A = 8-97561-089-0, C = 8-97562-414-0	8-97560-596-0	04	1	-

2 34 40 3 40 4 40 22 40 35 41 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-091-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-415-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-599-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: B = 8-97562-227-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97958-498-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PHI ASM PART: B = 8-97562-227-0	8-97365-493-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-092-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-416-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-600-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: E = 8-97959-017-1	8-97959-018-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: F = 8-97959-200-1	8-97959-852-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: A = 8-97561-089-0	8-97561-093-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-417-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-601-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: E = 8-97959-017-1	8-97959-019-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: B = 8-97562-227-0, F = 8-97959-200-1	8-97959-286-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: A = 8-97561-089-0	8-97561-094-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: C = 8-97562-414-0	8-97562-419-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: D = 8-97562-523-0	8-97562-603-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: E = 8-97959-017-1	8-97958-501-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB IDN ASM PART: B = 8-97562-227-0, F = 8-97959-200-1	8-97959-287-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PHI ASM PART: A = 8-97561-089-0	8-97560-591-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: C = 8-97562-414-0	8-97562-422-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: D = 8-97562-523-0	8-97562-595-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN IDN ASM PART: B = 8-97562-227-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97958-502-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-943-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97561-089-0	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: C = 8-97562-414-0	9-09110-508-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 8-97562-414-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR PHI ASM PART: A = 8-97561-089-0	8-97560-595-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-949-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: C = 8-97562-414-0	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), IDN ASM PART: D = 8-97562-523-0	8-97300-652-0	02	1	-
40	LINER; LEAF SPR,RR (A), IDN ASM PART: E = 8-97959-017-1	8-97300-660-0	02	1	-
40	LINER; LEAF SPR,RR (A), IDN ASM PART: F = 8-97959-200-1	8-97300-660-0	04	1	-
40	LINER; LEAF SPR,RR (A), PHI ASM PART: B = 8-97562-227-0, D = 8-97562-523-0	8-97365-488-0	04	1	-
40	LINER; LEAF SPR,RR (A), PHI ASM PART: A = 8-97561-089-0, C = 8-97562-414-0	8-97560-596-0	04	1	-
41	CLIP SUB ASM; RR SPR PHI ASM PART: A = 8-97561-089-0, C = 8-97562-414-0	8-97560-594-0	01	1	-
41	CLIP SUB ASM; RR SPR IDN ASM PART: B = 8-97562-227-0, D = 8-97562-523-0, E = 8-97959-017-1, F = 8-97959-200-1	8-97956-950-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
