50909 - TBR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

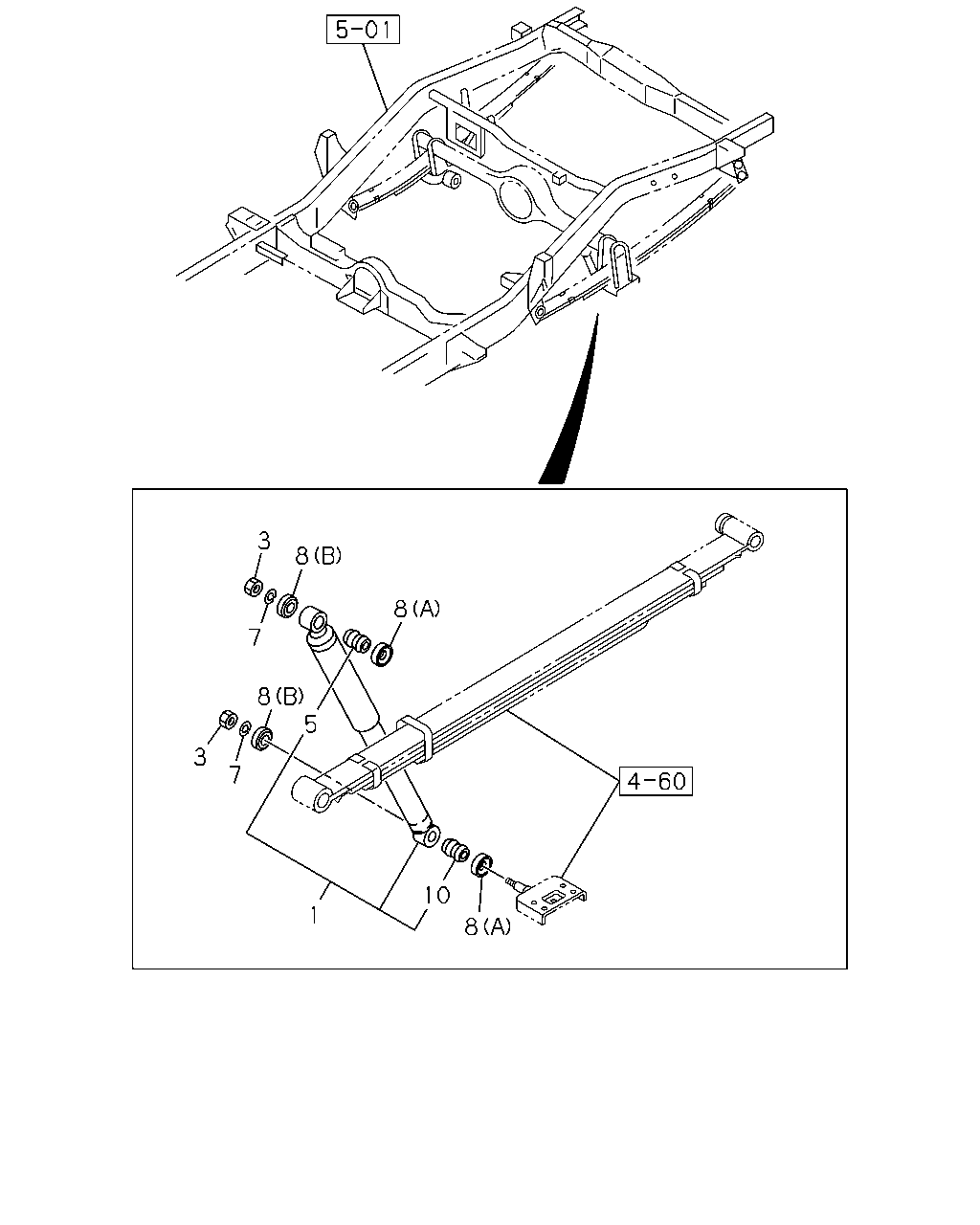

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#47130) — 14 parça
3
8
8
7
8
5
3
7
10
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
IDN
8-97959-202-0
02
1
0103-0201
1
ABSORBER ASM; SHOCK,RR
GRADE XTRM(RBG) IDN
8-97959-202-0
02
1
0202-0210
1
ABSORBER ASM; SHOCK,RR
IDN
8-97959-202-0
02
1
0211-0404
1
ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> IDN
8-97959-202-0
02
1
0405-
1
ABSORBER ASM; SHOCK,RR
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN
8-97956-187-1
02
1
0202-0210
1
ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> IDN
8-97562-387-0
02
1
0405-
3
NUT; S/ABS
M12
9-99111-412-0
04
1
0103-0512
3
NUT; S/ABS
M12
0-91111-512-0
04
1
0601-
5
BUSHING; RUBBER,S/ABS,UPR
KAYABA
5-51631-016-0
02
1
0103-
7
WASHER; LK,S/ABS
ID=12.2
9-09150-512-0
04
1
0103-0603
7
WASHER; LK,S/ABS
ID=12.2
0-91510-512-0
04
1
0604-
8
WASHER; S/ABS
(A) ID=16.5
8-94445-688-0
04
1
0103-
8
WASHER; S/ABS
(B) ID=12.5
9-51679-022-0
04
1
0103-
10
BUSHING; RUBBER,S/ABS
KAYABA
5-51631-016-0
02
1
0103-
