0-60B — ENGINE ELECTRICAL CONTROL PARTS (#4713) — 134 parça
çizim 6608
438 441 441 428 428 620
BalonParca AdiParca NoAdetTipApplied Date A B C
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9603-9904 ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905- ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9603-9904 ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9905- ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9603-9904 ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9905- ● ● ●
438 CABLE; OIL FILTER SW 1-82657-062-0 01 1 9603-9904 ●
438 CABLE; OIL FILTER SW 1-82657-062-1 01 1 9905- ● ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9608 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905- ● ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-9904 ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905- ● ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9603-9706 ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9905- ● ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9707-9804 ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9805-9904 ●

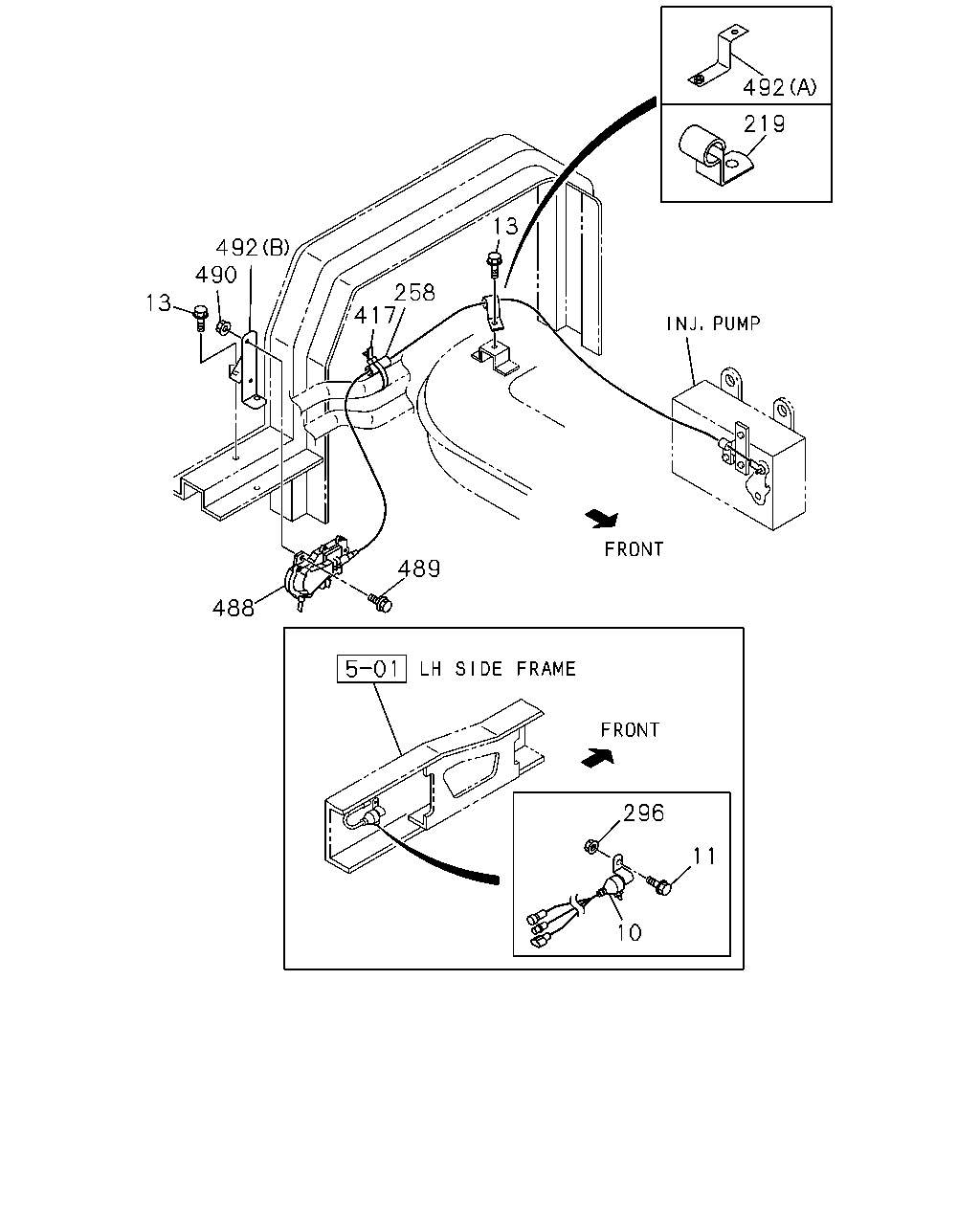

çizim 40870
492 219 13 492 490 258 417 13 489 488 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 RELAY; STARTER
NIKKO 		1-81171-071-0 01 1 9603-9606 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9607-9904 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 9905- ● ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9707-9804 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9805-9904 ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9905-9907 ● ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> HITACHI 		1-81171-087-0 01 1 9908- ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9707-9804 ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9805-9904 ●
13 BOLT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) M8X20 		0-28090-820-0 02 1 9603-9606 ●
13 BOLT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) M8X25 FLANGE 		0-28690-825-0 02 1 9607-9904 ●
13 BOLT; BRKT
EXC. RLD GOVERNOR(SD7) M8X25 FLANGE 		0-28690-825-0 02 1 9905- ● ● ●
219 CLIP; ENG STOP CABLE
ID=7 L=40 		9-09524-675-0 01 1 9603-9904 ●
219 CLIP; ENG STOP CABLE
ID=7 L=40 		9-09524-675-0 01 1 9905- ● ● ●
258 SLEEVE; RUBBER OIL PIPE
ID=6 L=30 		5-09360-352-0 01 1 9603-9904 ●
258 SLEEVE; RUBBER OIL PIPE
ID=6 L=30 		5-09360-352-0 01 1 9905- ● ● ●
258 SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9603-9904 ●
258 SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9905- ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9603-9606 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9707-9804 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9805-9904 ●
417 CLIP
L=140 		5-09707-031-1 02 1 9603-9904 ●
417 CLIP
L=140 		5-09707-031-1 02 1 9905- ● ● ●
488 STOPPER; ENG
RLD GOVERNOR(SD7) 		1-82840-133-2 01 1 9603- ●
488 STOPPER; ENG
EXC. RLD GOVERNOR(SD7) 		1-82840-151-1 01 1 9603-9904 ●
488 STOPPER; ENG
EXC. RLD GOVERNOR(SD7) 		1-82840-151-1 01 1 9905- ● ● ●
489 BOLT; ENG STOPPER
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9707-9804 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9805-9904 ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ●
490 NUT; ENG STOP
M8 		9-09110-408-0 02 1 9603-9606 ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9607-9804 ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9805-9904 ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
492 BRACKET; ENG STOPPER
(B) 		1-47477-415-0 01 1 9603-9904 ●
492 BRACKET; ENG STOPPER
(B) 		1-47477-415-0 01 1 9905- ● ● ●
492 BRACKET; ENG STOPPER
SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (A) 		1-47475-654-2 01 1 9603-9904 ●
492 BRACKET; ENG STOPPER
EXC. RLD GOVERNOR(SD7) (A) 		1-47475-654-2 01 1 9905- ● ● ●

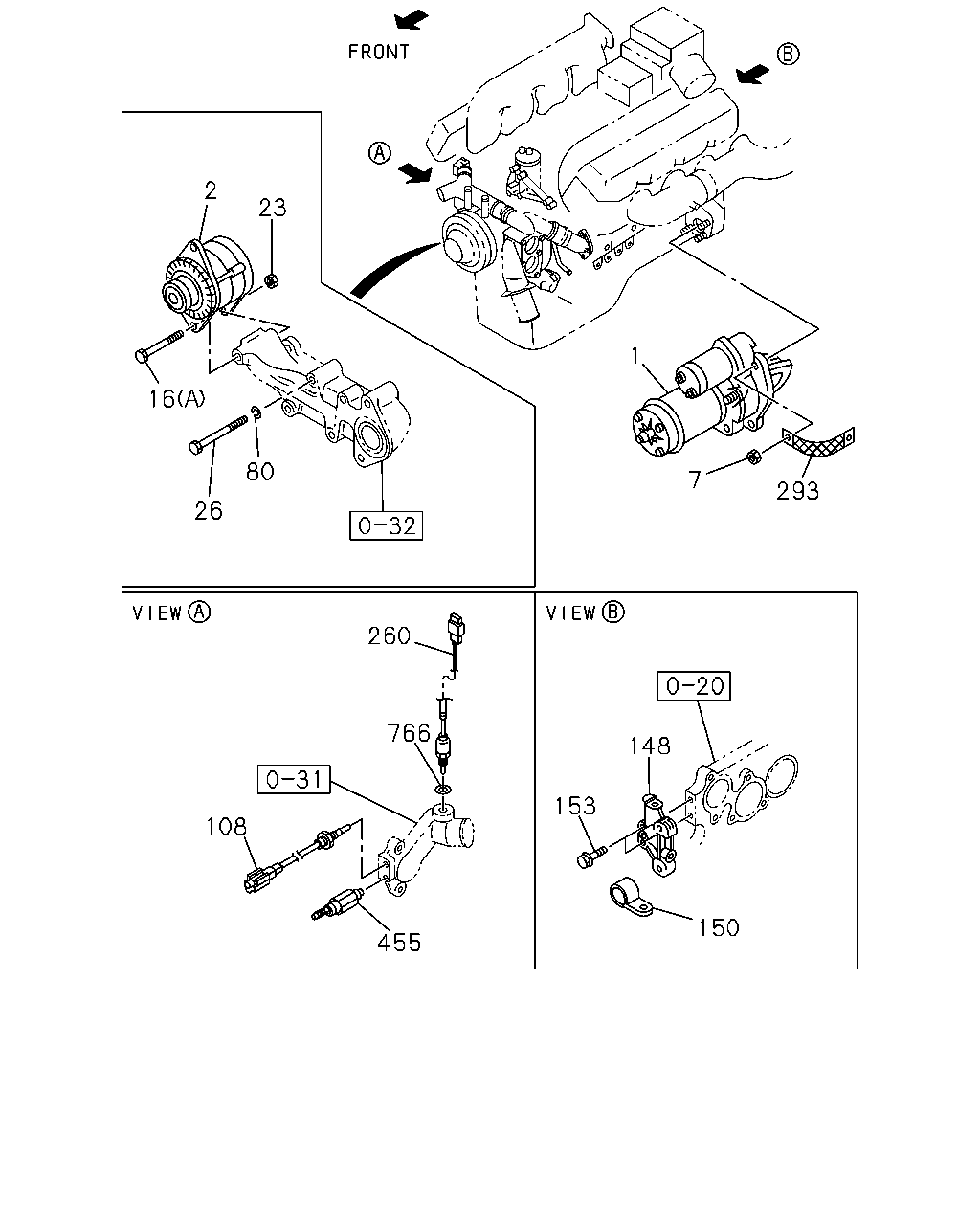

çizim 42299
2 23 1 16 80 7 293 26 260 766 148 153 108 150 455
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-302-0 01 1 9603-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-327-0 01 1 9709-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-345-0 01 1 9904-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-327-0 01 1 9905- ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-345-0 01 1 9905-9907 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-459-2 01 1 9603-9903 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-459-2 01 1 9904-9904 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9904 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-470-3 01 1 9905- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-522-0 01 1 9905-9907 ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9603-9706 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9707-9804 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9805-9904 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9905- ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9603-9706 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9707-9804 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9805-9904 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9906-0010 ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 0011- ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9603-9904 ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9905- ● ● ●
26 BOLT; GEN BRKT
M10X70 		9-01666-070-0 03 1 9603-9611 ●
26 BOLT; GEN BRKT
M10X70 		9-01661-070-0 03 1 9612-9904 ●
26 BOLT; GEN BRKT
M10X70 		9-01661-070-0 03 1 9905- ● ● ●
80 WASHER; LK,DUCT & BRKT
ID=10.2 		9-09150-610-0 03 1 9603-9904 ●
80 WASHER; LK,DUCT & BRKT
ID=10.2 		9-09150-610-0 03 1 9905- ● ● ●
108 SWITCH; THERMO 1-83161-031-1 01 1 9603-9904 ●
108 SWITCH; THERMO 1-83161-031-1 01 1 9905- ● ● ●
148 BRACKET; SOLENOID VLV 1-81919-028-0 01 1 9603-9904 ●
148 BRACKET; SOLENOID VLV 1-81919-028-0 01 1 9905- ● ● ●
150 CLIP; HARNESS,SOLENOID VLV
ID=11 L=16 		9-09525-025-0 01 1 9703-9904 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=11 L=16 		9-09525-025-0 01 1 9905- ● ● ●
153 BOLT; BRKT FIX
M10X40 FLANGE 		0-28181-040-0 02 1 9603-9904 ●
153 BOLT; BRKT FIX
M10X40 FLANGE 		0-28181-040-0 02 1 9905- ● ● ●
260 SENSOR; WATER TEMP 1-81535-053-1 01 1 9603-9904 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9603-9706 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9707-9804 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9805-9904 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9905- ● ● ●
455 SWITCH; ENG OVER HEAT,WATER 1-82450-013-0 01 1 9603-9904 ●
766 GASKET; SENSOR
ID=12.2 		1-09630-084-0 01 1 9603-9904 ●
766 GASKET; SENSOR
ID=12.2 		1-09630-084-0 01 1 9905- ● ● ●

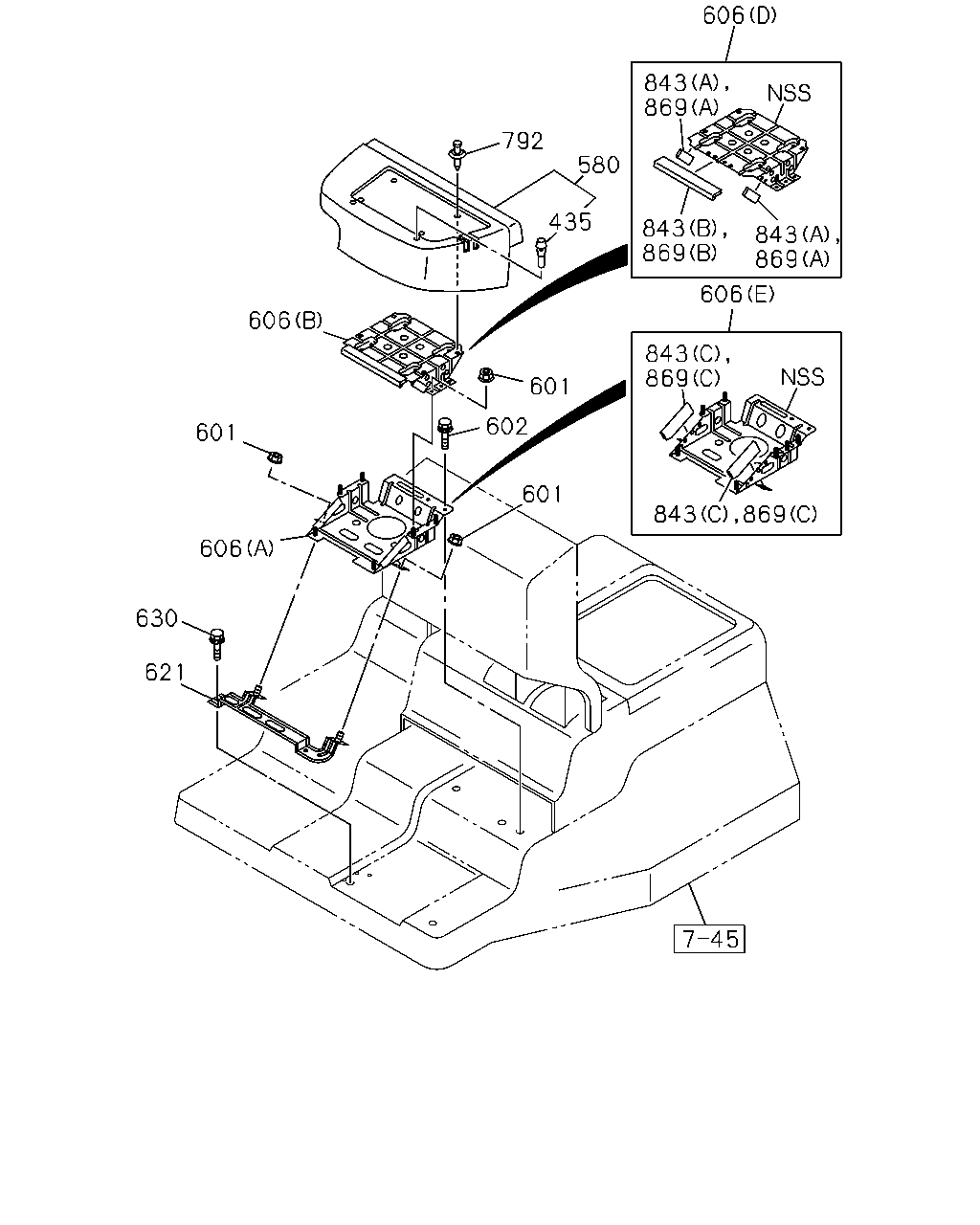

çizim 42555
606 843 869 792 580 435 843 869 843 869 606 606 843 869 601 602 601 601 606 630 621 843 869
BalonParca AdiParca NoAdetTipApplied Date A B C
435 RUBBER; CUSHION
CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 9607-9904 ●
435 RUBBER; CUSHION
CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 9905- ● ● ●
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-102-3 01 1 9607-9904 ●
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-102-3 01 1 9905- ● ● ●
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91150-106-0 06 1 9607-9904 ●
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91150-106-0 06 1 9905- ● ● ●
602 BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9607-9904 ●
602 BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (A) 		1-72537-099-3 01 1 9607-9707 ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (E) 		1-72537-195-2 01 1 9708-9904 ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (E) 		1-72537-195-2 01 1 9905- ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-112-5 01 1 9607-9611 ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-171-0 01 1 9612-9707 ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-197-1 01 1 9708-9812 ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-205-0 01 1 9901-9904 ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-205-2 01 1 9905- ● ● ●
621 SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-097-1 01 1 9607-9904 ●
621 SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-097-1 01 1 9905- ● ● ●
630 SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9607-9904 ●
630 SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ● ●
792 FASTENER
CENTER SEAT DELETE(SP9) 		1-09987-245-1 04 1 9607-9904 ●
792 FASTENER
CENTER SEAT DELETE(SP9) 		1-09987-245-1 04 1 9905- ● ● ●
843 SEAL; BRKT
CENTER SEAT DELETE(SP9) (A) 		1-72497-062-0 02 1 9708-9709 ●
843 SEAL; BRKT
CENTER SEAT DELETE(SP9) (C) 100X30 		1-72498-014-1 02 1 9708-9709 ●
843 SEAL; BRKT
CENTER SEAT DELETE(SP9) (B) 180X40 		1-72498-019-0 01 1 9708-9709 ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) 		1-73948-003-0 01 1 9710-9904 ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) 		1-73948-003-0 01 1 9905- ● ● ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) 		1-73948-003-0 02 1 9710-9904 ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) 		1-73948-003-0 02 1 9905- ● ● ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) 		1-73948-003-0 02 1 9710-9904 ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) 		1-73948-003-0 02 1 9905- ● ● ●
