4-50 — FRONT SUSPENSION (#47128) — 69 parça

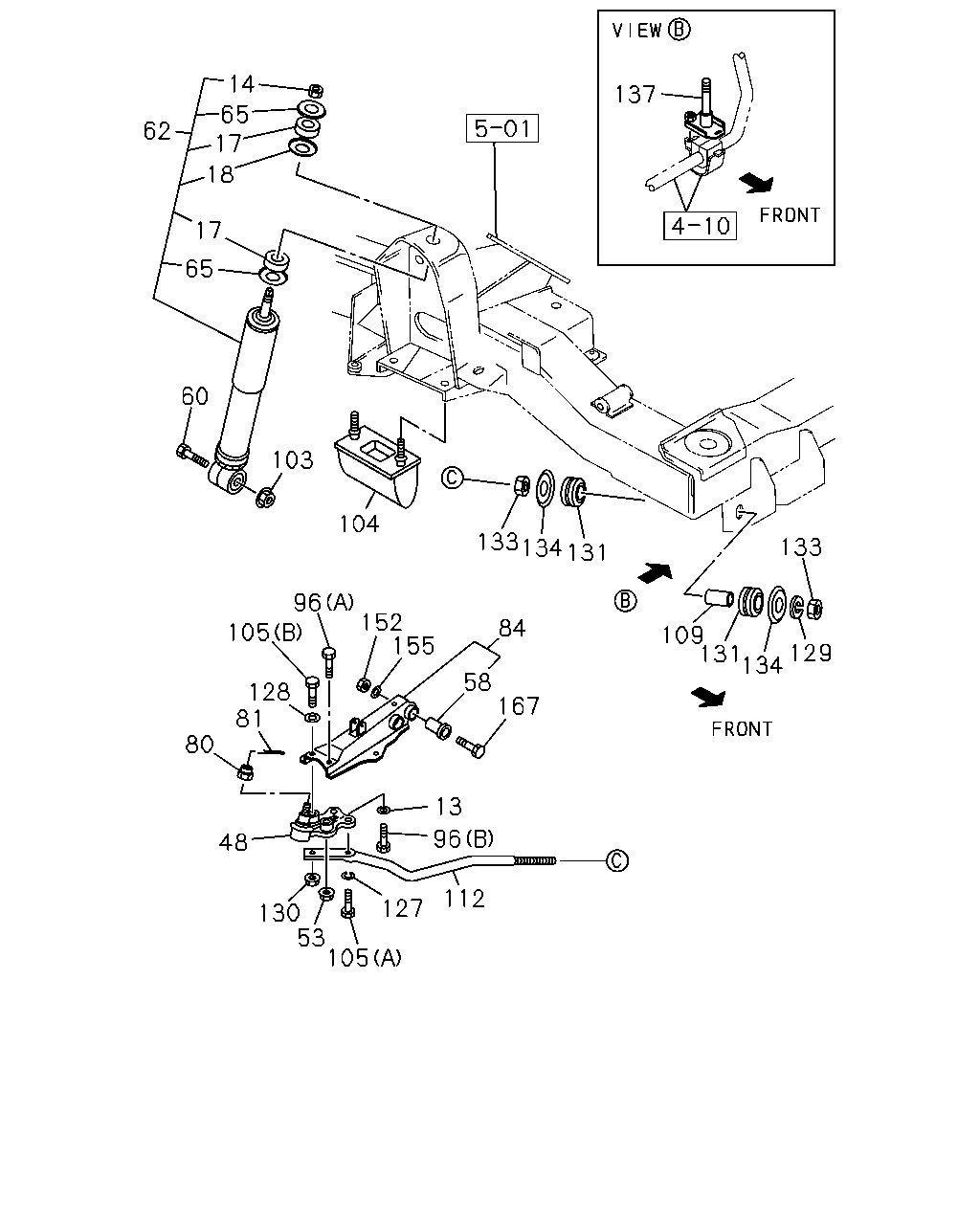

çizim 10847
14 65 17 18 137 62 17 65 60 103 104 133 134 131 133 96 152 105 155 84 109 131 129 134 58 167 128 81 80 13 96 48 112 127 130 53 105
BalonParca AdiParca NoAdetTipApplied Date
13 WASHER; LK,LWR LINK
ID=10.2 		9-09150-610-0 02 1 0103-0603
13 WASHER; LK,LWR LINK
ID=10.2 		0-91510-610-0 02 1 0604-
14 NUT; S/ABS,UPR
M10 		9-09110-410-0 02 1 0103-
17 BUSHING; RUBBER,S/ABS
IDN 		8-97957-655-0 04 1 0103-
18 WASHER; CENTERING,S/ABS
IDN 		8-97957-656-0 02 1 0103-
48 JOINT ASM; BALL,LWR CONT ARM 8-94459-464-3 02 1 0103-
53 NUT; LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0103-
58 BUSHING; LWR LINK
ID=16 		8-94316-903-0 02 1 0103-
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 0103-
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97959-201-0 02 1 0103-
65 WASHER; S/ABS
IDN 		8-97957-654-0 04 1 0103-
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 0103-0605
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		0-91116-518-0 02 1 0606-
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 0103-0606
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		0-81124-030-0 02 1 0607-
84 ARM; LWR CONT 8-94459-461-2 01 1 0103-
84 ARM; LWR CONT 8-94459-460-2 01 1 0103-
96 BOLT; LWR LINK
(A) M10X50 		9-01066-050-0 02 1 0103-0512
96 BOLT; LWR LINK
(A) M10X50 		0-10956-050-0 02 1 0601-
96 BOLT; LWR LINK
(B) M10X20 		9-02061-020-0 02 1 0103-0512
96 BOLT; LWR LINK
(B) M10X20 		0-20951-020-0 02 1 0601-
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91150-212-0 02 1 0103-0602
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91180-212-0 02 1 0603-
104 RUBBER; BUMPER,STRUT
PHI 		8-97976-745-0 02 1 0103-
105 BOLT; STRUT BAR TO LWR LINK
(A) M10X35 		8-94237-412-0 02 1 0103-
105 BOLT; STRUT BAR TO LWR LINK
(B) M10X65 		9-01066-065-0 02 1 0103-
109 TUBE; DIST,STRUT BAR 8-94439-157-0 02 1 0103-
112 BAR; STRUT 8-94473-192-4 01 1 0103-
112 BAR; STRUT 8-94473-191-4 01 1 0103-
127 WASHER; LK,STRUT BAR TO LWR LINK
ID=10.2 		9-09150-610-0 02 1 0103-0603
127 WASHER; LK,STRUT BAR TO LWR LINK
ID=10.2 		0-91510-610-0 02 1 0604-
128 WASHER; PL,STRUT
ID=10.5 OD=26 		9-09164-710-0 02 1 0103-0605
128 WASHER; PL,STRUT
ID=10.5 OD=26 		0-91614-710-0 02 1 0606-
129 WASHER; LK,STRUT BAR
ID=16.2 		9-09150-616-0 02 1 0103-0603
129 WASHER; LK,STRUT BAR
ID=16.2 		0-91510-616-0 02 1 0604-
130 NUT; STRUT BAR TO LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0103-
131 RUBBER; CUSHION,STRUT BAR 8-94433-672-0 04 1 0103-
133 NUT; STRUT BAR
M16 		9-99110-516-0 04 1 0103-0512
133 NUT; STRUT BAR
M16 		0-91110-516-0 04 1 0601-
134 WASHER; STRUT BAR 8-94439-158-1 04 1 0103-
137 BRACKET; STAB BAR TO FRAME 8-94143-209-0 02 1 0103-
152 NUT; LWR LINK TO FRT C/MBR
M14 		9-99110-514-0 02 1 0103-0512
152 NUT; LWR LINK TO FRT C/MBR
M14 		0-91110-514-0 02 1 0601-
155 WASHER; LK,UPR LINK TO FRT C/MBR
ID=14.2 		9-09150-514-0 02 1 0103-0603
155 WASHER; LK,UPR LINK TO FRT C/MBR
ID=14.2 		0-91510-514-0 02 1 0604-
167 BOLT; LWR LINK TO FRT C/MBR
M14X90 		0-10806-490-0 02 1 0103-0512
167 BOLT; LWR LINK TO FRT C/MBR
M14X90 		0-10856-490-0 02 1 0601-

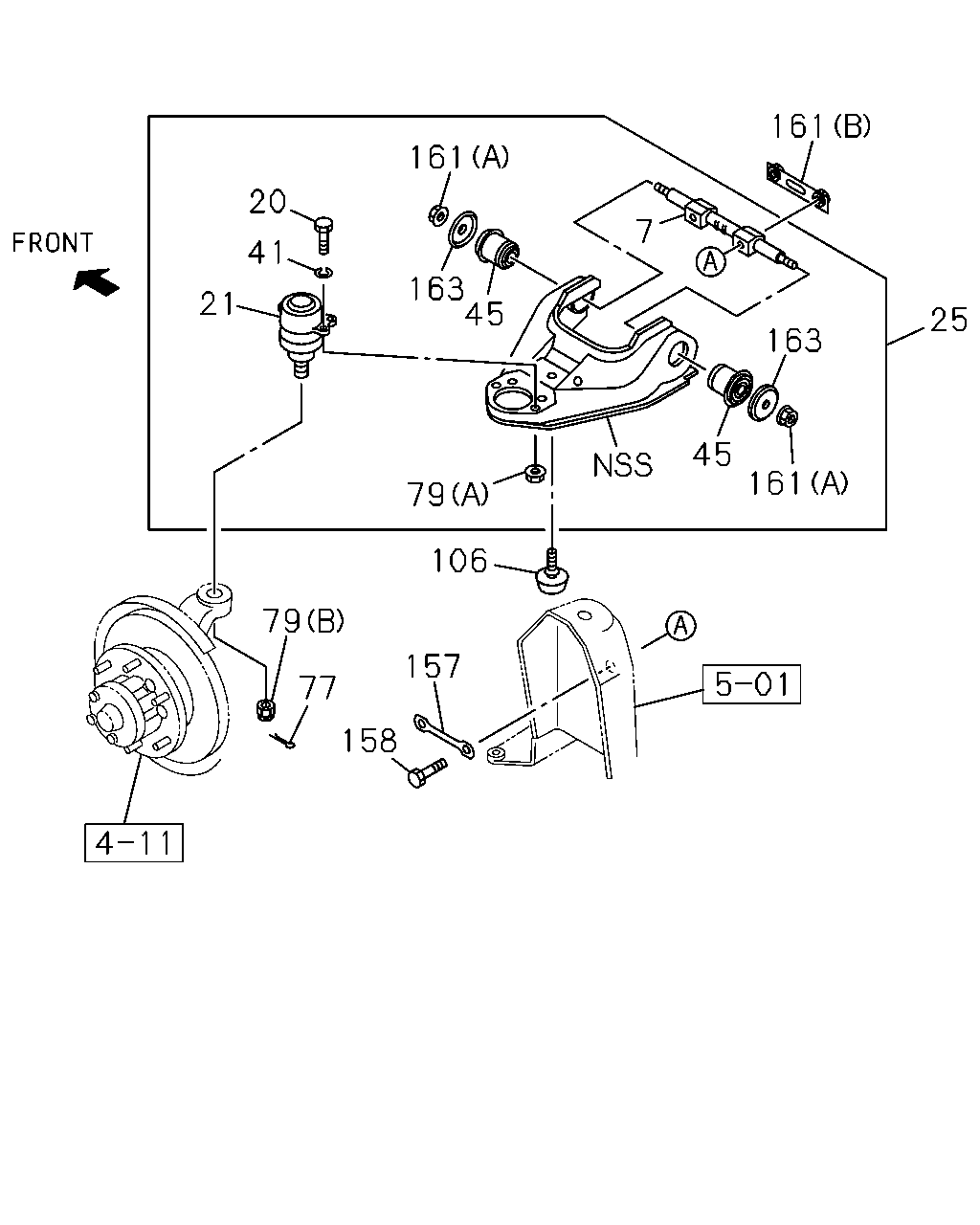

çizim 49716
161 161 20 7 41 163 45 21 25 163 45 161 79 106 79 157 77 158
BalonParca AdiParca NoAdetTipApplied Date
7 PIN; FULCRUM,UPR LINK 8-94173-352-3 02 1 0103-
20 BOLT; UPR LINK END TO UPR LINK 8-94478-727-0 08 1 0103-
21 JOINT ASM; BALL,UPR CONT ARM 8-94459-453-4 02 1 0103-
25 ARM; UPR CONT
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) 		8-94445-551-3 01 1 0103-
25 ARM; UPR CONT
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) 		8-94445-550-3 01 1 0103-
25 ARM; UPR CONT
GRADE XTRM(RBG) 		8-97306-865-0 01 1 0111-
25 ARM; UPR CONT
GRADE XTRM(RBG) 		8-97306-864-0 01 1 0111-
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		9-09150-808-0 08 1 0103-0603
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		0-91510-808-0 08 1 0604-
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 0103-
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0103-0204
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=25 		9-08113-025-0 02 1 0205-0606
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=25 		0-81123-025-0 02 1 0607-
79 NUT; UPR LINK END TO KNUCKLE
(A) M8 FLANGE 		5-09440-010-0 08 1 0103-
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 0103-
106 RUBBER; REBOUND,STRUT
PHI 		8-97976-746-0 02 1 0103-
157 PLATE; UPR LINK TO FRAME 8-94407-719-1 02 1 0103-
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 0103-
161 NUT ASM; UPR LINK TO FRAME
(A) M14 FLANGE 		8-94137-483-0 04 1 0103-
161 NUT ASM; UPR LINK TO FRAME
(B) M14 		8-94478-731-0 02 1 0103-0208
161 NUT ASM; UPR LINK TO FRAME
(B) 		8-97327-724-0 02 1 0209-
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 0103-
