4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#47124) — 29 parça

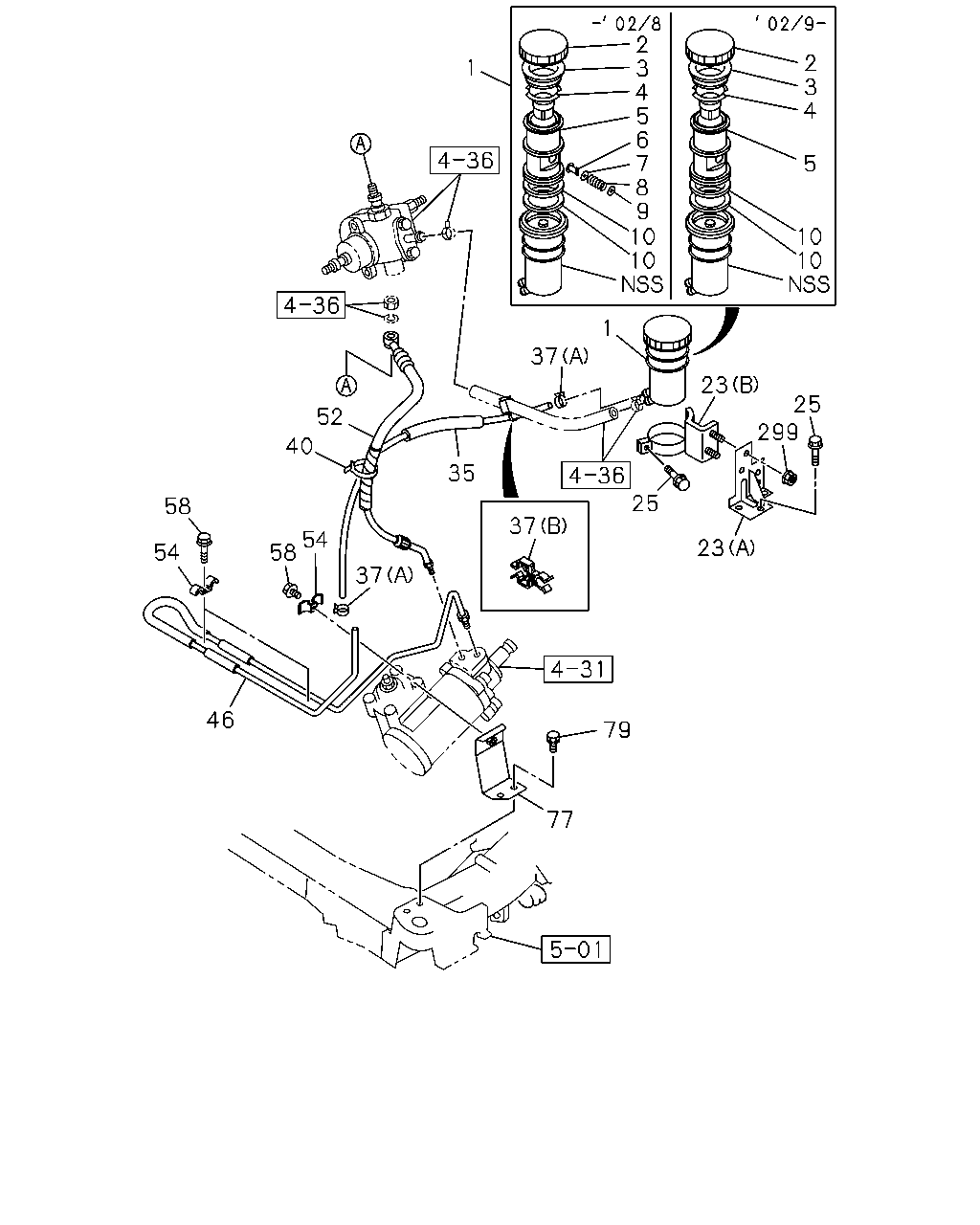

çizim 11976
2 3 4 5 6 7 8 9 10 10 2 3 4 1 5 10 10 1 37 23 25 299 52 40 35 25 58 37 54 58 23 54 37 46 79 77
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-94105-282-8 01 1 0103-
2 CAP; OIL TANK,P/S 5-21241-001-2 01 1 0103-
3 GASKET; OIL TANK,P/S 8-94246-510-0 01 1 0103-
4 FILTER; OIL TANK,P/S 8-94204-441-1 01 1 0103-
5 STRAINER; OIL TANK,P/S 8-94405-458-1 01 1 0103-0208
5 STRAINER; OIL TANK,P/S 8-97351-631-0 01 1 0209-
6 HOLDER; GASKET,OIL TANK,P/S 5-21219-005-0 01 1 0103-0208
7 RING; GASKET,OIL TANK,P/S 5-21219-007-0 01 1 0103-0208
8 SPRING; OIL TANK,P/S 5-09580-088-1 01 1 0103-0208
9 COVER; SPR,OIL TANK,P/S 5-21219-006-0 01 1 0103-0208
10 SEAL; OIL TANK,P/S 8-94405-457-0 02 1 0103-
23 BRACKET; OIL TANK,P/S
(A) IDN 		8-97957-742-2 01 1 0103-
23 BRACKET; OIL TANK,P/S
(B) IDN 		8-97957-744-0 01 1 0103-
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 04 1 0103-0512
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28450-616-0 04 1 0601-
35 HOSE; RETURN,P/S TANK
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) 		8-97301-586-0 01 1 0103-
35 HOSE; RETURN,P/S TANK
GRADE XTRM(RBG) 		8-97253-407-2 01 1 0111-
37 CLIP; HOSE,P/S
(A) ID=16 		8-94238-568-0 02 1 0103-
37 CLIP; HOSE,P/S
(B) D=14.5 /22 		8-94317-707-0 01 1 0103-
40 CLIP; BAND
L=200 		8-94464-835-0 01 1 0103-
46 PIPE; OIL,P/S UNIT TO OIL TANK
PHI 		8-97975-963-0 01 1 0103-
52 HOSE; FLEX,P/S CONT VLV 8-97147-645-0 01 1 0103-
54 CLIP; OIL PIPE 8-94222-795-1 03 1 0103-
58 BOLT; CLIP
M6X16 FLANGE 		0-28480-616-0 02 1 0103-0512
58 BOLT; CLIP
M6X16 FLANGE 		0-28450-616-0 02 1 0601-
77 BRACKET; POWER STEERING HOSE
PHI 		8-97975-513-0 01 1 0103-
79 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 02 1 0103-0512
79 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 02 1 0601-
299 NUT; OIL TANK BRKT
M6 FLANGE 		5-09440-004-0 02 1 0103-
