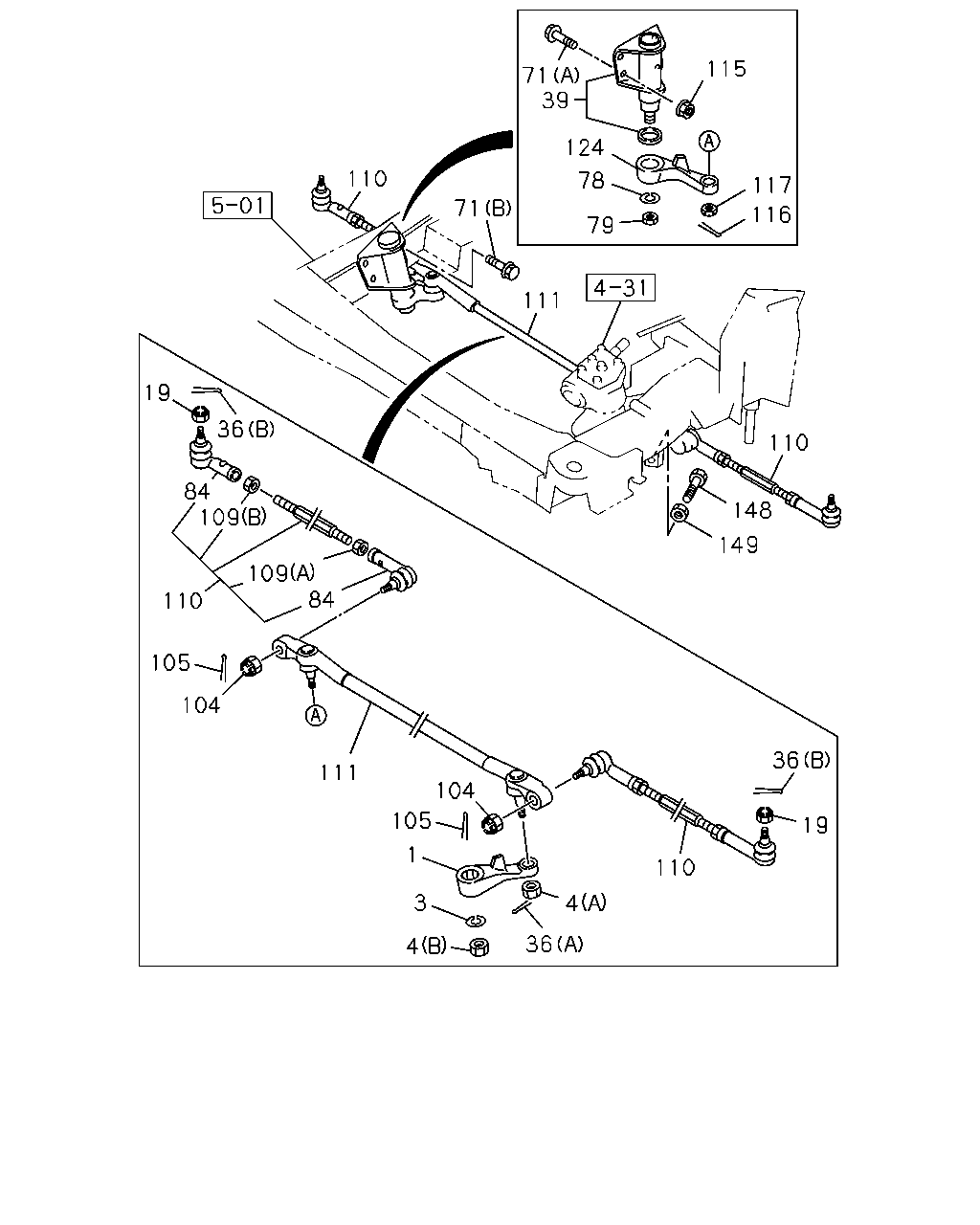

4-33 — STEERING LINKAGE
(#47123) — 36 parça
71
39
115
124
78
110
117
116
71
79
111
19
36
110
84
109
148
149
109
84
110
105
104
36
111
104
105
19
1
110
4
3
4
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
8-94440-892-3
01
1
0103-0105
1
ARM; PITMAN,STRG
8-97315-931-0
01
1
0106-
3
WASHER; LK,PITMAN ARM
ID=22.5
9-09150-522-0
01
1
0103-0603
3
WASHER; LK,PITMAN ARM
ID=22.5
0-91510-522-0
01
1
0604-
4
NUT; PITMAN ARM
(A) M14
8-94465-411-0
01
1
0103-
4
NUT; PITMAN ARM
(B) M22
9-09111-522-0
01
1
0103-0512
4
NUT; PITMAN ARM
(B) M22
0-91111-522-0
01
1
0601-
19
NUT; PITMAN ARM,STOPPER
M14
8-94465-411-0
02
1
0103-
36
PIN; SPLIT,DRAG LINK
(A) OD=2.7 L=17
8-97171-453-0
01
1
0103-
36
PIN; SPLIT,DRAG LINK
(B) OD=2.8 L=25
9-08113-025-0
02
1
0103-0606
36
PIN; SPLIT,DRAG LINK
(B) OD=2.8 L=25
0-81123-025-0
02
1
0607-
39
LEVER ASM; RELAY,STRG LINKAGE
8-97127-431-0
01
1
0103-
71
BOLT; RELAY LEVER BRKT
(A) M10X92 FLANGE
8-94313-798-1
03
1
0103-
71
BOLT; RELAY LEVER BRKT
(B) M10X20
8-94366-554-1
01
1
0103-
78
WASHER; LINK,RELAY LEVER
ID=16.2
9-09150-816-0
01
1
0103-0603
78
WASHER; LINK,RELAY LEVER
ID=16.2
0-91510-816-0
01
1
0604-
79
NUT; RELAY LEVER
M16
9-99111-516-0
01
1
0103-0512
79
NUT; RELAY LEVER
M16
0-91111-516-0
01
1
0601-
84
ROD END; TRACK ROD
RH THREAD
8-97020-953-1
02
1
0103-
84
ROD END; TRACK ROD
LH THREAD
8-97020-954-2
02
1
0103-
104
NUT; ROD END
M14
8-94465-411-0
02
1
0103-
105
PIN; SPLIT,ROD END
OD=2.7 L=17
8-97171-453-0
02
1
0103-
109
NUT; ROD
(A) M14 LH THREAD
5-09400-010-0
02
1
0103-
109
NUT; ROD
(B) M14
9-99110-414-0
02
1
0103-0512
109
NUT; ROD
(B) M14
0-91110-514-0
02
1
0601-
110
ROD; TRACK,OUTER
L=306.9
8-94459-478-2
02
1
0103-
111
ROD; TRACK,CENTER
8-94389-210-2
01
1
0103-0203
111
ROD; TRACK,CENTER
8-97316-967-1
01
1
0204-
115
NUT; RELAY LEVER BRKT
M10 FLANGE
8-94313-797-0
03
1
0103-
116
PIN; SPLIT,TRACK ROD,CENTER
OD=2.7 L=15
8-97171-452-0
01
1
0103-
117
NUT; DRAG LINK
M12 SLOTTED
9-99117-512-0
01
1
0103-0605
117
NUT; DRAG LINK
M12 SLOTTED
0-91117-512-0
01
1
0606-
124
LEVER; RELAY,STRG LINKAGE
8-94440-893-3
01
1
0103-
148
BOLT; STOPPER
L=35
9-09802-280-0
02
1
0103-
149
NUT; LK,STOPPER BOLT
M10
9-09111-410-0
02
1
0103-0512
149
NUT; LK,STOPPER BOLT
M10
0-91111-510-0
02
1
0601-
