Sayfa 0-60A - Isuzu EPC

0-60A — ENGINE ELECTRICAL CONTROL PARTS (#4712) — 291 parça

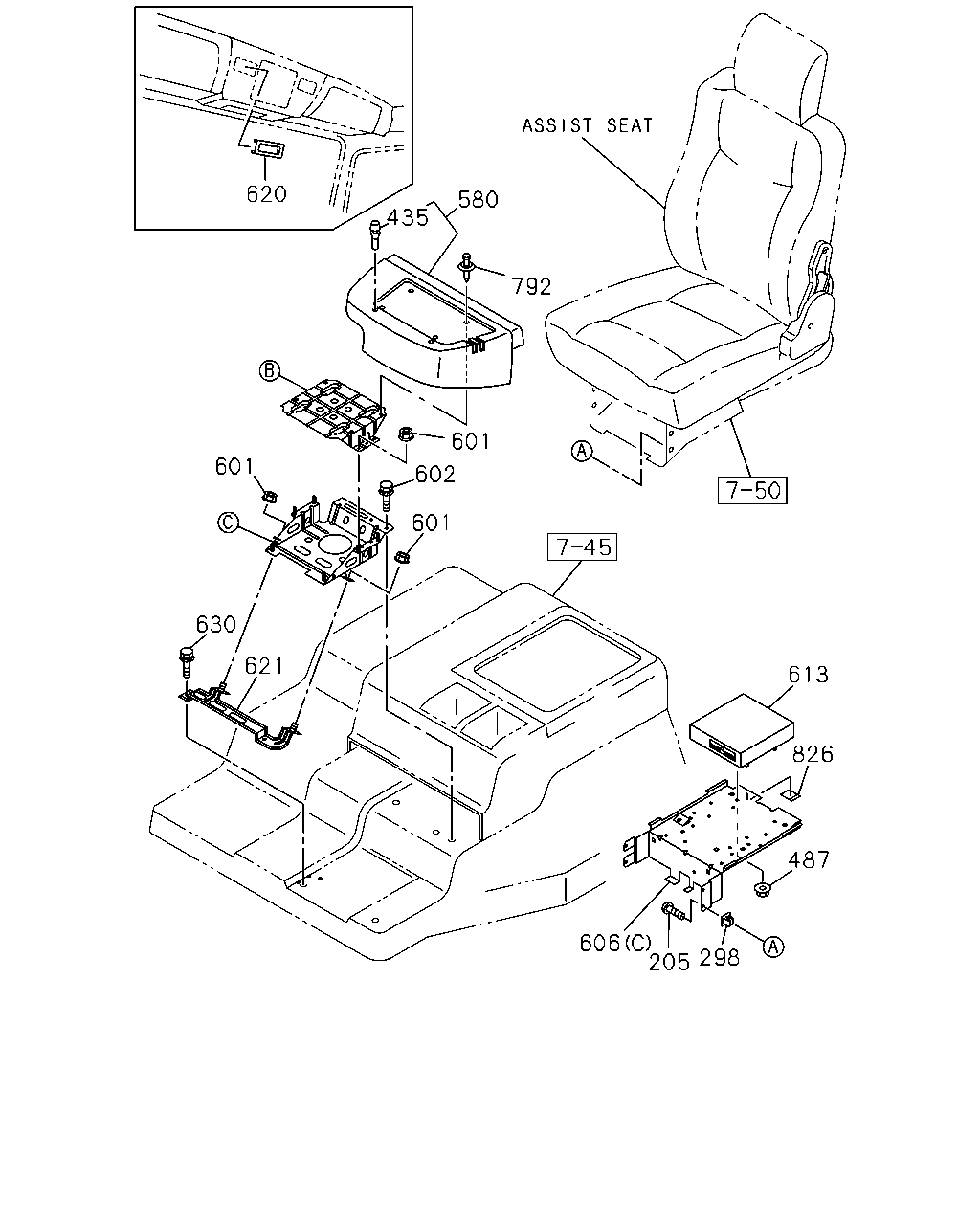

606 843 869 606 606 606 843 843 869 869 843 869 843 869

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (C)	1-75558-534-5	01	1	9610-9904	●
606	BRACKET; CONT UNIT (C)	1-75558-534-9	01	1	9905-		●
606	BRACKET; CONT UNIT ELECTRONIC GOV RED3(KG5) (C)	1-75558-534-9	01	1	9905-			●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-099-3	01	1	9607-9707	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (E)	1-72537-195-2	01	1	9708-9904	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (E)	1-72537-195-2	01	1	9905-	●	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-112-5	01	1	9607-9611	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-171-0	01	1	9612-9707	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (D)	1-72537-197-1	01	1	9708-9812	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (D)	1-72537-205-0	01	1	9901-9904	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (D)	1-72537-205-2	01	1	9905-	●	●	●		●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (A)	1-72497-062-0	02	1	9708-9709	●	●		●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (C) 100X30	1-72498-014-1	02	1	9708-9709	●	●		●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (B) 180X40	1-72498-019-0	01	1	9708-9709	●	●		●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B)	1-73948-003-0	01	1	9710-9904	●	●		●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B)	1-73948-003-0	01	1	9905-	●	●	●		●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C)	1-73948-003-0	02	1	9710-9904	●	●		●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C)	1-73948-003-0	02	1	9905-	●	●	●		●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A)	1-73948-003-0	02	1	9710-9904	●	●		●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A)	1-73948-003-0	02	1	9905-	●	●	●		●

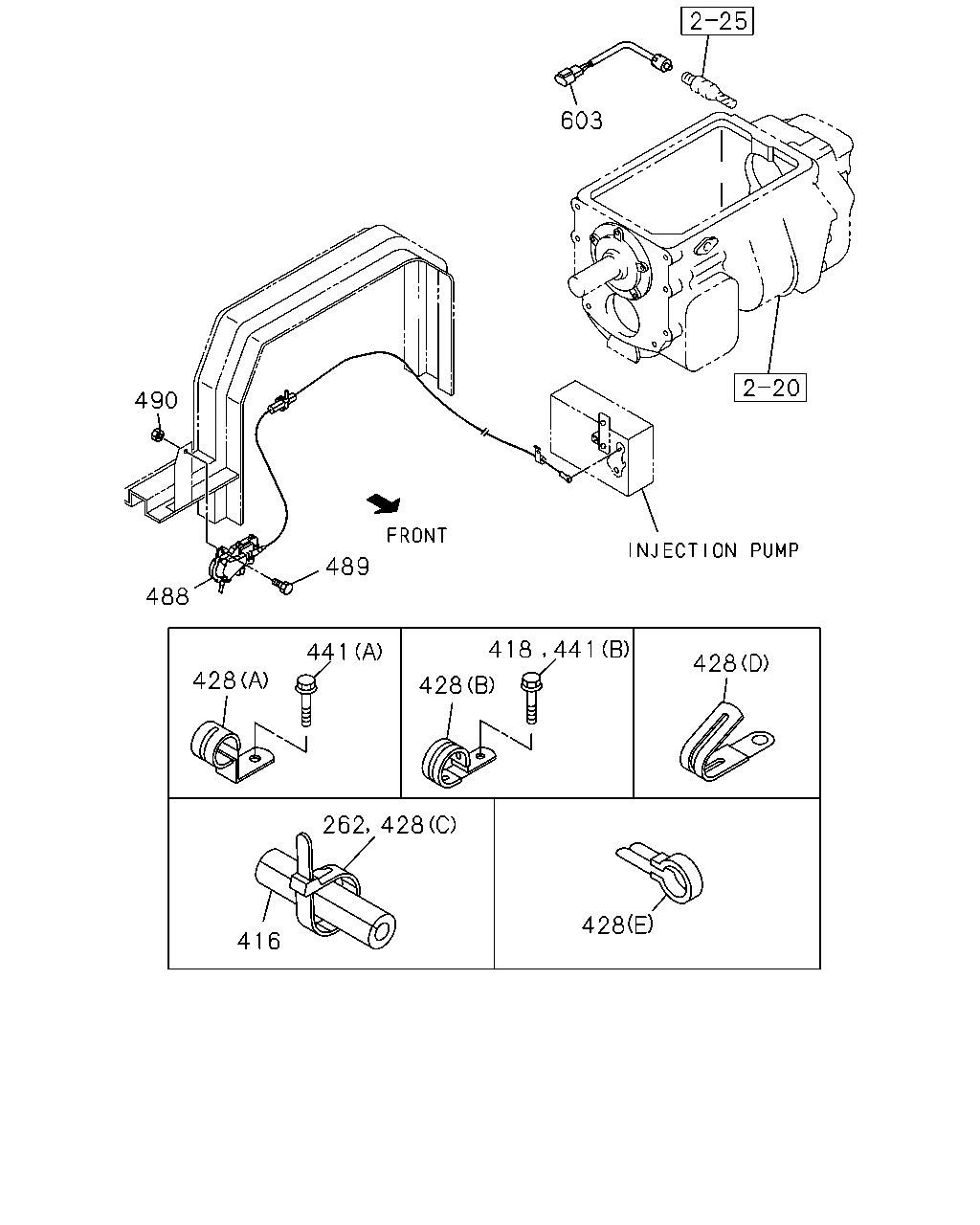

603 490 489 488 418 441 441 428 428 428 262 428 428 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
262	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> L=140	5-09707-031-0	03	1	9603-9804	●
262	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	03	1	9805-9904	●
262	CLIP; HARNESS L=140	5-09707-031-1	03	1	9805-9904		●
262	CLIP; HARNESS L=140	5-09707-031-1	03	1	9905-	●				●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	05	1	9610-9706	●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	05	1	9707-9710	●
416	SLEEVE; RUBBER SHORT CHASSIS&RHD(EXZ5MC) ID=10 OD=14 L=30	9-09956-682-0	05	1	9707-9710				●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	06	1	9711-9904	●
416	SLEEVE; RUBBER SHORT CHASSIS&RHD(EXZ5MC) ID=10 OD=14 L=30	9-09956-682-0	06	1	9711-9904				●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	9603-9804	●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	9805-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9805-9904		●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	06	1	9905-		●	●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0102-	●	●	●		●
416	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9707-9904				●
416	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-			●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9905-	●				●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9603-9706	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9707-9804	●			●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9805-9904	●	●		●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9905-	●	●	●		●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9603-9904	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9905-	●	●	●		●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9603-9904	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9905-	●	●	●		●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9603-9904	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9905-	●	●	●		●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9603-9706	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9707-9804	●			●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9805-9904	●	●		●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9603-9706	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9707-9804	●			●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9805-9904	●	●		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-0	02	1	9610-9706	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	9707-9904	●
428	CLIP; HARNESS SHORT CHASSIS&RHD(EXZ5MC) (C) L=250	5-09707-030-1	02	1	9707-9904				●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	9905-9907		●
428	CLIP; HARNESS SHORT CHASSIS&RHD(EXZ5MC) (C) L=250	5-09707-030-1	02	1	9905-9907			●
428	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	9908-		●	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-0	05	1	9610-9706	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	05	1	9707-9904	●
428	CLIP; HARNESS SHORT CHASSIS&RHD(EXZ5MC) (C) L=140	5-09707-031-1	05	1	9707-9904				●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-0	01	1	9603-9804	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	01	1	9805-9904	●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	01	1	9805-9904		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	05	1	9905-9907		●
428	CLIP; HARNESS SHORT CHASSIS&RHD(EXZ5MC) (C) L=140	5-09707-031-1	05	1	9905-9907			●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	05	1	9908-		●	●
428	CLIP; HARNESS SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	9609-9904	●
428	CLIP; HARNESS SHORT CHASSIS&LHD(EXZ6MC) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	9905-		●
428	CLIP; HARNESS SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) (E) ID=20 L=50	9-09917-430-0	02	1	9609-9904	●
428	CLIP; HARNESS SHORT CHASSIS&LHD(EXZ6MC) (E) ID=20 L=50	9-09917-430-0	02	1	9905-9907		●
428	CLIP; HARNESS SHORT CHASSIS&LHD(EXZ6MC) CAB UP +110MM<TGG> (E) ID=20 L=50	9-09917-430-0	03	1	9908-		●
428	CLIP; HARNESS SHORT CHASSIS&LHD(EXZ6MC) EXC. CAB UP +110MM<TGG> (E) ID=20 L=50	9-09917-430-0	02	1	9908-		●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9905-	●	●	●		●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9905-	●	●	●		●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	01	1	9905-	●				●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9608	●
441	BOLT; HARNESS TO FRAME SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28680-820-0	01	1	9609-9705	●
441	BOLT; HARNESS TO FRAME SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28080-820-0	01	1	9706-9904	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●	●		●
441	BOLT; HARNESS TO FRAME SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28080-820-0	01	1	9905-		●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●		●
488	STOPPER; ENG	1-82840-145-0	01	1	9603-9608	●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-0	01	1	9609-9706	●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-0	01	1	9707-9804	●
488	STOPPER; ENG SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-0	01	1	9707-9804				●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9805-9904	●	●
488	STOPPER; ENG SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9805-9904				●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG>	1-82840-145-1	01	1	9905-		●
488	STOPPER; ENG CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5)	1-82840-161-0	01	1	9905-		●
489	BOLT; ENG STOPPER M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
489	BOLT; ENG STOPPER M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9707-9804	●			●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9805-9904	●	●		●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9905-		●	●
490	NUT; ENG STOP M8	9-09110-408-0	02	1	9603-9606	●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●			●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9805-9904	●	●		●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
603	SENSOR; TACHO EXC. EURO2 SPECIFICATION<THN>	1-83127-115-0	01	1	9603-9804	●
603	SENSOR; TACHO EXC. EURO2 SPECIFICATION<THN>	1-83127-115-0	01	1	9805-9904	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9805-9904		●
603	SENSOR; TACHO	1-83127-115-0	01	1	9905-	●				●

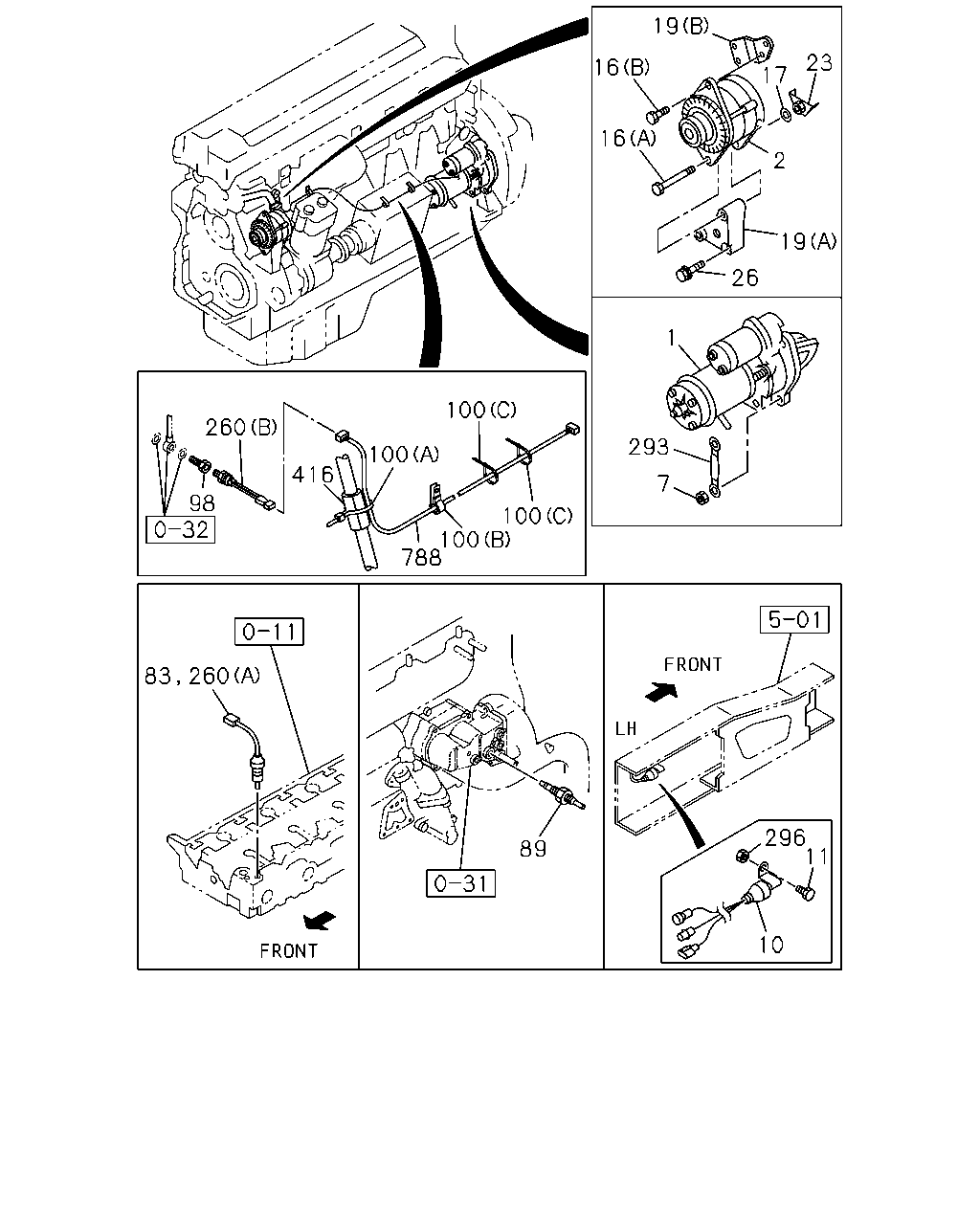

19 17 23 16 16 2 19 26 1 100 260 293 100 416 7 98 100 100 788 296 11 89 10 83 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-293-1	01	1	9603-9706	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-293-1	01	1	9707-9708	●			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-0	01	1	9709-9804	●			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-1	01	1	9805-9904	●	●		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-0	01	1	9904-9904	●	●		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-2	01	1	9905-	●	●	●		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	9905-9907	●	●	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-2	01	1	9603-9706	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-2	01	1	9707-9804	●			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-2	01	1	9805-9904	●	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-519-0	01	1	9904-9904	●	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-0	01	1	9906-9907					●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO	1-81200-437-4	01	1	9905-					●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-517-0	01	1	9905-9907	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-0	01	1	9905-9907					●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	1-81200-469-4	01	1	9905-	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A NIKKO	1-81200-469-4	01	1	9905-					●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9603-9706	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9707-9804	●			●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9805-9904	●	●		●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9905-	●	●	●		●
10	RELAY; STARTER NIKKO	1-81171-071-0	01	1	9603-9606	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9607-9904	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	9905-	●	●	●		●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9707-9804	●			●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9805-9904	●	●		●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9905-9907	●	●	●		●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-	●	●	●		●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
11	BOLT; RELAY STARTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●		●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9707-9804	●			●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9805-9904	●	●		●
16	BOLT; GEN (A) M14X123	9-09801-204-1	01	1	9603-9706	●
16	BOLT; GEN (A) M14X123	9-09801-204-1	01	1	9707-9804	●			●
16	BOLT; GEN (A) M14X123	9-09801-204-1	01	1	9805-9904	●	●		●
16	BOLT; GEN (A) M14X123	1-09040-105-0	01	1	0011-	●	●	●		●
16	BOLT; GEN (B) M12X40 FLANGE	0-28081-240-0	01	1	9707-9904				●
16	BOLT; GEN (B) M12X40 FLANGE	0-28081-240-0	01	1	9905-			●
16	BOLT; GEN (A) M14X123	9-09801-204-1	01	1	9905-9905	●	●	●		●
16	BOLT; GEN (A) M14X123	9-09801-204-1	01	1	9906-0010	●	●	●		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9603-9706	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9707-9804	●			●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9805-9904	●	●		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9905-	●	●	●		●
19	BRACKET; GEN (A)	1-19711-068-1	01	1	9603-9706	●
19	BRACKET; GEN (A)	1-19711-068-1	01	1	9707-9804	●			●
19	BRACKET; GEN (A)	1-19711-068-1	01	1	9805-9904	●	●		●
19	BRACKET; GEN (B)	1-19711-082-0	01	1	9707-9904				●
19	BRACKET; GEN (B)	1-19711-082-0	01	1	9905-			●
19	BRACKET; GEN (A)	1-19711-068-1	01	1	9905-0010	●	●	●		●
19	BRACKET; GEN (A)	1-19711-144-0	01	1	0011-	●	●	●		●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9603-9706	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9707-9804	●			●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9805-9904	●	●		●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9905-	●	●	●		●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9603-9706	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9707-9804	●			●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9805-9904	●	●		●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9905-	●	●	●		●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9603-9804	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9805-9904	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9805-9904		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9905-	●				●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9603-9706	●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9707-9804	●			●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9805-9904	●	●		●
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0102-	●	●	●		●
100	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	0102-	●	●	●		●
100	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (B) ID=11 L=30	1-09700-511-0	01	1	0102-		●	●
100	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (C) L=140	5-09707-031-1	01	1	0102-		●	●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN> (A)	1-80210-004-0	01	1	9610-9706	●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN> (A)	1-80210-004-0	01	1	9707-9904	●
260	SENSOR; WATER TEMP SHORT CHASSIS&RHD(EXZ5MC) (A)	1-80210-004-0	01	1	9707-9904				●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	9905-		●	●
260	SENSOR; WATER TEMP (B)	1-83161-038-0	01	1	0102-	●	●	●		●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9603-9706	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9707-9804	●			●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9805-9904	●	●		●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9905-	●	●	●		●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9603-9606	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9707-9804	●			●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9805-9904	●	●		●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	05	1	9610-9706	●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	05	1	9707-9710	●
416	SLEEVE; RUBBER SHORT CHASSIS&RHD(EXZ5MC) ID=10 OD=14 L=30	9-09956-682-0	05	1	9707-9710				●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	06	1	9711-9904	●
416	SLEEVE; RUBBER SHORT CHASSIS&RHD(EXZ5MC) ID=10 OD=14 L=30	9-09956-682-0	06	1	9711-9904				●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	9603-9804	●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	9805-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9805-9904		●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	06	1	9905-		●	●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0102-	●	●	●		●
416	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9707-9904				●
416	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-			●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9905-	●				●
788	HARNESS; EXT,WATER TEMP SENSOR ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0102-		●	●

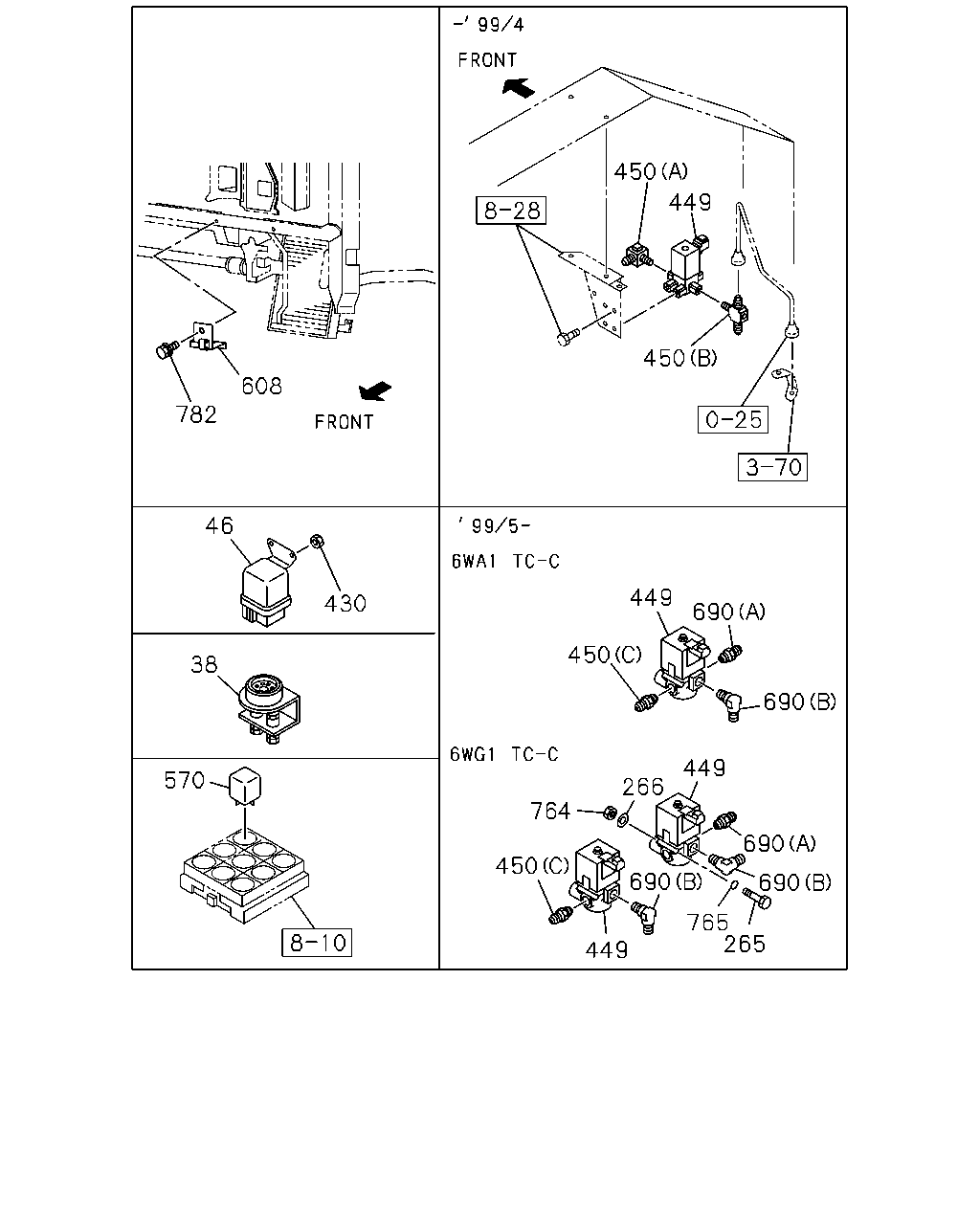

450 449 450 608 782 46 449 430 690 450 38 690 449 570 266 690 764 690 450 690 765 265 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	RESISTOR; CONT,GLOW PLUG SHORT CHASSIS&LHD(EXZ6MC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	9603-9904	●
38	RESISTOR; CONT,GLOW PLUG SHORT CHASSIS&LHD(EXZ6MC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	9905-		●			●
46	RELAY; GLOW PLUG SHORT CHASSIS&LHD(EXZ6MC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	9603-9904	●
46	RELAY; GLOW PLUG SHORT CHASSIS&LHD(EXZ6MC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	9905-		●			●
265	BOLT; MAG VLV FIX SHORT CHASSIS&RHD(EXZ5MC) M6X50 FLANGE	0-28080-650-0	01	1	9905-			●
266	WASHER; PL,MAG VLV FIX SHORT CHASSIS&RHD(EXZ5MC)	1-82569-266-0	02	1	9905-			●
430	NUT; RELAY FIX SHORT CHASSIS&LHD(EXZ6MC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	9603-9904	●
430	NUT; RELAY FIX SHORT CHASSIS&LHD(EXZ6MC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	9905-		●			●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM EURO2 SPECIFICATION<THN>	1-82563-598-2	01	1	9610-9706	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM EURO2 SPECIFICATION<THN>	1-82563-598-3	01	1	9707-9904	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM SHORT CHASSIS&RHD(EXZ5MC)	1-82563-598-3	01	1	9707-9904				●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM	1-82563-871-2	01	1	9905-		●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM SHORT CHASSIS&RHD(EXZ5MC)	1-82563-871-2	02	1	9905-			●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9610-9706	●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9707-9904	●
450	CONNECTOR; MAG VLV,INL PORT SHORT CHASSIS&RHD(EXZ5MC) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9707-9904				●
450	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-		●
450	CONNECTOR; MAG VLV,INL PORT SHORT CHASSIS&RHD(EXZ5MC) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-			●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9610-9706	●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9707-9904	●
450	CONNECTOR; MAG VLV,INL PORT SHORT CHASSIS&RHD(EXZ5MC) (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9707-9904				●
570	RELAY; EXH SHUTTER ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	0001-		●	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN>	1-83544-022-3	01	1	9610-9610	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN>	1-83544-031-0	01	1	9611-9904	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	1-83544-031-0	01	1	9905-		●	●
690	CONNECTOR (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-		●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-		●
690	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-			●
690	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-			●
764	NUT; MAG VLV SHORT CHASSIS&RHD(EXZ5MC) M6 FLANGE	0-91150-106-0	01	1	9905-			●
765	GASKET; MAG VLV SHORT CHASSIS&RHD(EXZ5MC) ID=16.8	9-09565-117-0	01	1	9905-			●
782	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9612-9904	●
782	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-		●	●

620 580 435 792 601 601 602 601 630 621 613 826 487 606 298 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9610-9904	●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9905-		●
205	SCREW; BRKT ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9905-			●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9610-9904	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-		●
298	GROMMET; SCREW ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-			●
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	9607-9904	●	●		●
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	9905-	●	●	●		●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	9610-9904	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	9905-		●
487	NUT ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91150-106-0	04	1	9905-			●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-102-3	01	1	9607-9904	●	●		●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-102-3	01	1	9905-	●	●	●		●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	9607-9904	●	●		●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	9905-	●	●	●		●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9607-9904	●	●		●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●		●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (C)	1-75558-534-5	01	1	9610-9904	●
606	BRACKET; CONT UNIT (C)	1-75558-534-9	01	1	9905-		●
606	BRACKET; CONT UNIT ELECTRONIC GOV RED3(KG5) (C)	1-75558-534-9	01	1	9905-			●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-099-3	01	1	9607-9707	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (E)	1-72537-195-2	01	1	9708-9904	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (E)	1-72537-195-2	01	1	9905-	●	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-112-5	01	1	9607-9611	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-171-0	01	1	9612-9707	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (D)	1-72537-197-1	01	1	9708-9812	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (D)	1-72537-205-0	01	1	9901-9904	●	●		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (D)	1-72537-205-2	01	1	9905-	●	●	●		●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-098-0	01	1	9610-9612	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-130-0	01	1	9701-9704	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-200-0	01	1	9705-9810	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-402-0	01	1	9811-9904	●
613	CONTROL UNIT; ENG ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T)	1-80110-402-0	01	1	9905-		●
613	CONTROL UNIT; ENG SHORT CHASSIS&RHD(EXZ5MC)	1-80110-227-0	01	1	9707-9810				●
613	CONTROL UNIT; ENG SHORT CHASSIS&RHD(EXZ5MC)	1-80110-403-0	01	1	9811-9904				●
613	CONTROL UNIT; ENG SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-80110-439-0	01	1	9905-			●
613	CONTROL UNIT; ENG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-80110-480-0	01	1	9905-9912		●
613	CONTROL UNIT; ENG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) INJ PUMP Q SET STD(T1B)	1-80110-480-0	01	1	0001-		●
613	CONTROL UNIT; ENG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-80110-666-0	01	1	0001-		●
613	CONTROL UNIT; ENG RLD GOVERNOR(SD7)	1-80110-440-0	01	1	9905-		●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9603-9706	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9905-	●	●	●		●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9707-9804	●			●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9805-9904	●	●		●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	9607-9904	●	●		●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	9905-	●	●	●		●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9607-9904	●	●		●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●		●
792	FASTENER CENTER SEAT DELETE(SP9)	1-09987-245-1	04	1	9607-9904	●	●		●
792	FASTENER CENTER SEAT DELETE(SP9)	1-09987-245-1	04	1	9905-	●	●	●		●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	9610-9904	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9905-		●
826	SEAL; NOISE INSULATION ELECTRONIC GOV RED3(KG5) 30X30	8-97866-626-0	03	1	9905-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
