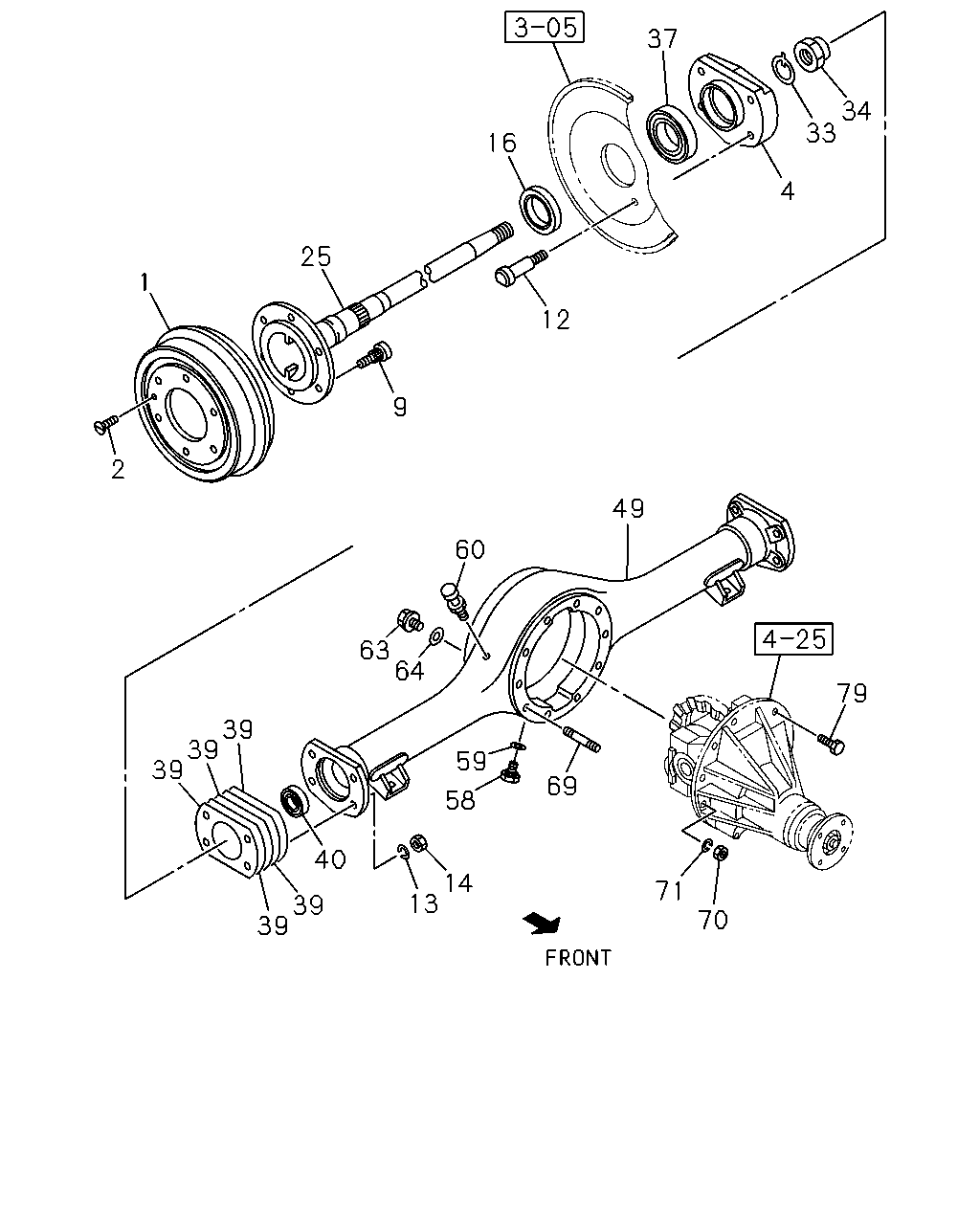

1 |
DRUM; BRK,RR
IDN
|
8-97956-672-0 |
02 |
1 |
0103- |
| |
2 |
BOLT; BRK DRUM
M6X16 CK-HEAD
|
9-03090-616-0 |
02 |
1 |
0103- |
| |
4 |
HOLDER; BRG,AXLE SHAFT
|
8-94223-079-4 |
02 |
1 |
0103- |
| |
9 |
PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
|
8-97213-870-0 |
12 |
1 |
0103- |
| |
12 |
BOLT; BRG HOLDER TO CASE
M12X72
|
8-94477-674-2 |
04 |
1 |
0103- |
| |
12 |
BOLT; BRG HOLDER TO CASE
M12X69 REAMER
|
9-42119-603-2 |
04 |
1 |
0103- |
| |
13 |
WASHER; LK,BRG HOLDER TO CASE
ID=12.2
|
9-09150-512-0 |
08 |
1 |
0103-0603 |
| |
13 |
WASHER; LK,BRG HOLDER TO CASE
ID=12.2
|
0-91510-512-0 |
08 |
1 |
0604- |
| |
14 |
NUT; BRG HOLDER TO CASE
M12
|
9-99110-412-0 |
08 |
1 |
0103-0512 |
| |
14 |
NUT; BRG HOLDER TO CASE
M12
|
0-91110-512-0 |
08 |
1 |
0601- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
ID=47 OD=70
|
8-94318-909-0 |
02 |
1 |
0103- |
| |
25 |
SHAFT; AXLE,RR
THA
|
8-97942-194-0 |
02 |
1 |
0103- |
| |
33 |
WASHER; AXLE SHAFT
|
8-97086-473-0 |
02 |
1 |
0103- |
| |
34 |
NUT; AXLE SHAFT
|
8-94177-815-0 |
02 |
1 |
0103- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
PHI
|
9-00093-627-2 |
02 |
1 |
0103- |
| |
39 |
SHIM; BRG HOLDER
T=1.000
|
8-94469-775-0 |
AR |
1 |
0103- |
| |
39 |
SHIM; BRG HOLDER
T=0.500
|
8-94469-776-0 |
AR |
1 |
0103- |
| |
39 |
SHIM; BRG HOLDER
T=0.130
|
8-94469-777-0 |
AR |
1 |
0103- |
| |
39 |
SHIM; BRG HOLDER
T=0.076
|
8-94469-778-0 |
AR |
1 |
0103- |
| |
39 |
SHIM; BRG HOLDER
T=0.050
|
8-94469-779-0 |
AR |
1 |
0103- |
| |
40 |
SEAL; OIL,REAR AXLE
|
8-94318-910-0 |
02 |
1 |
0103- |
| |
49 |
CASE; RR AXLE
IDN
|
8-97958-930-2 |
01 |
1 |
0103- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0103- |
| |
59 |
GASKET; DRAIN PLUG
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0103- |
| |
60 |
BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0103-0409 |
| |
60 |
BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0410-0606 |
| |
60 |
BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0103- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0103- |
| |
69 |
STUD; AXLE CASE
M8X25 L=36
|
5-09300-037-0 |
02 |
1 |
0103- |
| |
70 |
NUT; CARRIER
M8
|
5-09400-020-0 |
02 |
1 |
0103- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=8.2
|
9-09150-808-0 |
02 |
1 |
0103-0603 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=8.2
|
0-91510-808-0 |
02 |
1 |
0604- |
| |
79 |
BOLT; COVER TO CASE
A/T AISIN(RMD)
FINAL GEAR RATIO 41/8(RU1)
M8X25 W/LK WASHER
|
8-98022-410-0 |
04 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(S7C)
M8X25 W/LK WASHER
|
8-98022-410-0 |
04 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
A/T AISIN(RMD)
FINAL GEAR RATIO 41/8(RU1)
M8X30 W/LK WASHER
|
8-98022-411-0 |
02 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(S7C)
M8X30 W/LK WASHER
|
8-98022-411-0 |
02 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
A/T AISIN(RMD)
FINAL GEAR RATIO 41/8(RU1)
M8X90 W/LK WASHER
|
8-98022-412-0 |
02 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(S7C)
M8X90 W/LK WASHER
|
8-98022-412-0 |
02 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
M8X25 W/LK WASHER
|
8-97093-664-1 |
04 |
1 |
0103-0605 |
| |
79 |
BOLT; COVER TO CASE
A/T AISIN(RMD)
FINAL GEAR RATIO 43/9(S2J)
M8X25 W/LK WASHER
|
8-97093-664-1 |
04 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
M8X30 W/LK WASHER
|
8-97093-665-1 |
02 |
1 |
0103-0605 |
| |
79 |
BOLT; COVER TO CASE
A/T AISIN(RMD)
FINAL GEAR RATIO 43/9(S2J)
M8X30 W/LK WASHER
|
8-97093-665-1 |
02 |
1 |
0606- |
| |
79 |
BOLT; COVER TO CASE
M8X90 W/LK WASHER
|
8-97093-666-1 |
02 |
1 |
0103-0605 |
| |
79 |
BOLT; COVER TO CASE
A/T AISIN(RMD)
FINAL GEAR RATIO 43/9(S2J)
M8X90 W/LK WASHER
|
8-97093-666-1 |
02 |
1 |
0606- |
