4-36 — POWER STEERING CONTROL; ENGINE SIDE (#47113) — 132 parça

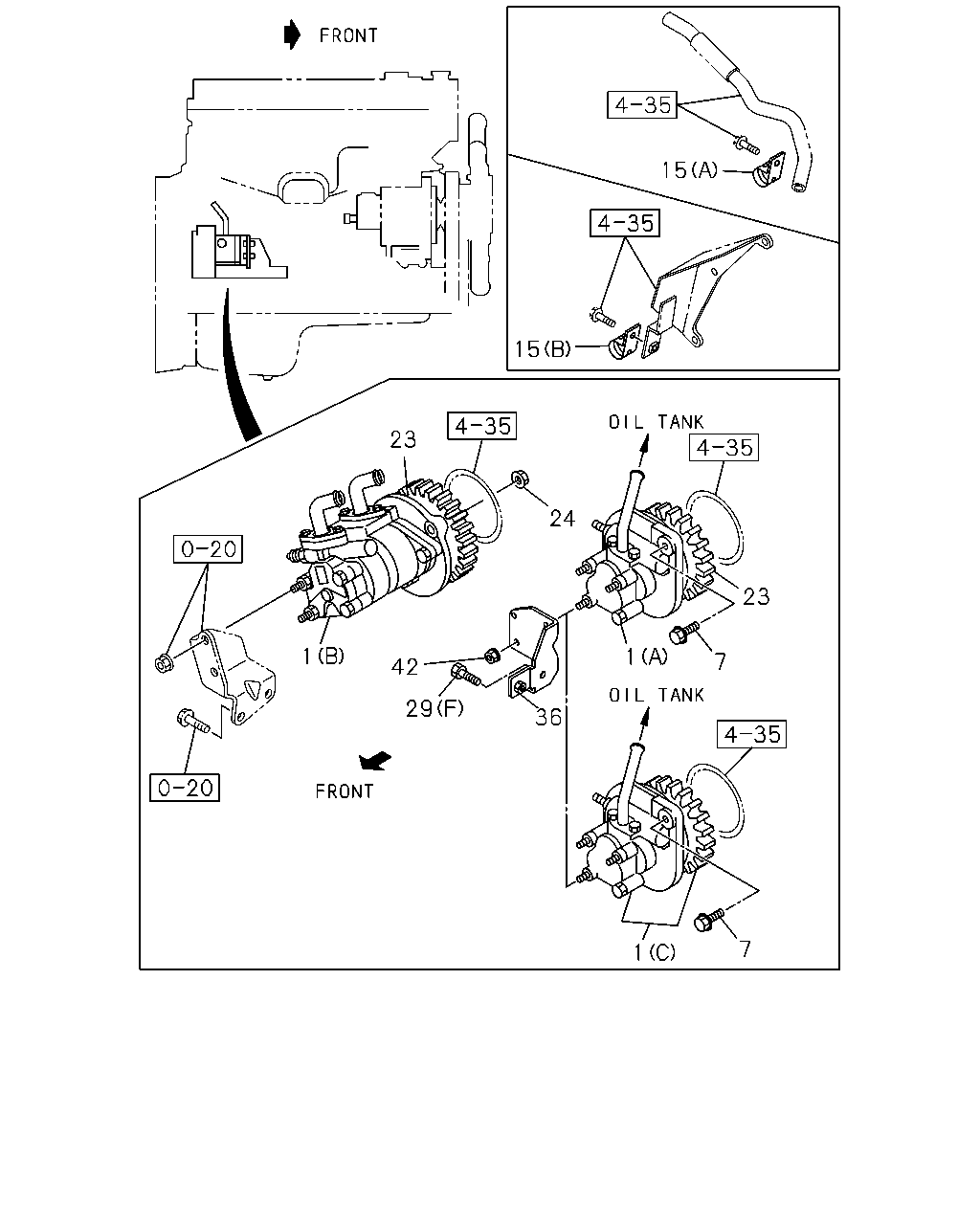

çizim 12211
15 15 23 24 23 1 1 7 42 29 36 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97136-574-1 01 1 0302-0304 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97357-213-0 01 1 0305-0409 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-0 01 1 0410-0506 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-0 01 1 0507-0606 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-98041-669-2 01 1 0607- ● ●
1 06.605 PUMP ASM; OIL,P/S
4JH1 ENG(RJX) (D) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0506 ●
1 06.605 PUMP ASM; OIL,P/S
4JH1-TC ENG(RDM) (D) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0507-0606 ● ●
1 06.605 PUMP ASM; OIL,P/S
4JJ1 ENG(LFB) (E) 		8-98006-825-3 01 1 0607- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-0 01 1 0302-0506 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-1 01 1 0507-0606 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0607- ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0607- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HE1 ENG(RLY) 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0302-0506 ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0507-0606 ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCC ENG(RDV) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 0607- ● ● ● ●
15 06.672 CLIP; OIL PIPE SUCTION
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.762 (A) ID=26 L=26 		1-09701-236-0 01 1 0607- ● ●
15 06.672 CLIP; OIL PIPE SUCTION
4HK1-TCC ENG(RDV) 01.762 (A) ID=26 L=26 		1-09701-236-0 01 1 0607- ● ●
15 06.672 CLIP; OIL PIPE SUCTION
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=32 L=35 		1-09701-244-0 01 1 0607- ● ●
15 06.672 CLIP; OIL PIPE SUCTION
4HK1-TCC ENG(RDV) 02.559 (B) ID=32 L=35 		1-09701-244-0 01 1 0607- ● ●
23 06.660 GEAR; OIL PUMP
4HE1 ENG(RLY) 		8-97114-550-0 01 1 0302-0304 ● ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-1 01 1 0305-0506 ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-1 01 1 0507-0606 ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-1 01 1 0607- ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCC ENG(RDV) 		8-97114-550-1 01 1 0607- ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0302-0506 ● ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0507-0602 ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 05.816 M12 FLANGE 		0-91180-212-0 01 1 0603-0606 ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 05.816 M12 FLANGE 		0-91180-212-0 01 1 0607- ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCC ENG(RDV) 05.816 M12 FLANGE 		0-91180-212-0 01 1 0607- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0302-0506 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0507-0512 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0601-0606 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0607- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601-0606 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0302-0506 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0507-0606 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0607- ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ●
42 06.672 NUT; ADJ PLATE
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●

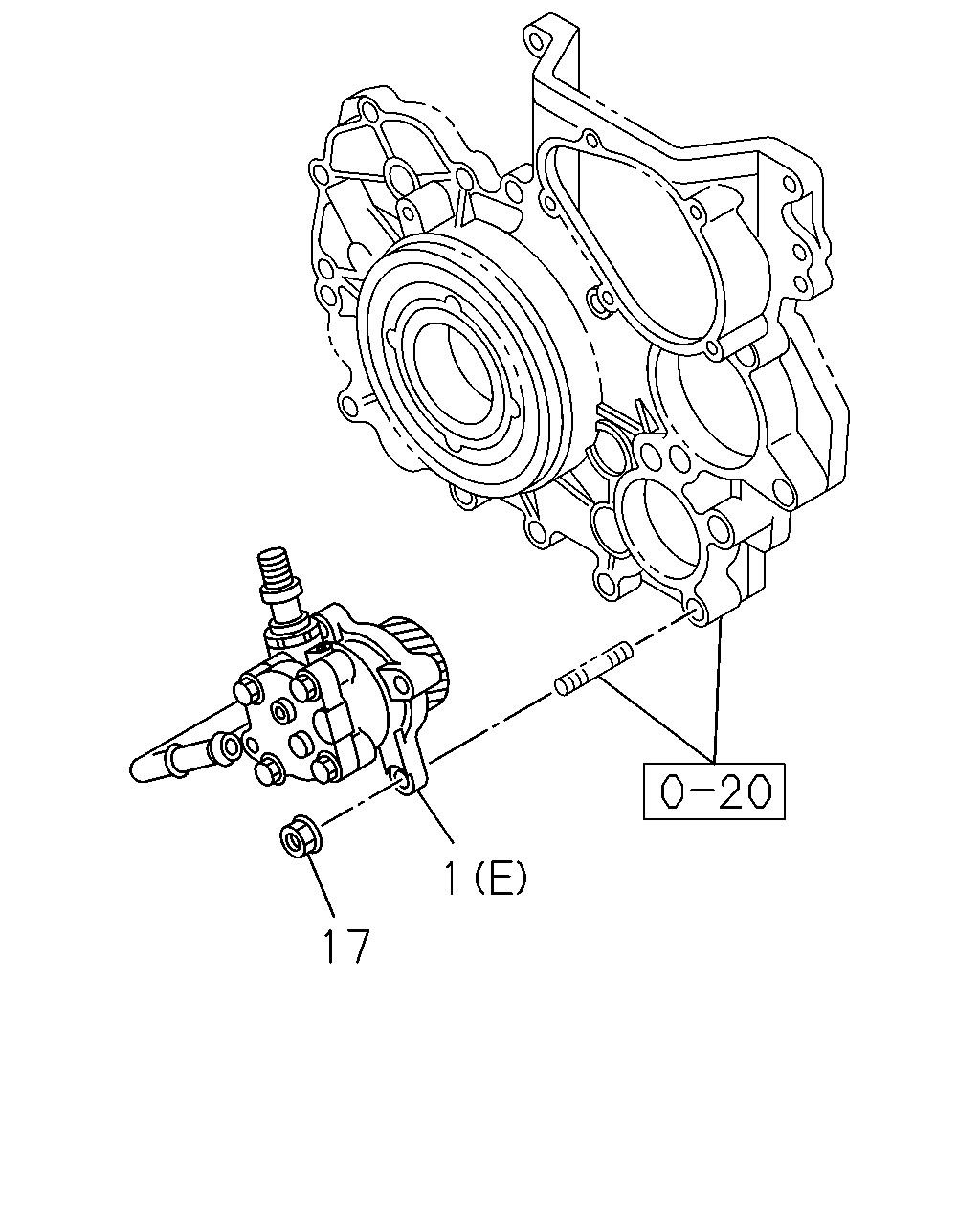

çizim 14166
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97136-574-1 01 1 0302-0304 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97357-213-0 01 1 0305-0409 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-0 01 1 0410-0506 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-0 01 1 0507-0606 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-98041-669-2 01 1 0607- ● ●
1 06.605 PUMP ASM; OIL,P/S
4JH1 ENG(RJX) (D) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0506 ●
1 06.605 PUMP ASM; OIL,P/S
4JH1-TC ENG(RDM) (D) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0507-0606 ● ●
1 06.605 PUMP ASM; OIL,P/S
4JJ1 ENG(LFB) (E) 		8-98006-825-3 01 1 0607- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-0 01 1 0302-0506 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-1 01 1 0507-0606 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0607- ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0607- ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1 ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0607- ● ● ● ●

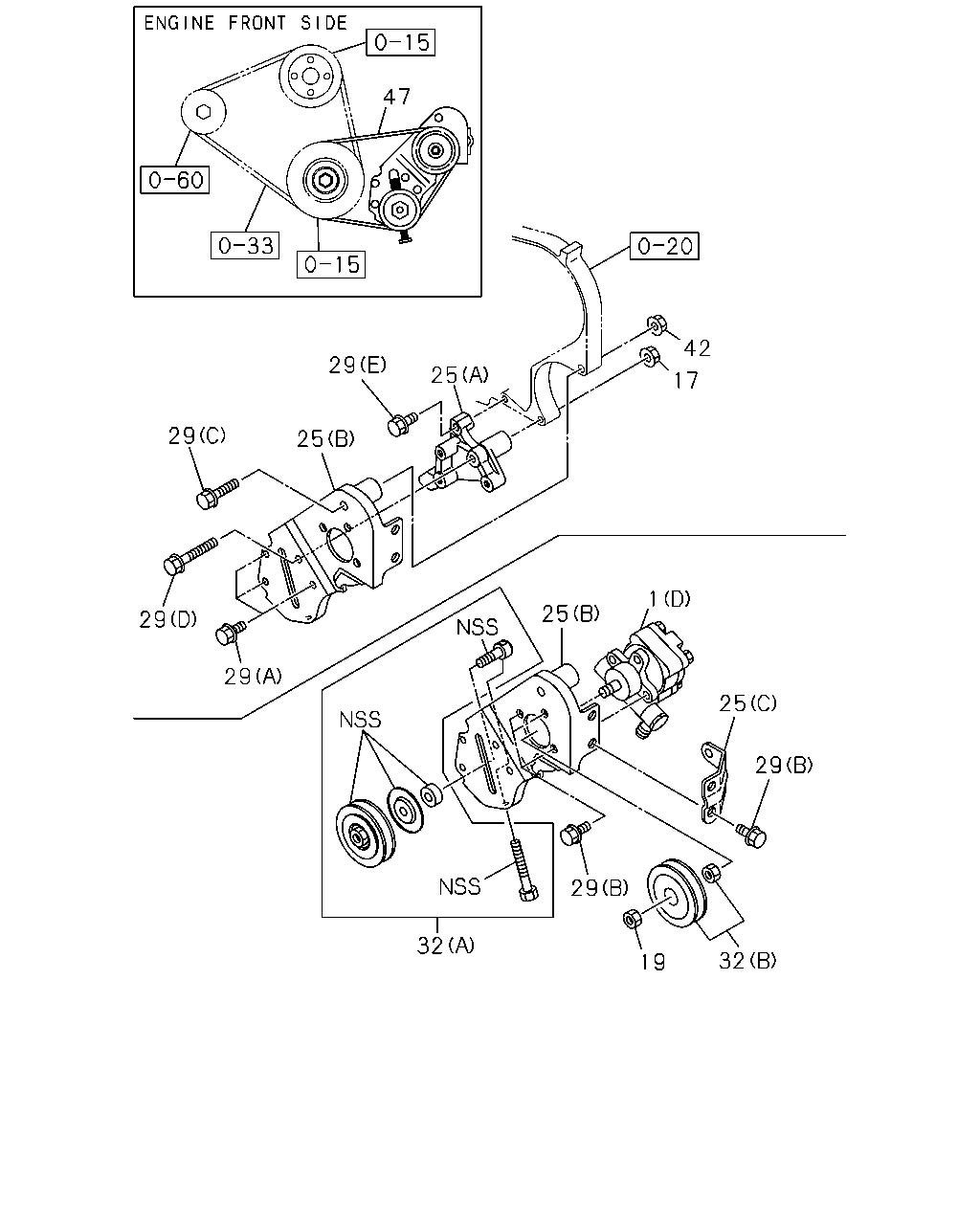

çizim 54291
47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97136-574-1 01 1 0302-0304 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97357-213-0 01 1 0305-0409 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-0 01 1 0410-0506 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-0 01 1 0507-0606 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) SEE FIG-NO 4-42 FOR COMPONENT. 		8-98041-669-2 01 1 0607- ● ●
1 06.605 PUMP ASM; OIL,P/S
4JH1 ENG(RJX) (D) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0506 ●
1 06.605 PUMP ASM; OIL,P/S
4JH1-TC ENG(RDM) (D) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0507-0606 ● ●
1 06.605 PUMP ASM; OIL,P/S
4JJ1 ENG(LFB) (E) 		8-98006-825-3 01 1 0607- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-0 01 1 0302-0506 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-1 01 1 0507-0606 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0607- ● ●
1 06.605 PUMP ASM; OIL,P/S
4HK1-TCC ENG(RDV) (B) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0607- ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1 ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0607- ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1 ENG(RJX) 06.606 M12 		8-94139-015-0 01 1 0302-0506 ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1-TC ENG(RDM) 06.606 M12 		8-94139-015-0 01 1 0507-0606 ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (B) 		8-97065-974-0 01 1 0302-0506 ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) (B) 		8-97065-974-0 01 1 0507-0606 ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (A) 		8-97107-869-0 01 1 0302-0506 ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) (A) 		8-97107-869-0 01 1 0507-0606 ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (C) 		8-97107-872-0 01 1 0302-0506 ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) (C) 		8-97107-872-0 01 1 0507-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0302-0506 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0507-0512 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0601-0606 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0607- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0606 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0302-0506 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0507-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601-0606 ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX) 06.655 (A) 		8-94128-866-0 01 1 0302-0506 ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) 06.655 (A) 		8-94128-866-0 01 1 0507-0606 ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX) (B) 		8-97084-332-2 01 1 0302-0506 ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) (B) 		8-97084-332-2 01 1 0507-0606 ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ●
42 06.672 NUT; ADJ PLATE
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1 ENG(RJX) 		8-97085-131-0 01 1 0302-0506 ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM) 		8-97085-131-0 01 1 0507-0606 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
